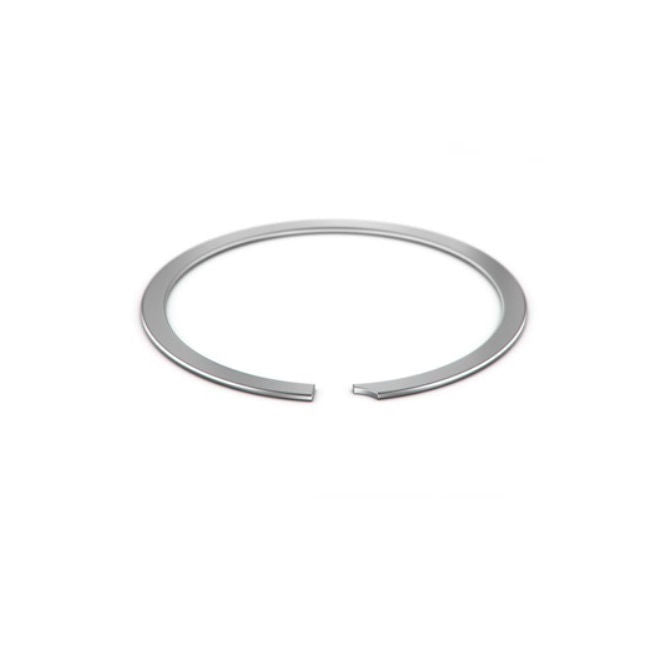

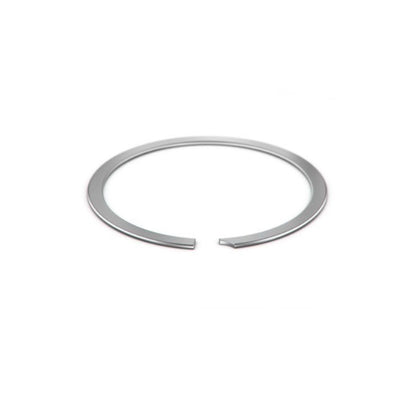

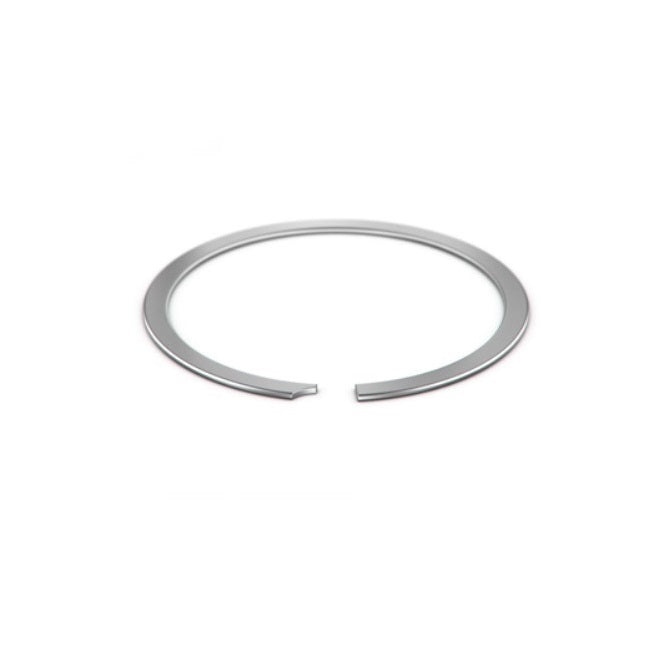

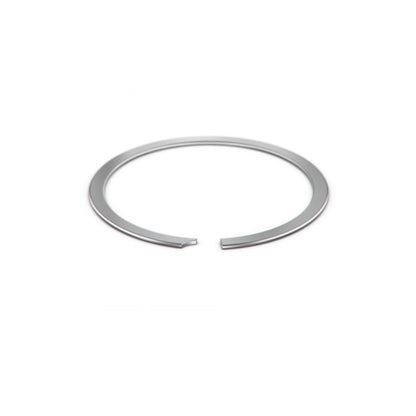

Internal Retaining Rings - 50.8x0.79x52.25 mm - Spring Steel

UR-200 (2 Pcs)

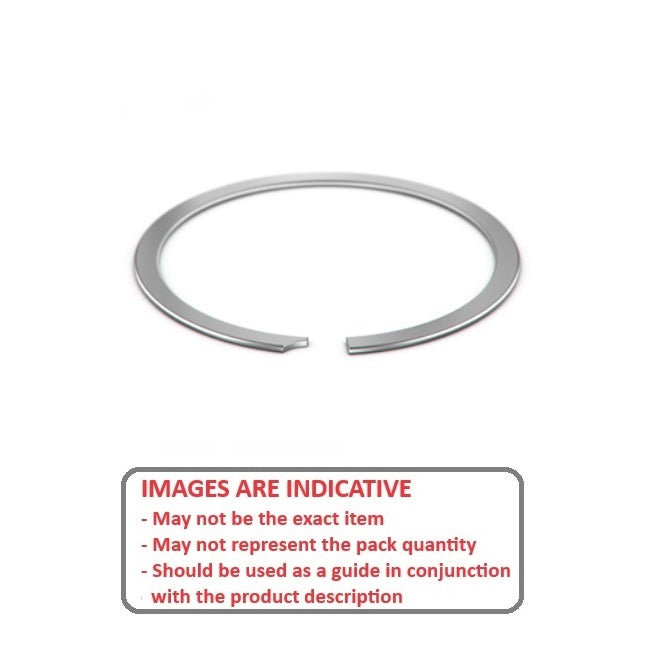

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Additional resources:
Spiral Rings and Snap Rings PDF
Price:
$5.14 AUD
$6.16 AUD $5.14 AUD
per 2
Qty: 496 available now (992 pcs)
Order 50 or more (100 pcs) for $4.63 AUD per 2
Only 496 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel

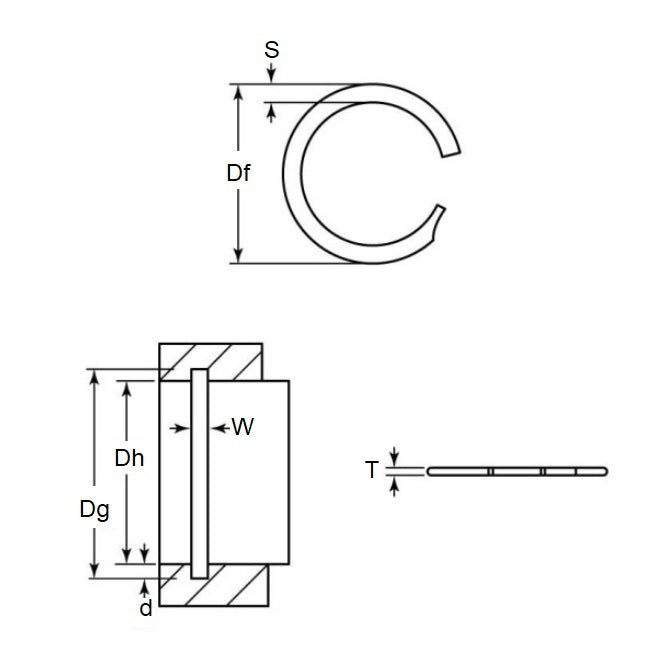

Product Details:

Housing Bore (B): 50.80mm
Spring Steel
  • Clip Thickness (T): 0.79mm
    +/- 0.05
  • Groove Dia. (Dg): 52.25mm
  • Approx. Loose Circlip OD (Dr): 53.24mm
    + 0.51 / - 0.00
  • Radial Wall (S): 3.00mm
    + 0.08 / - 0.13
  • Groove Width (W): 1.00mm
    +/- 0.13
  • Approx. Loose Clip ID: 47.24
    + 0.07 / - 0.00
  • Groove Depth (d): 0.74

Brand: MBA
Country of Origin: US

Alternative Parts Include: 91663A660, VH200, UR200, UR-200, VH-200, CI200, CI-200, ALTPART, Associated Spring, Smalley, Spirolox

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
