Yoke Ends

9 Products in this selection
Combined category including sub-categories of yoke ends. These include threaded, and blank.
Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found on the MBA Minibearings main store at Yoke Ends.
Effective Length (A) Hub Diameter (B) Gap (E) +/- 0.38 Width (F) +/- 0.38 Hole Size (G) +0.25 Stud Height (L) Indicative
Effective Length (A)
50.800
mm
Hub Diameter (B)
11.110
mm
Gap (E) +/- 0.38
7.140
mm
Width (F) +/- 0.38
15.88
mm
Hole Size (G) +0.25
6.35
mm
Stud Height (L)
19
mm
Threaded Yoke Ends - 50.8x11.11x7.14 mm
Material: Steel    Housing Diameter (K): 13 mm
Category:
Part Number: YE-2RS (Each) Threaded Yoke Ends - 50.8x11.11x7.14 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Jul 23, 2026
$26.77 AUD
$26.77 AUD
Each
Effective Length (A) Hub Diameter (B) Gap (E) +/- 0.38 Width (F) +/- 0.38 Indicative
Effective Length (A)
50.800
mm
Hub Diameter (B)
11.110
mm
Gap (E) +/- 0.38
7.140
mm
Width (F) +/- 0.38
15.88
mm
Threaded Yoke Ends - 50.8x11.11x7.14 mm
Material: Steel    Hole Size (G) +0.25: 6.35 mm    Stud Height (L): 19 mm    Housing Diameter (K): 13 mm
Category:
Part Number: YE-2RS (Each) Threaded Yoke Ends - 50.8x11.11x7.14 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Jul 23, 2026
$26.77 AUD
$26.77 AUD
Each
View the product page first if you are unsure.
Effective Length (A)
50.800
mm
Hub Diameter (B)
7.940
mm
Gap (E) +/- 0.38
8.730
mm
Width (F) +/- 0.38
8.73
mm
Hole Size (G) +0.25
7.94
mm
Stud Height (L)
27
mm

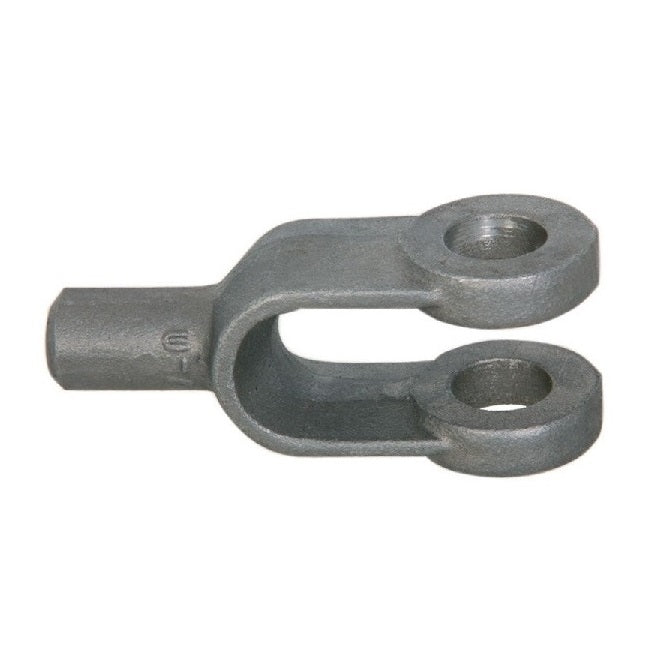

Blank Yoke Ends - 50.8x7.94x8.73 mm
Material: Steel    Housing Diameter (K): 15 mm
Category:
Part Number: YE-13RS (Each) Blank Yoke Ends - 50.8x7.94x8.73 mm - Steel
2 Available Now | Further orders can be expected around Thu, Jul 23, 2026
$32.59 AUD
$32.59 AUD
Each
Effective Length (A)
50.800
mm
Hub Diameter (B)
7.940
mm
Gap (E) +/- 0.38
8.730
mm
Width (F) +/- 0.38
8.73
mm
Blank Yoke Ends - 50.8x7.94x8.73 mm
Material: Steel    Hole Size (G) +0.25: 7.94 mm    Stud Height (L): 27 mm    Housing Diameter (K): 15 mm
Category:
Part Number: YE-13RS (Each) Blank Yoke Ends - 50.8x7.94x8.73 mm - Steel
2 Available Now | Further orders can be expected around Thu, Jul 23, 2026
$32.59 AUD
$32.59 AUD
Each
View the product page first if you are unsure.
Effective Length (A)
57.150
mm
Hub Diameter (B)
12.700
mm
Gap (E) +/- 0.38
8.730
mm
Width (F) +/- 0.38
19.05
mm
Hole Size (G) +0.25
7.94
mm
Stud Height (L)
21
mm
Threaded Yoke Ends - 57.15x12.7x8.73 mm
Material: Steel    Housing Diameter (K): 15 mm
Category:
Part Number: YE-3RS (Each) Threaded Yoke Ends - 57.15x12.7x8.73 mm - Steel
4 Available Now | Further orders can be expected around Thu, Jul 23, 2026
$19.23 AUD
$36.19 AUD $19.23 AUD
Each
Effective Length (A)
57.150
mm
Hub Diameter (B)
12.700
mm
Gap (E) +/- 0.38
8.730
mm
Width (F) +/- 0.38
19.05
mm
Threaded Yoke Ends - 57.15x12.7x8.73 mm
Material: Steel    Hole Size (G) +0.25: 7.94 mm    Stud Height (L): 21 mm    Housing Diameter (K): 15 mm
Category:
Part Number: YE-3RS (Each) Threaded Yoke Ends - 57.15x12.7x8.73 mm - Steel
4 Available Now | Further orders can be expected around Thu, Jul 23, 2026
$19.23 AUD
$36.19 AUD $19.23 AUD
Each
View the product page first if you are unsure.
Effective Length (A)
63.500
mm
Hub Diameter (B)
15.880
mm
Gap (E) +/- 0.38
11.110
mm
Width (F) +/- 0.38
22.23
mm
Hole Size (G) +0.25
9.53
mm
Stud Height (L)
22
mm
Threaded Yoke Ends - 63.5x15.88x11.11 mm
Material: Steel    Housing Diameter (K): 17 mm
Category:
Part Number: YE-4RS (Each) Threaded Yoke Ends - 63.5x15.88x11.11 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Jul 23, 2026
$33.50 AUD
$33.50 AUD
Each
Effective Length (A)
63.500
mm
Hub Diameter (B)
15.880
mm
Gap (E) +/- 0.38
11.110
mm
Width (F) +/- 0.38
22.23
mm
Threaded Yoke Ends - 63.5x15.88x11.11 mm
Material: Steel    Hole Size (G) +0.25: 9.53 mm    Stud Height (L): 22 mm    Housing Diameter (K): 17 mm
Category:
Part Number: YE-4RS (Each) Threaded Yoke Ends - 63.5x15.88x11.11 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Jul 23, 2026
$33.50 AUD
$33.50 AUD
Each
View the product page first if you are unsure.
Effective Length (A)
76.200
mm
Hub Diameter (B)
20.640
mm
Gap (E) +/- 0.38
14.290
mm
Width (F) +/- 0.38
28.58
mm
Hole Size (G) +0.25
12.70
mm
Stud Height (L)
29
mm
Threaded Yoke Ends - 76.2x20.64x14.29 mm
Material: Steel    Housing Diameter (K): 24 mm
Category:
Part Number: YE-6RS (Each) Threaded Yoke Ends - 76.2x20.64x14.29 mm - Steel
2 Available Now | Further orders can be expected around Thu, Jul 23, 2026
$57.05 AUD
$57.05 AUD
Each
Effective Length (A)
76.200
mm
Hub Diameter (B)
20.640
mm
Gap (E) +/- 0.38
14.290
mm
Width (F) +/- 0.38
28.58
mm
Threaded Yoke Ends - 76.2x20.64x14.29 mm
Material: Steel    Hole Size (G) +0.25: 12.70 mm    Stud Height (L): 29 mm    Housing Diameter (K): 24 mm
Category:
Part Number: YE-6RS (Each) Threaded Yoke Ends - 76.2x20.64x14.29 mm - Steel
2 Available Now | Further orders can be expected around Thu, Jul 23, 2026
$57.05 AUD
$57.05 AUD
Each
View the product page first if you are unsure.
Effective Length (A)
101.600
mm
Hub Diameter (B)
28.580
mm
Gap (E) +/- 0.38
17.460
mm
Width (F) +/- 0.38
38.10
mm
Hole Size (G) +0.25
15.88
mm
Stud Height (L)
32
mm
Threaded Yoke Ends - 101.6x28.58x17.46 mm
Material: Steel    Housing Diameter (K): 35 mm
Category:
Part Number: YE-8SPRS (Each) Threaded Yoke Ends - 101.6x28.58x17.46 mm - Steel
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$45.56 AUD
$101.72 AUD $45.56 AUD
Each
Effective Length (A)
101.600
mm
Hub Diameter (B)
28.580
mm
Gap (E) +/- 0.38
17.460
mm
Width (F) +/- 0.38
38.10
mm
Threaded Yoke Ends - 101.6x28.58x17.46 mm
Material: Steel    Hole Size (G) +0.25: 15.88 mm    Stud Height (L): 32 mm    Housing Diameter (K): 35 mm
Category:
Part Number: YE-8SPRS (Each) Threaded Yoke Ends - 101.6x28.58x17.46 mm - Steel
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$45.56 AUD
$101.72 AUD $45.56 AUD
Each
Effective Length (A)
152.400
mm
Hub Diameter (B)
25.400
mm
Gap (E) +/- 0.38
26.990
mm
Width (F) +/- 0.38
26.99
mm
Hole Size (G) +0.25
25.40
mm
Stud Height (L)
76
mm
Blank Yoke Ends - 152.4x25.4x26.99 mm
Material: Steel    Housing Diameter (K): 49 mm
Category:
Part Number: YE-20RS (Each) Blank Yoke Ends - 152.4x25.4x26.99 mm - Steel
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$58.24 AUD
$183.66 AUD $58.24 AUD
Each
Effective Length (A)
152.400
mm
Hub Diameter (B)
25.400
mm
Gap (E) +/- 0.38
26.990
mm
Width (F) +/- 0.38
26.99
mm
Blank Yoke Ends - 152.4x25.4x26.99 mm
Material: Steel    Hole Size (G) +0.25: 25.40 mm    Stud Height (L): 76 mm    Housing Diameter (K): 49 mm
Category:
Part Number: YE-20RS (Each) Blank Yoke Ends - 152.4x25.4x26.99 mm - Steel
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$58.24 AUD
$183.66 AUD $58.24 AUD
Each
Effective Length (A)
153.99
mm
Hub Diameter (B)
31.75
mm
Gap (E) +/- 0.38
20.64
mm
Width (F) +/- 0.38
41.28
mm
Hole Size (G) +0.25
19.05
mm
Stud Height (L)
38.10
mm
Threaded Yoke Ends - 153.99x31.75x20.64 mm
Material: Steel    Housing Diameter (K): 36.51 mm
Category:
Part Number: YE-8RS (Each) Threaded Yoke Ends - 153.99x31.75x20.64 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Jul 23, 2026
$234.77 AUD
$234.77 AUD
Each
Effective Length (A)
153.99
mm
Hub Diameter (B)
31.75
mm
Gap (E) +/- 0.38
20.64
mm
Width (F) +/- 0.38
41.28
mm
Threaded Yoke Ends - 153.99x31.75x20.64 mm
Material: Steel    Hole Size (G) +0.25: 19.05 mm    Stud Height (L): 38.10 mm    Housing Diameter (K): 36.51 mm
Category:
Part Number: YE-8RS (Each) Threaded Yoke Ends - 153.99x31.75x20.64 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Jul 23, 2026
$234.77 AUD
$234.77 AUD
Each
View the product page first if you are unsure.
Effective Length (A)
165.100
mm
Hub Diameter (B)
12.700
mm
Gap (E) +/- 0.38
14.290
mm
Width (F) +/- 0.38
14.29
mm
Hole Size (G) +0.25
12.70
mm
Stud Height (L)
127
mm
Blank Yoke Ends - 165.1x12.7x14.29 mm
Material: Steel    Housing Diameter (K): 24 mm
Category:
Part Number: YE-16ARS (Each) Blank Yoke Ends - 165.1x12.7x14.29 mm - Steel
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$19.69 AUD
$53.99 AUD $19.69 AUD
Each
Effective Length (A)
165.100
mm
Hub Diameter (B)
12.700
mm
Gap (E) +/- 0.38
14.290
mm
Width (F) +/- 0.38
14.29
mm
Blank Yoke Ends - 165.1x12.7x14.29 mm
Material: Steel    Hole Size (G) +0.25: 12.70 mm    Stud Height (L): 127 mm    Housing Diameter (K): 24 mm
Category:
Part Number: YE-16ARS (Each) Blank Yoke Ends - 165.1x12.7x14.29 mm - Steel
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$19.69 AUD
$53.99 AUD $19.69 AUD
Each
