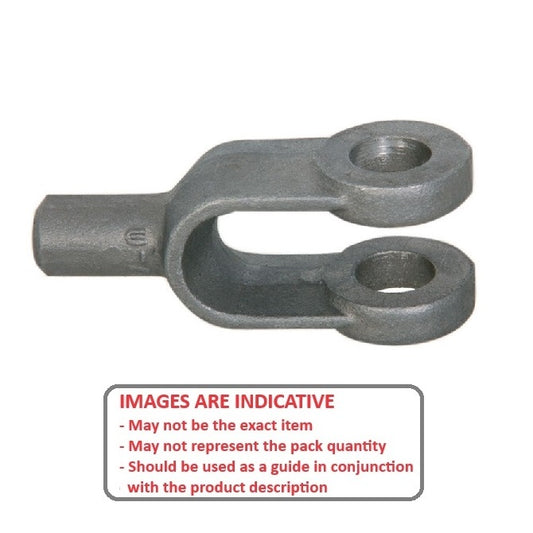

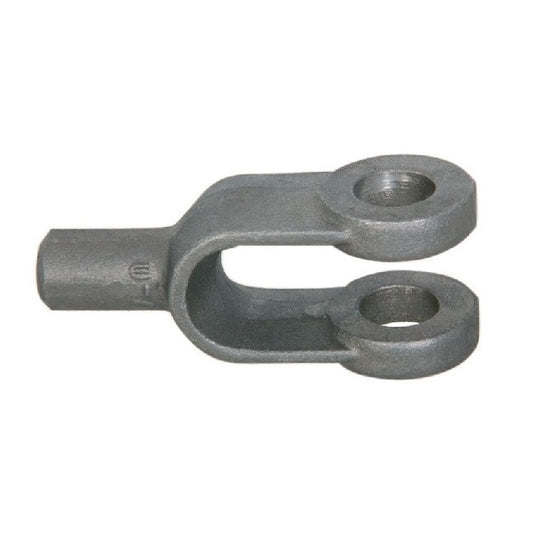

Yoke Ends - Blank

7 Products in this selection

A selection of Blank Yoke Ends. Linkage Connectors with blank ends - no hole

  • Drop forged steel machined to SAE standards
  • Also see clevis joints
Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found on the MBA Minibearings main store at Yoke Ends - Blank.
Effective Length (A) Hub Diameter (B) Gap (E) +/- 0.38 Width (F) +/- 0.38 Hole Size (G) +0.25 Stud Height (L) Indicative
Effective Length (A)
50.800
mm

(Equiv. 2 in.)
Hub Diameter (B)
7.940
mm

(Equiv. 0.313 in.)
Gap (E) +/- 0.38
8.730
mm

(Equiv. 0.344 in.)
Width (F) +/- 0.38
8.73
mm
Hole Size (G) +0.25
7.94
mm
Stud Height (L)
27
mm
Blank Yoke Ends - 50.8x7.94x8.73 mm
Housing Diameter (K): 15 mm
Part Number: YE-13RS Blank Yoke Ends - 50.8x7.94x8.73 mm
2 Available Now | Further orders can be expected around Wed, Aug 06, 2025
$32.59 AUD
$32.59 AUD
Each
Effective Length (A) Hub Diameter (B) Gap (E) +/- 0.38 Width (F) +/- 0.38 Indicative
Effective Length (A)
50.800
mm

(Equiv. 2 in.)
Hub Diameter (B)
7.940
mm

(Equiv. 0.313 in.)
Gap (E) +/- 0.38
8.730
mm

(Equiv. 0.344 in.)
Width (F) +/- 0.38
8.73
mm
Blank Yoke Ends - 50.8x7.94x8.73 mm
Hole Size (G) +0.25: 7.94 mm    Stud Height (L): 27 mm    Housing Diameter (K): 15 mm
Part Number: YE-13RS Blank Yoke Ends - 50.8x7.94x8.73 mm
2 Available Now | Further orders can be expected around Wed, Aug 06, 2025
$32.59 AUD
$32.59 AUD
Each
View the product page first if you are unsure.
Effective Length (A)
53.980
mm

(Equiv. 2.125 in.)
Hub Diameter (B)
9.530
mm

(Equiv. 0.375 in.)
Gap (E) +/- 0.38
11.110
mm

(Equiv. 0.437 in.)
Width (F) +/- 0.38
11.11
mm
Hole Size (G) +0.25
9.53
mm
Stud Height (L)
25
mm
Blank Yoke Ends - 53.98x9.53x11.11 mm
Housing Diameter (K): 17 mm
Part Number: YE-14RS Blank Yoke Ends - 53.98x9.53x11.11 mm
2 Available Now | Further orders can be expected around Wed, Aug 06, 2025
$33.23 AUD
$39.87 AUD $33.23 AUD
Each
Effective Length (A)
53.980
mm

(Equiv. 2.125 in.)
Hub Diameter (B)
9.530
mm

(Equiv. 0.375 in.)
Gap (E) +/- 0.38
11.110
mm

(Equiv. 0.437 in.)
Width (F) +/- 0.38
11.11
mm
Blank Yoke Ends - 53.98x9.53x11.11 mm
Hole Size (G) +0.25: 9.53 mm    Stud Height (L): 25 mm    Housing Diameter (K): 17 mm
Part Number: YE-14RS Blank Yoke Ends - 53.98x9.53x11.11 mm
2 Available Now | Further orders can be expected around Wed, Aug 06, 2025
$33.23 AUD
$39.87 AUD $33.23 AUD
Each
View the product page first if you are unsure.
Effective Length (A)
57.150
mm

(Equiv. 2.25 in.)
Hub Diameter (B)
11.110
mm

(Equiv. 0.437 in.)
Gap (E) +/- 0.38
12.700
mm

(Equiv. 0.5 in.)
Width (F) +/- 0.38
12.70
mm
Hole Size (G) +0.25
11.11
mm
Stud Height (L)
24
mm
Blank Yoke Ends - 57.15x11.11x12.7 mm
Housing Diameter (K): 21 mm
Part Number: YE-15RS Blank Yoke Ends - 57.15x11.11x12.7 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Aug 06, 2025
$46.32 AUD
$46.32 AUD
Each
Effective Length (A)
57.150
mm

(Equiv. 2.25 in.)
Hub Diameter (B)
11.110
mm

(Equiv. 0.437 in.)
Gap (E) +/- 0.38
12.700
mm

(Equiv. 0.5 in.)
Width (F) +/- 0.38
12.70
mm
Blank Yoke Ends - 57.15x11.11x12.7 mm
Hole Size (G) +0.25: 11.11 mm    Stud Height (L): 24 mm    Housing Diameter (K): 21 mm
Part Number: YE-15RS Blank Yoke Ends - 57.15x11.11x12.7 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Aug 06, 2025
$46.32 AUD
$46.32 AUD
Each
View the product page first if you are unsure.
Effective Length (A)
63.500
mm

(Equiv. 2.5 in.)
Hub Diameter (B)
12.700
mm

(Equiv. 0.5 in.)
Gap (E) +/- 0.38
14.290
mm

(Equiv. 0.563 in.)
Width (F) +/- 0.38
14.29
mm
Hole Size (G) +0.25
12.70
mm
Stud Height (L)
25
mm
Blank Yoke Ends - 63.5x12.7x14.29 mm
Housing Diameter (K): 24 mm
Part Number: YE-16RS Blank Yoke Ends - 63.5x12.7x14.29 mm
1 Available Now | Further orders can be expected around Wed, Aug 06, 2025
$40.77 AUD
$48.93 AUD $40.77 AUD
Each
Effective Length (A)
63.500
mm

(Equiv. 2.5 in.)
Hub Diameter (B)
12.700
mm

(Equiv. 0.5 in.)
Gap (E) +/- 0.38
14.290
mm

(Equiv. 0.563 in.)
Width (F) +/- 0.38
14.29
mm
Blank Yoke Ends - 63.5x12.7x14.29 mm
Hole Size (G) +0.25: 12.70 mm    Stud Height (L): 25 mm    Housing Diameter (K): 24 mm
Part Number: YE-16RS Blank Yoke Ends - 63.5x12.7x14.29 mm
1 Available Now | Further orders can be expected around Wed, Aug 06, 2025
$40.77 AUD
$48.93 AUD $40.77 AUD
Each
View the product page first if you are unsure.
Effective Length (A)
73.030
mm

(Equiv. 2.875 in.)
Hub Diameter (B)
15.880
mm

(Equiv. 0.625 in.)
Gap (E) +/- 0.38
17.460
mm

(Equiv. 0.687 in.)
Width (F) +/- 0.38
17.46
mm
Hole Size (G) +0.25
15.88
mm
Stud Height (L)
29
mm
Blank Yoke Ends - 73.03x15.88x17.46 mm
Housing Diameter (K): 30 mm
Part Number: YE-17RS Blank Yoke Ends - 73.03x15.88x17.46 mm
1 Available Now | Further orders can be expected around Wed, Aug 06, 2025
$51.77 AUD
$62.13 AUD $51.77 AUD
Each
Effective Length (A)
73.030
mm

(Equiv. 2.875 in.)
Hub Diameter (B)
15.880
mm

(Equiv. 0.625 in.)
Gap (E) +/- 0.38
17.460
mm

(Equiv. 0.687 in.)
Width (F) +/- 0.38
17.46
mm
Blank Yoke Ends - 73.03x15.88x17.46 mm
Hole Size (G) +0.25: 15.88 mm    Stud Height (L): 29 mm    Housing Diameter (K): 30 mm
Part Number: YE-17RS Blank Yoke Ends - 73.03x15.88x17.46 mm
1 Available Now | Further orders can be expected around Wed, Aug 06, 2025
$51.77 AUD
$62.13 AUD $51.77 AUD
Each
View the product page first if you are unsure.
Effective Length (A)
152.400
mm

(Equiv. 6 in.)
Hub Diameter (B)
25.400
mm

(Equiv. 1 in.)
Gap (E) +/- 0.38
26.990
mm

(Equiv. 1.063 in.)
Width (F) +/- 0.38
26.99
mm
Hole Size (G) +0.25
25.40
mm
Stud Height (L)
76
mm
Blank Yoke Ends - 152.4x25.4x26.99 mm
Housing Diameter (K): 49 mm
Part Number: YE-20RS Blank Yoke Ends - 152.4x25.4x26.99 mm
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$58.24 AUD
$104.38 AUD $58.24 AUD
Each
Effective Length (A)
152.400
mm

(Equiv. 6 in.)
Hub Diameter (B)
25.400
mm

(Equiv. 1 in.)
Gap (E) +/- 0.38
26.990
mm

(Equiv. 1.063 in.)
Width (F) +/- 0.38
26.99
mm
Blank Yoke Ends - 152.4x25.4x26.99 mm
Hole Size (G) +0.25: 25.40 mm    Stud Height (L): 76 mm    Housing Diameter (K): 49 mm
Part Number: YE-20RS Blank Yoke Ends - 152.4x25.4x26.99 mm
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$58.24 AUD
$104.38 AUD $58.24 AUD
Each
Effective Length (A)
165.100
mm

(Equiv. 6.5 in.)
Hub Diameter (B)
12.700
mm

(Equiv. 0.5 in.)
Gap (E) +/- 0.38
14.290
mm

(Equiv. 0.563 in.)
Width (F) +/- 0.38
14.29
mm
Hole Size (G) +0.25
12.70
mm
Stud Height (L)
127
mm
Blank Yoke Ends - 165.1x12.7x14.29 mm
Housing Diameter (K): 24 mm
Part Number: YE-16ARS Blank Yoke Ends - 165.1x12.7x14.29 mm
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$19.69 AUD
$34.00 AUD $19.69 AUD
Each
Effective Length (A)
165.100
mm

(Equiv. 6.5 in.)
Hub Diameter (B)
12.700
mm

(Equiv. 0.5 in.)
Gap (E) +/- 0.38
14.290
mm

(Equiv. 0.563 in.)
Width (F) +/- 0.38
14.29
mm
Blank Yoke Ends - 165.1x12.7x14.29 mm
Hole Size (G) +0.25: 12.70 mm    Stud Height (L): 127 mm    Housing Diameter (K): 24 mm
Part Number: YE-16ARS Blank Yoke Ends - 165.1x12.7x14.29 mm
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$19.69 AUD
$34.00 AUD $19.69 AUD
Each
