Snap Buttons

8 Products in this selection
Combined category including sub-categories of snap buttons. These include single end, flat type, and double end.
Small Parts & Bearings

Additional resources:
Tubing

A more comprehensive listing may be found on the MBA Minibearings main store at Snap Buttons.
Button Diameter (A) Button Height (B) Material Thickness Clip Width Centre to Middle of End (C) Use with Round Tubing Indicative
Button Diameter (A)
6.35
mm
Button Height (B)
5.33
mm
Material Thickness
0.457
mm
Clip Width
9.27
mm
Centre to Middle of End (C)
3.25
mm
Use with Round Tubing
21.3

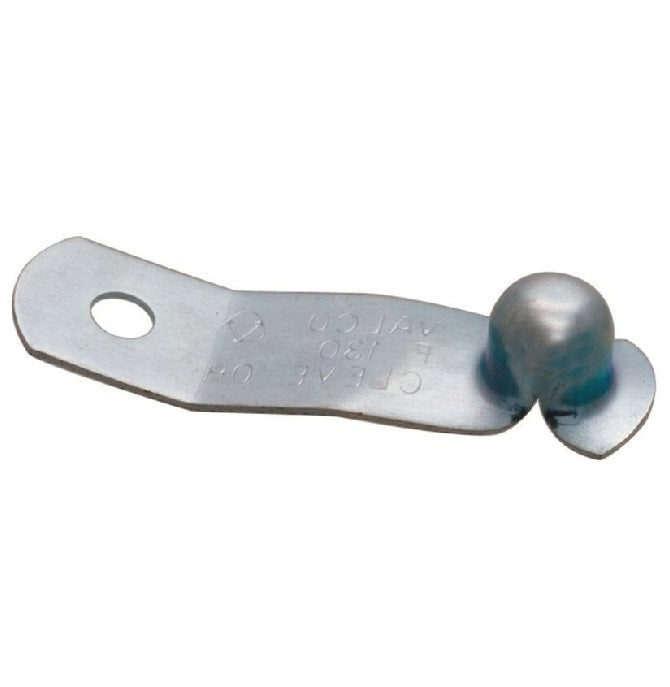

Flat Type Snap Buttons - 6.35x5.33x0.457 mm
Material: Carbon Spring Steel    Use with Square Tubing: 31.750
Category:
Part Number: SBTN-0635-FL (Each) Flat Type Snap Buttons - 6.35x5.33x0.457 mm Snap Button
99 Available Now | Further orders can be expected around Sun, Jul 26, 2026
$5.41 AUD
$5.41 AUD
Each
Button Diameter (A) Button Height (B) Material Thickness Clip Width Indicative
Button Diameter (A)
6.35
mm
Button Height (B)
5.33
mm
Material Thickness
0.457
mm
Clip Width
9.27
mm
Flat Type Snap Buttons - 6.35x5.33x0.457 mm
Material: Carbon Spring Steel    Centre to Middle of End (C): 3.25 mm    Use with Round Tubing: 21.3    Use with Square Tubing: 31.750
Category:
Part Number: SBTN-0635-FL (Each) Flat Type Snap Buttons - 6.35x5.33x0.457 mm Snap Button
99 Available Now | Further orders can be expected around Sun, Jul 26, 2026
$5.41 AUD
$5.41 AUD
Each
View the product page first if you are unsure.
Button Diameter (A)
6.35
mm
Button Height (B)
7.11
mm
Material Thickness
0.457
mm
Clip Width
9.27
mm
Centre to Middle of End (C)
29.72
mm
Use with Round Tubing
36.8
Single End Snap Buttons - 6.35x7.11x0.457 mm
Material: Carbon Spring Steel    Use with Square Tubing: 11.4 to 22.0
Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0635-SP (Each) Single End Snap Buttons - 6.35x7.11x0.457 mm Spring Leg Snap Button
16 Available Now | Further orders can be expected around Sun, Jul 26, 2026
$4.32 AUD
$4.32 AUD
Each
Button Diameter (A)
6.35
mm
Button Height (B)
7.11
mm
Material Thickness
0.457
mm
Clip Width
9.27
mm
Single End Snap Buttons - 6.35x7.11x0.457 mm
Material: Carbon Spring Steel    Centre to Middle of End (C): 29.72 mm    Use with Round Tubing: 36.8    Use with Square Tubing: 11.4 to 22.0
Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0635-SP (Each) Single End Snap Buttons - 6.35x7.11x0.457 mm Spring Leg Snap Button
16 Available Now | Further orders can be expected around Sun, Jul 26, 2026
$4.32 AUD
$4.32 AUD
Each
View the product page first if you are unsure.
Button Diameter (A)
6.35
mm
Button Height (B)
7.11
mm
Material Thickness
0.457
mm
Clip Width
9.27
mm
Centre to Middle of End (C)
38.61
mm
Use with Round Tubing
15.7 to 22.1

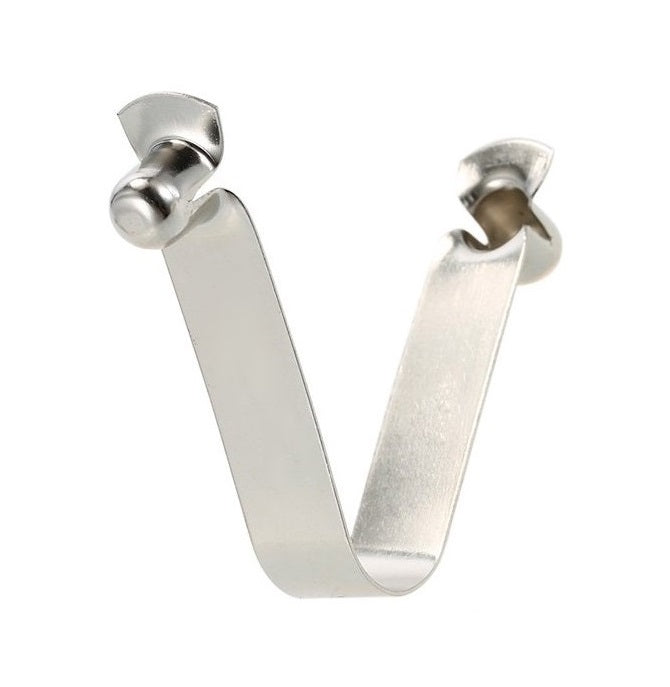

Double End Snap Buttons - 6.35x7.11x0.457 mm
Material: Carbon Spring Steel    Use with Square Tubing: 15.7 to 22.1
Category:
Part Number: SBTN-0635-DE (PK-100) Double End Snap Buttons - 6.35x7.11x0.457 mm Snap Button
Out of Stock | Backorder Now | Orders can be expected around Sun, Jul 26, 2026
$309.77 AUD
$529.62 AUD $309.77 AUD
Per 100
Button Diameter (A)
6.35
mm
Button Height (B)
7.11
mm
Material Thickness
0.457
mm
Clip Width
9.27
mm
Double End Snap Buttons - 6.35x7.11x0.457 mm
Material: Carbon Spring Steel    Centre to Middle of End (C): 38.61 mm    Use with Round Tubing: 15.7 to 22.1    Use with Square Tubing: 15.7 to 22.1
Category:
Part Number: SBTN-0635-DE (PK-100) Double End Snap Buttons - 6.35x7.11x0.457 mm Snap Button
Out of Stock | Backorder Now | Orders can be expected around Sun, Jul 26, 2026
$309.77 AUD
$529.62 AUD $309.77 AUD
Per 100
View the product page first if you are unsure.
Button Diameter (A)
7.67
mm
Button Height (B)
9.40
mm
Material Thickness
0.508
mm
Clip Width
11.18
mm
Centre to Middle of End (C)
41.91
mm
Use with Round Tubing
48.5
Single End Snap Buttons - 7.67x9.4x0.508 mm
Material: Carbon Spring Steel    Use with Square Tubing: 15.0 to 31.8
Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0767-SP (Each) Single End Snap Buttons - 7.67x9.4x0.508 mm Spring Leg Snap Button
35 Available Now | Further orders can be expected around Sun, Jul 26, 2026
$5.41 AUD
$5.41 AUD
Each
Button Diameter (A)
7.67
mm
Button Height (B)
9.40
mm
Material Thickness
0.508
mm
Clip Width
11.18
mm
Single End Snap Buttons - 7.67x9.4x0.508 mm
Material: Carbon Spring Steel    Centre to Middle of End (C): 41.91 mm    Use with Round Tubing: 48.5    Use with Square Tubing: 15.0 to 31.8
Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0767-SP (Each) Single End Snap Buttons - 7.67x9.4x0.508 mm Spring Leg Snap Button
35 Available Now | Further orders can be expected around Sun, Jul 26, 2026
$5.41 AUD
$5.41 AUD
Each
View the product page first if you are unsure.
Button Diameter (A)
7.93
mm
Button Height (B)
9.40
mm
Material Thickness
0.508
mm
Clip Width
11.18
mm
Centre to Middle of End (C)
52.07
mm
Use with Round Tubing
20.8 to 28.5
Double End Snap Buttons - 7.93x9.4x0.508 mm
Material: Carbon Spring Steel    Use with Square Tubing: 20.8 to 28.4
Category:
Part Number: SBTN-0793-DE (Each) Double End Snap Buttons - 7.93x9.4x0.508 mm Snap Button
46 Available Now | Further orders can be expected around Sun, Jul 26, 2026
$10.86 AUD
$10.86 AUD
Each
Button Diameter (A)
7.93
mm
Button Height (B)
9.40
mm
Material Thickness
0.508
mm
Clip Width
11.18
mm
Double End Snap Buttons - 7.93x9.4x0.508 mm
Material: Carbon Spring Steel    Centre to Middle of End (C): 52.07 mm    Use with Round Tubing: 20.8 to 28.5    Use with Square Tubing: 20.8 to 28.4
Category:
Part Number: SBTN-0793-DE (Each) Double End Snap Buttons - 7.93x9.4x0.508 mm Snap Button
46 Available Now | Further orders can be expected around Sun, Jul 26, 2026
$10.86 AUD
$10.86 AUD
Each
View the product page first if you are unsure.
Button Diameter (A)
9.27
mm
Button Height (B)
9.40
mm
Material Thickness
0.635
mm
Clip Width
12.95
mm
Centre to Middle of End (C)
45.72
mm
Use with Round Tubing
15.2 to 28.4
Single End Snap Buttons - 9.27x9.4x0.635 mm Dog Leg Snap Button
Material: Carbon Spring Steel    Use with Square Tubing: 15.2 to 28.4
Category: Snap Buttons - Single End - Dog Leg
Part Number: SBTN-0927-DL (Each) Single End Snap Buttons - 9.27x9.4x0.635 mm Dog Leg Snap Button
14 Available Now | Item Discontinued - Up to 14 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.00 AUD
$6.22 AUD $3.00 AUD
Each
Button Diameter (A)
9.27
mm
Button Height (B)
9.40
mm
Material Thickness
0.635
mm
Clip Width
12.95
mm
Single End Snap Buttons - 9.27x9.4x0.635 mm Dog Leg Snap Button
Material: Carbon Spring Steel    Centre to Middle of End (C): 45.72 mm    Use with Round Tubing: 15.2 to 28.4    Use with Square Tubing: 15.2 to 28.4
Category: Snap Buttons - Single End - Dog Leg
Part Number: SBTN-0927-DL (Each) Single End Snap Buttons - 9.27x9.4x0.635 mm Dog Leg Snap Button
14 Available Now | Item Discontinued - Up to 14 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.00 AUD
$6.22 AUD $3.00 AUD
Each
Button Diameter (A)
9.27
mm
Button Height (B)
9.40
mm
Material Thickness
0.635
mm
Clip Width
12.95
mm
Centre to Middle of End (C)
45.97
mm
Use with Round Tubing
54.1
Single End Snap Buttons - 9.27x9.4x0.635 mm
Material: Carbon Spring Steel    Use with Square Tubing: 17.3 to 34.8
Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0927-SP (Each) Single End Snap Buttons - 9.27x9.4x0.635 mm Spring Leg Snap Button
10 Available Now | Further orders can be expected around Sun, Jul 26, 2026
$12.59 AUD
$12.59 AUD
Each
Button Diameter (A)
9.27
mm
Button Height (B)
9.40
mm
Material Thickness
0.635
mm
Clip Width
12.95
mm
Single End Snap Buttons - 9.27x9.4x0.635 mm
Material: Carbon Spring Steel    Centre to Middle of End (C): 45.97 mm    Use with Round Tubing: 54.1    Use with Square Tubing: 17.3 to 34.8
Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0927-SP (Each) Single End Snap Buttons - 9.27x9.4x0.635 mm Spring Leg Snap Button
10 Available Now | Further orders can be expected around Sun, Jul 26, 2026
$12.59 AUD
$12.59 AUD
Each
View the product page first if you are unsure.
Button Diameter (A)
9.53
mm
Button Height (B)
11.18
mm
Material Thickness
0.635
mm
Clip Width
13.46
mm
Centre to Middle of End (C)
71.63
mm
Use with Round Tubing
25.4 to 47.5
Double End Snap Buttons - 9.53x11.18x0.635 mm
Material: Carbon Spring Steel    Use with Square Tubing: 25.4 to 47.5
Category:
Part Number: SBTN-0953-DE (Each) Double End Snap Buttons - 9.53x11.18x0.635 mm Snap Button
36 Available Now | Further orders can be expected around Sun, Jul 26, 2026
$12.14 AUD
$12.14 AUD
Each
Button Diameter (A)
9.53
mm
Button Height (B)
11.18
mm
Material Thickness
0.635
mm
Clip Width
13.46
mm
Double End Snap Buttons - 9.53x11.18x0.635 mm
Material: Carbon Spring Steel    Centre to Middle of End (C): 71.63 mm    Use with Round Tubing: 25.4 to 47.5    Use with Square Tubing: 25.4 to 47.5
Category:
Part Number: SBTN-0953-DE (Each) Double End Snap Buttons - 9.53x11.18x0.635 mm Snap Button
36 Available Now | Further orders can be expected around Sun, Jul 26, 2026
$12.14 AUD
$12.14 AUD
Each
View the product page first if you are unsure.
