Snap Buttons - Single End

Snap Buttons -> Single End

There are 4 products in the sub-categories of Snap Buttons - Single End. Browse the Snap Buttons - Single End products table. To narrow down the selection, please choose a sub-category from the links below.

Single End Snap Buttons - 9.27x9.4x0.635 mm Dog Leg Snap Button

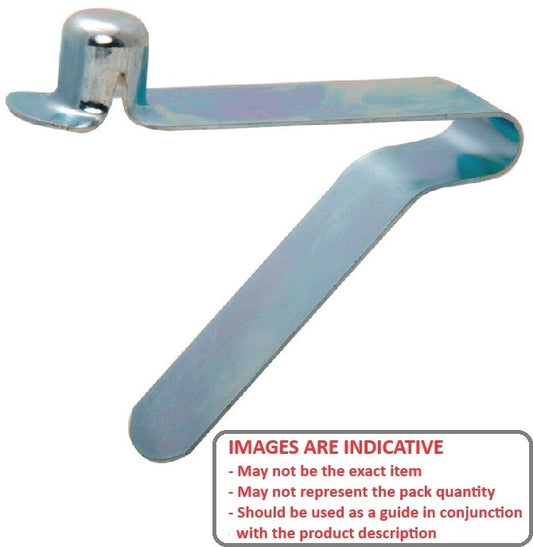

Snap Buttons - Single End - Dog Leg

A selection of Dog Leg Single End Snap Buttons. Fasteners for telescoping...

Snap Buttons - Single End - Dog Leg

Single End Snap Buttons - 6.35x7.11x0.457 mm

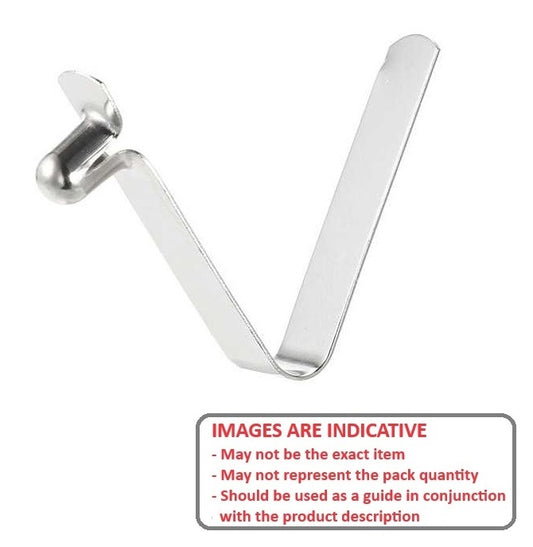

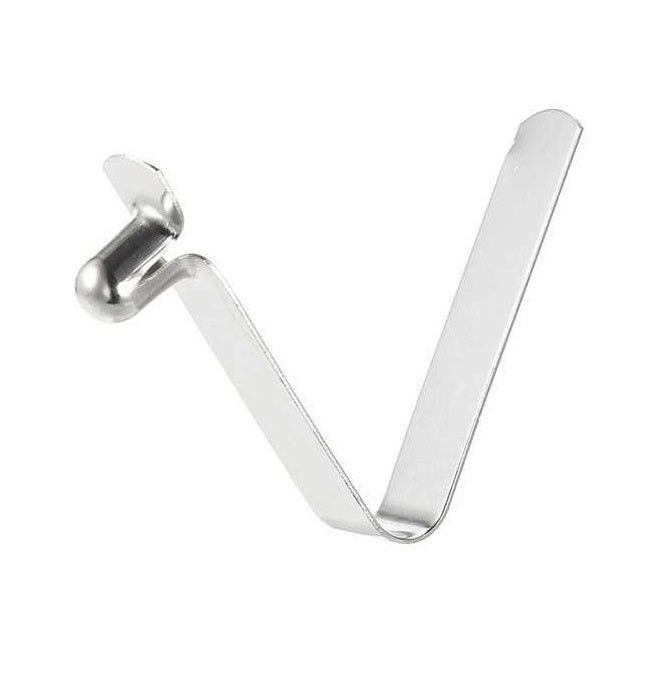

Snap Buttons - Single End - Spring Leg

A selection of Spring Leg Single End Snap Buttons. Fasteners for telescoping...

Snap Buttons - Single End - Spring Leg

Category Details

This category includes various types of single end snap buttons.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Snap Buttons - Single End category on the MBA Minibearings main store.
Button Diameter (A) Button Height (B) Material Thickness Clip Width Centre to Middle of End (C) Use with Round Tubing Indicative
Single End Snap Buttons - 6.35x7.11x0.457 mm Spring Leg Snap Button
Button Diameter (A)
6.35
mm

(Equiv. 0.25 in.)
Button Height (B)
7.11
mm

(Equiv. 0.28 in.)
Material Thickness
0.457
mm

(Equiv. 0.018 in.)
Clip Width
9.27
mm
Centre to Middle of End (C)
29.72
mm
Use with Round Tubing
36.8
Single End Snap Buttons - 6.35x7.11x0.457 mm
Material: Carbon Spring Steel    Use with Square Tubing: 11.4 to 22.0
Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0635-SP (Each)
50 Available Now | Further orders can be expected around Sun, Jan 18, 2026
$4.32 AUD
$4.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 50 available can be backordered.
Button Diameter (A) Button Height (B) Material Thickness Clip Width Indicative
Single End Snap Buttons - 6.35x7.11x0.457 mm Spring Leg Snap Button
Button Diameter (A)
6.35
mm

(Equiv. 0.25 in.)
Button Height (B)
7.11
mm

(Equiv. 0.28 in.)
Material Thickness
0.457
mm

(Equiv. 0.018 in.)
Clip Width
9.27
mm
Single End Snap Buttons - 6.35x7.11x0.457 mm
Material: Carbon Spring Steel    Centre to Middle of End (C): 29.72 mm    Use with Round Tubing: 36.8    Use with Square Tubing: 11.4 to 22.0
Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0635-SP (Each)
50 Available Now | Further orders can be expected around Sun, Jan 18, 2026
$4.32 AUD
$4.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

50 Available Now. Backorder if more than 50.
Single End Snap Buttons - 7.67x9.4x0.508 mm Spring Leg Snap Button
Button Diameter (A)
7.67
mm

(Equiv. 0.302 in.)
Button Height (B)
9.40
mm

(Equiv. 0.37 in.)
Material Thickness
0.508
mm

(Equiv. 0.02 in.)
Clip Width
11.18
mm
Centre to Middle of End (C)
41.91
mm
Use with Round Tubing
48.5
Single End Snap Buttons - 7.67x9.4x0.508 mm
Material: Carbon Spring Steel    Use with Square Tubing: 15.0 to 31.8
Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0767-SP (Each)
37 Available Now | Further orders can be expected around Sun, Jan 18, 2026
$5.41 AUD
$5.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 37 available can be backordered.
Single End Snap Buttons - 7.67x9.4x0.508 mm Spring Leg Snap Button
Button Diameter (A)
7.67
mm

(Equiv. 0.302 in.)
Button Height (B)
9.40
mm

(Equiv. 0.37 in.)
Material Thickness
0.508
mm

(Equiv. 0.02 in.)
Clip Width
11.18
mm
Single End Snap Buttons - 7.67x9.4x0.508 mm
Material: Carbon Spring Steel    Centre to Middle of End (C): 41.91 mm    Use with Round Tubing: 48.5    Use with Square Tubing: 15.0 to 31.8
Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0767-SP (Each)
37 Available Now | Further orders can be expected around Sun, Jan 18, 2026
$5.41 AUD
$5.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

37 Available Now. Backorder if more than 37.

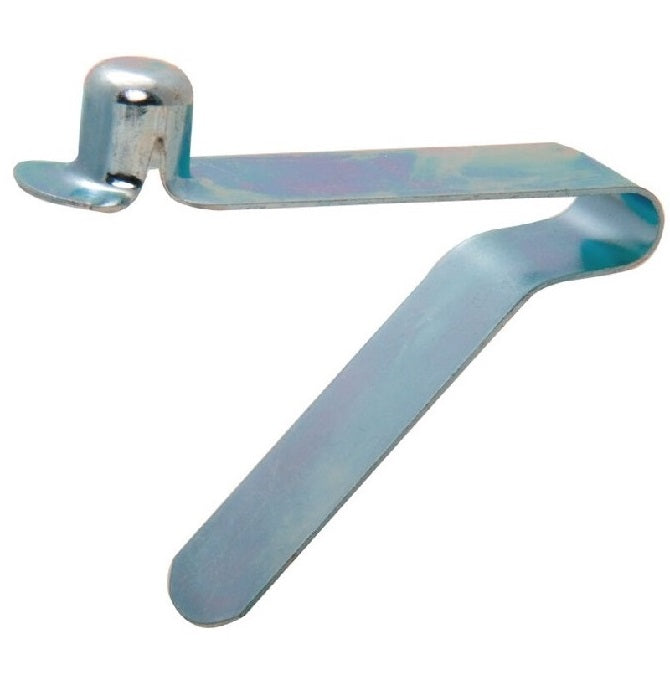

Single End Snap Buttons - 9.27x9.4x0.635 mm Dog Leg Snap Button
Button Diameter (A)
9.27
mm

(Equiv. 0.365 in.)
Button Height (B)
9.40
mm

(Equiv. 0.37 in.)
Material Thickness
0.635
mm

(Equiv. 0.025 in.)
Clip Width
12.95
mm
Centre to Middle of End (C)
45.72
mm
Use with Round Tubing
15.2 to 28.4
Single End Snap Buttons - 9.27x9.4x0.635 mm Dog Leg Snap Button
Material: Carbon Spring Steel    Use with Square Tubing: 15.2 to 28.4
Category: Snap Buttons - Single End - Dog Leg
Deleted Item. Available while stocks last.
Part Number: SBTN-0927-DL (Each)
14 Available Now | Item Discontinued - Up to 14 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.00 AUD
$6.22 AUD $3.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

14 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Single End Snap Buttons - 9.27x9.4x0.635 mm Dog Leg Snap Button
Button Diameter (A)
9.27
mm

(Equiv. 0.365 in.)
Button Height (B)
9.40
mm

(Equiv. 0.37 in.)
Material Thickness
0.635
mm

(Equiv. 0.025 in.)
Clip Width
12.95
mm
Single End Snap Buttons - 9.27x9.4x0.635 mm Dog Leg Snap Button
Material: Carbon Spring Steel    Centre to Middle of End (C): 45.72 mm    Use with Round Tubing: 15.2 to 28.4    Use with Square Tubing: 15.2 to 28.4
Category: Snap Buttons - Single End - Dog Leg
Deleted Item. Available while stocks last.
Part Number: SBTN-0927-DL (Each)
14 Available Now | Item Discontinued - Up to 14 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.00 AUD
$6.22 AUD $3.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

14 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Single End Snap Buttons - 9.27x9.4x0.635 mm Spring Leg Snap Button
Button Diameter (A)
9.27
mm

(Equiv. 0.365 in.)
Button Height (B)
9.40
mm

(Equiv. 0.37 in.)
Material Thickness
0.635
mm

(Equiv. 0.025 in.)
Clip Width
12.95
mm
Centre to Middle of End (C)
45.97
mm
Use with Round Tubing
54.1
Single End Snap Buttons - 9.27x9.4x0.635 mm
Material: Carbon Spring Steel    Use with Square Tubing: 17.3 to 34.8
Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0927-SP (Each)
60 Available Now | Further orders can be expected around Sun, Jan 18, 2026
$12.59 AUD
$12.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 60 available can be backordered.
Single End Snap Buttons - 9.27x9.4x0.635 mm Spring Leg Snap Button
Button Diameter (A)
9.27
mm

(Equiv. 0.365 in.)
Button Height (B)
9.40
mm

(Equiv. 0.37 in.)
Material Thickness
0.635
mm

(Equiv. 0.025 in.)
Clip Width
12.95
mm
Single End Snap Buttons - 9.27x9.4x0.635 mm
Material: Carbon Spring Steel    Centre to Middle of End (C): 45.97 mm    Use with Round Tubing: 54.1    Use with Square Tubing: 17.3 to 34.8
Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0927-SP (Each)
60 Available Now | Further orders can be expected around Sun, Jan 18, 2026
$12.59 AUD
$12.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

60 Available Now. Backorder if more than 60.
