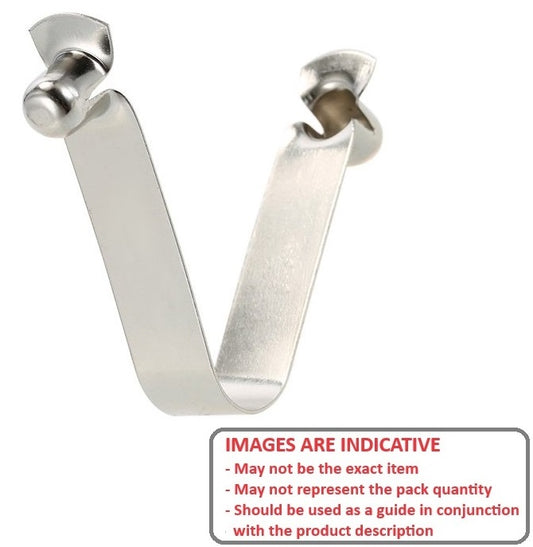

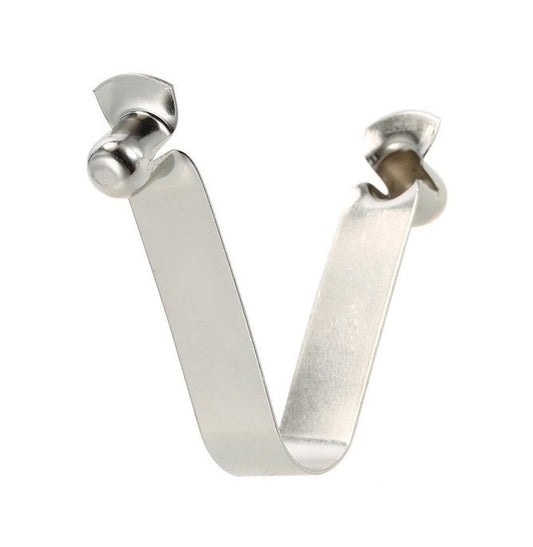

Snap Buttons - Double End

3 Products in this selection
  • Fasteners for telescoping tubing help reduce assembly time whilst improving your product functionality. Also called button clips or spring buttons.
  • Eliminates the need for rivets and screws.
  • Simply snap into place in square or round tubing.
  • Made from 1050 heat treated spring steel with minimum 0.005mm (0.0002 inch) zinc plating
Additional resources:
Tubing
Button Diameter (A) Button Height (B) Material Thickness Clip Width Centre to Middle of End (C) Use with Round Tubing Indicative
6.35
mm 		7.11
mm 		0.457
mm 		9.27
mm 		38.61
mm 		15.7 to 22.1
 1072312 | SBTN-0635-DE --- Snap - 6.35 mm x 7.11 mm x 0.457 mm
Material: Spring Steel    Use with Square Tubing: 15.7 to 22.1
Part Number: SBTN-0635-DE Snap - 6.35 mm x 7.11 mm x 0.457 mm / Snap Buttons
35 Available
| Backorders for more can be expected around Sat, Dec 21, 2024
$5.86 AUD
$5.86 AUD
Each
Button Diameter (A) Button Height (B) Material Thickness Clip Width Indicative
6.35
mm 		7.11
mm 		0.457
mm 		9.27
mm 		1072312 | SBTN-0635-DE --- Snap - 6.35 mm x 7.11 mm x 0.457 mm
Material: Spring Steel    Centre to Middle of End (C): 38.61 mm    Use with Round Tubing: 15.7 to 22.1    Use with Square Tubing: 15.7 to 22.1
Part Number: SBTN-0635-DE Snap - 6.35 mm x 7.11 mm x 0.457 mm / Snap Buttons
35 Available
| | Backorders for more can be expected around Sat, Dec 21, 2024
$5.86 AUD
$5.86 AUD
Each
7.93
mm 		9.40
mm 		0.508
mm 		11.18
mm 		52.07
mm 		20.8 to 28.5
 1077506 | SBTN-0793-DE --- Snap - 7.93 mm x 9.4 mm x 0.508 mm
Material: Spring Steel    Use with Square Tubing: 20.8 to 28.4
Part Number: SBTN-0793-DE Snap - 7.93 mm x 9.4 mm x 0.508 mm / Snap Buttons
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$9.86 AUD
$9.86 AUD
Each
7.93
mm 		9.40
mm 		0.508
mm 		11.18
mm 		1077506 | SBTN-0793-DE --- Snap - 7.93 mm x 9.4 mm x 0.508 mm
Material: Spring Steel    Centre to Middle of End (C): 52.07 mm    Use with Round Tubing: 20.8 to 28.5    Use with Square Tubing: 20.8 to 28.4
Part Number: SBTN-0793-DE Snap - 7.93 mm x 9.4 mm x 0.508 mm / Snap Buttons
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$9.86 AUD
$9.86 AUD
Each
9.53
mm 		11.18
mm 		0.635
mm 		13.46
mm 		71.63
mm 		25.4 to 47.5
 1089731 | SBTN-0953-DE --- Snap - 9.53 mm x 11.18 mm x 0.635 mm
Material: Spring Steel    Use with Square Tubing: 25.4 to 47.5
Part Number: SBTN-0953-DE Snap - 9.53 mm x 11.18 mm x 0.635 mm / Snap Buttons
36 Available
| Backorders for more can be expected around Sat, Dec 21, 2024
$13.41 AUD
$13.41 AUD
Each
9.53
mm 		11.18
mm 		0.635
mm 		13.46
mm 		1089731 | SBTN-0953-DE --- Snap - 9.53 mm x 11.18 mm x 0.635 mm
Material: Spring Steel    Centre to Middle of End (C): 71.63 mm    Use with Round Tubing: 25.4 to 47.5    Use with Square Tubing: 25.4 to 47.5
Part Number: SBTN-0953-DE Snap - 9.53 mm x 11.18 mm x 0.635 mm / Snap Buttons
36 Available
| | Backorders for more can be expected around Sat, Dec 21, 2024
$13.41 AUD
$13.41 AUD
Each
