Collection: Retaining Rings - Internal

Retaining Rings (With Images)

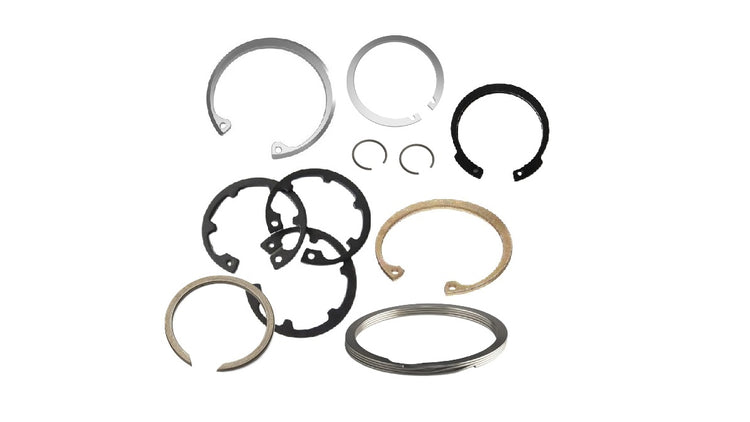

Retaining Rings - Internal

1160 Products in this selection

This is a combined category of products from Internal Retaining Rings. Use the filters in the table below, or the category tree to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)
6.35 mm	0.31 mm +/-0.025	6.81 mm +0.00/-0.05	7.11 mm +0.25/-0.13		0.51 mm +0.05/-0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00635-CZY (100 Pcs) Circlips - 6.35 mm x 0.31 mm x 6.81 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $49.68 AUD Regular price Sale price $49.68 AUD Unit price per Per 100
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
6.35 mm	0.31 mm +/-0.025	6.81 mm +0.00/-0.05	7.11 mm +0.25/-0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.51 mm +0.05/-0.00 Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00635-CZY (100 Pcs) Circlips - 6.35 mm x 0.31 mm x 6.81 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $49.68 AUD Regular price Sale price $49.68 AUD Unit price per Per 100
CCI-00635-CZY (100 Pcs) --- Circlips - 6.35 mm x 0.31 mm x 6.81 mm Carbon Steel Zinc Plated CCI-00635-CZY (100 Pcs) --- Circlips - 6.35 mm x 0.31 mm x 6.81 mm Carbon Steel Zinc Plated Regular price $49.68 AUD Regular price Sale price $49.68 AUD Unit price per Out of stock! Backorder Now
6.35 mm	0.31 mm +/-0.025	6.81 mm +0.00/-0.05	7.11 mm +0.25/-0.13		0.51 mm +0.05/-0.00
Material: Carbon Steel Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Category: Retaining Rings - Internal - Circlips

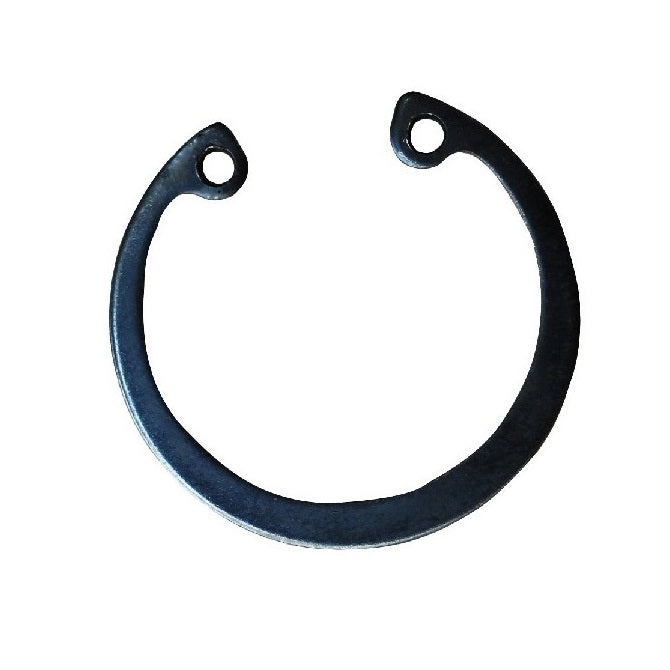

Part Number: CCI-00635-C (50 Pcs) Circlips - 6.35 mm x 0.31 mm x 6.81 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Per 50
6.35 mm	0.31 mm +/-0.025	6.81 mm +0.00/-0.05	7.11 mm +0.25/-0.13
Material: Carbon Steel Groove Width (W): 0.51 mm +0.05/-0.00 Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00635-C (50 Pcs) Circlips - 6.35 mm x 0.31 mm x 6.81 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Per 50
CCI-00635-C (50 Pcs) --- Circlips - 6.35 mm x 0.31 mm x 6.81 mm Carbon Steel CCI-00635-C (50 Pcs) --- Circlips - 6.35 mm x 0.31 mm x 6.81 mm Carbon Steel Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Out of stock! Backorder Now
6.35 mm	0.31 mm +/-0.025	6.81 mm +0.00/-0.05	7.11 mm +0.25/-0.13		0.51 mm +0.05/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Category: Retaining Rings - Internal - Circlips

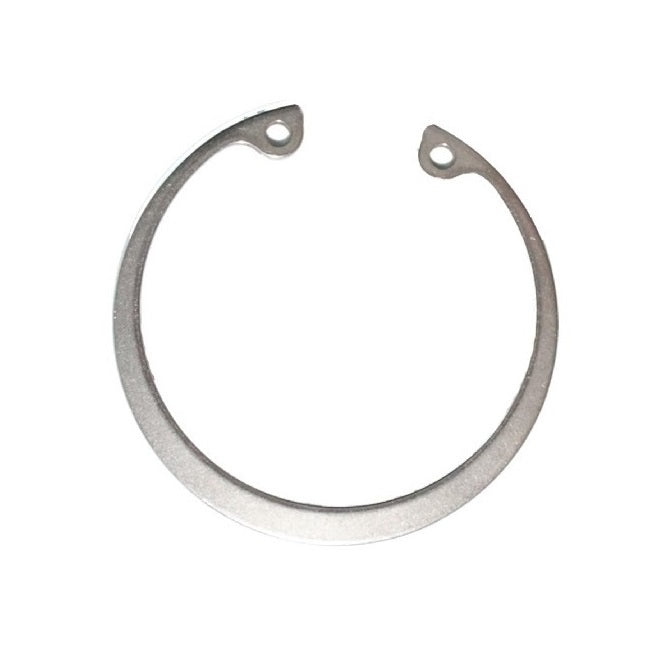

Part Number: CCI-00635-S15 (2 Pcs) Circlips - 6.35 mm x 0.31 mm x 6.81 mm / Retaining Rings 155 units (310 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 2
6.35 mm	0.31 mm +/-0.025	6.81 mm +0.00/-0.05	7.11 mm +0.25/-0.13
Material: Stainless PH15-7 Mo Groove Width (W): 0.51 mm +0.05/-0.00 Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00635-S15 (2 Pcs) Circlips - 6.35 mm x 0.31 mm x 6.81 mm / Retaining Rings 155 units (310 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 2
CCI-00635-S15 (2 Pcs) --- Circlips - 6.35 mm x 0.31 mm x 6.81 mm Stainless PH15-7 Mo CCI-00635-S15 (2 Pcs) --- Circlips - 6.35 mm x 0.31 mm x 6.81 mm Stainless PH15-7 Mo Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 155 Available Now
7.00 mm	0.80 mm +0/-0.10	7.30 mm	7.50 mm	1.00 mm +0/-0.10	0.90 mm +0.09/-0.00
Material: Spring Steel Clearance in Groove (C1): 5.5 mm Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0070-LS Snap - 7 mm x 0.8 mm x 7.3 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
7.00 mm	0.80 mm +0/-0.10	7.30 mm	7.50 mm
Material: Spring Steel Radial Wall (S): 1.00 mm +0/-0.10 Groove Width (W): 0.90 mm +0.09/-0.00 Clearance in Groove (C1): 5.5 mm Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0070-LS Snap - 7 mm x 0.8 mm x 7.3 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
7.00 mm	0.8 mm B DIN 2076	7.80 mm +0.3/-0.0	7.90 mm		1.00 mm
Material: Spring Steel Clearance in Bore (C): 6.3 mm Category: Retaining Rings - Internal - Round Wire
Part Number: WRI-0070-RD Circlips - 7 mm x 0.8 mm x 7.8 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Each
7.00 mm	0.8 mm B DIN 2076	7.80 mm +0.3/-0.0	7.90 mm
Material: Spring Steel Groove Width (W): 1.00 mm Clearance in Bore (C): 6.3 mm Category: Retaining Rings - Internal - Round Wire
Part Number: WRI-0070-RD Circlips - 7 mm x 0.8 mm x 7.8 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Each
WRI-0070-RD --- Circlips - 7 mm x 0.8 mm x 7.8 mm Spring Steel WRI-0070-RD --- Circlips - 7 mm x 0.8 mm x 7.8 mm Spring Steel Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Out of stock! Backorder Now
7.94 mm	0.31 mm +/-0.025	8.38 mm +0.00/-0.05	8.79 mm +0.25/-0.13		0.51 mm +0.05/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00794-S15 (5 Pcs) Circlips - 7.94 mm x 0.31 mm x 8.38 mm / Retaining Rings 4 units (20 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $11.23 AUD Regular price Sale price $11.23 AUD Unit price per Per 5
7.94 mm	0.31 mm +/-0.025	8.38 mm +0.00/-0.05	8.79 mm +0.25/-0.13
Material: Stainless PH15-7 Mo Groove Width (W): 0.51 mm +0.05/-0.00 Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00794-S15 (5 Pcs) Circlips - 7.94 mm x 0.31 mm x 8.38 mm / Retaining Rings 4 units (20 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $11.23 AUD Regular price Sale price $11.23 AUD Unit price per Per 5
CCI-00794-S15 (5 Pcs) --- Circlips - 7.94 mm x 0.31 mm x 8.38 mm Stainless PH15-7 Mo CCI-00794-S15 (5 Pcs) --- Circlips - 7.94 mm x 0.31 mm x 8.38 mm Stainless PH15-7 Mo Regular price $11.23 AUD Regular price Sale price $11.23 AUD Unit price per 4 Available Now
7.94 mm	0.31 mm +/-0.025	8.38 mm +0.00/-0.05	8.79 mm +0.25/-0.13		0.51 mm +0.05/-0.00
Material: Carbon Steel Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00794-C (20 Pcs) Circlips - 7.94 mm x 0.31 mm x 8.38 mm / Retaining Rings 4 units (80 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 20
7.94 mm	0.31 mm +/-0.025	8.38 mm +0.00/-0.05	8.79 mm +0.25/-0.13
Material: Carbon Steel Groove Width (W): 0.51 mm +0.05/-0.00 Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00794-C (20 Pcs) Circlips - 7.94 mm x 0.31 mm x 8.38 mm / Retaining Rings 4 units (80 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 20
CCI-00794-C (20 Pcs) --- Circlips - 7.94 mm x 0.31 mm x 8.38 mm Carbon Steel CCI-00794-C (20 Pcs) --- Circlips - 7.94 mm x 0.31 mm x 8.38 mm Carbon Steel Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per 4 Available Now
7.94 mm	0.31 mm +/-0.025	8.38 mm +0.00/-0.05	8.79 mm +0.25/-0.13		0.51 mm +0.05/-0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00794-CZY (100 Pcs) Circlips - 7.94 mm x 0.31 mm x 8.38 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $50.95 AUD Regular price Sale price $50.95 AUD Unit price per Per 100
7.94 mm	0.31 mm +/-0.025	8.38 mm +0.00/-0.05	8.79 mm +0.25/-0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.51 mm +0.05/-0.00 Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00794-CZY (100 Pcs) Circlips - 7.94 mm x 0.31 mm x 8.38 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $50.95 AUD Regular price Sale price $50.95 AUD Unit price per Per 100
CCI-00794-CZY (100 Pcs) --- Circlips - 7.94 mm x 0.31 mm x 8.38 mm Carbon Steel Zinc Plated CCI-00794-CZY (100 Pcs) --- Circlips - 7.94 mm x 0.31 mm x 8.38 mm Carbon Steel Zinc Plated Regular price $50.95 AUD Regular price Sale price $50.95 AUD Unit price per Out of stock! Backorder Now
8.00 mm	0.80 mm +0/-0.10	8.30 mm	8.50 mm	1.00 mm +0/-0.10	0.90 mm +0.09/-0.00
Material: Spring Steel Clearance in Groove (C1): 6.5 mm Category: Retaining Rings - Internal - Snap Rings

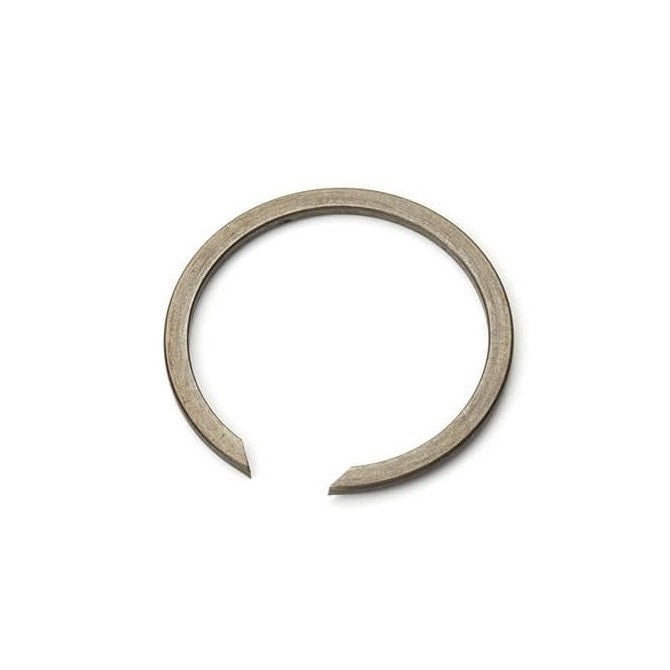

Part Number: WRI-0080-LS (30 Pcs) Snap - 8 mm x 0.8 mm x 8.3 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Mon, Jan 13, 2025 Regular price $150.95 AUD Regular price Sale price $150.95 AUD Unit price per Per 30
8.00 mm	0.80 mm +0/-0.10	8.30 mm	8.50 mm
Material: Spring Steel Radial Wall (S): 1.00 mm +0/-0.10 Groove Width (W): 0.90 mm +0.09/-0.00 Clearance in Groove (C1): 6.5 mm Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0080-LS (30 Pcs) Snap - 8 mm x 0.8 mm x 8.3 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Mon, Jan 13, 2025 Regular price $150.95 AUD Regular price Sale price $150.95 AUD Unit price per Per 30
WRI-0080-LS (30 Pcs) --- Snap - 8 mm x 0.8 mm x 8.3 mm Spring Steel WRI-0080-LS (30 Pcs) --- Snap - 8 mm x 0.8 mm x 8.3 mm Spring Steel Regular price $150.95 AUD Regular price Sale price $150.95 AUD Unit price per Out of stock! Backorder Now
8.00 mm	0.80 mm +0.09/-0.00	8.40 mm +0.00/-0.05	8.70 mm +0.36/-0.10		0.90 mm +0.05/-0.00
Material: Carbon Steel Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00800-C (50 Pcs) Circlips - 8 mm x 0.8 mm x 8.4 mm / Retaining Rings 373 units (18650 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 50
8.00 mm	0.80 mm +0.09/-0.00	8.40 mm +0.00/-0.05	8.70 mm +0.36/-0.10
Material: Carbon Steel Groove Width (W): 0.90 mm +0.05/-0.00 Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00800-C (50 Pcs) Circlips - 8 mm x 0.8 mm x 8.4 mm / Retaining Rings 373 units (18650 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 50
CCI-00800-C (50 Pcs) --- Circlips - 8 mm x 0.8 mm x 8.4 mm Carbon Steel CCI-00800-C (50 Pcs) --- Circlips - 8 mm x 0.8 mm x 8.4 mm Carbon Steel Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per 373 Available Now
8.00 mm	0.80 mm +0.09/-0.00	8.40 mm +0.00/-0.05	8.70 mm +0.36/-0.10		0.90 mm +0.05/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00800-S15 (5 Pcs) Circlips - 8 mm x 0.8 mm x 8.4 mm / Retaining Rings 3 units (15 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per Per 5
8.00 mm	0.80 mm +0.09/-0.00	8.40 mm +0.00/-0.05	8.70 mm +0.36/-0.10
Material: Stainless PH15-7 Mo Groove Width (W): 0.90 mm +0.05/-0.00 Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00800-S15 (5 Pcs) Circlips - 8 mm x 0.8 mm x 8.4 mm / Retaining Rings 3 units (15 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per Per 5
CCI-00800-S15 (5 Pcs) --- Circlips - 8 mm x 0.8 mm x 8.4 mm Stainless PH15-7 Mo CCI-00800-S15 (5 Pcs) --- Circlips - 8 mm x 0.8 mm x 8.4 mm Stainless PH15-7 Mo Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per 3 Available Now
8.00 mm	0.8 mm B DIN 2076	8.80 mm +0.3/-0.0	8.90 mm		1.00 mm
Material: Spring Steel Clearance in Bore (C): 7.3 mm Category: Retaining Rings - Internal - Round Wire
Part Number: WRI-0080-RD (31 Pcs) Circlips - 8 mm x 0.8 mm x 8.8 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $20.41 AUD Regular price Sale price $20.41 AUD Unit price per Per 31
8.00 mm	0.8 mm B DIN 2076	8.80 mm +0.3/-0.0	8.90 mm
Material: Spring Steel Groove Width (W): 1.00 mm Clearance in Bore (C): 7.3 mm Category: Retaining Rings - Internal - Round Wire
Part Number: WRI-0080-RD (31 Pcs) Circlips - 8 mm x 0.8 mm x 8.8 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $20.41 AUD Regular price Sale price $20.41 AUD Unit price per Per 31
WRI-0080-RD (31 Pcs) --- Circlips - 8 mm x 0.8 mm x 8.8 mm Spring Steel WRI-0080-RD (31 Pcs) --- Circlips - 8 mm x 0.8 mm x 8.8 mm Spring Steel Regular price $20.41 AUD Regular price Sale price $20.41 AUD Unit price per Out of stock! Backorder Now
9.00 mm	0.80 mm +0/-0.10	9.30 mm	9.50 mm	1.10 mm +0/-0.10	0.90 mm +0.09/-0.00
Material: Spring Steel Clearance in Groove (C1): 7.3 mm Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0090-LS Snap - 9 mm x 0.8 mm x 9.3 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
9.00 mm	0.80 mm +0/-0.10	9.30 mm	9.50 mm
Material: Spring Steel Radial Wall (S): 1.10 mm +0/-0.10 Groove Width (W): 0.90 mm +0.09/-0.00 Clearance in Groove (C1): 7.3 mm Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0090-LS Snap - 9 mm x 0.8 mm x 9.3 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
9.00 mm	0.80 mm +0.09/-0.00	9.40 mm +0.00/-0.05	9.80 mm +0.36/-0.10		0.90 mm +0.05/-0.00
Material: Carbon Steel Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00900-C (50 Pcs) Circlips - 9 mm x 0.8 mm x 9.4 mm / Retaining Rings 20 units (1000 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 50
9.00 mm	0.80 mm +0.09/-0.00	9.40 mm +0.00/-0.05	9.80 mm +0.36/-0.10
Material: Carbon Steel Groove Width (W): 0.90 mm +0.05/-0.00 Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00900-C (50 Pcs) Circlips - 9 mm x 0.8 mm x 9.4 mm / Retaining Rings 20 units (1000 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 50
CCI-00900-C (50 Pcs) --- Circlips - 9 mm x 0.8 mm x 9.4 mm Carbon Steel CCI-00900-C (50 Pcs) --- Circlips - 9 mm x 0.8 mm x 9.4 mm Carbon Steel Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 20 Available Now
9.00 mm	0.80 mm +0.09/-0.00	9.40 mm +0.00/-0.05	9.80 mm +0.36/-0.10		0.90 mm +0.05/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00900-S15 (2 Pcs) Circlips - 9 mm x 0.8 mm x 9.4 mm / Retaining Rings 38 units (76 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per Per 2
9.00 mm	0.80 mm +0.09/-0.00	9.40 mm +0.00/-0.05	9.80 mm +0.36/-0.10
Material: Stainless PH15-7 Mo Groove Width (W): 0.90 mm +0.05/-0.00 Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00900-S15 (2 Pcs) Circlips - 9 mm x 0.8 mm x 9.4 mm / Retaining Rings 38 units (76 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per Per 2
CCI-00900-S15 (2 Pcs) --- Circlips - 9 mm x 0.8 mm x 9.4 mm Stainless PH15-7 Mo CCI-00900-S15 (2 Pcs) --- Circlips - 9 mm x 0.8 mm x 9.4 mm Stainless PH15-7 Mo Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per 38 Available Now
9.53 mm	0.64 mm +/-0.05	10.03 mm	10.16 mm +0.51/-0.00	0.89 mm +/-0.08	0.71 mm +/-0.08
Material: Spring Steel Clearance in Groove (C1): 8.38 mm Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0095-LS-O Ring - 9.53 mm x 0.64 mm x 10.03 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
9.53 mm	0.64 mm +/-0.05	10.03 mm	10.16 mm +0.51/-0.00
Material: Spring Steel Radial Wall (S): 0.89 mm +/-0.08 Groove Width (W): 0.71 mm +/-0.08 Clearance in Groove (C1): 8.38 mm Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0095-LS-O Ring - 9.53 mm x 0.64 mm x 10.03 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
9.53 mm	0.64 mm +/-0.050	10.08 mm +0.00/-0.05	10.54 mm +0.25/-0.13		0.74 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00953-S15 (2 Pcs) Circlips - 9.53 mm x 0.64 mm x 10.08 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Tue, Apr 22, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 2
9.53 mm	0.64 mm +/-0.050	10.08 mm +0.00/-0.05	10.54 mm +0.25/-0.13
Material: Stainless PH15-7 Mo Groove Width (W): 0.74 mm +0.08/-0.00 Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00953-S15 (2 Pcs) Circlips - 9.53 mm x 0.64 mm x 10.08 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Tue, Apr 22, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 2
CCI-00953-S15 (2 Pcs) --- Circlips - 9.53 mm x 0.64 mm x 10.08 mm Stainless PH15-7 Mo CCI-00953-S15 (2 Pcs) --- Circlips - 9.53 mm x 0.64 mm x 10.08 mm Stainless PH15-7 Mo Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Out of stock! Backorder Now
9.53 mm	0.64 mm +/-0.050	10.08 mm +0.00/-0.05	10.54 mm +0.25/-0.13		0.74 mm +0.08/-0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00953-CZY (5 Pcs) Circlips - 9.53 mm x 0.64 mm x 10.08 mm / Retaining Rings 38 units (190 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $2.59 AUD Regular price Sale price $2.59 AUD Unit price per Per 5
9.53 mm	0.64 mm +/-0.050	10.08 mm +0.00/-0.05	10.54 mm +0.25/-0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm +0.08/-0.00 Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00953-CZY (5 Pcs) Circlips - 9.53 mm x 0.64 mm x 10.08 mm / Retaining Rings 38 units (190 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $2.59 AUD Regular price Sale price $2.59 AUD Unit price per Per 5
CCI-00953-CZY (5 Pcs) --- Circlips - 9.53 mm x 0.64 mm x 10.08 mm Carbon Steel Zinc Plated CCI-00953-CZY (5 Pcs) --- Circlips - 9.53 mm x 0.64 mm x 10.08 mm Carbon Steel Zinc Plated Regular price $2.59 AUD Regular price Sale price $2.59 AUD Unit price per 38 Available Now
9.53 mm	0.64 mm +/-0.050	10.08 mm +0.00/-0.05	10.54 mm +0.25/-0.13		0.74 mm +0.08/-0.00
Material: Carbon Steel Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00953-C (100 Pcs) Circlips - 9.53 mm x 0.64 mm x 10.08 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $26.05 AUD Regular price Sale price $26.05 AUD Unit price per Per 100
9.53 mm	0.64 mm +/-0.050	10.08 mm +0.00/-0.05	10.54 mm +0.25/-0.13
Material: Carbon Steel Groove Width (W): 0.74 mm +0.08/-0.00 Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-00953-C (100 Pcs) Circlips - 9.53 mm x 0.64 mm x 10.08 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $26.05 AUD Regular price Sale price $26.05 AUD Unit price per Per 100
CCI-00953-C (100 Pcs) --- Circlips - 9.53 mm x 0.64 mm x 10.08 mm Carbon Steel CCI-00953-C (100 Pcs) --- Circlips - 9.53 mm x 0.64 mm x 10.08 mm Carbon Steel Regular price $26.05 AUD Regular price Sale price $26.05 AUD Unit price per Out of stock! Backorder Now
10.00 mm	0.60 mm +0.11/-0.00	10.50 mm +0.00/-0.05	10.90 mm +0.42/-0.13	1.4 - 1.5 mm	0.70 mm
Material: Spring Steel Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01000-C-V Circlips - 10 mm x 0.6 mm x 10.5 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
10.00 mm	0.60 mm +0.11/-0.00	10.50 mm +0.00/-0.05	10.90 mm +0.42/-0.13
Material: Spring Steel Radial Wall (S): 1.4 - 1.5 mm Groove Width (W): 0.70 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01000-C-V Circlips - 10 mm x 0.6 mm x 10.5 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
10.00 mm	0.80 mm +0/-0.10	10.40 mm	10.60 mm	1.20 mm +0/-0.10	0.90 mm +0.09/-0.00
Material: Spring Steel Clearance in Groove (C1): 8.2 mm Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0100-LS Snap - 10 mm x 0.8 mm x 10.4 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
10.00 mm	0.80 mm +0/-0.10	10.40 mm	10.60 mm
Material: Spring Steel Radial Wall (S): 1.20 mm +0/-0.10 Groove Width (W): 0.90 mm +0.09/-0.00 Clearance in Groove (C1): 8.2 mm Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0100-LS Snap - 10 mm x 0.8 mm x 10.4 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
10.00 mm	0.8 mm B DIN 2076	10.80 mm +0.3/-0.0	10.90 mm		1.00 mm
Material: Spring Steel Clearance in Bore (C): 9.3 mm Category: Retaining Rings - Internal - Round Wire
Part Number: WRI-0100-RD (50 Pcs) Circlips - 10 mm x 0.8 mm x 10.8 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Aug 15, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 50
10.00 mm	0.8 mm B DIN 2076	10.80 mm +0.3/-0.0	10.90 mm
Material: Spring Steel Groove Width (W): 1.00 mm Clearance in Bore (C): 9.3 mm Category: Retaining Rings - Internal - Round Wire
Part Number: WRI-0100-RD (50 Pcs) Circlips - 10 mm x 0.8 mm x 10.8 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Aug 15, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 50
WRI-0100-RD (50 Pcs) --- Circlips - 10 mm x 0.8 mm x 10.8 mm Spring Steel WRI-0100-RD (50 Pcs) --- Circlips - 10 mm x 0.8 mm x 10.8 mm Spring Steel Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Out of stock! Backorder Now
10.00 mm	1.00 mm +0.11/-0.00	10.40 mm +0.00/-0.06	10.80 mm +0.36/-0.10		1.10 mm +0.05/-0.00
Material: Carbon Steel Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01000-C (50 Pcs) Circlips - 10 mm x 1 mm x 10.4 mm / Retaining Rings 18 units (900 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 50
10.00 mm	1.00 mm +0.11/-0.00	10.40 mm +0.00/-0.06	10.80 mm +0.36/-0.10
Material: Carbon Steel Groove Width (W): 1.10 mm +0.05/-0.00 Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01000-C (50 Pcs) Circlips - 10 mm x 1 mm x 10.4 mm / Retaining Rings 18 units (900 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 50
CCI-01000-C (50 Pcs) --- Circlips - 10 mm x 1 mm x 10.4 mm Carbon Steel CCI-01000-C (50 Pcs) --- Circlips - 10 mm x 1 mm x 10.4 mm Carbon Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 18 Available Now
10.00 mm	1.00 mm +0.11/-0.00	10.40 mm +0.00/-0.06	10.80 mm +0.36/-0.10		1.10 mm +0.05/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01000-S15 (5 Pcs) Circlips - 10 mm x 1 mm x 10.4 mm / Retaining Rings 13 units (65 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 5
10.00 mm	1.00 mm +0.11/-0.00	10.40 mm +0.00/-0.06	10.80 mm +0.36/-0.10
Material: Stainless PH15-7 Mo Groove Width (W): 1.10 mm +0.05/-0.00 Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01000-S15 (5 Pcs) Circlips - 10 mm x 1 mm x 10.4 mm / Retaining Rings 13 units (65 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 5
CCI-01000-S15 (5 Pcs) --- Circlips - 10 mm x 1 mm x 10.4 mm Stainless PH15-7 Mo CCI-01000-S15 (5 Pcs) --- Circlips - 10 mm x 1 mm x 10.4 mm Stainless PH15-7 Mo Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per 13 Available Now
