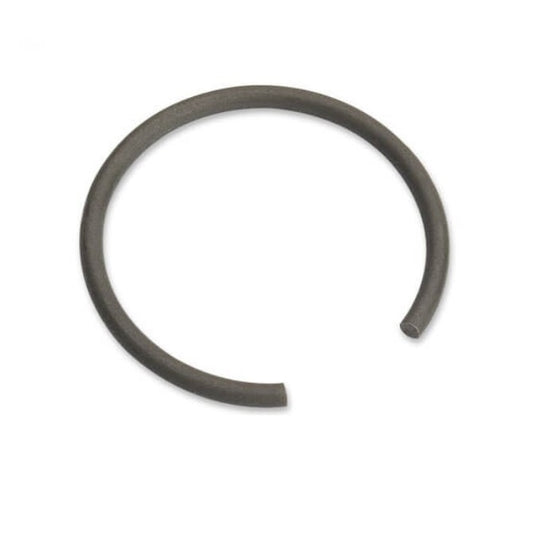

Collection: Retaining Rings - Internal - Round Wire

Retaining Rings (With Images)

Internal

6 Products in this selection

Includes DIN7993B / RB / M1700 / BN826. Retaining rings. Snap Rings (USA). Round section circlips.
Round section wire rings are mostly used in semicircular grooves.
Applications include gear systems, automotive engineering and open gudgeon pins.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue

A more comprehensive listing may be found on the MBA Minibearings main store at Retaining Rings - Internal - Round Wire.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)
12.00 mm	1.0 mm B DIN 2076	13.00 mm + 0.4 / - 0.0	13.20 mm		1.20
Material: Spring Steel Free Inside Diameter (D): 11.2 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.60 mm Gap (g): 6.00 mm
Part Number: WRI-0120-RD (50 Pcs) Internal Retaining Rings - 12x1x13 mm - Spring Steel 9 units (450 pcs) Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Per 50

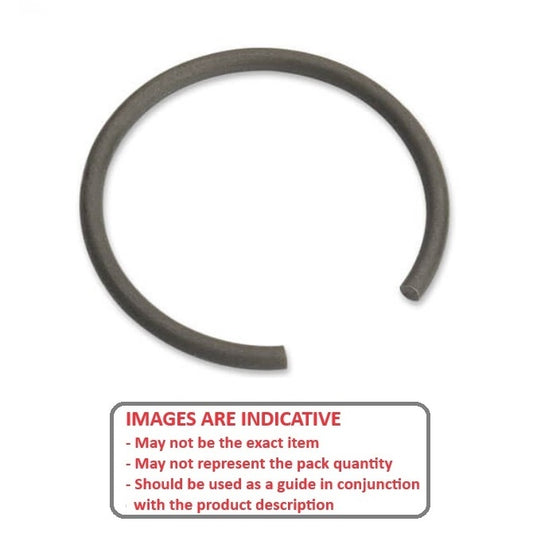

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
12.00 mm	1.0 mm B DIN 2076	13.00 mm + 0.4 / - 0.0	13.20 mm
Material: Spring Steel Groove Width (W): 1.20 Free Inside Diameter (D): 11.2 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.60 mm Gap (g): 6.00 mm
Part Number: WRI-0120-RD (50 Pcs) Internal Retaining Rings - 12x1x13 mm - Spring Steel 9 units (450 pcs) Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Per 50 View the product page first if you are unsure.
WRI-0120-RD (50 Pcs) --- Internal Retaining Rings - 12x1x13 mm - Spring Steel WRI-0120-RD (50 Pcs) --- Internal Retaining Rings - 12x1x13 mm - Spring Steel Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per 9 Available Now
26.00 mm	2.0 mm B DIN 2076	28.00 mm + 0.5 / - 0.0	28.30 mm		2.20
Material: Spring Steel Free Inside Diameter (D): 24.3 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.10 mm Gap (g): 10.000 mm
Part Number: WRI-0260-RD Internal Retaining Rings - 26x2x28 mm - Spring Steel 466 Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Each
26.00 mm	2.0 mm B DIN 2076	28.00 mm + 0.5 / - 0.0	28.30 mm
Material: Spring Steel Groove Width (W): 2.20 Free Inside Diameter (D): 24.3 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.10 mm Gap (g): 10.000 mm
Part Number: WRI-0260-RD Internal Retaining Rings - 26x2x28 mm - Spring Steel 466 Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Each View the product page first if you are unsure.
WRI-0260-RD --- Internal Retaining Rings - 26x2x28 mm - Spring Steel WRI-0260-RD --- Internal Retaining Rings - 26x2x28 mm - Spring Steel Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per 466 Available Now
28.00 mm	2.0 mm B DIN 2076	30.00 mm + 0.5 / - 0.0	30.30 mm		2.20
Material: Spring Steel Free Inside Diameter (D): 26.3 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.10 mm Gap (g): 10.000 mm
Part Number: WRI-0280-RD Internal Retaining Rings - 28x2x30 mm - Spring Steel 44 Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
28.00 mm	2.0 mm B DIN 2076	30.00 mm + 0.5 / - 0.0	30.30 mm
Material: Spring Steel Groove Width (W): 2.20 Free Inside Diameter (D): 26.3 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.10 mm Gap (g): 10.000 mm
Part Number: WRI-0280-RD Internal Retaining Rings - 28x2x30 mm - Spring Steel 44 Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
WRI-0280-RD --- Internal Retaining Rings - 28x2x30 mm - Spring Steel WRI-0280-RD --- Internal Retaining Rings - 28x2x30 mm - Spring Steel Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per 44 Available Now
30.00 mm	2.0 mm B DIN 2076	32.00 mm + 0.5 / - 0.0	32.30 mm		2.20
Material: Spring Steel Free Inside Diameter (D): 28.3 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.10 mm Gap (g): 10.000 mm
Part Number: WRI-0300-RD (2 Pcs) Internal Retaining Rings - 30x2x32 mm - Spring Steel 99 units (198 pcs) Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $1.59 AUD Regular price Sale price $1.59 AUD Unit price per Per 2
30.00 mm	2.0 mm B DIN 2076	32.00 mm + 0.5 / - 0.0	32.30 mm
Material: Spring Steel Groove Width (W): 2.20 Free Inside Diameter (D): 28.3 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.10 mm Gap (g): 10.000 mm
Part Number: WRI-0300-RD (2 Pcs) Internal Retaining Rings - 30x2x32 mm - Spring Steel 99 units (198 pcs) Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $1.59 AUD Regular price Sale price $1.59 AUD Unit price per Per 2 View the product page first if you are unsure.
WRI-0300-RD (2 Pcs) --- Internal Retaining Rings - 30x2x32 mm - Spring Steel WRI-0300-RD (2 Pcs) --- Internal Retaining Rings - 30x2x32 mm - Spring Steel Regular price $1.59 AUD Regular price Sale price $1.59 AUD Unit price per 99 Available Now
42.00 mm	2.5 mm B DIN 2076	44.50 mm + 0.8 / - 0.0	45.00 mm		2.80
Material: Spring Steel Free Inside Diameter (D): 40 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.40 mm Gap (g): 16.00 mm
Part Number: WRI-0420-RD (10 Pcs) Internal Retaining Rings - 42x2.5x44.5 mm - Spring Steel 12 units (120 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 10
42.00 mm	2.5 mm B DIN 2076	44.50 mm + 0.8 / - 0.0	45.00 mm
Material: Spring Steel Groove Width (W): 2.80 Free Inside Diameter (D): 40 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.40 mm Gap (g): 16.00 mm
Part Number: WRI-0420-RD (10 Pcs) Internal Retaining Rings - 42x2.5x44.5 mm - Spring Steel 12 units (120 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 10
WRI-0420-RD (10 Pcs) --- Internal Retaining Rings - 42x2.5x44.5 mm - Spring Steel Sale WRI-0420-RD (10 Pcs) --- Internal Retaining Rings - 42x2.5x44.5 mm - Spring Steel Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per 12 Available Now Sale
85.00 mm	3.2 mm B DIN 2076	88.20 mm + 1.0 / - 0.0	89.00 mm		3.60
Material: Spring Steel Free Inside Diameter (D): 82.6 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 25.000 mm
Part Number: WRI-0850-RD Internal Retaining Rings - 85x3.2x88.2 mm - Spring Steel 6 Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Each
85.00 mm	3.2 mm B DIN 2076	88.20 mm + 1.0 / - 0.0	89.00 mm
Material: Spring Steel Groove Width (W): 3.60 Free Inside Diameter (D): 82.6 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 25.000 mm
Part Number: WRI-0850-RD Internal Retaining Rings - 85x3.2x88.2 mm - Spring Steel 6 Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Each View the product page first if you are unsure.
WRI-0850-RD --- Internal Retaining Rings - 85x3.2x88.2 mm - Spring Steel WRI-0850-RD --- Internal Retaining Rings - 85x3.2x88.2 mm - Spring Steel Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 6 Available Now
