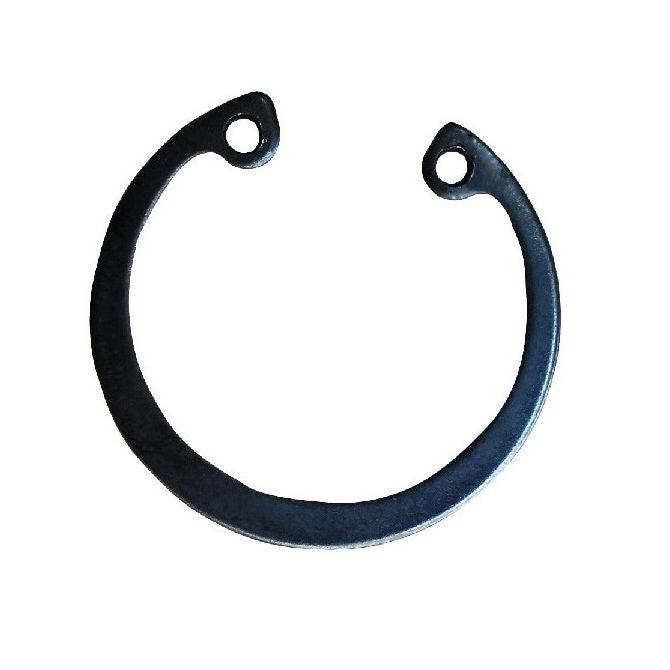

Internal Retaining Rings - 12x1x12.5 mm - Carbon Steel

Name: 1097587 | CCI-01200-C (50 Pcs) --- Internal Retaining Rings - 12x1x12.5 mm - Carbon Steel
Brand: MBA
SKU: CCI01200C
Price: 7.59 AUD
Availability: InStock

CCI-01200-C (50 Pcs)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

NaN -Infinity

MBA

Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

Price:

$7.59 AUD

per 50
Qty: 9 available now (450 pcs)
Order 50 or more (2500 pcs) for $6.83 AUD per 50

Similar Items

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before May 17, 2025

Quantity

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 8322

Housing Bore (B): 12.00mm
Carbon Steel

Clip Thickness (T): 1.00mm
_{+ 0.11 / - 0.00}
Groove Dia. (Dg): 12.50mm
_{+ 0.00 / - 0.06}
Approx. Loose Circlip OD (Dr): 13.00mm
_{+ 0.36 / - 0.10}
Groove Width (W): 1.10mm
_{+ 0.08 / - 0.00}
Clearance in Bore (C): 4.90mm
Clearance in Groove (C1): 5.70mm
Min. Lug Diameter (h): 1.50mm
Min. Extension (n): 0.80
Standard: DIN472

Brand: MBA
Country of Origin: US

Alternative Parts Include: NZT.J12, 98455A112, D1300-0120APP, D13000120APP, D1300-0120, D1300-012, D1300012, D13000120, BN822012, BN-822-012, DHO012, DHO-012, MD0472MQB012, J012, J12-BLS, J12, J12BLS, J-012, J12X1, 472-012, 472012, 1300-0120, 13000120, 1300-0120APP, 13000120APP, CCI01200C, Ellison, ALTPART, Bossard, Waldes, NoCor, Rotor Clip, Seeger

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
