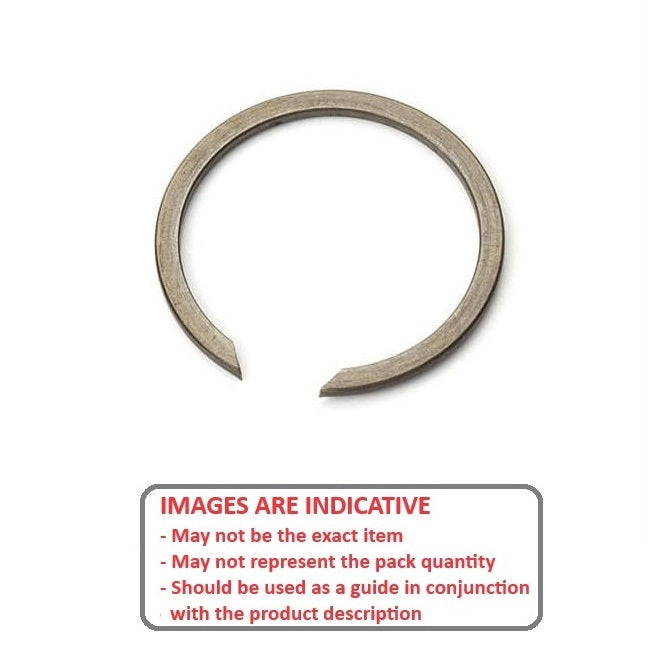

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
Skip to product information
1 of 3

WRI-0110-LS

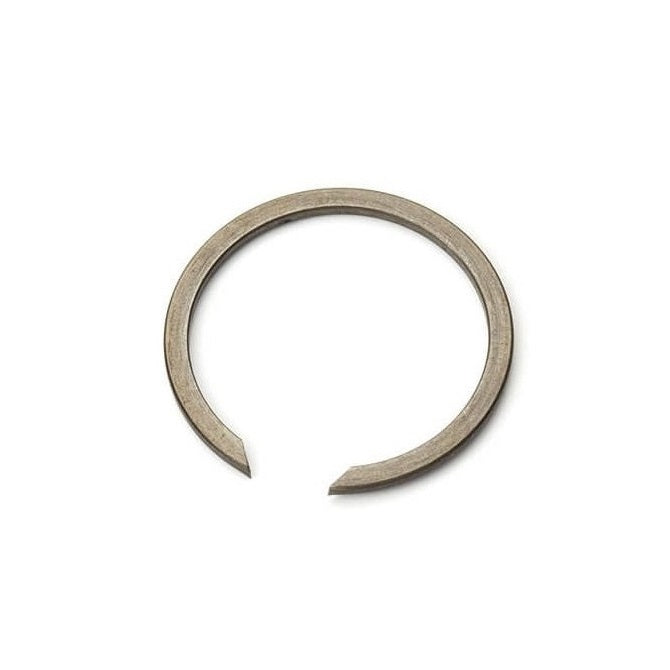

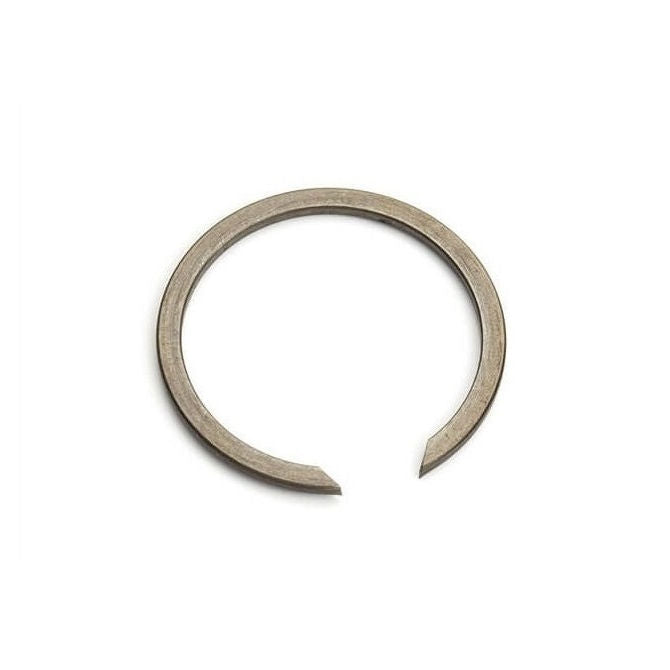

Snap - 11 mm x 1 mm x 9 mm

MBA

Additional resources:
Spiral Rings
Wire Rings
Snap Rings and Spiral Rings PDF
Price:
Regular price $2.50 AUD
Regular price Sale price $2.50 AUD
Each
Qty: 178 available now
Order 50 or more for $2.25 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jan 23, 2025

Base Category: Snap Rings - Internal

Top Level Category: Snap Rings - Internal - Basic - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 328

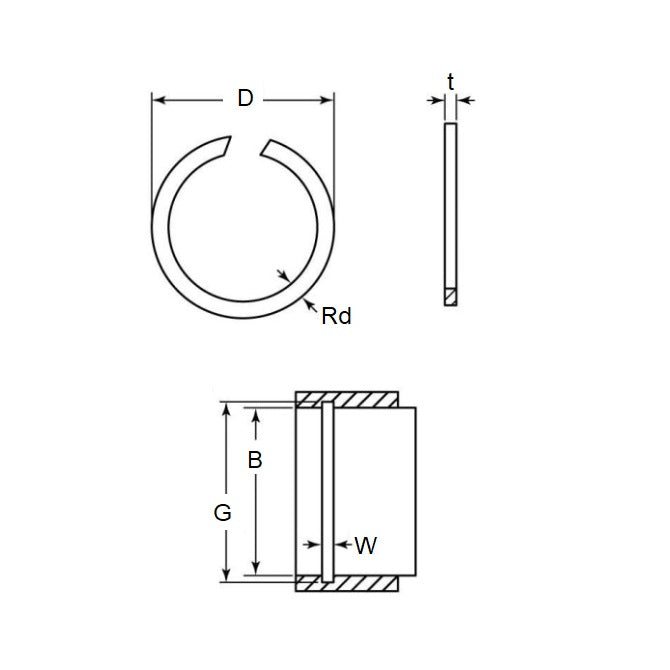

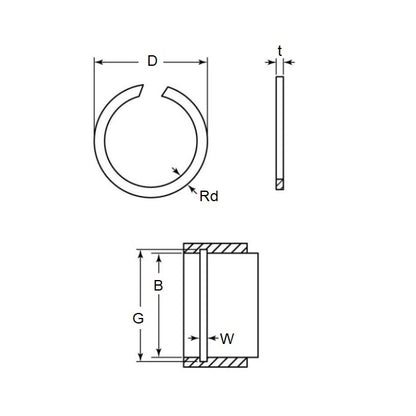

Housing Bore (B): 11.00mm
Spring Steel
  • Clip Thickness (t): 1.00mm
    +0/-0.10
  • Approx. Free ID: 9mm
  • Free OD Max (D): 11.60mm
  • Section (Rd): 1.30mm
    +0/-0.10
  • Groove Dia. (G): 11.40mm
    +0.11/-0.00
  • Groove Width (W): 1.10
  • Spring Steel
  • Section Profile: Rectangular with Square Edge

Brand: MBA
Country of Origin: USA

Alternatives: DSB-011, WRI0110SQ

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
