Retaining Rings - Internal - Snap Rings - Basic Carbon Steel

Retaining Rings -> Internal -> Snap Rings -> Basic Carbon Steel

There are 18 products in the sub-categories of Retaining Rings - Internal - Snap Rings - Basic Carbon Steel. Browse the Retaining Rings - Internal - Snap Rings - Basic Carbon Steel products table.

Category Details

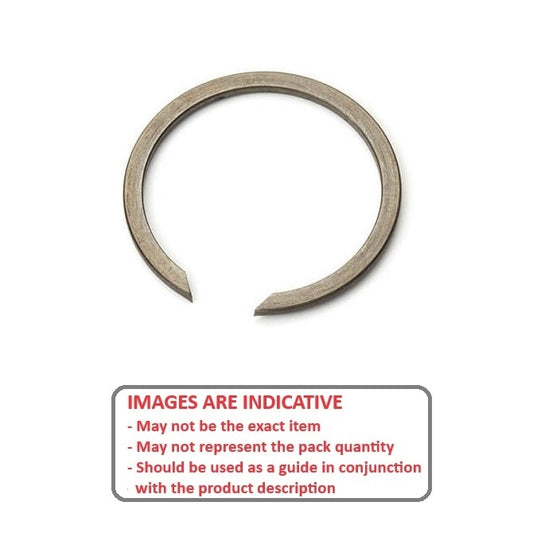

A selection of Basic Carbon Steel Snap Rings Internal Retaining Rings. M2300 / SB / ESB Snaprings. Like an internal circlip without the lugs.

  • An expanded range may be available on special order. Please enquire.
  • Applications include gear systems, securing needle bearings and to act as spacers.
  • Used on the inside bore diameter of a housing or similar

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Retaining Rings - Internal - Snap Rings - Basic Carbon Steel category on the MBA Minibearings main store.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Section (Rd) Groove Width (W) Indicative
Internal Retaining Rings - 8x0.8x8.3 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
8.00
mm
Clip Thickness (T)
0.80
mm
+ 0 / - 0.10
(Equiv. 0.031 in.)
Groove Dia. (Dg)
8.30
mm
+ 0.09 / - 0.00
(Equiv. 0.327 in.)
Approx. Loose Circlip OD (Dr)
8.50
mm
Section (Rd)
1.00
mm
+ 0 / - 0.10
Groove Width (W)
0.90
mm
Internal Retaining Rings - 8x0.8x8.3 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 6.5    Section Profile: Rectangular with Square Edge
Part Number: WRI-0080-LS (Each)
10 Available Now | Further orders can be expected around Mon, Jul 27, 2026
$2.23 AUD
$2.67 AUD $2.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 10 available can be backordered.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Internal Retaining Rings - 8x0.8x8.3 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
8.00
mm
Clip Thickness (T)
0.80
mm
+ 0 / - 0.10
(Equiv. 0.031 in.)
Groove Dia. (Dg)
8.30
mm
+ 0.09 / - 0.00
(Equiv. 0.327 in.)
Approx. Loose Circlip OD (Dr)
8.50
mm
Internal Retaining Rings - 8x0.8x8.3 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 1.00 mm + 0 / - 0.10    Groove Width (W): 0.90 mm    Approx. Loose Clip ID: 6.5    Section Profile: Rectangular with Square Edge
Part Number: WRI-0080-LS (Each)
10 Available Now | Further orders can be expected around Mon, Jul 27, 2026
$2.23 AUD
$2.67 AUD $2.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

10 Available Now. Backorder if more than 10.
Internal Retaining Rings - 11x1x11.4 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
11.00
mm
Clip Thickness (T)
1.00
mm
+ 0 / - 0.10
(Equiv. 0.039 in.)
Groove Dia. (Dg)
11.40
mm
+ 0.11 / - 0.00
(Equiv. 0.449 in.)
Approx. Loose Circlip OD (Dr)
11.60
mm
Section (Rd)
1.30
mm
+ 0 / - 0.10
Groove Width (W)
1.10
mm
Internal Retaining Rings - 11x1x11.4 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 9    Section Profile: Rectangular with Square Edge
Part Number: WRI-0110-LS (Each)
178 Available Now | Further orders can be expected around Sat, Oct 10, 2026
$1.32 AUD
$1.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 178 available can be backordered.
Internal Retaining Rings - 11x1x11.4 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
11.00
mm
Clip Thickness (T)
1.00
mm
+ 0 / - 0.10
(Equiv. 0.039 in.)
Groove Dia. (Dg)
11.40
mm
+ 0.11 / - 0.00
(Equiv. 0.449 in.)
Approx. Loose Circlip OD (Dr)
11.60
mm
Internal Retaining Rings - 11x1x11.4 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 1.30 mm + 0 / - 0.10    Groove Width (W): 1.10 mm    Approx. Loose Clip ID: 9    Section Profile: Rectangular with Square Edge
Part Number: WRI-0110-LS (Each)
178 Available Now | Further orders can be expected around Sat, Oct 10, 2026
$1.32 AUD
$1.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

178 Available Now. Backorder if more than 178.
Internal Retaining Rings - 12x1x12.4 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
12.00
mm
Clip Thickness (T)
1.00
mm
+ 0 / - 0.10
(Equiv. 0.039 in.)
Groove Dia. (Dg)
12.40
mm
+ 0.11 / - 0.00
(Equiv. 0.488 in.)
Approx. Loose Circlip OD (Dr)
12.70
mm
Section (Rd)
1.30
mm
+ 0 / - 0.10
Groove Width (W)
1.10
mm
Internal Retaining Rings - 12x1x12.4 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 10.1    Section Profile: Rectangular with Square Edge
Additional stock available from USA subject to Prior Sale = 26253
Part Number: WRI-0120-LS (PK-2)
388 units (776 pcs) Available Now | Further orders can be expected around Sat, Jul 18, 2026
$5.14 AUD
$5.14 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 388 available can be backordered.
Internal Retaining Rings - 12x1x12.4 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
12.00
mm
Clip Thickness (T)
1.00
mm
+ 0 / - 0.10
(Equiv. 0.039 in.)
Groove Dia. (Dg)
12.40
mm
+ 0.11 / - 0.00
(Equiv. 0.488 in.)
Approx. Loose Circlip OD (Dr)
12.70
mm
Internal Retaining Rings - 12x1x12.4 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 1.30 mm + 0 / - 0.10    Groove Width (W): 1.10 mm    Approx. Loose Clip ID: 10.1    Section Profile: Rectangular with Square Edge
Additional stock available from USA subject to Prior Sale = 26253
Part Number: WRI-0120-LS (PK-2)
388 units (776 pcs) Available Now | Further orders can be expected around Sat, Jul 18, 2026
$5.14 AUD
$5.14 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

388 units (776 pcs) Available Now. Backorder if more than 388.
Internal Retaining Rings - 13x1x13.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
13.00
mm
Clip Thickness (T)
1.00
mm
+ 0 / - 0.10
(Equiv. 0.039 in.)
Groove Dia. (Dg)
13.50
mm
+ 0.11 / - 0.00
(Equiv. 0.531 in.)
Approx. Loose Circlip OD (Dr)
13.80
mm
Section (Rd)
1.30
mm
+ 0 / - 0.10
Groove Width (W)
1.10
mm
Internal Retaining Rings - 13x1x13.5 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 11.2    Section Profile: Rectangular with Square Edge
Part Number: WRI-0130-LS (Each)
20 Available Now | Further orders can be expected around Mon, Jul 27, 2026
$2.23 AUD
$2.67 AUD $2.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 20 available can be backordered.
Internal Retaining Rings - 13x1x13.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
13.00
mm
Clip Thickness (T)
1.00
mm
+ 0 / - 0.10
(Equiv. 0.039 in.)
Groove Dia. (Dg)
13.50
mm
+ 0.11 / - 0.00
(Equiv. 0.531 in.)
Approx. Loose Circlip OD (Dr)
13.80
mm
Internal Retaining Rings - 13x1x13.5 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 1.30 mm + 0 / - 0.10    Groove Width (W): 1.10 mm    Approx. Loose Clip ID: 11.2    Section Profile: Rectangular with Square Edge
Part Number: WRI-0130-LS (Each)
20 Available Now | Further orders can be expected around Mon, Jul 27, 2026
$2.23 AUD
$2.67 AUD $2.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

20 Available Now. Backorder if more than 20.
Internal Retaining Rings - 16x1.2x16.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
16.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
16.50
mm
+ 0.11 / - 0.00
(Equiv. 0.65 in.)
Approx. Loose Circlip OD (Dr)
16.80
mm
Section (Rd)
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
Internal Retaining Rings - 16x1.2x16.5 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 13.3    Section Profile: Rectangular with Square Edge
Part Number: WRI-0160-LS (Each)
Out of Stock | Backorder Now | More stock due: 20 around Fri, Jun 19, 2026 | Further orders can be expected around Mon, Jul 27, 2026
$3.95 AUD
$4.75 AUD $3.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 16x1.2x16.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
16.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
16.50
mm
+ 0.11 / - 0.00
(Equiv. 0.65 in.)
Approx. Loose Circlip OD (Dr)
16.80
mm
Internal Retaining Rings - 16x1.2x16.5 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip ID: 13.3    Section Profile: Rectangular with Square Edge
Part Number: WRI-0160-LS (Each)
Out of Stock | Backorder Now | More stock due: 20 around Fri, Jun 19, 2026 | Further orders can be expected around Mon, Jul 27, 2026
$3.95 AUD
$4.75 AUD $3.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 17x1.2x17.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
17.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
17.50
mm
+ 0.11 / - 0.00
(Equiv. 0.689 in.)
Approx. Loose Circlip OD (Dr)
17.80
mm
Section (Rd)
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
Internal Retaining Rings - 17x1.2x17.5 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 14.3    Section Profile: Rectangular with Square Edge
Part Number: WRI-0170-LS (Each)
20 Available Now | Further orders can be expected around Mon, Jul 27, 2026
$2.41 AUD
$2.89 AUD $2.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 20 available can be backordered.
Internal Retaining Rings - 17x1.2x17.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
17.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
17.50
mm
+ 0.11 / - 0.00
(Equiv. 0.689 in.)
Approx. Loose Circlip OD (Dr)
17.80
mm
Internal Retaining Rings - 17x1.2x17.5 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip ID: 14.3    Section Profile: Rectangular with Square Edge
Part Number: WRI-0170-LS (Each)
20 Available Now | Further orders can be expected around Mon, Jul 27, 2026
$2.41 AUD
$2.89 AUD $2.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

20 Available Now. Backorder if more than 20.
Internal Retaining Rings - 22x1.2x22.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
22.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
22.60
mm
+ 0.13 / - 0.00
(Equiv. 0.89 in.)
Approx. Loose Circlip OD (Dr)
23.00
mm
Section (Rd)
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
Material: Carbon Spring Steel    Approx. Loose Clip ID: 19.5    Section Profile: Rectangular with Square Edge
Part Number: WRI-0220-LS (Each)
Out of Stock | Backorder Now | More stock due: 20 around Fri, Jun 19, 2026 | Further orders can be expected around Mon, Jul 27, 2026
$2.41 AUD
$2.89 AUD $2.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22x1.2x22.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
22.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
22.60
mm
+ 0.13 / - 0.00
(Equiv. 0.89 in.)
Approx. Loose Circlip OD (Dr)
23.00
mm
Material: Carbon Spring Steel    Section (Rd): 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip ID: 19.5    Section Profile: Rectangular with Square Edge
Part Number: WRI-0220-LS (Each)
Out of Stock | Backorder Now | More stock due: 20 around Fri, Jun 19, 2026 | Further orders can be expected around Mon, Jul 27, 2026
$2.41 AUD
$2.89 AUD $2.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 25x1.2x25.8 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
25.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
25.80
mm
+ 0.13 / - 0.00
(Equiv. 1.016 in.)
Approx. Loose Circlip OD (Dr)
26.20
mm
Section (Rd)
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
Internal Retaining Rings - 25x1.2x25.8 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 22.7    Section Profile: Rectangular with Square Edge
Part Number: WRI-0250-LS (Each)
180 Available Now | Further orders can be expected around Fri, Feb 12, 2027
$2.05 AUD
$2.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 180 available can be backordered.
Internal Retaining Rings - 25x1.2x25.8 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
25.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
25.80
mm
+ 0.13 / - 0.00
(Equiv. 1.016 in.)
Approx. Loose Circlip OD (Dr)
26.20
mm
Internal Retaining Rings - 25x1.2x25.8 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip ID: 22.7    Section Profile: Rectangular with Square Edge
Part Number: WRI-0250-LS (Each)
180 Available Now | Further orders can be expected around Fri, Feb 12, 2027
$2.05 AUD
$2.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

180 Available Now. Backorder if more than 180.
Internal Retaining Rings - 27x1.2x27.8 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
27.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
27.80
mm
+ 0.13 / - 0.00
(Equiv. 1.094 in.)
Approx. Loose Circlip OD (Dr)
28.20
mm
Section (Rd)
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
Material: Carbon Spring Steel    Approx. Loose Clip ID: 24.7    Section Profile: Rectangular with Square Edge
Part Number: WRI-0270-LS (Each)
Out of Stock | Backorder Now | More stock due: 10 around Fri, Jun 19, 2026 | Further orders can be expected around Mon, Jul 27, 2026
$3.59 AUD
$4.31 AUD $3.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 27x1.2x27.8 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
27.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
27.80
mm
+ 0.13 / - 0.00
(Equiv. 1.094 in.)
Approx. Loose Circlip OD (Dr)
28.20
mm
Material: Carbon Spring Steel    Section (Rd): 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip ID: 24.7    Section Profile: Rectangular with Square Edge
Part Number: WRI-0270-LS (Each)
Out of Stock | Backorder Now | More stock due: 10 around Fri, Jun 19, 2026 | Further orders can be expected around Mon, Jul 27, 2026
$3.59 AUD
$4.31 AUD $3.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 30x1.5x31 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
30.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
31.00
mm
+ 0.16 / - 0.00
(Equiv. 1.22 in.)
Approx. Loose Circlip OD (Dr)
31.40
mm
Section (Rd)
2.30
mm
+ 0 / - 0.10
Groove Width (W)
1.60
mm
Internal Retaining Rings - 30x1.5x31 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 26.8    Section Profile: Rectangular with Square Edge
Part Number: WRI-0300-LS (Each)
180 Available Now | Further orders can be expected around Mon, Jul 27, 2026
$3.32 AUD
$5.71 AUD $3.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 180 available can be backordered.
Internal Retaining Rings - 30x1.5x31 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
30.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
31.00
mm
+ 0.16 / - 0.00
(Equiv. 1.22 in.)
Approx. Loose Circlip OD (Dr)
31.40
mm
Internal Retaining Rings - 30x1.5x31 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip ID: 26.8    Section Profile: Rectangular with Square Edge
Part Number: WRI-0300-LS (Each)
180 Available Now | Further orders can be expected around Mon, Jul 27, 2026
$3.32 AUD
$5.71 AUD $3.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

180 Available Now. Backorder if more than 180.
Internal Retaining Rings - 32x1.5x33 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
32.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
33.00
mm
+ 0.16 / - 0.00
(Equiv. 1.299 in.)
Approx. Loose Circlip OD (Dr)
33.40
mm
Section (Rd)
2.30
mm
+ 0 / - 0.10
Groove Width (W)
1.60
mm
Internal Retaining Rings - 32x1.5x33 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 28.8    Section Profile: Rectangular with Square Edge
Deleted Item. Available while stocks last.
Part Number: WRI-0320-LS (PK-10)
95 units (950 pcs) Available Now | Item Discontinued - Up to 95 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

95 units (950 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Internal Retaining Rings - 32x1.5x33 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
32.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
33.00
mm
+ 0.16 / - 0.00
(Equiv. 1.299 in.)
Approx. Loose Circlip OD (Dr)
33.40
mm
Internal Retaining Rings - 32x1.5x33 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip ID: 28.8    Section Profile: Rectangular with Square Edge
Deleted Item. Available while stocks last.
Part Number: WRI-0320-LS (PK-10)
95 units (950 pcs) Available Now | Item Discontinued - Up to 95 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

95 units (950 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Internal Retaining Rings - 37x1.5x38.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
37.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
38.20
mm
+ 0.16 / - 0.00
(Equiv. 1.504 in.)
Approx. Loose Circlip OD (Dr)
38.80
mm
Section (Rd)
2.30
mm
+ 0 / - 0.10
Groove Width (W)
1.60
mm
Material: Carbon Spring Steel    Approx. Loose Clip ID: 34.2    Section Profile: Rectangular with Square Edge
Part Number: WRI-0370-LS (Each)
Out of Stock | Backorder Now | More stock due: 10 around Fri, Jun 19, 2026 | Further orders can be expected around Mon, Jul 27, 2026
$4.50 AUD
$5.40 AUD $4.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 37x1.5x38.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
37.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
38.20
mm
+ 0.16 / - 0.00
(Equiv. 1.504 in.)
Approx. Loose Circlip OD (Dr)
38.80
mm
Material: Carbon Spring Steel    Section (Rd): 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip ID: 34.2    Section Profile: Rectangular with Square Edge
Part Number: WRI-0370-LS (Each)
Out of Stock | Backorder Now | More stock due: 10 around Fri, Jun 19, 2026 | Further orders can be expected around Mon, Jul 27, 2026
$4.50 AUD
$5.40 AUD $4.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 45x1.5x46.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
45.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
46.20
mm
+ 0.16 / - 0.00
(Equiv. 1.819 in.)
Approx. Loose Circlip OD (Dr)
46.80
mm
Section (Rd)
2.30
mm
+ 0 / - 0.10
Groove Width (W)
1.60
mm
Internal Retaining Rings - 45x1.5x46.2 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 42.2    Section Profile: Rectangular with Square Edge
Deleted Item. Available while stocks last.
Part Number: WRI-0450-LS (PK-5)
8 units (40 pcs) Available Now | Further orders can be expected around Sun, Oct 18, 2026
$5.00 AUD
$5.00 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 8 available can be backordered.
Internal Retaining Rings - 45x1.5x46.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
45.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
46.20
mm
+ 0.16 / - 0.00
(Equiv. 1.819 in.)
Approx. Loose Circlip OD (Dr)
46.80
mm
Internal Retaining Rings - 45x1.5x46.2 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip ID: 42.2    Section Profile: Rectangular with Square Edge
Deleted Item. Available while stocks last.
Part Number: WRI-0450-LS (PK-5)
8 units (40 pcs) Available Now | Further orders can be expected around Sun, Oct 18, 2026
$5.00 AUD
$5.00 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

8 units (40 pcs) Available Now. Backorder if more than 8.
Internal Retaining Rings - 47x1.5x48.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
47.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
48.20
mm
+ 0.16 / - 0.00
(Equiv. 1.898 in.)
Approx. Loose Circlip OD (Dr)
48.80
mm
Section (Rd)
2.30
mm
+ 0 / - 0.10
Groove Width (W)
1.60
mm
Internal Retaining Rings - 47x1.5x48.2 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 44.2    Section Profile: Rectangular with Square Edge
Part Number: WRI-0470-LS (PK-5)
510 units (2550 pcs) Available Now | Item Discontinued - Up to 510 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.59 AUD
$7.51 AUD $3.59 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

510 units (2550 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Internal Retaining Rings - 47x1.5x48.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
47.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
48.20
mm
+ 0.16 / - 0.00
(Equiv. 1.898 in.)
Approx. Loose Circlip OD (Dr)
48.80
mm
Internal Retaining Rings - 47x1.5x48.2 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip ID: 44.2    Section Profile: Rectangular with Square Edge
Part Number: WRI-0470-LS (PK-5)
510 units (2550 pcs) Available Now | Item Discontinued - Up to 510 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.59 AUD
$7.51 AUD $3.59 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

510 units (2550 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Internal Retaining Rings - 52x1.5x53.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
52.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
53.50
mm
+ 0.19 / - 0.00
(Equiv. 2.106 in.)
Approx. Loose Circlip OD (Dr)
54.30
mm
Section (Rd)
2.30
mm
+ 0 / - 0.10
Groove Width (W)
1.60
mm
Internal Retaining Rings - 52x1.5x53.5 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 49.7    Section Profile: Rectangular with Square Edge
Part Number: WRI-0520-LS (PK-5)
470 units (2350 pcs) Available Now | Item Discontinued - Up to 470 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.86 AUD
$8.17 AUD $3.86 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

470 units (2350 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Internal Retaining Rings - 52x1.5x53.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
52.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
53.50
mm
+ 0.19 / - 0.00
(Equiv. 2.106 in.)
Approx. Loose Circlip OD (Dr)
54.30
mm
Internal Retaining Rings - 52x1.5x53.5 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip ID: 49.7    Section Profile: Rectangular with Square Edge
Part Number: WRI-0520-LS (PK-5)
470 units (2350 pcs) Available Now | Item Discontinued - Up to 470 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.86 AUD
$8.17 AUD $3.86 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

470 units (2350 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Internal Retaining Rings - 55x1.5x56.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
55.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
56.50
mm
+ 0.19 / - 0.00
(Equiv. 2.224 in.)
Approx. Loose Circlip OD (Dr)
57.30
mm
Section (Rd)
2.30
mm
+ 0 / - 0.10
Groove Width (W)
1.60
mm
Internal Retaining Rings - 55x1.5x56.5 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 52.7    Section Profile: Rectangular with Square Edge
Additional stock available from USA subject to Prior Sale = 2778
Part Number: WRI-0550-LS (PK-5)
2 units (10 pcs) Available Now | Further orders can be expected around Sat, Jul 18, 2026
$20.95 AUD
$20.95 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Internal Retaining Rings - 55x1.5x56.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
55.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
56.50
mm
+ 0.19 / - 0.00
(Equiv. 2.224 in.)
Approx. Loose Circlip OD (Dr)
57.30
mm
Internal Retaining Rings - 55x1.5x56.5 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip ID: 52.7    Section Profile: Rectangular with Square Edge
Additional stock available from USA subject to Prior Sale = 2778
Part Number: WRI-0550-LS (PK-5)
2 units (10 pcs) Available Now | Further orders can be expected around Sat, Jul 18, 2026
$20.95 AUD
$20.95 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

2 units (10 pcs) Available Now. Backorder if more than 2.
Internal Retaining Rings - 98x2.5x100 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
98.00
mm
Clip Thickness (T)
2.50
mm
+ 0 / - 0.10
(Equiv. 0.098 in.)
Groove Dia. (Dg)
100.0
mm
+ 0.22 / - 0.00
(Equiv. 3.937 in.)
Approx. Loose Circlip OD (Dr)
101.00
mm
Section (Rd)
3.40
mm
+ 0 / - 0.10
Groove Width (W)
2.70
mm
Internal Retaining Rings - 98x2.5x100 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 94.2    Section Profile: Rectangular with Square Edge
Part Number: WRI-0980-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 27, 2026
$12.14 AUD
$14.56 AUD $12.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 98x2.5x100 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
98.00
mm
Clip Thickness (T)
2.50
mm
+ 0 / - 0.10
(Equiv. 0.098 in.)
Groove Dia. (Dg)
100.0
mm
+ 0.22 / - 0.00
(Equiv. 3.937 in.)
Approx. Loose Circlip OD (Dr)
101.00
mm
Internal Retaining Rings - 98x2.5x100 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 3.40 mm + 0 / - 0.10    Groove Width (W): 2.70 mm    Approx. Loose Clip ID: 94.2    Section Profile: Rectangular with Square Edge
Part Number: WRI-0980-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 27, 2026
$12.14 AUD
$14.56 AUD $12.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 170x2.5x172.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
170.00
mm
Clip Thickness (T)
2.50
mm
+ 0 / - 0.10
(Equiv. 0.098 in.)
Groove Dia. (Dg)
172.6
mm
+ 0.25 / - 0.00
(Equiv. 6.795 in.)
Approx. Loose Circlip OD (Dr)
174.30
mm
Section (Rd)
4.00
mm
+ 0 / - 0.10
Groove Width (W)
2.70
mm
Internal Retaining Rings - 170x2.5x172.6 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 166.3    Section Profile: Rectangular with Square Edge
Additional stock available from USA subject to Prior Sale = 18
Part Number: WRI-1700-LS (Each)
50 Available Now | Further orders can be expected around Sat, Jul 18, 2026
$5.95 AUD
$5.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 50 available can be backordered.
Internal Retaining Rings - 170x2.5x172.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
170.00
mm
Clip Thickness (T)
2.50
mm
+ 0 / - 0.10
(Equiv. 0.098 in.)
Groove Dia. (Dg)
172.6
mm
+ 0.25 / - 0.00
(Equiv. 6.795 in.)
Approx. Loose Circlip OD (Dr)
174.30
mm
Internal Retaining Rings - 170x2.5x172.6 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 4.00 mm + 0 / - 0.10    Groove Width (W): 2.70 mm    Approx. Loose Clip ID: 166.3    Section Profile: Rectangular with Square Edge
Additional stock available from USA subject to Prior Sale = 18
Part Number: WRI-1700-LS (Each)
50 Available Now | Further orders can be expected around Sat, Jul 18, 2026
$5.95 AUD
$5.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

50 Available Now. Backorder if more than 50.
