Retaining Rings - Internal - Snap Rings

9 Products in this selection

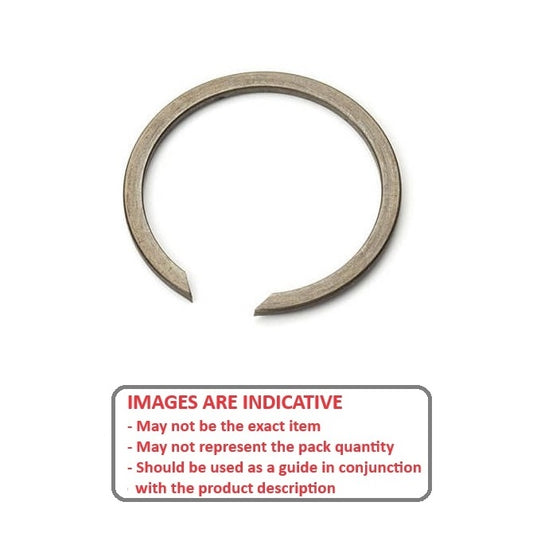

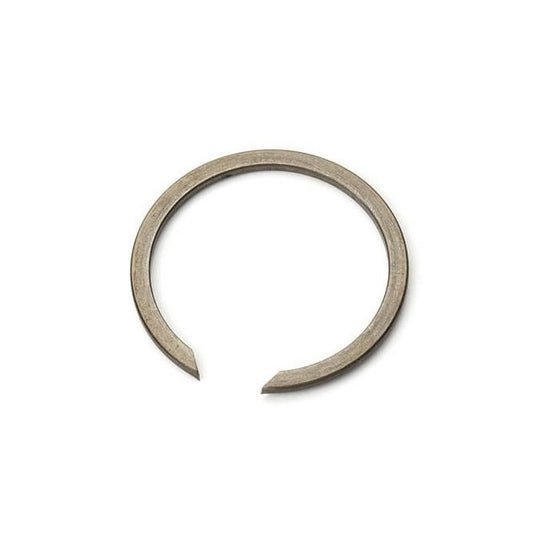

This is a combined category of Snap Rings Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
Snap Rings and Spiral Rings PDF

A more comprehensive listing may be found on the MBA Minibearings main store at Retaining Rings - Internal - Snap Rings.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Section (Rd) Groove Width (W) Indicative
11.00
mm 		1.00
mm
+ 0 / - 0.10 		11.40
mm
+ 0.11 / - 0.00 		11.60
mm 		1.30
mm
+ 0 / - 0.10 		1.10
mm 		1095648 | WRI-0110-LS --- Internal Retaining Rings - 11x1x11.4 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0110-LS Internal Retaining Rings - 11x1x11.4 mm - Spring Steel
178 Available Now | Further orders can be expected around Tue, Jun 10, 2025
$2.50 AUD
$2.50 AUD
Each
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
11.00
mm 		1.00
mm
+ 0 / - 0.10 		11.40
mm
+ 0.11 / - 0.00 		11.60
mm 		1095648 | WRI-0110-LS --- Internal Retaining Rings - 11x1x11.4 mm - Spring Steel
Material: Spring Steel    Section (Rd): 1.30 mm + 0 / - 0.10    Groove Width (W): 1.10 mm    Approx. Loose Clip ID: 9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0110-LS Internal Retaining Rings - 11x1x11.4 mm - Spring Steel
178 Available Now | Further orders can be expected around Tue, Jun 10, 2025
$2.50 AUD
$2.50 AUD
Each
View the product page first if you are unsure.
12.00
mm 		1.00
mm
+ 0 / - 0.10 		12.40
mm
+ 0.11 / - 0.00 		12.70
mm 		1.30
mm
+ 0 / - 0.10 		1.10
mm 		1097587 | WRI-0120-LS (2 Pcs) --- Internal Retaining Rings - 12x1x12.4 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 10.1
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0120-LS (2 Pcs) Internal Retaining Rings - 12x1x12.4 mm - Spring Steel
388 units (776 pcs) Available Now | Further orders can be expected around Fri, Dec 12, 2025
$5.05 AUD
$5.05 AUD
Per 2
12.00
mm 		1.00
mm
+ 0 / - 0.10 		12.40
mm
+ 0.11 / - 0.00 		12.70
mm 		1097587 | WRI-0120-LS (2 Pcs) --- Internal Retaining Rings - 12x1x12.4 mm - Spring Steel
Material: Spring Steel    Section (Rd): 1.30 mm + 0 / - 0.10    Groove Width (W): 1.10 mm    Approx. Loose Clip ID: 10.1
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0120-LS (2 Pcs) Internal Retaining Rings - 12x1x12.4 mm - Spring Steel
388 units (776 pcs) Available Now | Further orders can be expected around Fri, Dec 12, 2025
$5.05 AUD
$5.05 AUD
Per 2
View the product page first if you are unsure.
25.00
mm 		1.20
mm
+ 0 / - 0.10 		25.80
mm
+ 0.13 / - 0.00 		26.20
mm 		1.75
mm
+ 0 / - 0.10 		1.30
mm 		1132302 | WRI-0250-LS (10 Pcs) --- Internal Retaining Rings - 25x1.2x25.8 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 22.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0250-LS (10 Pcs) Internal Retaining Rings - 25x1.2x25.8 mm - Spring Steel
18 units (180 pcs) Available Now | Further orders can be expected around Fri, Dec 12, 2025
$7.14 AUD
$7.14 AUD
Per 10
25.00
mm 		1.20
mm
+ 0 / - 0.10 		25.80
mm
+ 0.13 / - 0.00 		26.20
mm 		1132302 | WRI-0250-LS (10 Pcs) --- Internal Retaining Rings - 25x1.2x25.8 mm - Spring Steel
Material: Spring Steel    Section (Rd): 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip ID: 22.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0250-LS (10 Pcs) Internal Retaining Rings - 25x1.2x25.8 mm - Spring Steel
18 units (180 pcs) Available Now | Further orders can be expected around Fri, Dec 12, 2025
$7.14 AUD
$7.14 AUD
Per 10
View the product page first if you are unsure.
30.00
mm 		1.50
mm
+ 0 / - 0.10 		31.00
mm
+ 0.16 / - 0.00 		31.40
mm 		2.30
mm
+ 0 / - 0.10 		1.60
mm 		1140637 | WRI-0300-LS (10 Pcs) --- Internal Retaining Rings - 30x1.5x31 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 26.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0300-LS (10 Pcs) Internal Retaining Rings - 30x1.5x31 mm - Spring Steel
19 units (190 pcs) Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$29.05 AUD
$58.05 AUD $29.05 AUD
Per 10
30.00
mm 		1.50
mm
+ 0 / - 0.10 		31.00
mm
+ 0.16 / - 0.00 		31.40
mm 		1140637 | WRI-0300-LS (10 Pcs) --- Internal Retaining Rings - 30x1.5x31 mm - Spring Steel
Material: Spring Steel    Section (Rd): 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip ID: 26.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0300-LS (10 Pcs) Internal Retaining Rings - 30x1.5x31 mm - Spring Steel
19 units (190 pcs) Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$29.05 AUD
$58.05 AUD $29.05 AUD
Per 10
32.00
mm 		1.50
mm
+ 0 / - 0.10 		33.00
mm
+ 0.16 / - 0.00 		33.40
mm 		2.30
mm
+ 0 / - 0.10 		1.60
mm 		1144871 | WRI-0320-LS (10 Pcs) --- Internal Retaining Rings - 32x1.5x33 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 28.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0320-LS (10 Pcs) Internal Retaining Rings - 32x1.5x33 mm - Spring Steel
95 units (950 pcs) Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Per 10
32.00
mm 		1.50
mm
+ 0 / - 0.10 		33.00
mm
+ 0.16 / - 0.00 		33.40
mm 		1144871 | WRI-0320-LS (10 Pcs) --- Internal Retaining Rings - 32x1.5x33 mm - Spring Steel
Material: Spring Steel    Section (Rd): 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip ID: 28.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0320-LS (10 Pcs) Internal Retaining Rings - 32x1.5x33 mm - Spring Steel
95 units (950 pcs) Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Per 10
45.00
mm 		1.50
mm
+ 0 / - 0.10 		46.20
mm
+ 0.16 / - 0.00 		46.80
mm 		2.30
mm
+ 0 / - 0.10 		1.60
mm 		1157630 | WRI-0450-LS (5 Pcs) --- Internal Retaining Rings - 45x1.5x46.2 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 42.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0450-LS (5 Pcs) Internal Retaining Rings - 45x1.5x46.2 mm - Spring Steel
12 units (60 pcs) Available Now | Further orders can be expected around Fri, Dec 12, 2025
$7.32 AUD
$7.32 AUD
Per 5
45.00
mm 		1.50
mm
+ 0 / - 0.10 		46.20
mm
+ 0.16 / - 0.00 		46.80
mm 		1157630 | WRI-0450-LS (5 Pcs) --- Internal Retaining Rings - 45x1.5x46.2 mm - Spring Steel
Material: Spring Steel    Section (Rd): 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip ID: 42.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0450-LS (5 Pcs) Internal Retaining Rings - 45x1.5x46.2 mm - Spring Steel
12 units (60 pcs) Available Now | Further orders can be expected around Fri, Dec 12, 2025
$7.32 AUD
$7.32 AUD
Per 5
View the product page first if you are unsure.
47.00
mm 		1.50
mm
+ 0 / - 0.10 		48.20
mm
+ 0.16 / - 0.00 		48.80
mm 		2.30
mm
+ 0 / - 0.10 		1.60
mm 		1159475 | WRI-0470-LS (5 Pcs) --- Internal Retaining Rings - 47x1.5x48.2 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 44.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0470-LS (5 Pcs) Internal Retaining Rings - 47x1.5x48.2 mm - Spring Steel
510 units (2550 pcs) Available Now | Further orders can be expected around Sat, May 24, 2025
$21.05 AUD
$21.05 AUD
Per 5
47.00
mm 		1.50
mm
+ 0 / - 0.10 		48.20
mm
+ 0.16 / - 0.00 		48.80
mm 		1159475 | WRI-0470-LS (5 Pcs) --- Internal Retaining Rings - 47x1.5x48.2 mm - Spring Steel
Material: Spring Steel    Section (Rd): 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip ID: 44.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0470-LS (5 Pcs) Internal Retaining Rings - 47x1.5x48.2 mm - Spring Steel
510 units (2550 pcs) Available Now | Further orders can be expected around Sat, May 24, 2025
$21.05 AUD
$21.05 AUD
Per 5
View the product page first if you are unsure.
52.00
mm 		1.50
mm
+ 0 / - 0.10 		53.50
mm
+ 0.19 / - 0.00 		54.30
mm 		2.30
mm
+ 0 / - 0.10 		1.60
mm 		1164026 | WRI-0520-LS (5 Pcs) --- Internal Retaining Rings - 52x1.5x53.5 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 49.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0520-LS (5 Pcs) Internal Retaining Rings - 52x1.5x53.5 mm - Spring Steel
835 units (4175 pcs) Available Now | Further orders can be expected around Sat, May 24, 2025
$22.86 AUD
$22.86 AUD
Per 5
52.00
mm 		1.50
mm
+ 0 / - 0.10 		53.50
mm
+ 0.19 / - 0.00 		54.30
mm 		1164026 | WRI-0520-LS (5 Pcs) --- Internal Retaining Rings - 52x1.5x53.5 mm - Spring Steel
Material: Spring Steel    Section (Rd): 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip ID: 49.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0520-LS (5 Pcs) Internal Retaining Rings - 52x1.5x53.5 mm - Spring Steel
835 units (4175 pcs) Available Now | Further orders can be expected around Sat, May 24, 2025
$22.86 AUD
$22.86 AUD
Per 5
View the product page first if you are unsure.
55.00
mm 		1.50
mm
+ 0 / - 0.10 		56.50
mm
+ 0.19 / - 0.00 		57.30
mm 		2.30
mm
+ 0 / - 0.10 		1.60
mm 		1165321 | WRI-0550-LS (5 Pcs) --- Internal Retaining Rings - 55x1.5x56.5 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 52.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0550-LS (5 Pcs) Internal Retaining Rings - 55x1.5x56.5 mm - Spring Steel
5 units (25 pcs) Available Now | Further orders can be expected around Sat, May 17, 2025
$23.41 AUD
$23.41 AUD
Per 5
55.00
mm 		1.50
mm
+ 0 / - 0.10 		56.50
mm
+ 0.19 / - 0.00 		57.30
mm 		1165321 | WRI-0550-LS (5 Pcs) --- Internal Retaining Rings - 55x1.5x56.5 mm - Spring Steel
Material: Spring Steel    Section (Rd): 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip ID: 52.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0550-LS (5 Pcs) Internal Retaining Rings - 55x1.5x56.5 mm - Spring Steel
5 units (25 pcs) Available Now | Further orders can be expected around Sat, May 17, 2025
$23.41 AUD
$23.41 AUD
Per 5
View the product page first if you are unsure.
