PLBT-060M-140-S3-013

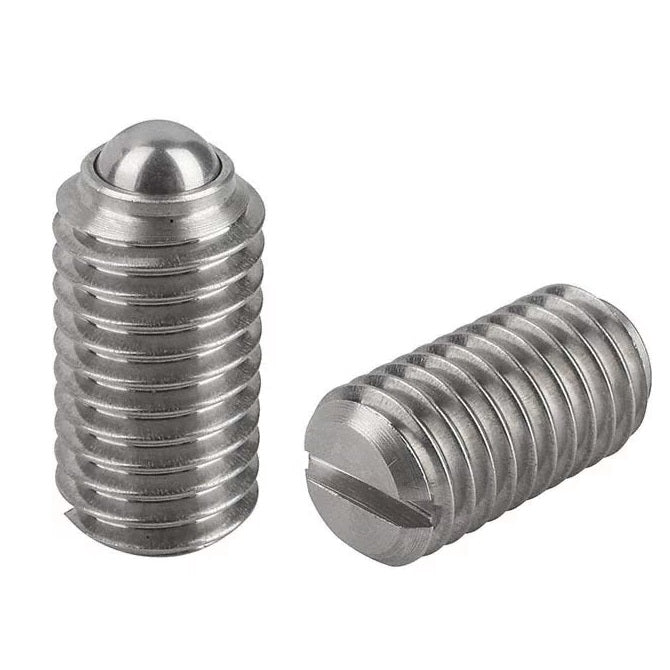

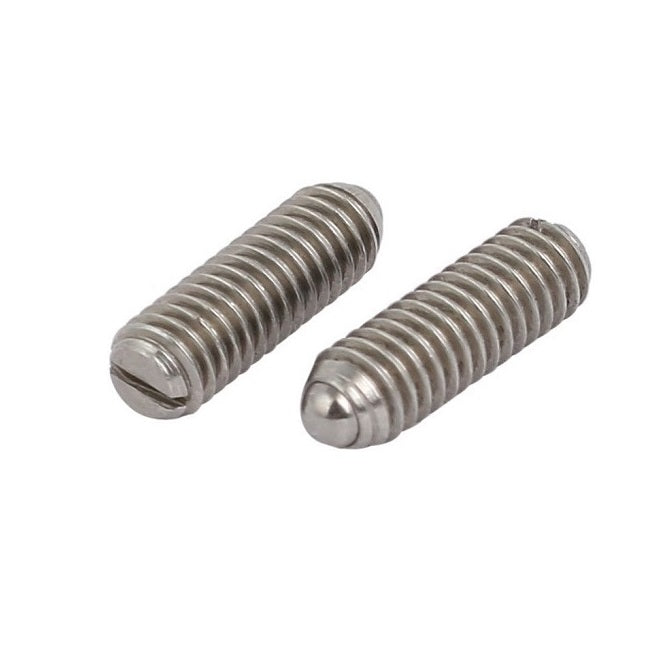

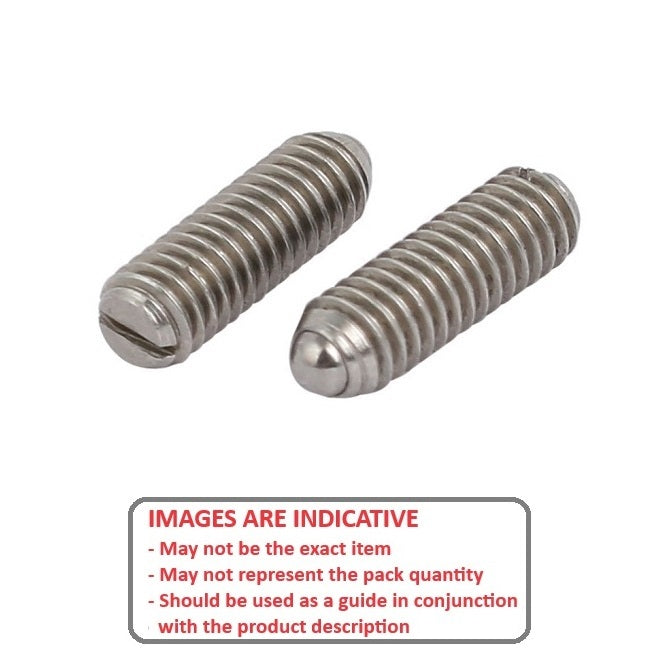

Plungers - M6x1 (6mm Standard) x 14 mm x 9 N
MBA
Additional resources:Spring Plungers
Push Fit Ball Plungers
Qty: 4 available now
Order 50 or more for $24.67 AUD Each
Couldn't load pickup availability
Base Category: Plungers - Ball Threaded
Top Level Category: Plungers - Ball Threaded - 303 Stainless Steel - Standard - Standard

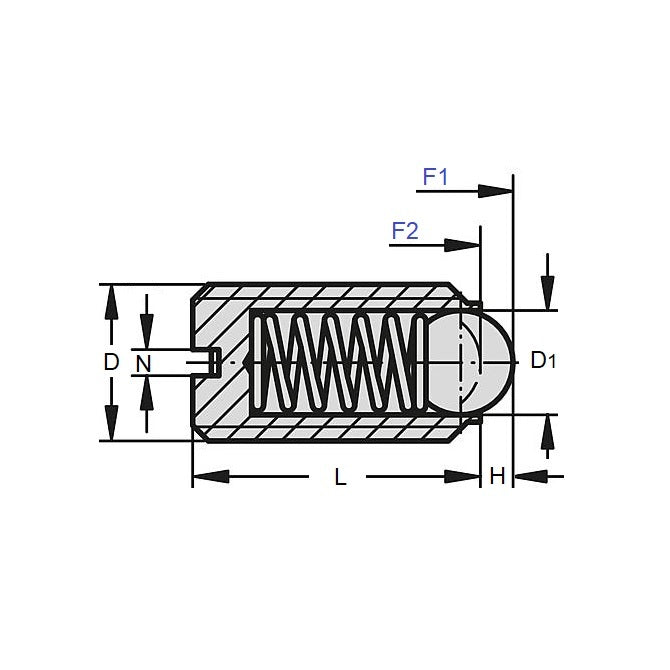

Product Details:Thread Size (D): M6x1 (6mm Standard)
Stainless 303 Grade
- Body Length (L): 14.0mm
- Initial Pressure (F1): 9.0N
- Final Pressure (F2): 13.0N
- Tip Diameter (D1): 3.5mm
- Tip Length (H): 1.0mm
- Drive: 1mm Slotted Drive
Brand: MBA
Country of Origin: US
Alternatives: 85015A47, BPM6SS, GN615-M6-KN, PLBT060140S3013, SBM-125
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
