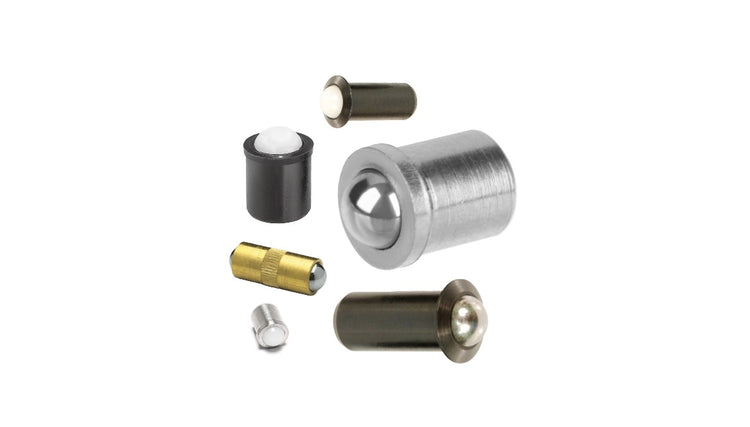

Collection: Plungers - Ball Push Fit
Plungers -> Ball Push FitThere are 23 products in the sub-categories of Plungers - Ball Push Fit. Scroll down or follow the link to Plungers - Ball Push Fit in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.
Plungers - Ball Push Fit - Brass Body Stainless Ball Double Ended
A selection of Brass Body Stainless Ball Double Ended Ball Push Fit...
Plungers - Ball Push Fit - Plastic Body
This category includes various types of ball push fit plungers. Non-threaded, spring-loaded...
Plungers - Ball Push Fit - Stainless Body
This category includes various types of ball push fit plungers. Non-threaded, spring-loaded...
Plungers - Ball Push Fit - Steel Body
This category includes various types of ball push fit plungers. Non-threaded, spring-loaded...
Category Details
This category includes various types of ball push fit plungers.
- Non-threaded, spring-loaded device that uses a ball to secure, locate, or position components in applications like drawers, dies, and fixtures.
- Installed by simply pushing it into a pre-drilled hole in materials like wood, soft plastic, or aluminum, making it a quick alternative to threaded plungers where they are impractical.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Plungers - Ball Push Fit category on the MBA Minibearings main store.
| Body Diameter (D) | Length (L) | Initial Pressure (F1) | Final Pressure (F2) | Ball Diameter (D1) | Ball Height (H) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Body Diameter (D)
2.50
mm (Equiv. 0.098 in.) |
Length (L)
5.30
mm (Equiv. 0.209 in.) |
Initial Pressure (F1)
1.30
N |
Final Pressure (F2)
2.50
N |
Ball Diameter (D1)
2.00
mm |
Ball Height (H)
0.65
mm |
|
|
Material: Stainless Steel 400 Series Hardened

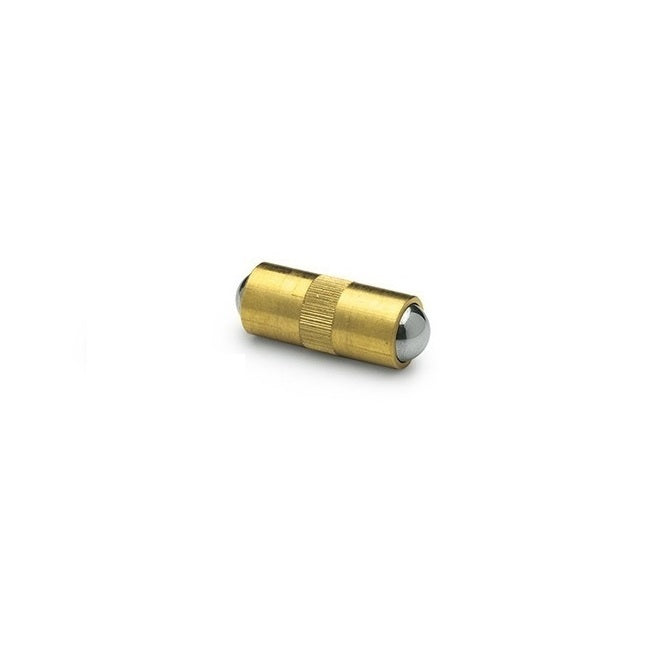

Category: Plungers - Ball Push Fit - Brass Body Stainless Ball Double Ended Deleted Item. Available while stocks last. |
||||||
|
Part Number: PLBP-025-053-BSD-003 (PK-10)
Ball Push Fit Plungers - 2.5x5.3 mm - 1.3 N Brass Body Stainless Ball Double Ended - Stainless Steel 400 Series Hardened Plunger 9 units (90 pcs) Available Now | Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Body Diameter (D) | Length (L) | Initial Pressure (F1) | Final Pressure (F2) |
Indicative Image |
||
|
Body Diameter (D)
2.50
mm (Equiv. 0.098 in.) |
Length (L)
5.30
mm (Equiv. 0.209 in.) |
Initial Pressure (F1)
1.30
N |
Final Pressure (F2)
2.50
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 2.00 mm
Ball Height (H): 0.65 mm
Category: Plungers - Ball Push Fit - Brass Body Stainless Ball Double Ended Deleted Item. Available while stocks last. |
||||||
|
Part Number: PLBP-025-053-BSD-003 (PK-10)
Ball Push Fit Plungers - 2.5x5.3 mm - 1.3 N Brass Body Stainless Ball Double Ended - Stainless Steel 400 Series Hardened Plunger 9 units (90 pcs) Available Now | Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-032-064-S3-006 (Each)
Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 2 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-032-064-S3-006 (Each)
Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 2 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-032-064-SN-006 (Each)
Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Stainless Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-032-064-SN-006 (Each)
Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Stainless Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 4.8 mm

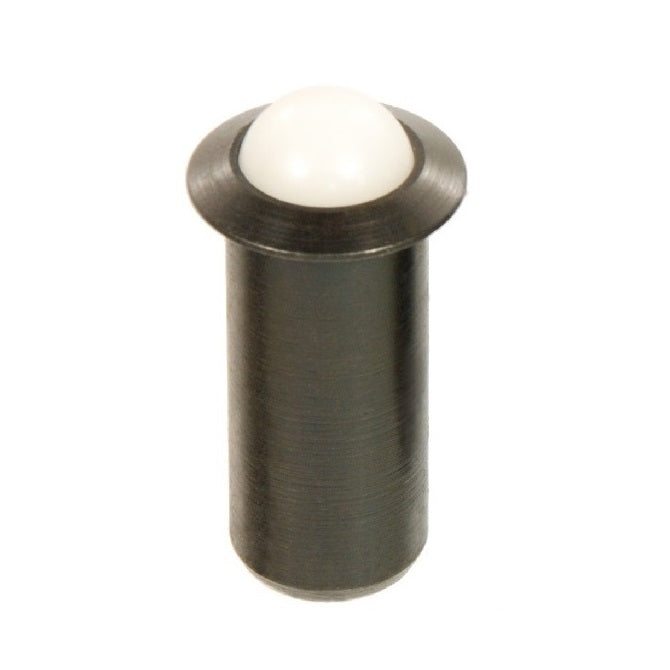

Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-032-064-CN-006 (Each)
Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026 Regular price
$7.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-032-064-CN-006 (Each)
Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026 Regular price
$7.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
4.00
mm + 0.1 / - 0.0
(Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
Ball Diameter (D1)
3.0
mm |
Ball Height (H)
0.7
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-040-050-PS-007 (Each)
Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Stainless Steel Plunger 14 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$4.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
4.00
mm + 0.1 / - 0.0 (Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 3.0 mm
Ball Height (H): 0.7 mm
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-040-050-PS-007 (Each)
Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Stainless Steel Plunger 14 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$4.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
4.00 (Machined)
mm + 0.1 / - 0.0
(Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
Ball Diameter (D1)
3.0
mm |
Ball Height (H)
0.7
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-040-050-S3-007 (Each)
Ball Push Fit Plungers - 4.00 - Machined - 5 mm - 3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 15 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$4.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
4.00 (Machined)
mm + 0.1 / - 0.0 (Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 3.0 mm
Ball Height (H): 0.7 mm
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-040-050-S3-007 (Each)
Ball Push Fit Plungers - 4.00 - Machined - 5 mm - 3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 15 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$4.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0
(Equiv. 0.188 in.) |
Length (L)
10.0
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-048-100-S3-022 (Each)
Ball Push Fit Plungers - 4.78x10 mm - 8.9 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 10 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$7.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0 (Equiv. 0.188 in.) |
Length (L)
10.0
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-048-100-S3-022 (Each)
Ball Push Fit Plungers - 4.78x10 mm - 8.9 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 10 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$7.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0
(Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
4.5
N |
Final Pressure (F2)
11.1
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-048-103-CS-011 (Each)
Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026 Regular price
$10.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0 (Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
4.5
N |
Final Pressure (F2)
11.1
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-048-103-CS-011 (Each)
Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026 Regular price
$10.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0
(Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
4.5
N |
Final Pressure (F2)
11.1
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-048-103-S3-011 (Each)
Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 8 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$12.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0 (Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
4.5
N |
Final Pressure (F2)
11.1
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-048-103-S3-011 (Each)
Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 8 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$12.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
5.00
mm + 0.1 / - 0.0
(Equiv. 0.197 in.) |
Length (L)
6.0
mm (Equiv. 0.236 in.) |
Initial Pressure (F1)
4.0
N |
Final Pressure (F2)
7.0
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.0
mm |
|
|
Material: Plastic
Shoulder Diameter (S): 5.6 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-050-060-PP-007 (Each)
Ball Push Fit Plungers - 5x6 mm - 4 N Plastic Body - Plastic Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026 Regular price
$4.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
5.00
mm + 0.1 / - 0.0 (Equiv. 0.197 in.) |
Length (L)
6.0
mm (Equiv. 0.236 in.) |
Initial Pressure (F1)
4.0
N |
Final Pressure (F2)
7.0
N |
|
||
|
Material: Plastic
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.0 mm
Shoulder Diameter (S): 5.6 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-050-060-PP-007 (Each)
Ball Push Fit Plungers - 5x6 mm - 4 N Plastic Body - Plastic Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026 Regular price
$4.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
5.00
mm + 0.1 / - 0.0
(Equiv. 0.197 in.) |
Length (L)
6.0
mm (Equiv. 0.236 in.) |
Initial Pressure (F1)
4.0
N |
Final Pressure (F2)
7.0
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.0
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 5.6 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-050-060-S3-007 (Each)
Ball Push Fit Plungers - 5x6 mm - 4 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 104 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$4.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
5.00
mm + 0.1 / - 0.0 (Equiv. 0.197 in.) |
Length (L)
6.0
mm (Equiv. 0.236 in.) |
Initial Pressure (F1)
4.0
N |
Final Pressure (F2)
7.0
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.0 mm
Shoulder Diameter (S): 5.6 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-050-060-S3-007 (Each)
Ball Push Fit Plungers - 5x6 mm - 4 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 104 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$4.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
6.00
mm + 0.1 / - 0.0
(Equiv. 0.236 in.) |
Length (L)
7.0
mm (Equiv. 0.276 in.) |
Initial Pressure (F1)
6.0
N |
Final Pressure (F2)
12.0
N |
Ball Diameter (D1)
5.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 6.5 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-060-070-S3-012 (Each)
Ball Push Fit Plungers - 6x7 mm - 6 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | More stock due: 227 around Wed, Dec 31, 2025 | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$6.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
6.00
mm + 0.1 / - 0.0 (Equiv. 0.236 in.) |
Length (L)
7.0
mm (Equiv. 0.276 in.) |
Initial Pressure (F1)
6.0
N |
Final Pressure (F2)
12.0
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 5.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.5 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-060-070-S3-012 (Each)
Ball Push Fit Plungers - 6x7 mm - 6 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | More stock due: 227 around Wed, Dec 31, 2025 | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$6.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0
(Equiv. 0.25 in.) |
Length (L)
12.0
mm (Equiv. 0.472 in.) |
Initial Pressure (F1)
13.4
N |
Final Pressure (F2)
31.1
N |
Ball Diameter (D1)
4.8
mm |
Ball Height (H)
1.8
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-064-120-S3-031 (Each)
Ball Push Fit Plungers - 6.35x12 mm - 13.4 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 7 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$7.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0 (Equiv. 0.25 in.) |
Length (L)
12.0
mm (Equiv. 0.472 in.) |
Initial Pressure (F1)
13.4
N |
Final Pressure (F2)
31.1
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 4.8 mm
Ball Height (H): 1.8 mm
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-064-120-S3-031 (Each)
Ball Push Fit Plungers - 6.35x12 mm - 13.4 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 7 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$7.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0
(Equiv. 0.25 in.) |
Length (L)
12.2
mm (Equiv. 0.48 in.) |
Initial Pressure (F1)
26.7
N |
Final Pressure (F2)
57.8
N |
Ball Diameter (D1)
4.8
mm |
Ball Height (H)
1.8
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-064-122-CS-058 (Each)
Ball Push Fit Plungers - 6.35x12.2 mm - 26.7 N Steel Body - Stainless Steel Plunger 7 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$8.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0 (Equiv. 0.25 in.) |
Length (L)
12.2
mm (Equiv. 0.48 in.) |
Initial Pressure (F1)
26.7
N |
Final Pressure (F2)
57.8
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 4.8 mm
Ball Height (H): 1.8 mm
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-064-122-CS-058 (Each)
Ball Push Fit Plungers - 6.35x12.2 mm - 26.7 N Steel Body - Stainless Steel Plunger 7 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$8.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0
(Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
Ball Diameter (D1)
6.4
mm |
Ball Height (H)
2.3
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-079-163-CS-022 (Each)
Ball Push Fit Plungers - 7.93x16.3 mm - 8.9 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026 Regular price
$9.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0 (Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 6.4 mm
Ball Height (H): 2.3 mm
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-079-163-CS-022 (Each)
Ball Push Fit Plungers - 7.93x16.3 mm - 8.9 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026 Regular price
$9.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0
(Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
44.5
N |
Ball Diameter (D1)
6.4
mm |
Ball Height (H)
2.3
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-079-163-CS-044 (Each)
Ball Push Fit Plungers - 7.93x16.3 mm - 17.8 N Steel Body - Stainless Steel Plunger 8 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$8.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0 (Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
44.5
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 6.4 mm
Ball Height (H): 2.3 mm
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-079-163-CS-044 (Each)
Ball Push Fit Plungers - 7.93x16.3 mm - 17.8 N Steel Body - Stainless Steel Plunger 8 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$8.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
8.00
mm + 0.1 / - 0.0
(Equiv. 0.315 in.) |
Length (L)
9.0
mm (Equiv. 0.354 in.) |
Initial Pressure (F1)
6.0
N |
Final Pressure (F2)
12.0
N |
Ball Diameter (D1)
6.5
mm |
Ball Height (H)
1.8
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 8.5 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-080-090-PS-012 (Each)
Ball Push Fit Plungers - 8x9 mm - 6 N Plastic Body - Stainless Steel Plunger 14 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$2.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
8.00
mm + 0.1 / - 0.0 (Equiv. 0.315 in.) |
Length (L)
9.0
mm (Equiv. 0.354 in.) |
Initial Pressure (F1)
6.0
N |
Final Pressure (F2)
12.0
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 6.5 mm
Ball Height (H): 1.8 mm
Shoulder Diameter (S): 8.5 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-080-090-PS-012 (Each)
Ball Push Fit Plungers - 8x9 mm - 6 N Plastic Body - Stainless Steel Plunger 14 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$2.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
8.00
mm + 0.1 / - 0.0
(Equiv. 0.315 in.) |
Length (L)
9.0
mm (Equiv. 0.354 in.) |
Initial Pressure (F1)
6.0
N |
Final Pressure (F2)
12.0
N |
Ball Diameter (D1)
6.5
mm |
Ball Height (H)
1.8
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 8.5 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-080-090-S3-012 (Each)
Ball Push Fit Plungers - 8x9 mm - 6 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 1 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$5.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
8.00
mm + 0.1 / - 0.0 (Equiv. 0.315 in.) |
Length (L)
9.0
mm (Equiv. 0.354 in.) |
Initial Pressure (F1)
6.0
N |
Final Pressure (F2)
12.0
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 6.5 mm
Ball Height (H): 1.8 mm
Shoulder Diameter (S): 8.5 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-080-090-S3-012 (Each)
Ball Push Fit Plungers - 8x9 mm - 6 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 1 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$5.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
8.00
mm + 0.1 / - 0.0
(Equiv. 0.315 in.) |
Length (L)
9.0
mm (Equiv. 0.354 in.) |
Initial Pressure (F1)
6.0
N |
Final Pressure (F2)
12.0
N |
Ball Diameter (D1)
6.5
mm |
Ball Height (H)
1.8
mm |
|
|
Material: Plastic
Shoulder Diameter (S): 8.5 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-080-090-SP-012 (Each)
Ball Push Fit Plungers - 8x9 mm - 6 N Stainless Body - Plastic Plunger 28 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$9.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
8.00
mm + 0.1 / - 0.0 (Equiv. 0.315 in.) |
Length (L)
9.0
mm (Equiv. 0.354 in.) |
Initial Pressure (F1)
6.0
N |
Final Pressure (F2)
12.0
N |
|
||
|
Material: Plastic
Ball Diameter (D1): 6.5 mm
Ball Height (H): 1.8 mm
Shoulder Diameter (S): 8.5 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-080-090-SP-012 (Each)
Ball Push Fit Plungers - 8x9 mm - 6 N Stainless Body - Plastic Plunger 28 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$9.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
9.53
mm + 0.1 / - 0.0
(Equiv. 0.375 in.) |
Length (L)
19.9
mm (Equiv. 0.783 in.) |
Initial Pressure (F1)
22.2
N |
Final Pressure (F2)
62.3
N |
Ball Diameter (D1)
7.9
mm |
Ball Height (H)
2.8
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 12.7 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-095-199-CS-062 (Each)
Ball Push Fit Plungers - 9.53x19.9 mm - 22.2 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026 Regular price
$8.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
9.53
mm + 0.1 / - 0.0 (Equiv. 0.375 in.) |
Length (L)
19.9
mm (Equiv. 0.783 in.) |
Initial Pressure (F1)
22.2
N |
Final Pressure (F2)
62.3
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 7.9 mm
Ball Height (H): 2.8 mm
Shoulder Diameter (S): 12.7 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-095-199-CS-062 (Each)
Ball Push Fit Plungers - 9.53x19.9 mm - 22.2 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026 Regular price
$8.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
12.70
mm + 0.1 / - 0.0
(Equiv. 0.5 in.) |
Length (L)
28.7
mm (Equiv. 1.13 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
40.0
N |
Ball Diameter (D1)
11.1
mm |
Ball Height (H)
4.1
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 17.5 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-127-287-CS-040 (Each)
Ball Push Fit Plungers - 12.7x28.7 mm - 17.8 N Steel Body - Stainless Steel Plunger 4 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$16.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
12.70
mm + 0.1 / - 0.0 (Equiv. 0.5 in.) |
Length (L)
28.7
mm (Equiv. 1.13 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
40.0
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 11.1 mm
Ball Height (H): 4.1 mm
Shoulder Diameter (S): 17.5 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-127-287-CS-040 (Each)
Ball Push Fit Plungers - 12.7x28.7 mm - 17.8 N Steel Body - Stainless Steel Plunger 4 Available Now | Further orders can be expected around Thu, Jan 01, 2026 Regular price
$16.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
12.70
mm + 0.1 / - 0.0
(Equiv. 0.5 in.) |
Length (L)
28.7
mm (Equiv. 1.13 in.) |
Initial Pressure (F1)
53.4
N |
Final Pressure (F2)
102.3
N |
Ball Diameter (D1)
11.1
mm |
Ball Height (H)
4.1
mm |
|
|
Material: Acetal
Shoulder Diameter (S): 17.5 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-127-287-SA-102 (Each)
Ball Push Fit Plungers - 12.7x28.7 mm - 53.4 N Stainless Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026 Regular price
$25.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
12.70
mm + 0.1 / - 0.0 (Equiv. 0.5 in.) |
Length (L)
28.7
mm (Equiv. 1.13 in.) |
Initial Pressure (F1)
53.4
N |
Final Pressure (F2)
102.3
N |
|
||
|
Material: Acetal
Ball Diameter (D1): 11.1 mm
Ball Height (H): 4.1 mm
Shoulder Diameter (S): 17.5 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-127-287-SA-102 (Each)
Ball Push Fit Plungers - 12.7x28.7 mm - 53.4 N Stainless Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026 Regular price
$25.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
12.70
mm + 0.1 / - 0.0
(Equiv. 0.5 in.) |
Length (L)
28.7
mm (Equiv. 1.13 in.) |
Initial Pressure (F1)
53.4
N |
Final Pressure (F2)
102.3
N |
Ball Diameter (D1)
11.1
mm |
Ball Height (H)
4.1
mm |
|
|
Material: Acetal
Shoulder Diameter (S): 17.5 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-127-287-CA-102 (Each)
Ball Push Fit Plungers - 12.7x28.7 mm - 53.4 N Steel Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026 Regular price
$13.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
12.70
mm + 0.1 / - 0.0 (Equiv. 0.5 in.) |
Length (L)
28.7
mm (Equiv. 1.13 in.) |
Initial Pressure (F1)
53.4
N |
Final Pressure (F2)
102.3
N |
|
||
|
Material: Acetal
Ball Diameter (D1): 11.1 mm
Ball Height (H): 4.1 mm
Shoulder Diameter (S): 17.5 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-127-287-CA-102 (Each)
Ball Push Fit Plungers - 12.7x28.7 mm - 53.4 N Steel Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026 Regular price
$13.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
