Collection: Plungers - Ball Push Fit - Steel Body
Plungers -> Ball Push Fit -> Steel BodyThere are 8 products in the sub-categories of Plungers - Ball Push Fit - Steel Body. Browse the Plungers - Ball Push Fit - Steel Body products table. To narrow down the selection, please choose a sub-category from the links below.

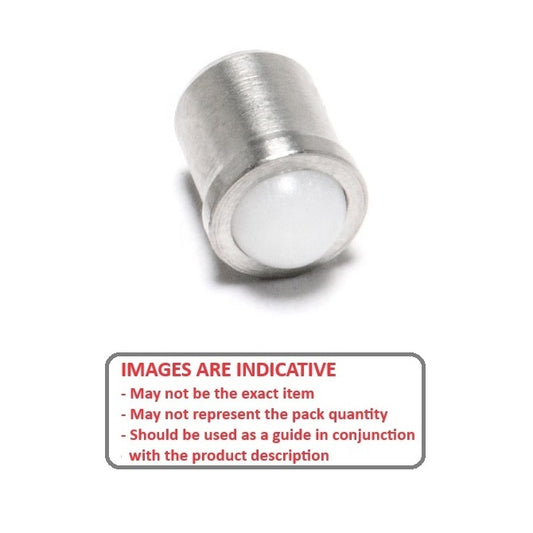

Plungers - Ball Push Fit - Steel Body - Acetal Ball
A selection of Acetal Ball Steel Body Ball Push Fit Plungers. Unthreaded....

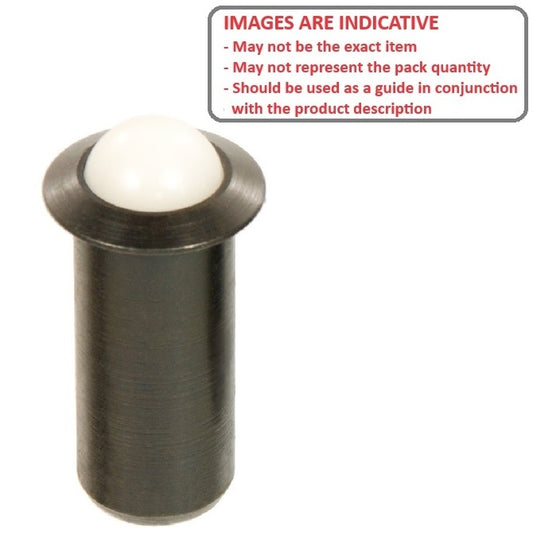

Plungers - Ball Push Fit - Steel Body - Nylon Ball
A selection of Nylon Ball Steel Body Ball Push Fit Plungers. Unthreaded....

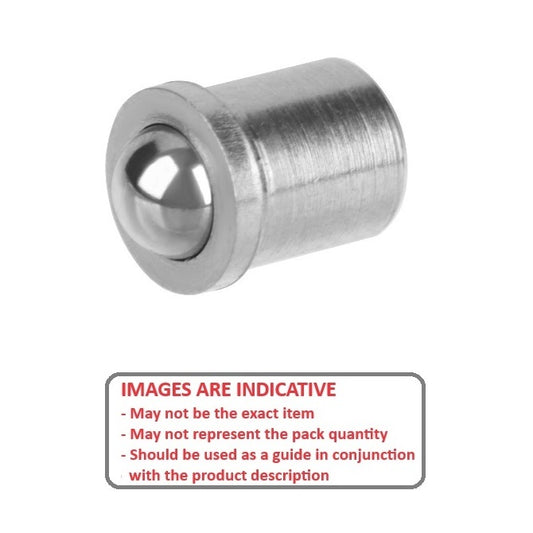

Plungers - Ball Push Fit - Steel Body - Stainless Ball
A selection of Stainless Ball Steel Body Ball Push Fit Plungers. Unthreaded....
Category Details
This category includes various types of ball push fit plungers.
- Non-threaded, spring-loaded device that uses a ball to secure, locate, or position components in applications like drawers, dies, and fixtures.
- Installed by simply pushing it into a pre-drilled hole in materials like wood, soft plastic, or aluminum, making it a quick alternative to threaded plungers where they are impractical.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Plungers - Ball Push Fit - Steel Body category on the MBA Minibearings main store.
| Body Diameter (D) | Length (L) | Initial Pressure (F1) | Final Pressure (F2) | Ball Diameter (D1) | Ball Height (H) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-032-064-CN-006 (Each)

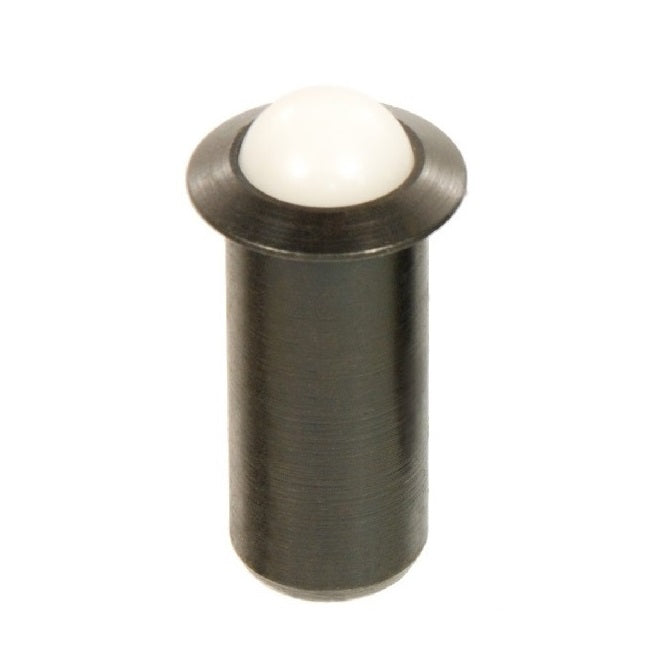

Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$7.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Body Diameter (D) | Length (L) | Initial Pressure (F1) | Final Pressure (F2) |
Indicative Image |
||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-032-064-CN-006 (Each)
Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$7.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0
(Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
4.5
N |
Final Pressure (F2)
11.1
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-048-103-CS-011 (Each)

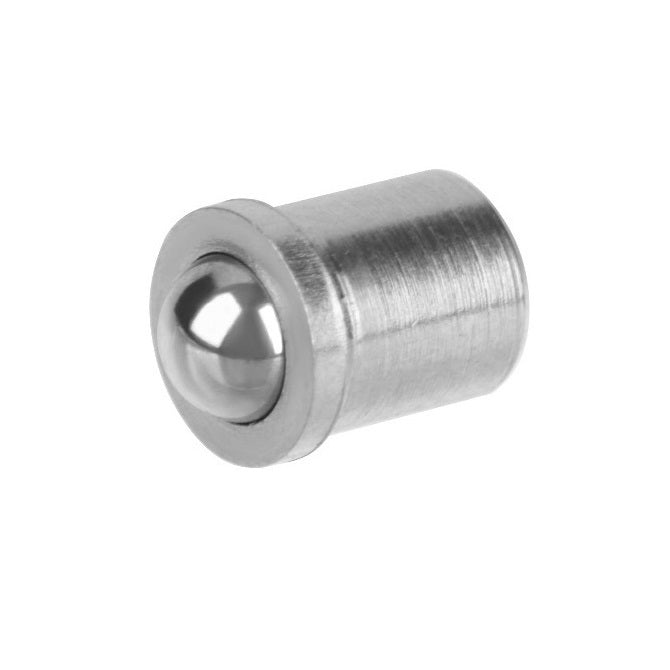

Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$10.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0 (Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
4.5
N |
Final Pressure (F2)
11.1
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-048-103-CS-011 (Each)
Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$10.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0
(Equiv. 0.25 in.) |
Length (L)
12.2
mm (Equiv. 0.48 in.) |
Initial Pressure (F1)
26.7
N |
Final Pressure (F2)
57.8
N |
Ball Diameter (D1)
4.8
mm |
Ball Height (H)
1.8
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-064-122-CS-058 (Each)
Ball Push Fit Plungers - 6.35x12.2 mm - 26.7 N Steel Body - Stainless Steel Plunger 7 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$8.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0 (Equiv. 0.25 in.) |
Length (L)
12.2
mm (Equiv. 0.48 in.) |
Initial Pressure (F1)
26.7
N |
Final Pressure (F2)
57.8
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 4.8 mm
Ball Height (H): 1.8 mm
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-064-122-CS-058 (Each)
Ball Push Fit Plungers - 6.35x12.2 mm - 26.7 N Steel Body - Stainless Steel Plunger 7 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$8.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0
(Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
Ball Diameter (D1)
6.4
mm |
Ball Height (H)
2.3
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-079-163-CS-022 (Each)
Ball Push Fit Plungers - 7.93x16.3 mm - 8.9 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$9.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0 (Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 6.4 mm
Ball Height (H): 2.3 mm
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-079-163-CS-022 (Each)
Ball Push Fit Plungers - 7.93x16.3 mm - 8.9 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$9.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0
(Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
44.5
N |
Ball Diameter (D1)
6.4
mm |
Ball Height (H)
2.3
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-079-163-CS-044 (Each)
Ball Push Fit Plungers - 7.93x16.3 mm - 17.8 N Steel Body - Stainless Steel Plunger 8 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$8.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0 (Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
44.5
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 6.4 mm
Ball Height (H): 2.3 mm
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-079-163-CS-044 (Each)
Ball Push Fit Plungers - 7.93x16.3 mm - 17.8 N Steel Body - Stainless Steel Plunger 8 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$8.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
9.53
mm + 0.1 / - 0.0
(Equiv. 0.375 in.) |
Length (L)
19.9
mm (Equiv. 0.783 in.) |
Initial Pressure (F1)
22.2
N |
Final Pressure (F2)
62.3
N |
Ball Diameter (D1)
7.9
mm |
Ball Height (H)
2.8
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 12.7 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-095-199-CS-062 (Each)
Ball Push Fit Plungers - 9.53x19.9 mm - 22.2 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$8.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
9.53
mm + 0.1 / - 0.0 (Equiv. 0.375 in.) |
Length (L)
19.9
mm (Equiv. 0.783 in.) |
Initial Pressure (F1)
22.2
N |
Final Pressure (F2)
62.3
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 7.9 mm
Ball Height (H): 2.8 mm
Shoulder Diameter (S): 12.7 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-095-199-CS-062 (Each)
Ball Push Fit Plungers - 9.53x19.9 mm - 22.2 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$8.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
12.70
mm + 0.1 / - 0.0
(Equiv. 0.5 in.) |
Length (L)
28.7
mm (Equiv. 1.13 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
40.0
N |
Ball Diameter (D1)
11.1
mm |
Ball Height (H)
4.1
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 17.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-127-287-CS-040 (Each)
Ball Push Fit Plungers - 12.7x28.7 mm - 17.8 N Steel Body - Stainless Steel Plunger 4 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$16.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
12.70
mm + 0.1 / - 0.0 (Equiv. 0.5 in.) |
Length (L)
28.7
mm (Equiv. 1.13 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
40.0
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 11.1 mm
Ball Height (H): 4.1 mm
Shoulder Diameter (S): 17.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-127-287-CS-040 (Each)
Ball Push Fit Plungers - 12.7x28.7 mm - 17.8 N Steel Body - Stainless Steel Plunger 4 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$16.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
12.70
mm + 0.1 / - 0.0
(Equiv. 0.5 in.) |
Length (L)
28.7
mm (Equiv. 1.13 in.) |
Initial Pressure (F1)
53.4
N |
Final Pressure (F2)
102.3
N |
Ball Diameter (D1)
11.1
mm |
Ball Height (H)
4.1
mm |
|
|
Material: Acetal
Shoulder Diameter (S): 17.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Acetal Ball |
||||||
|
Part Number: PLBP-127-287-CA-102 (Each)

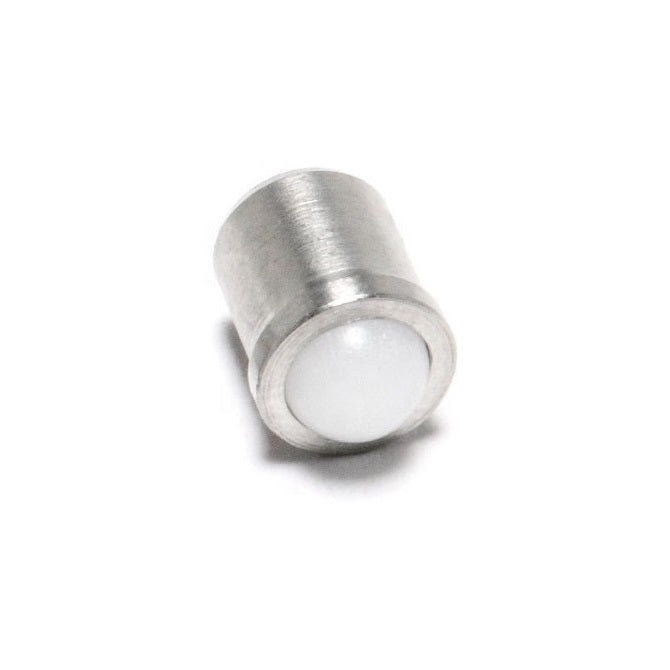

Ball Push Fit Plungers - 12.7x28.7 mm - 53.4 N Steel Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$13.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
12.70
mm + 0.1 / - 0.0 (Equiv. 0.5 in.) |
Length (L)
28.7
mm (Equiv. 1.13 in.) |
Initial Pressure (F1)
53.4
N |
Final Pressure (F2)
102.3
N |
|
||
|
Material: Acetal
Ball Diameter (D1): 11.1 mm
Ball Height (H): 4.1 mm
Shoulder Diameter (S): 17.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Acetal Ball |
||||||
|
Part Number: PLBP-127-287-CA-102 (Each)
Ball Push Fit Plungers - 12.7x28.7 mm - 53.4 N Steel Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$13.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
