Collection: Plungers - Ball Push Fit - Plastic Body
Plungers -> Ball Push Fit -> Plastic BodyThere are 3 products in the sub-categories of Plungers - Ball Push Fit - Plastic Body. Browse the Plungers - Ball Push Fit - Plastic Body products table. To narrow down the selection, please choose a sub-category from the links below.
Plungers - Ball Push Fit - Plastic Body - Plastic Ball
A selection of Plastic Ball Plastic Body Ball Push Fit Plungers. Unthreaded....
Plungers - Ball Push Fit - Plastic Body - Stainless Ball
A selection of Stainless Ball Plastic Body Ball Push Fit Plungers. Unthreaded....
Category Details
This category includes various types of ball push fit plungers.
- Non-threaded, spring-loaded device that uses a ball to secure, locate, or position components in applications like drawers, dies, and fixtures.
- Installed by simply pushing it into a pre-drilled hole in materials like wood, soft plastic, or aluminum, making it a quick alternative to threaded plungers where they are impractical.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Plungers - Ball Push Fit - Plastic Body category on the MBA Minibearings main store.
| Body Diameter (D) | Length (L) | Initial Pressure (F1) | Final Pressure (F2) | Ball Diameter (D1) | Ball Height (H) |

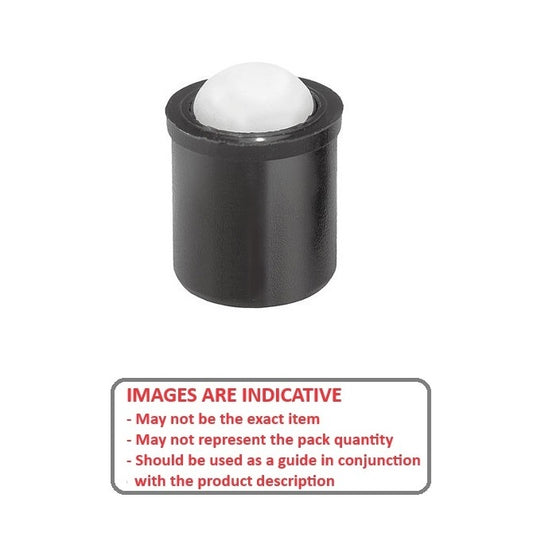

Indicative Image |
|---|---|---|---|---|---|---|
|
Body Diameter (D)
4.00
mm + 0.1 / - 0.0
(Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
Ball Diameter (D1)
3.0
mm |
Ball Height (H)
0.7
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Plastic Body - Stainless Ball |
||||||
|
Part Number: PLBP-040-050-PS-007 (Each)
Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Stainless Steel Plunger 14 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$4.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Body Diameter (D) | Length (L) | Initial Pressure (F1) | Final Pressure (F2) |
Indicative Image |
||
|
Body Diameter (D)
4.00
mm + 0.1 / - 0.0 (Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 3.0 mm
Ball Height (H): 0.7 mm
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Plastic Body - Stainless Ball |
||||||
|
Part Number: PLBP-040-050-PS-007 (Each)
Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Stainless Steel Plunger 14 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$4.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
5.00
mm + 0.1 / - 0.0
(Equiv. 0.197 in.) |
Length (L)
6.0
mm (Equiv. 0.236 in.) |
Initial Pressure (F1)
4.0
N |
Final Pressure (F2)
7.0
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.0
mm |
|
|
Material: Plastic
Shoulder Diameter (S): 5.6 mm
Category: Plungers - Ball Push Fit - Plastic Body - Plastic Ball |
||||||
|
Part Number: PLBP-050-060-PP-007 (Each)

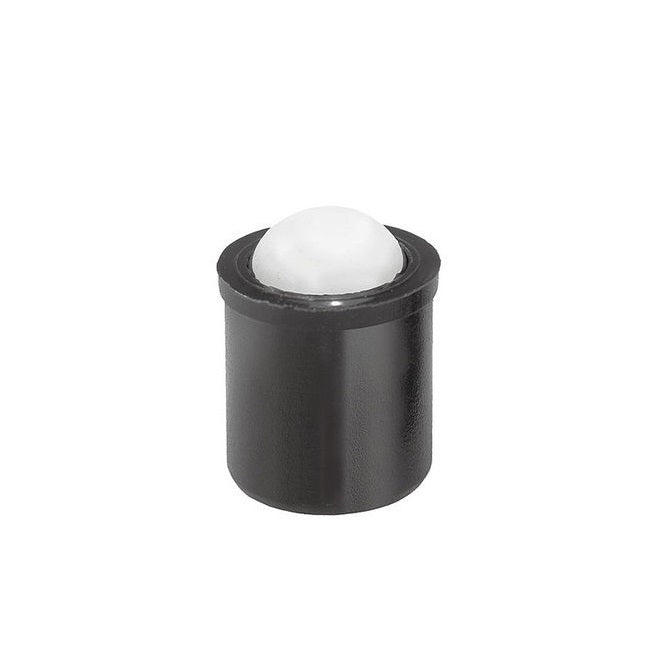

Ball Push Fit Plungers - 5x6 mm - 4 N Plastic Body - Plastic Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$4.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
5.00
mm + 0.1 / - 0.0 (Equiv. 0.197 in.) |
Length (L)
6.0
mm (Equiv. 0.236 in.) |
Initial Pressure (F1)
4.0
N |
Final Pressure (F2)
7.0
N |
|
||
|
Material: Plastic
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.0 mm
Shoulder Diameter (S): 5.6 mm
Category: Plungers - Ball Push Fit - Plastic Body - Plastic Ball |
||||||
|
Part Number: PLBP-050-060-PP-007 (Each)
Ball Push Fit Plungers - 5x6 mm - 4 N Plastic Body - Plastic Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$4.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
8.00
mm + 0.1 / - 0.0
(Equiv. 0.315 in.) |
Length (L)
9.0
mm (Equiv. 0.354 in.) |
Initial Pressure (F1)
6.0
N |
Final Pressure (F2)
12.0
N |
Ball Diameter (D1)
6.5
mm |
Ball Height (H)
1.8
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 8.5 mm
Category: Plungers - Ball Push Fit - Plastic Body - Stainless Ball |
||||||
|
Part Number: PLBP-080-090-PS-012 (Each)
Ball Push Fit Plungers - 8x9 mm - 6 N Plastic Body - Stainless Steel Plunger 14 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$2.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
8.00
mm + 0.1 / - 0.0 (Equiv. 0.315 in.) |
Length (L)
9.0
mm (Equiv. 0.354 in.) |
Initial Pressure (F1)
6.0
N |
Final Pressure (F2)
12.0
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 6.5 mm
Ball Height (H): 1.8 mm
Shoulder Diameter (S): 8.5 mm
Category: Plungers - Ball Push Fit - Plastic Body - Stainless Ball |
||||||
|
Part Number: PLBP-080-090-PS-012 (Each)
Ball Push Fit Plungers - 8x9 mm - 6 N Plastic Body - Stainless Steel Plunger 14 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$2.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
