Plungers - Ball Push Fit - Brass Body Stainless Ball Double Ended

Plungers -> Ball Push Fit -> Brass Body Stainless Ball Double Ended

There is only 1 product in the sub-categories of Plungers - Ball Push Fit - Brass Body Stainless Ball Double Ended. Browse the Plungers - Ball Push Fit - Brass Body Stainless Ball Double Ended products table.

Category Details

A selection of Brass Body Stainless Ball Double Ended Ball Push Fit Plungers. Used for indexing and positioning of components

  • Non-threaded, spring-loaded device that uses a ball to secure, locate, or position components in applications like drawers, dies, and fixtures.
  • Installed by simply pushing it into a pre-drilled hole in materials like wood, soft plastic, or aluminum, making it a quick alternative to threaded plungers where they are impractical.
  • Once installed, it applies adequate pressure so the ball remains positioned

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Plungers - Ball Push Fit - Brass Body Stainless Ball Double Ended category on the MBA Minibearings main store.
Body Diameter (D) Length (L) Initial Pressure (F1) Final Pressure (F2) Ball Diameter (D1) Ball Height (H) Indicative
Body Diameter (D)
2.50
mm

(Equiv. 0.098 in.)
Length (L)
5.30
mm

(Equiv. 0.209 in.)
Initial Pressure (F1)
1.30
N
Final Pressure (F2)
2.50
N
Ball Diameter (D1)
2.00
mm
Ball Height (H)
0.65
mm

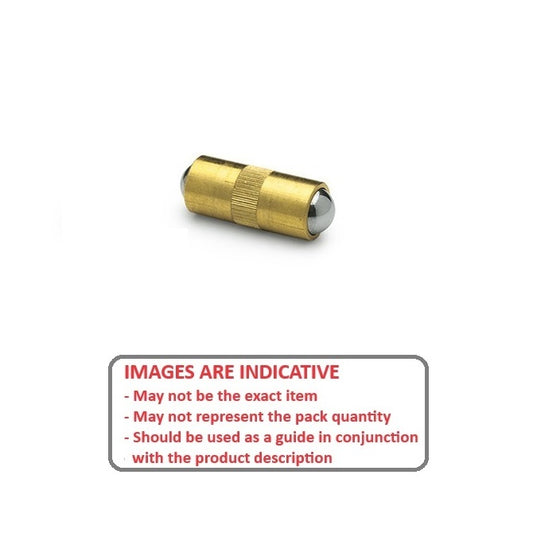

Ball Push Fit Plungers - 2.5x5.3 mm - 1.3 N Brass Body Stainless Ball Double Ended - Stainless Steel 400 Series Hardened
Material: Stainless Steel 400 Series Hardened    Body Material: Brass    Weight (Approx): 1
Deleted Item. Available while stocks last.
Part Number: PLBP-025-053-BSD-003 (PK-10)
Ball Push Fit Plungers - 2.5x5.3 mm - 1.3 N Brass Body Stainless Ball Double Ended - Stainless Steel 400 Series Hardened Plunger
9 units (90 pcs) Available Now | Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

9 units (90 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Body Diameter (D) Length (L) Initial Pressure (F1) Final Pressure (F2) Indicative
Body Diameter (D)
2.50
mm

(Equiv. 0.098 in.)
Length (L)
5.30
mm

(Equiv. 0.209 in.)
Initial Pressure (F1)
1.30
N
Final Pressure (F2)
2.50
N
Ball Push Fit Plungers - 2.5x5.3 mm - 1.3 N Brass Body Stainless Ball Double Ended - Stainless Steel 400 Series Hardened
Material: Stainless Steel 400 Series Hardened    Ball Diameter (D1): 2.00 mm    Ball Height (H): 0.65 mm    Body Material: Brass    Weight (Approx): 1
Deleted Item. Available while stocks last.
Part Number: PLBP-025-053-BSD-003 (PK-10)
Ball Push Fit Plungers - 2.5x5.3 mm - 1.3 N Brass Body Stainless Ball Double Ended - Stainless Steel 400 Series Hardened Plunger
9 units (90 pcs) Available Now | Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

9 units (90 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
