PLBT-060M-140-S3-013 - Datasheet
MBA
Category Information

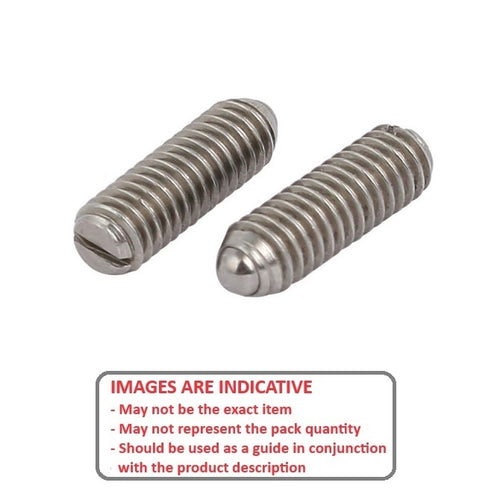

Plungers - Ball Threaded - Stainless Body - Stainless BallStainless Ball Stainless Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
- Spring-loaded mechanical component with a threaded body, used for locating, securing, or applying pressure.
- When pressure is applied to the ball, it compresses the internal spring and can be temporarily pushed into the body, allowing parts to be moved, and then it springs back to its original position to hold them in place.

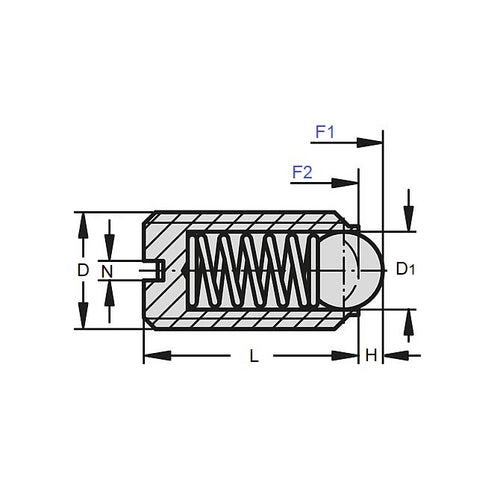

Product Data
- Thread Size (D) : M6 (6x1mm)
- Body Length (L)
14.0
mm
(Equiv. 0.551 in.) - Initial Pressure (F1) 9.0 N
- Final Pressure (F2) 13.0 N
- Ball Diameter (D1) 3.5 mm
- Ball Height (H) 1.0 mm
- Drive 1mm Slotted Drive
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 85015A47
- Elesa GN615-M6-KN
- SBM125
- SBM-125
- BPM6SS
- PLBT060140S3013
- GN615M6KN
