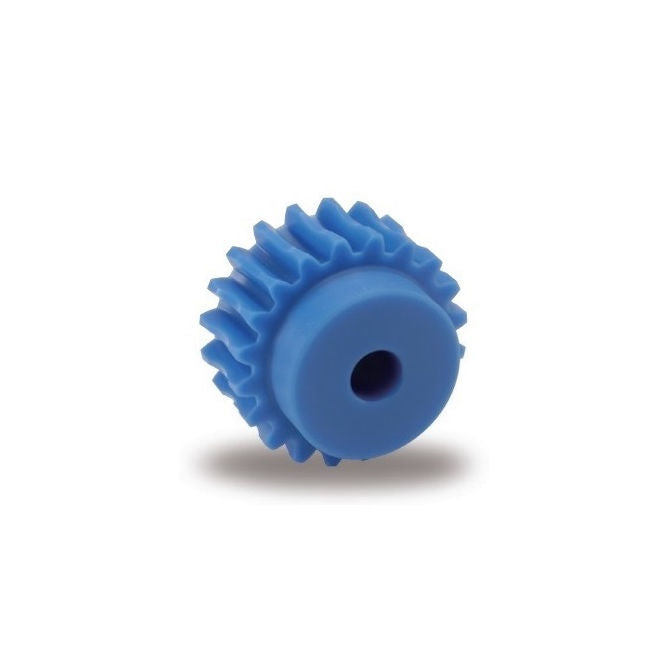

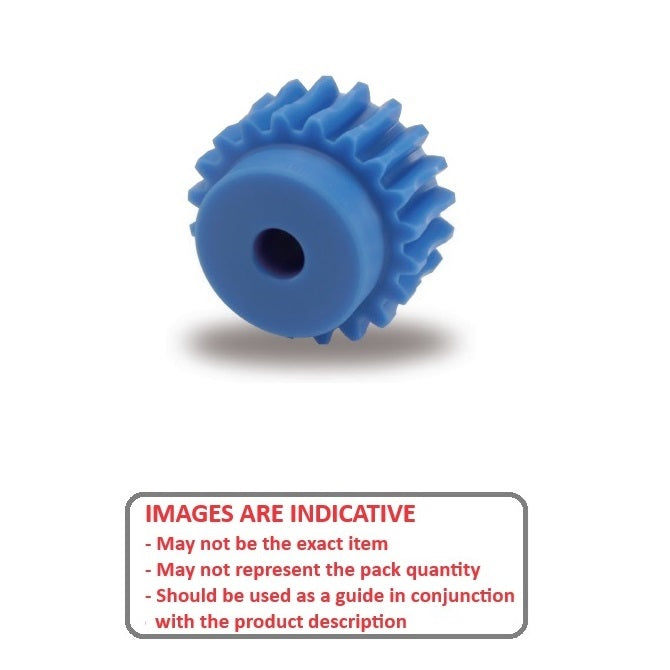

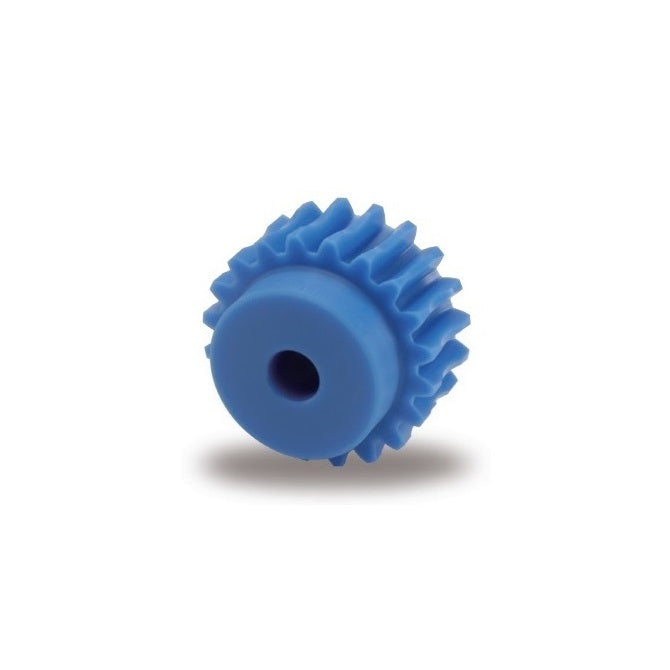

WG1R10-1-020-10HP0600-NY
Worm Gears - Gear with Hub 20 / 20.00 Right Hand
MBA
Qty: 1 available now
Couldn't load pickup availability
Base Category: Gears - Worm
Top Level Category: Gears - Worm - Module 1 Series 1 - Plastic and Metallic - Right Hand
Product Details:Description: Gear with Hub
Nylon
- Teeth / PCD (No. / mm): 20 / 20.00
- Direction: Right Hand
- Type: Type G3
- Bore (B): 6.000mm
- Overall Width or Length (w): 20.000mm
- Face Width (fw): 10.000mm
- Hub Diameter (D) / Lock Method: 16.00mm
- Lock Method: No Set Screwmm
- Quality: Commercial
- Hub Projection (p): 10mm
Brand: MBA
Country of Origin: DE
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Alternatives: A1P6MYH10R
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
