ECL-0077-0095-S15 (5 Pcs)

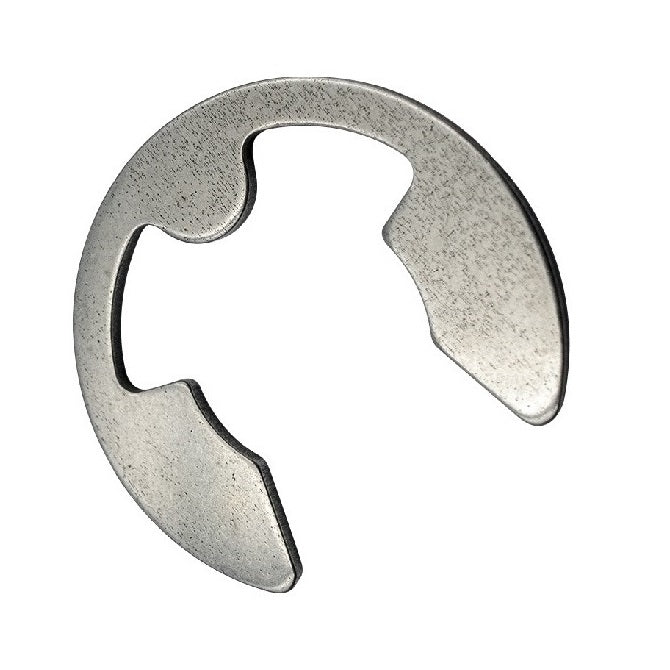

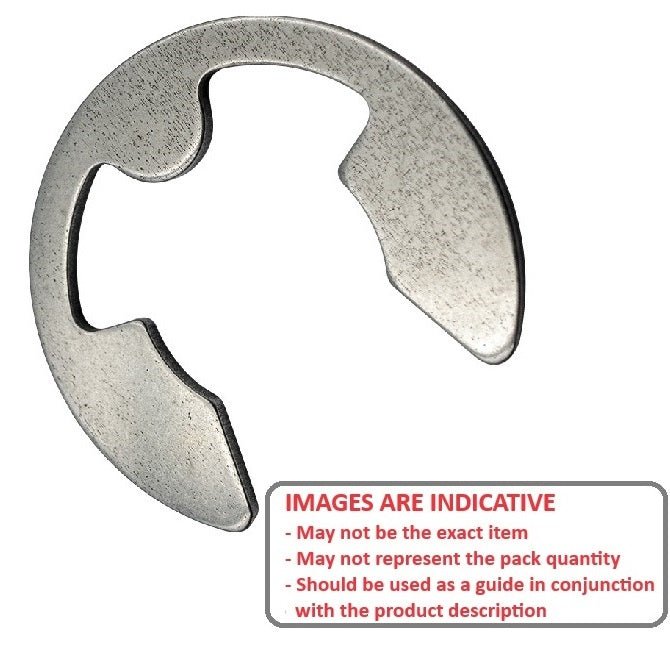

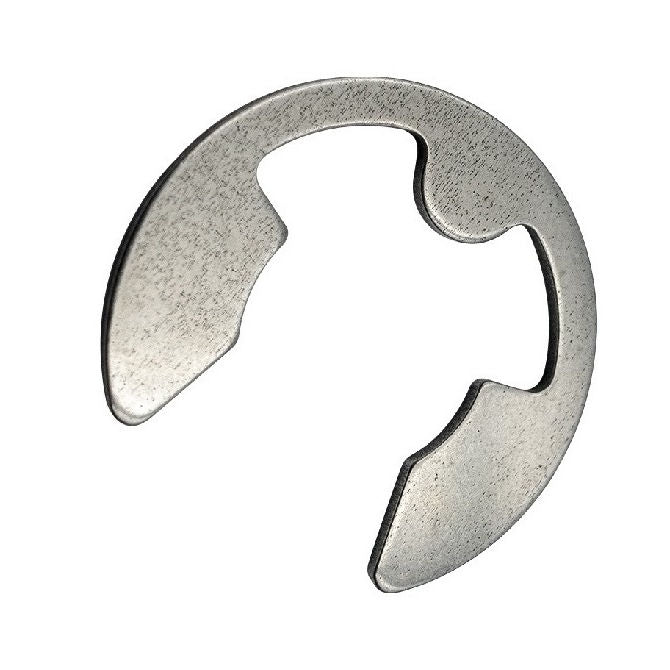

E-Clips - 9.53 mm x 7.7 mm x 0.89 mm
MBA
E-Clip Applicators
Qty: 4 available now (20 pcs)
Order 50 or more (250 pcs) for $5.69 AUD per 5
Couldn't load pickup availability
Base Category: E-Clips - Basic
Top Level Category: E-Clips - Basic - Stainless Steel
Product Details:Additional stock available from USA subject to Prior Sale = 40877

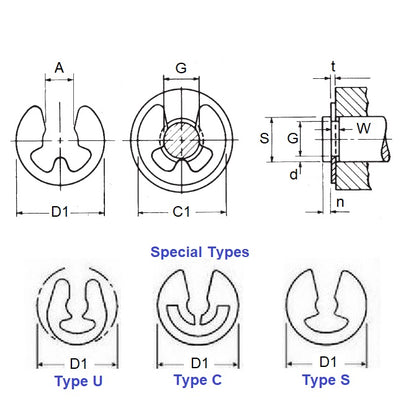

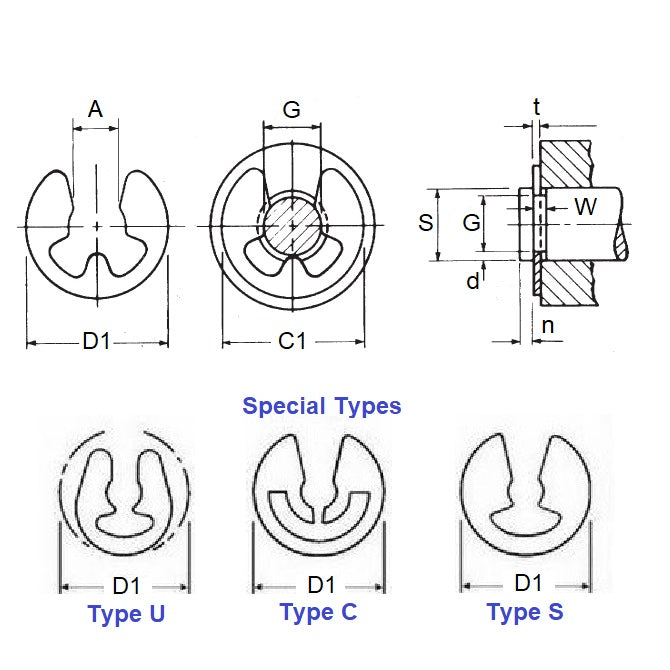

Minimum Rec. Shaft Dia (S): 9.53mm
+2.54/-0.00
Stainless PH15-7 Mo
- Groove Dia. (Dg): 7.70mm
+0.076/-0.000
- Clip Thickness (T): 0.89mm
+/-0.050
- Clip OD Loose (D1): 16.76mm
- Groove Width (W): 0.99mm
- Maximum Rec. Shaft Dia (S): 12.07
- Clip OD in groove (C1): 17.27mm
- Standard: MIL-16633
Brand: MBA
Country of Origin: US
Alternatives: 98408A134, E-037-SS, N1500-0037KSF, S73LW2-ER133-37
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
