Collection: Retaining Rings - E-Clips - Basic - Stainless Steel

Retaining Rings (With Images)

E-Clips

Basic

Beryllium Copper
Carbon Steel
Stainless Steel

24 Products in this selection

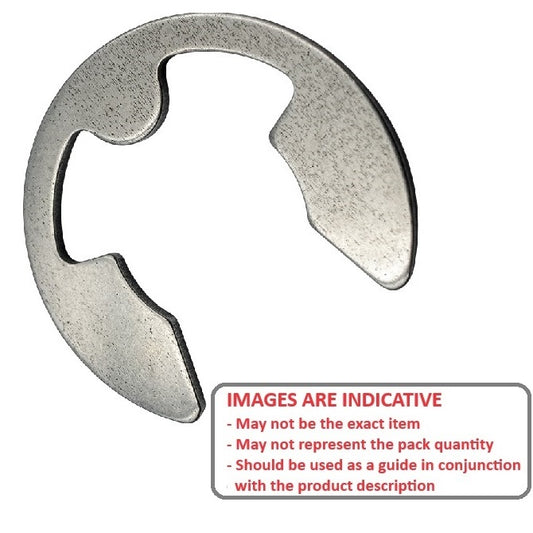

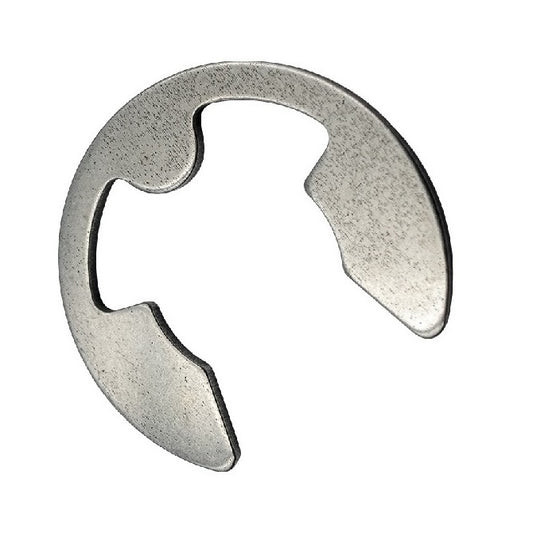

Basic imperial and metric e-clips DIN6799 and N1500. Stainless Steel PH15-7 Mo.
Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.

Small Parts & Bearings

Additional resources:
Assortment Kits
E-Clip Applicators

A more comprehensive listing may be found on the MBA Minibearings main store at Retaining Rings - E-Clips - Basic - Stainless Steel.

Minimum Rec. Shaft Dia (S)	Groove Dia. (Dg)	Clip Thickness (T)	Clip OD Loose (D1)	Groove Width (W)
Minimum Rec. Shaft Dia (S) 1.59 mm + 0.76 / - 0.00 _{(0.063 in.)}	Groove Dia. (Dg) 1.32 mm + 0.051 / - 0.000 _{(0.052 in.)}	Clip Thickness (T) 0.25 mm +/ - 0.025 _{(0.01 in.)}	Clip OD Loose (D1) 3.96 mm	Groove Width (W) 0.30 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Standard: MIL-16633
Part Number: ECL-0013-0016A-S15 (20 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Stainless Steel Grade PH15-7 Mo 25 units (500 pcs) Available Now \| Item Discontinued - Up to 25 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $9.05 AUD Regular price ~~$32.56 AUD~~ Sale price $9.05 AUD Unit price per Per 20
Minimum Rec. Shaft Dia (S)	Groove Dia. (Dg)	Clip Thickness (T)	Clip OD Loose (D1)	Indicative Image
Minimum Rec. Shaft Dia (S) 1.59 mm + 0.76 / - 0.00 _{(0.063 in.)}	Groove Dia. (Dg) 1.32 mm + 0.051 / - 0.000 _{(0.052 in.)}	Clip Thickness (T) 0.25 mm +/ - 0.025 _{(0.01 in.)}	Clip OD Loose (D1) 3.96 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.30 mm Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Standard: MIL-16633
Part Number: ECL-0013-0016A-S15 (20 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Stainless Steel Grade PH15-7 Mo 25 units (500 pcs) Available Now \| Item Discontinued - Up to 25 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $9.05 AUD Regular price ~~$32.56 AUD~~ Sale price $9.05 AUD Unit price per Per 20
ECL-0013-0016A-S15 (20 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Stainless Steel Grade PH15-7 Mo Sale ECL-0013-0016A-S15 (20 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Stainless Steel Grade PH15-7 Mo Regular price $9.05 AUD Regular price ~~$32.56 AUD~~ Sale price $9.05 AUD Unit price per 25 Available Now Sale
Minimum Rec. Shaft Dia (S) 2.00 mm + 0.50 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 1.50 mm + 0.00 / - 0.06 _{(0.059 in.)}	Clip Thickness (T) 0.40 mm +/ - 0.02 _{(0.016 in.)}	Clip OD Loose (D1) 3.85 mm	Groove Width (W) 0.44 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 2.50 Clip OD in groove (C1): 4.25 mm Loose Clip ID (A): 1.28 mm Min. Extension (n): 0.80 Additional Info: RRA-715 Applicator Standard: DIN6799
Part Number: ECL-0015-0020-S15 E-Clips Retaining Rings - 2x1.5x0.4 mm - Stainless Steel Grade PH15-7 Mo 343 Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Each
Minimum Rec. Shaft Dia (S) 2.00 mm + 0.50 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 1.50 mm + 0.00 / - 0.06 _{(0.059 in.)}	Clip Thickness (T) 0.40 mm +/ - 0.02 _{(0.016 in.)}	Clip OD Loose (D1) 3.85 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.44 mm Maximum Rec. Shaft Dia (S): 2.50 Clip OD in groove (C1): 4.25 mm Loose Clip ID (A): 1.28 mm Min. Extension (n): 0.80 Additional Info: RRA-715 Applicator Standard: DIN6799
Part Number: ECL-0015-0020-S15 E-Clips Retaining Rings - 2x1.5x0.4 mm - Stainless Steel Grade PH15-7 Mo 343 Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Each View the product page first if you are unsure.
ECL-0015-0020-S15 --- E-Clips Retaining Rings - 2x1.5x0.4 mm - Stainless Steel Grade PH15-7 Mo ECL-0015-0020-S15 --- E-Clips Retaining Rings - 2x1.5x0.4 mm - Stainless Steel Grade PH15-7 Mo Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per 343 Available Now
Minimum Rec. Shaft Dia (S) 2.39 mm + 0.76 / - 0.00 _{(0.094 in.)}	Groove Dia. (Dg) 1.88 mm + 0.051 / - 0.000 _{(0.074 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.025 _{(0.015 in.)}	Clip OD Loose (D1) 4.75 mm	Groove Width (W) 0.46 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 5.08 mm Loose Clip ID (A): 1.85 mm Standard: MIL-16633
Part Number: ECL-0018-0024A-S15 (20 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| More stock due: 47 (940 pcs) around Sat, Jul 12, 2025 \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Per 20
Minimum Rec. Shaft Dia (S) 2.39 mm + 0.76 / - 0.00 _{(0.094 in.)}	Groove Dia. (Dg) 1.88 mm + 0.051 / - 0.000 _{(0.074 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.025 _{(0.015 in.)}	Clip OD Loose (D1) 4.75 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.46 mm Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 5.08 mm Loose Clip ID (A): 1.85 mm Standard: MIL-16633
Part Number: ECL-0018-0024A-S15 (20 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| More stock due: 47 (940 pcs) around Sat, Jul 12, 2025 \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Per 20 View the product page first if you are unsure.
ECL-0018-0024A-S15 (20 Pcs) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo ECL-0018-0024A-S15 (20 Pcs) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Out of stock! Backorder Now
Minimum Rec. Shaft Dia (S) 2.50 mm + 0.50 / - 0.00 _{(0.098 in.)}	Groove Dia. (Dg) 1.90 mm + 0.00 / - 0.06 _{(0.075 in.)}	Clip Thickness (T) 0.50 mm +/ - 0.02 _{(0.02 in.)}	Clip OD Loose (D1) 4.40 mm	Groove Width (W) 0.54 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 3.00 Clip OD in groove (C1): 4.80 mm Loose Clip ID (A): 1.61 mm Min. Extension (n): 1.00 Additional Info: RRA-719 Applicator Standard: DIN6799
Part Number: ECL-0019-0025-S15 (10 Pcs) E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Stainless Steel Grade PH15-7 Mo 6 units (60 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $12.95 AUD Regular price Sale price $12.95 AUD Unit price per Per 10
Minimum Rec. Shaft Dia (S) 2.50 mm + 0.50 / - 0.00 _{(0.098 in.)}	Groove Dia. (Dg) 1.90 mm + 0.00 / - 0.06 _{(0.075 in.)}	Clip Thickness (T) 0.50 mm +/ - 0.02 _{(0.02 in.)}	Clip OD Loose (D1) 4.40 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.54 mm Maximum Rec. Shaft Dia (S): 3.00 Clip OD in groove (C1): 4.80 mm Loose Clip ID (A): 1.61 mm Min. Extension (n): 1.00 Additional Info: RRA-719 Applicator Standard: DIN6799
Part Number: ECL-0019-0025-S15 (10 Pcs) E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Stainless Steel Grade PH15-7 Mo 6 units (60 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $12.95 AUD Regular price Sale price $12.95 AUD Unit price per Per 10 View the product page first if you are unsure.
ECL-0019-0025-S15 (10 Pcs) --- E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Stainless Steel Grade PH15-7 Mo ECL-0019-0025-S15 (10 Pcs) --- E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Stainless Steel Grade PH15-7 Mo Regular price $12.95 AUD Regular price Sale price $12.95 AUD Unit price per 6 Available Now
Minimum Rec. Shaft Dia (S) 3.00 mm + 1.00 / - 0.00 _{(0.118 in.)}	Groove Dia. (Dg) 2.30 mm + 0.00 / - 0.06 _{(0.091 in.)}	Clip Thickness (T) 0.60 mm +/ - 0.02 _{(0.024 in.)}	Clip OD Loose (D1) 5.90 mm	Groove Width (W) 0.64 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 4.00 Clip OD in groove (C1): 7.30 mm Loose Clip ID (A): 1.94 mm Min. Extension (n): 1.00 Additional Info: RRA-723 Applicator Standard: DIN6799
Part Number: ECL-0023-0030-S15 (10 Pcs) E-Clips Retaining Rings - 3x2.3x0.6 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 22, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Per 10
Minimum Rec. Shaft Dia (S) 3.00 mm + 1.00 / - 0.00 _{(0.118 in.)}	Groove Dia. (Dg) 2.30 mm + 0.00 / - 0.06 _{(0.091 in.)}	Clip Thickness (T) 0.60 mm +/ - 0.02 _{(0.024 in.)}	Clip OD Loose (D1) 5.90 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.64 mm Maximum Rec. Shaft Dia (S): 4.00 Clip OD in groove (C1): 7.30 mm Loose Clip ID (A): 1.94 mm Min. Extension (n): 1.00 Additional Info: RRA-723 Applicator Standard: DIN6799
Part Number: ECL-0023-0030-S15 (10 Pcs) E-Clips Retaining Rings - 3x2.3x0.6 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 22, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Per 10 View the product page first if you are unsure.
ECL-0023-0030-S15 (10 Pcs) --- E-Clips Retaining Rings - 3x2.3x0.6 mm - Stainless Steel Grade PH15-7 Mo ECL-0023-0030-S15 (10 Pcs) --- E-Clips Retaining Rings - 3x2.3x0.6 mm - Stainless Steel Grade PH15-7 Mo Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Out of stock! Backorder Now
Minimum Rec. Shaft Dia (S) 3.18 mm + 1.02 / - 0.00 _{(0.125 in.)}	Groove Dia. (Dg) 2.41 mm + 0.051 / - 0.000 _{(0.095 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.050 _{(0.015 in.)}	Clip OD Loose (D1) 5.84 mm	Groove Width (W) 0.46 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 4.20 Clip OD in groove (C1): 6.10 mm Min. Extension (n): 1.00 Standard: MIL-16633
Part Number: ECL-0024-0032A-S15 (20 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo 89 units (1780 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Per 20
Minimum Rec. Shaft Dia (S) 3.18 mm + 1.02 / - 0.00 _{(0.125 in.)}	Groove Dia. (Dg) 2.41 mm + 0.051 / - 0.000 _{(0.095 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.050 _{(0.015 in.)}	Clip OD Loose (D1) 5.84 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.46 mm Maximum Rec. Shaft Dia (S): 4.20 Clip OD in groove (C1): 6.10 mm Min. Extension (n): 1.00 Standard: MIL-16633
Part Number: ECL-0024-0032A-S15 (20 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo 89 units (1780 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Per 20 View the product page first if you are unsure.
ECL-0024-0032A-S15 (20 Pcs) --- E-Clips Retaining Rings - 3.18x2.41x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo ECL-0024-0032A-S15 (20 Pcs) --- E-Clips Retaining Rings - 3.18x2.41x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per 89 Available Now
Minimum Rec. Shaft Dia (S) 3.56 mm + 1.02 / - 0.00 _{(0.14 in.)}	Groove Dia. (Dg) 2.67 mm + 0.051 / - 0.000 _{(0.105 in.)}	Clip Thickness (T) 0.64 mm +/ - 0.050 _{(0.025 in.)}	Clip OD Loose (D1) 6.85 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 4.58 Clip OD in groove (C1): 7.24 mm Loose Clip ID (A): 2.59 mm Min. Extension (n): 1.00 Standard: MIL-16633
Part Number: ECL-0027-0036-S15 (20 Pcs) E-Clips Retaining Rings - 3.56x2.67x0.64 mm - Stainless Steel Grade PH15-7 Mo 2 units (40 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $12.32 AUD Regular price Sale price $12.32 AUD Unit price per Per 20
Minimum Rec. Shaft Dia (S) 3.56 mm + 1.02 / - 0.00 _{(0.14 in.)}	Groove Dia. (Dg) 2.67 mm + 0.051 / - 0.000 _{(0.105 in.)}	Clip Thickness (T) 0.64 mm +/ - 0.050 _{(0.025 in.)}	Clip OD Loose (D1) 6.85 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 4.58 Clip OD in groove (C1): 7.24 mm Loose Clip ID (A): 2.59 mm Min. Extension (n): 1.00 Standard: MIL-16633
Part Number: ECL-0027-0036-S15 (20 Pcs) E-Clips Retaining Rings - 3.56x2.67x0.64 mm - Stainless Steel Grade PH15-7 Mo 2 units (40 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $12.32 AUD Regular price Sale price $12.32 AUD Unit price per Per 20 View the product page first if you are unsure.
ECL-0027-0036-S15 (20 Pcs) --- E-Clips Retaining Rings - 3.56x2.67x0.64 mm - Stainless Steel Grade PH15-7 Mo ECL-0027-0036-S15 (20 Pcs) --- E-Clips Retaining Rings - 3.56x2.67x0.64 mm - Stainless Steel Grade PH15-7 Mo Regular price $12.32 AUD Regular price Sale price $12.32 AUD Unit price per 2 Available Now
Minimum Rec. Shaft Dia (S) 3.97 mm + 1.26 / - 0.00 _{(0.156 in.)}	Groove Dia. (Dg) 2.95 mm + 0.051 / - 0.000 _{(0.116 in.)}	Clip Thickness (T) 0.64 mm +/ - 0.050 _{(0.025 in.)}	Clip OD Loose (D1) 7.16 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 5.23 Clip OD in groove (C1): 7.49 mm Min. Extension (n): 1.00 Standard: MIL-16633
Part Number: ECL-0029-0040A-S15 (50 Pcs) E-Clips Retaining Rings - 3.97x2.95x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo 2 units (100 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $27.05 AUD Regular price Sale price $27.05 AUD Unit price per Per 50
Minimum Rec. Shaft Dia (S) 3.97 mm + 1.26 / - 0.00 _{(0.156 in.)}	Groove Dia. (Dg) 2.95 mm + 0.051 / - 0.000 _{(0.116 in.)}	Clip Thickness (T) 0.64 mm +/ - 0.050 _{(0.025 in.)}	Clip OD Loose (D1) 7.16 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 5.23 Clip OD in groove (C1): 7.49 mm Min. Extension (n): 1.00 Standard: MIL-16633
Part Number: ECL-0029-0040A-S15 (50 Pcs) E-Clips Retaining Rings - 3.97x2.95x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo 2 units (100 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $27.05 AUD Regular price Sale price $27.05 AUD Unit price per Per 50 View the product page first if you are unsure.
ECL-0029-0040A-S15 (50 Pcs) --- E-Clips Retaining Rings - 3.97x2.95x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo ECL-0029-0040A-S15 (50 Pcs) --- E-Clips Retaining Rings - 3.97x2.95x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo Regular price $27.05 AUD Regular price Sale price $27.05 AUD Unit price per 2 Available Now
Minimum Rec. Shaft Dia (S) 4.45 mm + 0.55 / - 0.00 _{(0.175 in.)}	Groove Dia. (Dg) 3.20 mm + 0.00 / - 0.075 _{(0.126 in.)}	Clip Thickness (T) 0.60 mm +/ - 0.02 _{(0.024 in.)}	Clip OD Loose (D1) 6.80 mm	Groove Width (W) 0.64 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 5.00 Clip OD in groove (C1): 7.30 mm Loose Clip ID (A): 2.70 mm Min. Extension (n): 1.00 Additional Info: RRA-310 Applicator Standard: DIN6799
Part Number: ECL-0032-0045-S15 (50 Pcs) E-Clips Retaining Rings - 4.45x3.2x0.6 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 22, 2025 Regular price $4.41 AUD Regular price ~~$10.20 AUD~~ Sale price $4.41 AUD Unit price per Per 50
Minimum Rec. Shaft Dia (S) 4.45 mm + 0.55 / - 0.00 _{(0.175 in.)}	Groove Dia. (Dg) 3.20 mm + 0.00 / - 0.075 _{(0.126 in.)}	Clip Thickness (T) 0.60 mm +/ - 0.02 _{(0.024 in.)}	Clip OD Loose (D1) 6.80 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.64 mm Maximum Rec. Shaft Dia (S): 5.00 Clip OD in groove (C1): 7.30 mm Loose Clip ID (A): 2.70 mm Min. Extension (n): 1.00 Additional Info: RRA-310 Applicator Standard: DIN6799
Part Number: ECL-0032-0045-S15 (50 Pcs) E-Clips Retaining Rings - 4.45x3.2x0.6 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 22, 2025 Regular price $4.41 AUD Regular price ~~$10.20 AUD~~ Sale price $4.41 AUD Unit price per Per 50 View the product page first if you are unsure.
ECL-0032-0045-S15 (50 Pcs) --- E-Clips Retaining Rings - 4.45x3.2x0.6 mm - Stainless Steel Grade PH15-7 Mo Sale ECL-0032-0045-S15 (50 Pcs) --- E-Clips Retaining Rings - 4.45x3.2x0.6 mm - Stainless Steel Grade PH15-7 Mo Regular price $4.41 AUD Regular price ~~$10.20 AUD~~ Sale price $4.41 AUD Unit price per Out of stock! Backorder Now Sale
Minimum Rec. Shaft Dia (S) 4.78 mm + 1.52 / - 0.00 _{(0.188 in.)}	Groove Dia. (Dg) 3.73 mm + 0.051 / - 0.000 _{(0.147 in.)}	Clip Thickness (T) 0.64 mm +/ - 0.050 _{(0.025 in.)}	Clip OD Loose (D1) 8.51 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 6.30 Clip OD in groove (C1): 8.89 mm Loose Clip ID (A): 3.68 mm Min. Extension (n): 1.10 Standard: MIL-16633
Part Number: ECL-0037-0048A-S15 (20 Pcs) E-Clips Retaining Rings - 4.78x3.73x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo 10 units (200 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Per 20
Minimum Rec. Shaft Dia (S) 4.78 mm + 1.52 / - 0.00 _{(0.188 in.)}	Groove Dia. (Dg) 3.73 mm + 0.051 / - 0.000 _{(0.147 in.)}	Clip Thickness (T) 0.64 mm +/ - 0.050 _{(0.025 in.)}	Clip OD Loose (D1) 8.51 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 6.30 Clip OD in groove (C1): 8.89 mm Loose Clip ID (A): 3.68 mm Min. Extension (n): 1.10 Standard: MIL-16633
Part Number: ECL-0037-0048A-S15 (20 Pcs) E-Clips Retaining Rings - 4.78x3.73x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo 10 units (200 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Per 20 View the product page first if you are unsure.
ECL-0037-0048A-S15 (20 Pcs) --- E-Clips Retaining Rings - 4.78x3.73x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo ECL-0037-0048A-S15 (20 Pcs) --- E-Clips Retaining Rings - 4.78x3.73x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per 10 Available Now
Minimum Rec. Shaft Dia (S) 5.00 mm + 2.00 / - 0.00 _{(0.197 in.)}	Groove Dia. (Dg) 4.00 mm + 0.00 / - 0.075 _{(0.157 in.)}	Clip Thickness (T) 0.70 mm +/ - 0.02 _{(0.028 in.)}	Clip OD Loose (D1) 8.80 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 7.00 Clip OD in groove (C1): 9.30 mm Loose Clip ID (A): 3.40 mm Min. Extension (n): 1.20 Standard: DIN6799
Part Number: ECL-0040-0050-S15 (5 Pcs) E-Clips Retaining Rings - 5x4x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo 34 units (170 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $2.32 AUD Regular price Sale price $2.32 AUD Unit price per Per 5
Minimum Rec. Shaft Dia (S) 5.00 mm + 2.00 / - 0.00 _{(0.197 in.)}	Groove Dia. (Dg) 4.00 mm + 0.00 / - 0.075 _{(0.157 in.)}	Clip Thickness (T) 0.70 mm +/ - 0.02 _{(0.028 in.)}	Clip OD Loose (D1) 8.80 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 7.00 Clip OD in groove (C1): 9.30 mm Loose Clip ID (A): 3.40 mm Min. Extension (n): 1.20 Standard: DIN6799
Part Number: ECL-0040-0050-S15 (5 Pcs) E-Clips Retaining Rings - 5x4x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo 34 units (170 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $2.32 AUD Regular price Sale price $2.32 AUD Unit price per Per 5 View the product page first if you are unsure.
ECL-0040-0050-S15 (5 Pcs) --- E-Clips Retaining Rings - 5x4x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo ECL-0040-0050-S15 (5 Pcs) --- E-Clips Retaining Rings - 5x4x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo Regular price $2.32 AUD Regular price Sale price $2.32 AUD Unit price per 34 Available Now
Minimum Rec. Shaft Dia (S) 5.56 mm + 2.54 / - 0.00 _{(0.219 in.)}	Groove Dia. (Dg) 4.76 mm + 0.051 / - 0.000 _{(0.187 in.)}	Clip Thickness (T) 0.64 mm +/ - 0.050 _{(0.025 in.)}	Clip OD Loose (D1) 11.10 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 8.10 Clip OD in groove (C1): 11.43 mm Loose Clip ID (A): 4.70 mm
Part Number: ECL-0048-0056A-S15 E-Clips Retaining Rings - 5.56x4.76x0.64 mm - Stainless Steel Grade PH15-7 Mo 1018 Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $1.50 AUD Regular price Sale price $1.50 AUD Unit price per Each
Minimum Rec. Shaft Dia (S) 5.56 mm + 2.54 / - 0.00 _{(0.219 in.)}	Groove Dia. (Dg) 4.76 mm + 0.051 / - 0.000 _{(0.187 in.)}	Clip Thickness (T) 0.64 mm +/ - 0.050 _{(0.025 in.)}	Clip OD Loose (D1) 11.10 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 8.10 Clip OD in groove (C1): 11.43 mm Loose Clip ID (A): 4.70 mm
Part Number: ECL-0048-0056A-S15 E-Clips Retaining Rings - 5.56x4.76x0.64 mm - Stainless Steel Grade PH15-7 Mo 1018 Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $1.50 AUD Regular price Sale price $1.50 AUD Unit price per Each View the product page first if you are unsure.
ECL-0048-0056A-S15 --- E-Clips Retaining Rings - 5.56x4.76x0.64 mm - Stainless Steel Grade PH15-7 Mo ECL-0048-0056A-S15 --- E-Clips Retaining Rings - 5.56x4.76x0.64 mm - Stainless Steel Grade PH15-7 Mo Regular price $1.50 AUD Regular price Sale price $1.50 AUD Unit price per 1018 Available Now
Minimum Rec. Shaft Dia (S) 6.00 mm + 2.00 / - 0.00 _{(0.236 in.)}	Groove Dia. (Dg) 5.00 mm + 0.00 / - 0.075 _{(0.197 in.)}	Clip Thickness (T) 0.70 mm +/ - 0.02 _{(0.028 in.)}	Clip OD Loose (D1) 10.75 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 8.00 Clip OD in groove (C1): 11.30 mm Loose Clip ID (A): 4.11 mm Min. Extension (n): 1.20 Additional Info: RRA-605 Applicator Standard: DIN6799
Part Number: ECL-0050-0060-S15 (20 Pcs) E-Clips Retaining Rings - 6x5x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo 22 units (440 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Per 20
Minimum Rec. Shaft Dia (S) 6.00 mm + 2.00 / - 0.00 _{(0.236 in.)}	Groove Dia. (Dg) 5.00 mm + 0.00 / - 0.075 _{(0.197 in.)}	Clip Thickness (T) 0.70 mm +/ - 0.02 _{(0.028 in.)}	Clip OD Loose (D1) 10.75 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 8.00 Clip OD in groove (C1): 11.30 mm Loose Clip ID (A): 4.11 mm Min. Extension (n): 1.20 Additional Info: RRA-605 Applicator Standard: DIN6799
Part Number: ECL-0050-0060-S15 (20 Pcs) E-Clips Retaining Rings - 6x5x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo 22 units (440 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Per 20 View the product page first if you are unsure.
ECL-0050-0060-S15 (20 Pcs) --- E-Clips Retaining Rings - 6x5x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo ECL-0050-0060-S15 (20 Pcs) --- E-Clips Retaining Rings - 6x5x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per 22 Available Now
Minimum Rec. Shaft Dia (S) 6.35 mm + 2.54 / - 0.00 _{(0.25 in.)}	Groove Dia. (Dg) 5.33 mm + 0.076 / - 0.000 _{(0.21 in.)}	Clip Thickness (T) 0.64 mm +/ - 0.050 _{(0.025 in.)}	Clip OD Loose (D1) 13.39 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 8.89 Clip OD in groove (C1): 13.72 mm Min. Extension (n): 1.20 Standard: MIL-16633
Part Number: ECL-0053-0064A-S15 (10 Pcs) E-Clips Retaining Rings - 6.35x5.33x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo 18 units (180 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per Per 10
Minimum Rec. Shaft Dia (S) 6.35 mm + 2.54 / - 0.00 _{(0.25 in.)}	Groove Dia. (Dg) 5.33 mm + 0.076 / - 0.000 _{(0.21 in.)}	Clip Thickness (T) 0.64 mm +/ - 0.050 _{(0.025 in.)}	Clip OD Loose (D1) 13.39 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 8.89 Clip OD in groove (C1): 13.72 mm Min. Extension (n): 1.20 Standard: MIL-16633
Part Number: ECL-0053-0064A-S15 (10 Pcs) E-Clips Retaining Rings - 6.35x5.33x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo 18 units (180 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per Per 10 View the product page first if you are unsure.
ECL-0053-0064A-S15 (10 Pcs) --- E-Clips Retaining Rings - 6.35x5.33x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo ECL-0053-0064A-S15 (10 Pcs) --- E-Clips Retaining Rings - 6.35x5.33x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per 18 Available Now
Minimum Rec. Shaft Dia (S) 7.00 mm + 2.00 / - 0.00 _{(0.276 in.)}	Groove Dia. (Dg) 6.00 mm + 0.00 / - 0.075 _{(0.236 in.)}	Clip Thickness (T) 0.70 mm +/ - 0.02 _{(0.028 in.)}	Clip OD Loose (D1) 11.75 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 9.00 Clip OD in groove (C1): 12.30 mm Loose Clip ID (A): 5.26 mm Min. Extension (n): 1.20 Standard: DIN6799
Part Number: ECL-0060-0070-S15 (5 Pcs) E-Clips Retaining Rings - 7x6x0.7 mm - Stainless Steel Grade PH15-7 Mo 29 units (145 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Per 5
Minimum Rec. Shaft Dia (S) 7.00 mm + 2.00 / - 0.00 _{(0.276 in.)}	Groove Dia. (Dg) 6.00 mm + 0.00 / - 0.075 _{(0.236 in.)}	Clip Thickness (T) 0.70 mm +/ - 0.02 _{(0.028 in.)}	Clip OD Loose (D1) 11.75 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 9.00 Clip OD in groove (C1): 12.30 mm Loose Clip ID (A): 5.26 mm Min. Extension (n): 1.20 Standard: DIN6799
Part Number: ECL-0060-0070-S15 (5 Pcs) E-Clips Retaining Rings - 7x6x0.7 mm - Stainless Steel Grade PH15-7 Mo 29 units (145 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Per 5 View the product page first if you are unsure.
ECL-0060-0070-S15 (5 Pcs) --- E-Clips Retaining Rings - 7x6x0.7 mm - Stainless Steel Grade PH15-7 Mo ECL-0060-0070-S15 (5 Pcs) --- E-Clips Retaining Rings - 7x6x0.7 mm - Stainless Steel Grade PH15-7 Mo Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per 29 Available Now
Minimum Rec. Shaft Dia (S) 7.94 mm + 2.54 / - 0.00 _{(0.313 in.)}	Groove Dia. (Dg) 6.35 mm + 0.076 / - 0.000 _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/ - 0.050 _{(0.025 in.)}	Clip OD Loose (D1) 12.70 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 10.48 Clip OD in groove (C1): 13.21 mm
Part Number: ECL-0064-0079A-S15 (10 Pcs) E-Clips Retaining Rings - 7.94x6.35x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo 6 units (60 pcs) Available Now \| Further orders can be expected around Sat, Aug 02, 2025 Regular price $25.23 AUD Regular price Sale price $25.23 AUD Unit price per Per 10
Minimum Rec. Shaft Dia (S) 7.94 mm + 2.54 / - 0.00 _{(0.313 in.)}	Groove Dia. (Dg) 6.35 mm + 0.076 / - 0.000 _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/ - 0.050 _{(0.025 in.)}	Clip OD Loose (D1) 12.70 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 10.48 Clip OD in groove (C1): 13.21 mm
Part Number: ECL-0064-0079A-S15 (10 Pcs) E-Clips Retaining Rings - 7.94x6.35x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo 6 units (60 pcs) Available Now \| Further orders can be expected around Sat, Aug 02, 2025 Regular price $25.23 AUD Regular price Sale price $25.23 AUD Unit price per Per 10 View the product page first if you are unsure.
ECL-0064-0079A-S15 (10 Pcs) --- E-Clips Retaining Rings - 7.94x6.35x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo ECL-0064-0079A-S15 (10 Pcs) --- E-Clips Retaining Rings - 7.94x6.35x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo Regular price $25.23 AUD Regular price Sale price $25.23 AUD Unit price per 6 Available Now
Minimum Rec. Shaft Dia (S) 8.00 mm + 3.00 / - 0.00 _{(0.315 in.)}	Groove Dia. (Dg) 7.00 mm + 0.00 / - 0.09 _{(0.276 in.)}	Clip Thickness (T) 0.90 mm +/ - 0.02 _{(0.035 in.)}	Clip OD Loose (D1) 13.80 mm	Groove Width (W) 0.94 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 11.00 Clip OD in groove (C1): 14.30 mm Loose Clip ID (A): 5.84 mm Min. Extension (n): 1.50 Standard: DIN6799
Part Number: ECL-0070-0080-S15 (20 Pcs) E-Clips Retaining Rings - 8x7x0.9 mm Basic - Stainless Steel Grade PH15-7 Mo 12 units (240 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per Per 20
Minimum Rec. Shaft Dia (S) 8.00 mm + 3.00 / - 0.00 _{(0.315 in.)}	Groove Dia. (Dg) 7.00 mm + 0.00 / - 0.09 _{(0.276 in.)}	Clip Thickness (T) 0.90 mm +/ - 0.02 _{(0.035 in.)}	Clip OD Loose (D1) 13.80 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.94 mm Maximum Rec. Shaft Dia (S): 11.00 Clip OD in groove (C1): 14.30 mm Loose Clip ID (A): 5.84 mm Min. Extension (n): 1.50 Standard: DIN6799
Part Number: ECL-0070-0080-S15 (20 Pcs) E-Clips Retaining Rings - 8x7x0.9 mm Basic - Stainless Steel Grade PH15-7 Mo 12 units (240 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per Per 20 View the product page first if you are unsure.
ECL-0070-0080-S15 (20 Pcs) --- E-Clips Retaining Rings - 8x7x0.9 mm Basic - Stainless Steel Grade PH15-7 Mo ECL-0070-0080-S15 (20 Pcs) --- E-Clips Retaining Rings - 8x7x0.9 mm Basic - Stainless Steel Grade PH15-7 Mo Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per 12 Available Now
Minimum Rec. Shaft Dia (S) 9.00 mm + 3.00 / - 0.00 _{(0.354 in.)}	Groove Dia. (Dg) 8.00 mm + 0.00 / - 0.09 _{(0.315 in.)}	Clip Thickness (T) 1.00 mm +/ - 0.03 _{(0.039 in.)}	Clip OD Loose (D1) 15.60 mm	Groove Width (W) 1.05 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 12.00 Clip OD in groove (C1): 16.30 mm Loose Clip ID (A): 6.52 mm Min. Extension (n): 1.80 Additional Info: RRA-608 Applicator Standard: DIN6799
Part Number: ECL-0080-0090-S15 (5 Pcs) E-Clips Retaining Rings - 9x8x1 mm - Stainless Steel Grade PH15-7 Mo 47 units (235 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per Per 5
Minimum Rec. Shaft Dia (S) 9.00 mm + 3.00 / - 0.00 _{(0.354 in.)}	Groove Dia. (Dg) 8.00 mm + 0.00 / - 0.09 _{(0.315 in.)}	Clip Thickness (T) 1.00 mm +/ - 0.03 _{(0.039 in.)}	Clip OD Loose (D1) 15.60 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.05 mm Maximum Rec. Shaft Dia (S): 12.00 Clip OD in groove (C1): 16.30 mm Loose Clip ID (A): 6.52 mm Min. Extension (n): 1.80 Additional Info: RRA-608 Applicator Standard: DIN6799
Part Number: ECL-0080-0090-S15 (5 Pcs) E-Clips Retaining Rings - 9x8x1 mm - Stainless Steel Grade PH15-7 Mo 47 units (235 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per Per 5 View the product page first if you are unsure.
ECL-0080-0090-S15 (5 Pcs) --- E-Clips Retaining Rings - 9x8x1 mm - Stainless Steel Grade PH15-7 Mo ECL-0080-0090-S15 (5 Pcs) --- E-Clips Retaining Rings - 9x8x1 mm - Stainless Steel Grade PH15-7 Mo Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per 47 Available Now
Minimum Rec. Shaft Dia (S) 9.53 mm + 2.54 / - 0.00 _{(0.375 in.)}	Groove Dia. (Dg) 7.70 mm + 0.076 / - 0.000 _{(0.303 in.)}	Clip Thickness (T) 0.89 mm +/ - 0.050 _{(0.035 in.)}	Clip OD Loose (D1) 16.76 mm	Groove Width (W) 0.99 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 12.07 Clip OD in groove (C1): 17.27 mm Standard: MIL-16633
Part Number: ECL-0077-0095-S15 (5 Pcs) E-Clips Retaining Rings - 9.53x7.7x0.89 mm Basic - Stainless Steel Grade PH15-7 Mo 4 units (20 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Per 5
Minimum Rec. Shaft Dia (S) 9.53 mm + 2.54 / - 0.00 _{(0.375 in.)}	Groove Dia. (Dg) 7.70 mm + 0.076 / - 0.000 _{(0.303 in.)}	Clip Thickness (T) 0.89 mm +/ - 0.050 _{(0.035 in.)}	Clip OD Loose (D1) 16.76 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm Maximum Rec. Shaft Dia (S): 12.07 Clip OD in groove (C1): 17.27 mm Standard: MIL-16633
Part Number: ECL-0077-0095-S15 (5 Pcs) E-Clips Retaining Rings - 9.53x7.7x0.89 mm Basic - Stainless Steel Grade PH15-7 Mo 4 units (20 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Per 5 View the product page first if you are unsure.
ECL-0077-0095-S15 (5 Pcs) --- E-Clips Retaining Rings - 9.53x7.7x0.89 mm Basic - Stainless Steel Grade PH15-7 Mo ECL-0077-0095-S15 (5 Pcs) --- E-Clips Retaining Rings - 9.53x7.7x0.89 mm Basic - Stainless Steel Grade PH15-7 Mo Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per 4 Available Now
Minimum Rec. Shaft Dia (S) 10.00 mm + 4.00 / - 0.00 _{(0.394 in.)}	Groove Dia. (Dg) 9.00 mm + 0.00 / - 0.09 _{(0.354 in.)}	Clip Thickness (T) 1.10 mm +/ - 0.03 _{(0.043 in.)}	Clip OD Loose (D1) 18.20 mm	Groove Width (W) 1.15 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 14.00 Clip OD in groove (C1): 18.80 mm Loose Clip ID (A): 7.63 mm Min. Extension (n): 2.00 Standard: DIN6799
Part Number: ECL-0090-0100-S15 (5 Pcs) E-Clips Retaining Rings - 10x9x1.1 mm - Stainless Steel Grade PH15-7 Mo 48 units (240 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $17.05 AUD Regular price Sale price $17.05 AUD Unit price per Per 5
Minimum Rec. Shaft Dia (S) 10.00 mm + 4.00 / - 0.00 _{(0.394 in.)}	Groove Dia. (Dg) 9.00 mm + 0.00 / - 0.09 _{(0.354 in.)}	Clip Thickness (T) 1.10 mm +/ - 0.03 _{(0.043 in.)}	Clip OD Loose (D1) 18.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.15 mm Maximum Rec. Shaft Dia (S): 14.00 Clip OD in groove (C1): 18.80 mm Loose Clip ID (A): 7.63 mm Min. Extension (n): 2.00 Standard: DIN6799
Part Number: ECL-0090-0100-S15 (5 Pcs) E-Clips Retaining Rings - 10x9x1.1 mm - Stainless Steel Grade PH15-7 Mo 48 units (240 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $17.05 AUD Regular price Sale price $17.05 AUD Unit price per Per 5 View the product page first if you are unsure.
ECL-0090-0100-S15 (5 Pcs) --- E-Clips Retaining Rings - 10x9x1.1 mm - Stainless Steel Grade PH15-7 Mo ECL-0090-0100-S15 (5 Pcs) --- E-Clips Retaining Rings - 10x9x1.1 mm - Stainless Steel Grade PH15-7 Mo Regular price $17.05 AUD Regular price Sale price $17.05 AUD Unit price per 48 Available Now
Minimum Rec. Shaft Dia (S) 11.00 mm + 4.00 / - 0.00 _{(0.433 in.)}	Groove Dia. (Dg) 10.00 mm + 0.00 / - 0.09 _{(0.394 in.)}	Clip Thickness (T) 1.20 mm +/ - 0.03 _{(0.047 in.)}	Clip OD Loose (D1) 19.65 mm	Groove Width (W) 1.25 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 15.00 Clip OD in groove (C1): 20.40 mm Loose Clip ID (A): 8.32 mm Min. Extension (n): 2.00 Standard: DIN6799
Part Number: ECL-0100-0110-S15 (2 Pcs) E-Clips Retaining Rings - 11x10x1.2 mm - Stainless Steel Grade PH15-7 Mo 4 units (8 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Per 2
Minimum Rec. Shaft Dia (S) 11.00 mm + 4.00 / - 0.00 _{(0.433 in.)}	Groove Dia. (Dg) 10.00 mm + 0.00 / - 0.09 _{(0.394 in.)}	Clip Thickness (T) 1.20 mm +/ - 0.03 _{(0.047 in.)}	Clip OD Loose (D1) 19.65 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.25 mm Maximum Rec. Shaft Dia (S): 15.00 Clip OD in groove (C1): 20.40 mm Loose Clip ID (A): 8.32 mm Min. Extension (n): 2.00 Standard: DIN6799
Part Number: ECL-0100-0110-S15 (2 Pcs) E-Clips Retaining Rings - 11x10x1.2 mm - Stainless Steel Grade PH15-7 Mo 4 units (8 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Per 2 View the product page first if you are unsure.
ECL-0100-0110-S15 (2 Pcs) --- E-Clips Retaining Rings - 11x10x1.2 mm - Stainless Steel Grade PH15-7 Mo ECL-0100-0110-S15 (2 Pcs) --- E-Clips Retaining Rings - 11x10x1.2 mm - Stainless Steel Grade PH15-7 Mo Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per 4 Available Now
Minimum Rec. Shaft Dia (S) 11.11 mm + 2.54 / - 0.00 _{(0.437 in.)}	Groove Dia. (Dg) 8.74 mm + 0.076 / - 0.000 _{(0.344 in.)}	Clip Thickness (T) 0.89 mm +/ - 0.050 _{(0.035 in.)}	Clip OD Loose (D1) 17.45 mm	Groove Width (W) 0.99 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 13.65 Clip OD in groove (C1): 18.03 mm Loose Clip ID (A): 8.56 mm Standard: MIL-16633
Part Number: ECL-0087-0111A-S15 (5 Pcs) E-Clips Retaining Rings - 11.11x8.74x0.89 mm - Stainless Steel Grade PH15-7 Mo 16 units (80 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 5
Minimum Rec. Shaft Dia (S) 11.11 mm + 2.54 / - 0.00 _{(0.437 in.)}	Groove Dia. (Dg) 8.74 mm + 0.076 / - 0.000 _{(0.344 in.)}	Clip Thickness (T) 0.89 mm +/ - 0.050 _{(0.035 in.)}	Clip OD Loose (D1) 17.45 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm Maximum Rec. Shaft Dia (S): 13.65 Clip OD in groove (C1): 18.03 mm Loose Clip ID (A): 8.56 mm Standard: MIL-16633
Part Number: ECL-0087-0111A-S15 (5 Pcs) E-Clips Retaining Rings - 11.11x8.74x0.89 mm - Stainless Steel Grade PH15-7 Mo 16 units (80 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 5 View the product page first if you are unsure.
ECL-0087-0111A-S15 (5 Pcs) --- E-Clips Retaining Rings - 11.11x8.74x0.89 mm - Stainless Steel Grade PH15-7 Mo ECL-0087-0111A-S15 (5 Pcs) --- E-Clips Retaining Rings - 11.11x8.74x0.89 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per 16 Available Now
Minimum Rec. Shaft Dia (S) 12.70 mm + 3.05 / - 0.00 _{(0.5 in.)}	Groove Dia. (Dg) 10.06 mm + 0.076 / - 0.000 _{(0.396 in.)}	Clip Thickness (T) 1.07 mm +/ - 0.050 _{(0.042 in.)}	Clip OD Loose (D1) 20.32 mm	Groove Width (W) 1.17 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 15.75 Clip OD in groove (C1): 20.83 mm Loose Clip ID (A): 9.96 mm Min. Extension (n): 2.00 Additional Info: RRA-200 Applicator Standard: MIL-16633
Part Number: ECL-0101-0127-S15 (10 Pcs) E-Clips Retaining Rings - 12.7x10.06x1.07 mm Basic - Stainless Steel Grade PH15-7 Mo 14 units (140 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $17.23 AUD Regular price Sale price $17.23 AUD Unit price per Per 10
Minimum Rec. Shaft Dia (S) 12.70 mm + 3.05 / - 0.00 _{(0.5 in.)}	Groove Dia. (Dg) 10.06 mm + 0.076 / - 0.000 _{(0.396 in.)}	Clip Thickness (T) 1.07 mm +/ - 0.050 _{(0.042 in.)}	Clip OD Loose (D1) 20.32 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm Maximum Rec. Shaft Dia (S): 15.75 Clip OD in groove (C1): 20.83 mm Loose Clip ID (A): 9.96 mm Min. Extension (n): 2.00 Additional Info: RRA-200 Applicator Standard: MIL-16633
Part Number: ECL-0101-0127-S15 (10 Pcs) E-Clips Retaining Rings - 12.7x10.06x1.07 mm Basic - Stainless Steel Grade PH15-7 Mo 14 units (140 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $17.23 AUD Regular price Sale price $17.23 AUD Unit price per Per 10 View the product page first if you are unsure.
ECL-0101-0127-S15 (10 Pcs) --- E-Clips Retaining Rings - 12.7x10.06x1.07 mm Basic - Stainless Steel Grade PH15-7 Mo ECL-0101-0127-S15 (10 Pcs) --- E-Clips Retaining Rings - 12.7x10.06x1.07 mm Basic - Stainless Steel Grade PH15-7 Mo Regular price $17.23 AUD Regular price Sale price $17.23 AUD Unit price per 14 Available Now
Minimum Rec. Shaft Dia (S) 15.88 mm + 3.05 / - 0.00 _{(0.625 in.)}	Groove Dia. (Dg) 12.32 mm + 0.076 / - 0.000 _{(0.485 in.)}	Clip Thickness (T) 1.07 mm +/ - 0.050 _{(0.042 in.)}	Clip OD Loose (D1) 23.88 mm	Groove Width (W) 1.17 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 18.93 Clip OD in groove (C1): 24.38 mm Standard: MIL-16633
Part Number: ECL-0123-0159-S15 (2 Pcs) E-Clips Retaining Rings - 15.88x12.32x1.07 mm Basic - Stainless Steel Grade PH15-7 Mo 104 units (208 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $9.05 AUD Regular price Sale price $9.05 AUD Unit price per Per 2
Minimum Rec. Shaft Dia (S) 15.88 mm + 3.05 / - 0.00 _{(0.625 in.)}	Groove Dia. (Dg) 12.32 mm + 0.076 / - 0.000 _{(0.485 in.)}	Clip Thickness (T) 1.07 mm +/ - 0.050 _{(0.042 in.)}	Clip OD Loose (D1) 23.88 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm Maximum Rec. Shaft Dia (S): 18.93 Clip OD in groove (C1): 24.38 mm Standard: MIL-16633
Part Number: ECL-0123-0159-S15 (2 Pcs) E-Clips Retaining Rings - 15.88x12.32x1.07 mm Basic - Stainless Steel Grade PH15-7 Mo 104 units (208 pcs) Available Now \| Further orders can be expected around Tue, Jul 22, 2025 Regular price $9.05 AUD Regular price Sale price $9.05 AUD Unit price per Per 2 View the product page first if you are unsure.
ECL-0123-0159-S15 (2 Pcs) --- E-Clips Retaining Rings - 15.88x12.32x1.07 mm Basic - Stainless Steel Grade PH15-7 Mo ECL-0123-0159-S15 (2 Pcs) --- E-Clips Retaining Rings - 15.88x12.32x1.07 mm Basic - Stainless Steel Grade PH15-7 Mo Regular price $9.05 AUD Regular price Sale price $9.05 AUD Unit price per 104 Available Now

Country/region

Country/region

Collection: Retaining Rings - E-Clips - Basic - Stainless Steel

Filter

Filter

Subscribe to our emails
