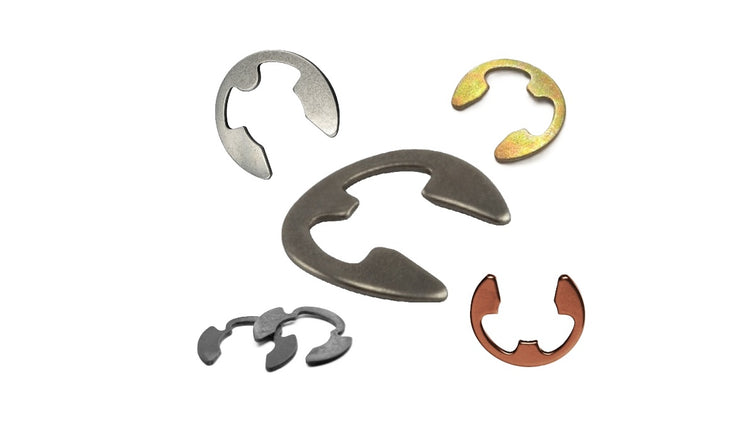

Collection: Retaining Rings - E-Clips
80 Products in this selection
This is a combined category of products from multiple levels.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Small Parts & Bearings
Additional resources:
Assortment Kits
E-Clip Applicators
A more comprehensive listing may be found on the MBA Minibearings main store at Retaining Rings - E-Clips.
Additional resources:
Assortment Kits
E-Clip Applicators
A more comprehensive listing may be found on the MBA Minibearings main store at Retaining Rings - E-Clips.
| Minimum Rec. Shaft Dia (S) | Groove Dia. (Dg) | Clip Thickness (T) | Clip OD Loose (D1) | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|
|
Minimum Rec. Shaft Dia (S)
1.00
mm + 0.25 / - 0.00
(0.039 in.) |
Groove Dia. (Dg)
0.66
mm + 0.051 / - 0.000 (0.026 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
1.75
mm |
Groove Width (W)
0.31
mm |
|
|
Material: Beryllium Copper
Maximum Rec. Shaft Dia (S): 1.25
Clip OD in groove (C1): 2.01 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|

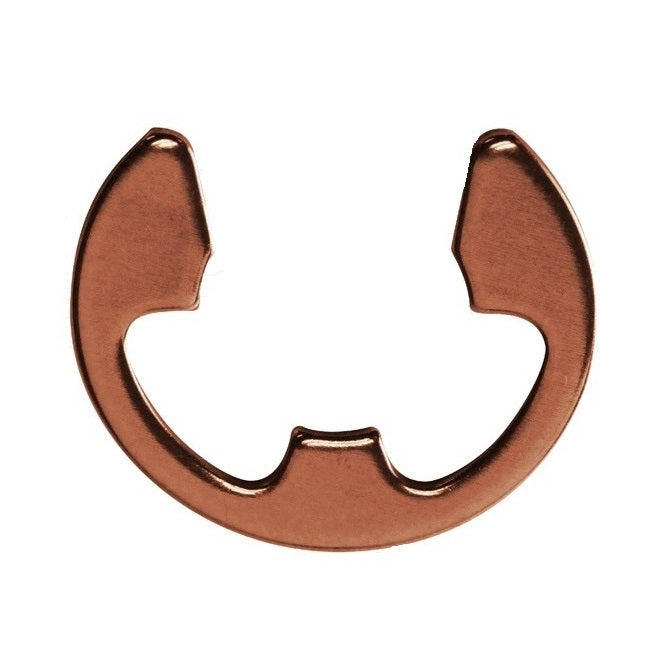

Part Number: ECL-0007-0010-B (5 Pcs) E-Clips Retaining Rings - 1x0.66x0.25 mm - Beryllium Copper
4 units (20 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$2.95 AUD
Regular price
Unit price
per
Per 5
|
|||||
| Minimum Rec. Shaft Dia (S) | Groove Dia. (Dg) | Clip Thickness (T) | Clip OD Loose (D1) |
Indicative Image |
|
|
Minimum Rec. Shaft Dia (S)
1.00
mm + 0.25 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
0.66
mm + 0.051 / - 0.000 (0.026 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
1.75
mm |
|
|
|
Material: Beryllium Copper
Groove Width (W): 0.31 mm
Maximum Rec. Shaft Dia (S): 1.25
Clip OD in groove (C1): 2.01 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0007-0010-B (5 Pcs) E-Clips Retaining Rings - 1x0.66x0.25 mm - Beryllium Copper
4 units (20 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$2.95 AUD
Regular price
Unit price
per
Per 5
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.40
mm + 0.60 / - 0.00
(0.055 in.) |
Groove Dia. (Dg)
1.20
mm + 0.00 / - 0.06 (0.047 in.) |
Clip Thickness (T)
0.30
mm +/ - 0.02 (0.012 in.) |
Clip OD Loose (D1)
2.90
mm |
Groove Width (W)
0.34
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 2.00
Clip OD in groove (C1): 3.25 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0012-0014-C (100 Pcs) E-Clips Retaining Rings - 1.4x1.2x0.3 mm - Carbon Steel
28 units (2800 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$5.23 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.40
mm + 0.60 / - 0.00 (0.055 in.) |
Groove Dia. (Dg)
1.20
mm + 0.00 / - 0.06 (0.047 in.) |
Clip Thickness (T)
0.30
mm +/ - 0.02 (0.012 in.) |
Clip OD Loose (D1)
2.90
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.34 mm
Maximum Rec. Shaft Dia (S): 2.00
Clip OD in groove (C1): 3.25 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0012-0014-C (100 Pcs) E-Clips Retaining Rings - 1.4x1.2x0.3 mm - Carbon Steel
28 units (2800 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$5.23 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00
(0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
3.56
mm |
Groove Width (W)
0.31
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 3.88 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016-C (50 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Carbon Steel
3 units (150 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$9.50 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00 (0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
3.56
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.31 mm
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 3.88 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016-C (50 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Carbon Steel
3 units (150 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$9.50 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00
(0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
3.96
mm |
Groove Width (W)
0.30
mm |
|
|
Material: Beryllium Copper
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 4.19 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016A-B (5 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Beryllium Copper
14 units (70 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$9.59 AUD
Regular price
Unit price
per
Per 5
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00 (0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
3.96
mm |
|
|
|
Material: Beryllium Copper
Groove Width (W): 0.30 mm
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 4.19 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016A-B (5 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Beryllium Copper
14 units (70 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$9.59 AUD
Regular price
Unit price
per
Per 5
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00
(0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
3.96
mm |
Groove Width (W)
0.30
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 4.19 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016A-C (100 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Carbon Steel
1 pack (100 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$14.05 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00 (0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
3.96
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.30 mm
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 4.19 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016A-C (100 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Carbon Steel
1 pack (100 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$14.05 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00
(0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
3.96
mm |
Groove Width (W)
0.30
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 4.19 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016A-S15 (20 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Stainless Steel Grade PH15-7 Mo
25 units (500 pcs) Available Now | Item Discontinued - Up to 25 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$9.05 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00 (0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
3.96
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.30 mm
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 4.19 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016A-S15 (20 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Stainless Steel Grade PH15-7 Mo
25 units (500 pcs) Available Now | Item Discontinued - Up to 25 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$9.05 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.00
mm + 0.50 / - 0.00
(0.079 in.) |
Groove Dia. (Dg)
1.50
mm + 0.00 / - 0.06 (0.059 in.) |
Clip Thickness (T)
0.40
mm +/ - 0.02 (0.016 in.) |
Clip OD Loose (D1)
3.85
mm |
Groove Width (W)
0.44
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 2.50
Clip OD in groove (C1): 4.25 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0015-0020-C (100 Pcs) E-Clips Retaining Rings - 2x1.5x0.4 mm - Carbon Steel
79 units (7900 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$6.50 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.00
mm + 0.50 / - 0.00 (0.079 in.) |
Groove Dia. (Dg)
1.50
mm + 0.00 / - 0.06 (0.059 in.) |
Clip Thickness (T)
0.40
mm +/ - 0.02 (0.016 in.) |
Clip OD Loose (D1)
3.85
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.44 mm
Maximum Rec. Shaft Dia (S): 2.50
Clip OD in groove (C1): 4.25 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0015-0020-C (100 Pcs) E-Clips Retaining Rings - 2x1.5x0.4 mm - Carbon Steel
79 units (7900 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$6.50 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.00
mm + 0.50 / - 0.00
(0.079 in.) |
Groove Dia. (Dg)
1.50
mm + 0.00 / - 0.06 (0.059 in.) |
Clip Thickness (T)
0.40
mm +/ - 0.02 (0.016 in.) |
Clip OD Loose (D1)
3.85
mm |
Groove Width (W)
0.44
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Maximum Rec. Shaft Dia (S): 2.50
Clip OD in groove (C1): 4.25 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0015-0020-S15 E-Clips Retaining Rings - 2x1.5x0.4 mm - Stainless Steel Grade PH15-7 Mo
343 Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$2.14 AUD
Regular price
Unit price
per
Each
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.00
mm + 0.50 / - 0.00 (0.079 in.) |
Groove Dia. (Dg)
1.50
mm + 0.00 / - 0.06 (0.059 in.) |
Clip Thickness (T)
0.40
mm +/ - 0.02 (0.016 in.) |
Clip OD Loose (D1)
3.85
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.44 mm
Maximum Rec. Shaft Dia (S): 2.50
Clip OD in groove (C1): 4.25 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0015-0020-S15 E-Clips Retaining Rings - 2x1.5x0.4 mm - Stainless Steel Grade PH15-7 Mo
343 Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$2.14 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.39
mm + 0.76 / - 0.00
(0.094 in.) |
Groove Dia. (Dg)
1.88
mm + 0.051 / - 0.000 (0.074 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.025 (0.015 in.) |
Clip OD Loose (D1)
4.75
mm |
Groove Width (W)
0.46
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 3.15
Clip OD in groove (C1): 5.08 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0018-0024A-C (50 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Carbon Steel
1 pack (50 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$8.86 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.39
mm + 0.76 / - 0.00 (0.094 in.) |
Groove Dia. (Dg)
1.88
mm + 0.051 / - 0.000 (0.074 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.025 (0.015 in.) |
Clip OD Loose (D1)
4.75
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.46 mm
Maximum Rec. Shaft Dia (S): 3.15
Clip OD in groove (C1): 5.08 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0018-0024A-C (50 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Carbon Steel
1 pack (50 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$8.86 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.39
mm + 0.76 / - 0.00
(0.094 in.) |
Groove Dia. (Dg)
1.88
mm + 0.051 / - 0.000 (0.074 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.025 (0.015 in.) |
Clip OD Loose (D1)
4.75
mm |
Groove Width (W)
0.46
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Maximum Rec. Shaft Dia (S): 3.15
Clip OD in groove (C1): 5.08 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0018-0024A-S15 (20 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Fri, Jul 18, 2025 Regular price
$8.05 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.39
mm + 0.76 / - 0.00 (0.094 in.) |
Groove Dia. (Dg)
1.88
mm + 0.051 / - 0.000 (0.074 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.025 (0.015 in.) |
Clip OD Loose (D1)
4.75
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.46 mm
Maximum Rec. Shaft Dia (S): 3.15
Clip OD in groove (C1): 5.08 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0018-0024A-S15 (20 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Fri, Jul 18, 2025 Regular price
$8.05 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.39
mm + 0.76 / - 0.00
(0.094 in.) |
Groove Dia. (Dg)
1.88
mm + 0.051 / - 0.000 (0.074 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.050 (0.015 in.) |
Clip OD Loose (D1)
5.84
mm |
Groove Width (W)
0.46
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 3.15
Clip OD in groove (C1): 6.22 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0018-0024-C (50 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Carbon Steel
1 pack (50 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$8.86 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.39
mm + 0.76 / - 0.00 (0.094 in.) |
Groove Dia. (Dg)
1.88
mm + 0.051 / - 0.000 (0.074 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.050 (0.015 in.) |
Clip OD Loose (D1)
5.84
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.46 mm
Maximum Rec. Shaft Dia (S): 3.15
Clip OD in groove (C1): 6.22 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0018-0024-C (50 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Carbon Steel
1 pack (50 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$8.86 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.50
mm + 0.50 / - 0.00
(0.098 in.) |
Groove Dia. (Dg)
1.90
mm + 0.00 / - 0.06 (0.075 in.) |
Clip Thickness (T)
0.50
mm +/ - 0.02 (0.02 in.) |
Clip OD Loose (D1)
4.40
mm |
Groove Width (W)
0.54
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Maximum Rec. Shaft Dia (S): 3.00
Clip OD in groove (C1): 4.80 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0019-0025-S15 (10 Pcs) E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Stainless Steel Grade PH15-7 Mo
6 units (60 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$12.95 AUD
Regular price
Unit price
per
Per 10
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.50
mm + 0.50 / - 0.00 (0.098 in.) |
Groove Dia. (Dg)
1.90
mm + 0.00 / - 0.06 (0.075 in.) |
Clip Thickness (T)
0.50
mm +/ - 0.02 (0.02 in.) |
Clip OD Loose (D1)
4.40
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.54 mm
Maximum Rec. Shaft Dia (S): 3.00
Clip OD in groove (C1): 4.80 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0019-0025-S15 (10 Pcs) E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Stainless Steel Grade PH15-7 Mo
6 units (60 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$12.95 AUD
Regular price
Unit price
per
Per 10
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.50
mm + 0.50 / - 0.00
(0.098 in.) |
Groove Dia. (Dg)
1.90
mm + 0.00 / - 0.06 (0.075 in.) |
Clip Thickness (T)
0.50
mm +/ - 0.02 (0.02 in.) |
Clip OD Loose (D1)
4.40
mm |
Groove Width (W)
0.54
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 3.00
Clip OD in groove (C1): 4.80 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0019-0025-C (100 Pcs) E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Carbon Steel
36 units (3600 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$5.23 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.50
mm + 0.50 / - 0.00 (0.098 in.) |
Groove Dia. (Dg)
1.90
mm + 0.00 / - 0.06 (0.075 in.) |
Clip Thickness (T)
0.50
mm +/ - 0.02 (0.02 in.) |
Clip OD Loose (D1)
4.40
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.54 mm
Maximum Rec. Shaft Dia (S): 3.00
Clip OD in groove (C1): 4.80 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0019-0025-C (100 Pcs) E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Carbon Steel
36 units (3600 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$5.23 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.79
mm + 1.02 / - 0.00
(0.11 in.) |
Groove Dia. (Dg)
2.18
mm + 0.051 / - 0.000 (0.086 in.) |
Clip Thickness (T)
0.56
mm +/ - 0.051 (0.022 in.) |
Clip OD Loose (D1)
7.16
mm |
Groove Width (W)
0.64
mm |
|
|
Material: Carbon Steel Zinc Plated
Maximum Rec. Shaft Dia (S): 3.81
Clip OD in groove (C1): 7.54 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|

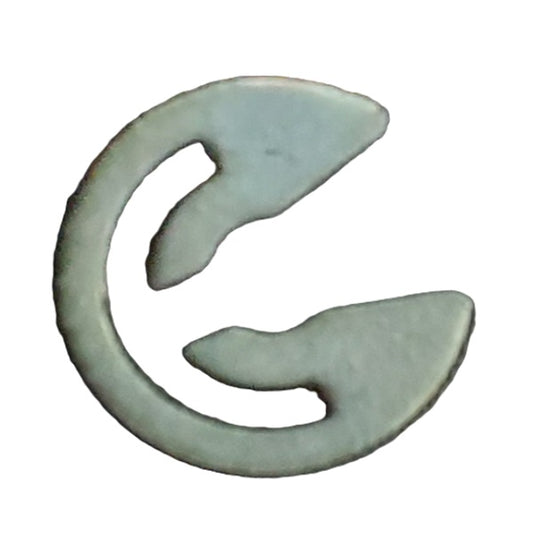

Part Number: ECL-0022-0028-CZ (20 Pcs) E-Clips Retaining Rings - 2.79x2.18x0.56 mm - Carbon Steel Zinc Plated
8 units (160 pcs) Available Now | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$12.32 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.79
mm + 1.02 / - 0.00 (0.11 in.) |
Groove Dia. (Dg)
2.18
mm + 0.051 / - 0.000 (0.086 in.) |
Clip Thickness (T)
0.56
mm +/ - 0.051 (0.022 in.) |
Clip OD Loose (D1)
7.16
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 0.64 mm
Maximum Rec. Shaft Dia (S): 3.81
Clip OD in groove (C1): 7.54 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0022-0028-CZ (20 Pcs) E-Clips Retaining Rings - 2.79x2.18x0.56 mm - Carbon Steel Zinc Plated
8 units (160 pcs) Available Now | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$12.32 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.00
mm + 1.00 / - 0.00
(0.118 in.) |
Groove Dia. (Dg)
2.30
mm + 0.00 / - 0.06 (0.091 in.) |
Clip Thickness (T)
0.60
mm +/ - 0.02 (0.024 in.) |
Clip OD Loose (D1)
5.90
mm |
Groove Width (W)
0.64
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Maximum Rec. Shaft Dia (S): 4.00
Clip OD in groove (C1): 7.30 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0023-0030-S15 (10 Pcs) E-Clips Retaining Rings - 3x2.3x0.6 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Fri, Jul 18, 2025 Regular price
$9.86 AUD
Regular price
Unit price
per
Per 10
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.00
mm + 1.00 / - 0.00 (0.118 in.) |
Groove Dia. (Dg)
2.30
mm + 0.00 / - 0.06 (0.091 in.) |
Clip Thickness (T)
0.60
mm +/ - 0.02 (0.024 in.) |
Clip OD Loose (D1)
5.90
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.64 mm
Maximum Rec. Shaft Dia (S): 4.00
Clip OD in groove (C1): 7.30 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0023-0030-S15 (10 Pcs) E-Clips Retaining Rings - 3x2.3x0.6 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Fri, Jul 18, 2025 Regular price
$9.86 AUD
Regular price
Unit price
per
Per 10
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.00
mm + 1.00 / - 0.00
(0.118 in.) |
Groove Dia. (Dg)
2.30
mm + 0.00 / - 0.06 (0.091 in.) |
Clip Thickness (T)
0.60
mm +/ - 0.02 (0.024 in.) |
Clip OD Loose (D1)
5.90
mm |
Groove Width (W)
0.64
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 4.00
Clip OD in groove (C1): 7.30 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0023-0030-C (100 Pcs) E-Clips Retaining Rings - 3x2.3x0.6 mm - Carbon Steel
24 units (2400 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$4.50 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.00
mm + 1.00 / - 0.00 (0.118 in.) |
Groove Dia. (Dg)
2.30
mm + 0.00 / - 0.06 (0.091 in.) |
Clip Thickness (T)
0.60
mm +/ - 0.02 (0.024 in.) |
Clip OD Loose (D1)
5.90
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.64 mm
Maximum Rec. Shaft Dia (S): 4.00
Clip OD in groove (C1): 7.30 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0023-0030-C (100 Pcs) E-Clips Retaining Rings - 3x2.3x0.6 mm - Carbon Steel
24 units (2400 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$4.50 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.18
mm + 1.02 / - 0.00
(0.125 in.) |
Groove Dia. (Dg)
2.41
mm + 0.051 / - 0.000 (0.095 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.050 (0.015 in.) |
Clip OD Loose (D1)
5.84
mm |
Groove Width (W)
0.46
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Maximum Rec. Shaft Dia (S): 4.20
Clip OD in groove (C1): 6.10 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0024-0032A-S15 (20 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.38 mm - Stainless Steel Grade PH15-7 Mo
89 units (1780 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$9.95 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.18
mm + 1.02 / - 0.00 (0.125 in.) |
Groove Dia. (Dg)
2.41
mm + 0.051 / - 0.000 (0.095 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.050 (0.015 in.) |
Clip OD Loose (D1)
5.84
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.46 mm
Maximum Rec. Shaft Dia (S): 4.20
Clip OD in groove (C1): 6.10 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0024-0032A-S15 (20 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.38 mm - Stainless Steel Grade PH15-7 Mo
89 units (1780 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$9.95 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.18
mm + 1.02 / - 0.00
(0.125 in.) |
Groove Dia. (Dg)
2.41
mm + 0.051 / - 0.000 (0.095 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.050 (0.015 in.) |
Clip OD Loose (D1)
5.84
mm |
Groove Width (W)
0.46
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 4.20
Clip OD in groove (C1): 6.10 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0024-0032A-C (50 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.38 mm - Carbon Steel
2 units (100 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$9.23 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.18
mm + 1.02 / - 0.00 (0.125 in.) |
Groove Dia. (Dg)
2.41
mm + 0.051 / - 0.000 (0.095 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.050 (0.015 in.) |
Clip OD Loose (D1)
5.84
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.46 mm
Maximum Rec. Shaft Dia (S): 4.20
Clip OD in groove (C1): 6.10 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0024-0032A-C (50 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.38 mm - Carbon Steel
2 units (100 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$9.23 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.56
mm + 1.02 / - 0.00
(0.14 in.) |
Groove Dia. (Dg)
2.67
mm + 0.051 / - 0.000 (0.105 in.) |
Clip Thickness (T)
0.64
mm +/ - 0.050 (0.025 in.) |
Clip OD Loose (D1)
6.85
mm |
Groove Width (W)
0.74
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Maximum Rec. Shaft Dia (S): 4.58
Clip OD in groove (C1): 7.24 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0027-0036-S15 (20 Pcs) E-Clips Retaining Rings - 3.56x2.67x0.64 mm - Stainless Steel Grade PH15-7 Mo
2 units (40 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$12.32 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.56
mm + 1.02 / - 0.00 (0.14 in.) |
Groove Dia. (Dg)
2.67
mm + 0.051 / - 0.000 (0.105 in.) |
Clip Thickness (T)
0.64
mm +/ - 0.050 (0.025 in.) |
Clip OD Loose (D1)
6.85
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.74 mm
Maximum Rec. Shaft Dia (S): 4.58
Clip OD in groove (C1): 7.24 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0027-0036-S15 (20 Pcs) E-Clips Retaining Rings - 3.56x2.67x0.64 mm - Stainless Steel Grade PH15-7 Mo
2 units (40 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$12.32 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.56
mm + 1.02 / - 0.00
(0.14 in.) |
Groove Dia. (Dg)
2.67
mm + 0.051 / - 0.000 (0.105 in.) |
Clip Thickness (T)
0.64
mm +/ - 0.050 (0.025 in.) |
Clip OD Loose (D1)
6.85
mm |
Groove Width (W)
0.74
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 4.58
Clip OD in groove (C1): 7.24 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0027-0036-C (50 Pcs) E-Clips Retaining Rings - 3.56x2.67x0.64 mm - Carbon Steel
3 units (150 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$9.23 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.56
mm + 1.02 / - 0.00 (0.14 in.) |
Groove Dia. (Dg)
2.67
mm + 0.051 / - 0.000 (0.105 in.) |
Clip Thickness (T)
0.64
mm +/ - 0.050 (0.025 in.) |
Clip OD Loose (D1)
6.85
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.74 mm
Maximum Rec. Shaft Dia (S): 4.58
Clip OD in groove (C1): 7.24 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0027-0036-C (50 Pcs) E-Clips Retaining Rings - 3.56x2.67x0.64 mm - Carbon Steel
3 units (150 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$9.23 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.56
mm + 1.02 / - 0.00
(0.14 in.) |
Groove Dia. (Dg)
2.79
mm + 0.051 / - 0.000 (0.11 in.) |
Clip Thickness (T)
0.38
mm (0.015 in.) |
Clip OD Loose (D1)
6.35
mm |
Groove Width (W)
0.46
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 4.58
Clip OD in groove (C1): 6.73 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0028-0036-C (50 Pcs) E-Clips Retaining Rings - 3.56x2.79x0.38 mm - Carbon Steel
6 units (300 pcs) Available Now | Further orders can be expected around Wed, Sep 17, 2025 Regular price
$9.05 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.56
mm + 1.02 / - 0.00 (0.14 in.) |
Groove Dia. (Dg)
2.79
mm + 0.051 / - 0.000 (0.11 in.) |
Clip Thickness (T)
0.38
mm (0.015 in.) |
Clip OD Loose (D1)
6.35
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.46 mm
Maximum Rec. Shaft Dia (S): 4.58
Clip OD in groove (C1): 6.73 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0028-0036-C (50 Pcs) E-Clips Retaining Rings - 3.56x2.79x0.38 mm - Carbon Steel
6 units (300 pcs) Available Now | Further orders can be expected around Wed, Sep 17, 2025 Regular price
$9.05 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.97
mm + 1.26 / - 0.00
(0.156 in.) |
Groove Dia. (Dg)
2.95
mm + 0.051 / - 0.000 (0.116 in.) |
Clip Thickness (T)
0.64
mm +/ - 0.050 (0.025 in.) |
Clip OD Loose (D1)
7.16
mm |
Groove Width (W)
0.74
mm |
|
|
Material: Carbon Steel Zinc Plated
Maximum Rec. Shaft Dia (S): 5.23
Clip OD in groove (C1): 7.49 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0029-0040A-CZ (5 Pcs) E-Clips Retaining Rings - 3.97x2.95x0.64 mm - Carbon Steel Zinc Plated
27 units (135 pcs) Available Now | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$2.95 AUD
Regular price
Unit price
per
Per 5
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.97
mm + 1.26 / - 0.00 (0.156 in.) |
Groove Dia. (Dg)
2.95
mm + 0.051 / - 0.000 (0.116 in.) |
Clip Thickness (T)
0.64
mm +/ - 0.050 (0.025 in.) |
Clip OD Loose (D1)
7.16
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 0.74 mm
Maximum Rec. Shaft Dia (S): 5.23
Clip OD in groove (C1): 7.49 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0029-0040A-CZ (5 Pcs) E-Clips Retaining Rings - 3.97x2.95x0.64 mm - Carbon Steel Zinc Plated
27 units (135 pcs) Available Now | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$2.95 AUD
Regular price
Unit price
per
Per 5
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.97
mm + 1.26 / - 0.00
(0.156 in.) |
Groove Dia. (Dg)
2.95
mm + 0.051 / - 0.000 (0.116 in.) |
Clip Thickness (T)
0.64
mm +/ - 0.050 (0.025 in.) |
Clip OD Loose (D1)
7.16
mm |
Groove Width (W)
0.74
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 5.23
Clip OD in groove (C1): 7.49 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0029-0040A-C (50 Pcs) E-Clips Retaining Rings - 3.97x2.95x0.64 mm - Carbon Steel
18 units (900 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$8.68 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.97
mm + 1.26 / - 0.00 (0.156 in.) |
Groove Dia. (Dg)
2.95
mm + 0.051 / - 0.000 (0.116 in.) |
Clip Thickness (T)
0.64
mm +/ - 0.050 (0.025 in.) |
Clip OD Loose (D1)
7.16
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.74 mm
Maximum Rec. Shaft Dia (S): 5.23
Clip OD in groove (C1): 7.49 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0029-0040A-C (50 Pcs) E-Clips Retaining Rings - 3.97x2.95x0.64 mm - Carbon Steel
18 units (900 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$8.68 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.97
mm + 1.26 / - 0.00
(0.156 in.) |
Groove Dia. (Dg)
2.95
mm + 0.051 / - 0.000 (0.116 in.) |
Clip Thickness (T)
0.64
mm +/ - 0.050 (0.025 in.) |
Clip OD Loose (D1)
7.16
mm |
Groove Width (W)
0.74
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Maximum Rec. Shaft Dia (S): 5.23
Clip OD in groove (C1): 7.49 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0029-0040A-S15 (50 Pcs) E-Clips Retaining Rings - 3.97x2.95x0.64 mm - Stainless Steel Grade PH15-7 Mo
2 units (100 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$27.05 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.97
mm + 1.26 / - 0.00 (0.156 in.) |
Groove Dia. (Dg)
2.95
mm + 0.051 / - 0.000 (0.116 in.) |
Clip Thickness (T)
0.64
mm +/ - 0.050 (0.025 in.) |
Clip OD Loose (D1)
7.16
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.74 mm
Maximum Rec. Shaft Dia (S): 5.23
Clip OD in groove (C1): 7.49 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0029-0040A-S15 (50 Pcs) E-Clips Retaining Rings - 3.97x2.95x0.64 mm - Stainless Steel Grade PH15-7 Mo
2 units (100 pcs) Available Now | Further orders can be expected around Fri, Jul 18, 2025 Regular price
$27.05 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
|||||
