Retaining Rings - E-Clips - Bowed

Retaining Rings -> E-Clips -> Bowed

There are 2 products in the sub-categories of Retaining Rings - E-Clips - Bowed. Browse the Retaining Rings - E-Clips - Bowed products table.

Category Details

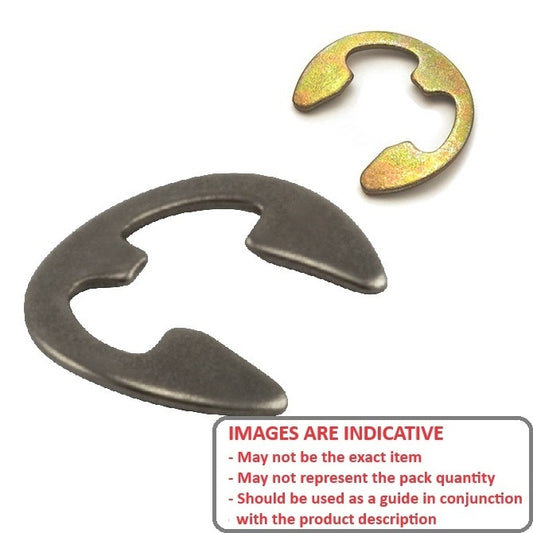

A selection of Bowed E-Clips Retaining Rings. For end play take up.

  • An expanded range may be available on special order. Please enquire.
  • Thickness tolerance +/- 0.025.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Retaining Rings - E-Clips - Bowed category on the MBA Minibearings main store.
Minimum Rec. Shaft Dia (S) Groove Dia. (Dg) Clip Thickness (T) Clip OD Loose (D1) Groove Width (W) Indicative

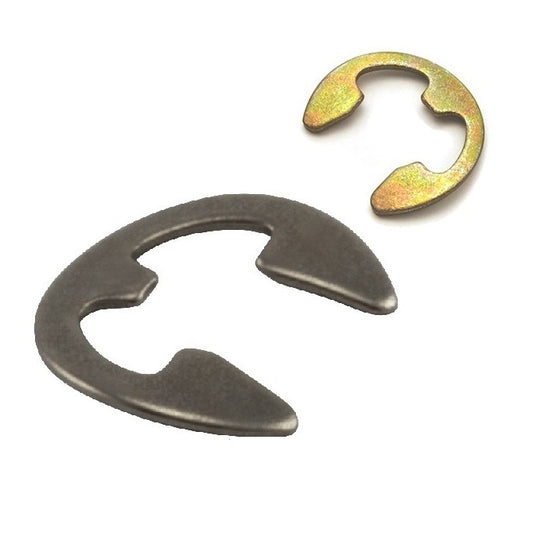

E-Clips Retaining Rings - 9.53x7.7x0.89 mm Bowed - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S)
9.53
mm

(Equiv. 0.375 in.)
Groove Dia. (Dg)
7.70
mm
+ 0.076 / - 0.000
(Equiv. 0.303 in.)
Clip Thickness (T)
0.89
mm
+/- 0.051
(Equiv. 0.035 in.)
Clip OD Loose (D1)
16.76
mm
Groove Width (W)
1.52
mm
E-Clips Retaining Rings - 9.53x7.7x0.89 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Ring Width (X): 1.52 mm    Force Required to Flatten: 24.6 kg
Additional stock available from USA subject to Prior Sale = 58
Part Number: ECB-0077-0095-S15 (Each)
4 Available Now | Further orders can be expected around Sun, Jan 25, 2026
$2.32 AUD
$6.19 AUD $2.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 4 available can be backordered.
Minimum Rec. Shaft Dia (S) Groove Dia. (Dg) Clip Thickness (T) Clip OD Loose (D1) Indicative
E-Clips Retaining Rings - 9.53x7.7x0.89 mm Bowed - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S)
9.53
mm

(Equiv. 0.375 in.)
Groove Dia. (Dg)
7.70
mm
+ 0.076 / - 0.000
(Equiv. 0.303 in.)
Clip Thickness (T)
0.89
mm
+/- 0.051
(Equiv. 0.035 in.)
Clip OD Loose (D1)
16.76
mm
E-Clips Retaining Rings - 9.53x7.7x0.89 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.52 mm    Ring Width (X): 1.52 mm    Force Required to Flatten: 24.6 kg
Additional stock available from USA subject to Prior Sale = 58
Part Number: ECB-0077-0095-S15 (Each)
4 Available Now | Further orders can be expected around Sun, Jan 25, 2026
$2.32 AUD
$6.19 AUD $2.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. Backorder if more than 4.
E-Clips Retaining Rings - 11.11x8.74x0.89 mm Bowed - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S)
11.11
mm

(Equiv. 0.437 in.)
Groove Dia. (Dg)
8.74
mm
+ 0.076 / - 0.000
(Equiv. 0.344 in.)
Clip Thickness (T)
0.89
mm
+/- 0.051
(Equiv. 0.035 in.)
Clip OD Loose (D1)
17.45
mm
Groove Width (W)
1.52
mm
E-Clips Retaining Rings - 11.11x8.74x0.89 mm - Carbon Steel
Material: Stainless Steel Grade PH15-7 Mo    Ring Width (X): 1.52 mm    Force Required to Flatten: 22.3 kg
Additional stock available from USA subject to Prior Sale = 12176
Part Number: ECB-0087-0111-S15 (Each)
2 Available Now | Further orders can be expected around Sun, Jan 25, 2026
$2.50 AUD
$6.65 AUD $2.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
E-Clips Retaining Rings - 11.11x8.74x0.89 mm Bowed - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S)
11.11
mm

(Equiv. 0.437 in.)
Groove Dia. (Dg)
8.74
mm
+ 0.076 / - 0.000
(Equiv. 0.344 in.)
Clip Thickness (T)
0.89
mm
+/- 0.051
(Equiv. 0.035 in.)
Clip OD Loose (D1)
17.45
mm
E-Clips Retaining Rings - 11.11x8.74x0.89 mm - Carbon Steel
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.52 mm    Ring Width (X): 1.52 mm    Force Required to Flatten: 22.3 kg
Additional stock available from USA subject to Prior Sale = 12176
Part Number: ECB-0087-0111-S15 (Each)
2 Available Now | Further orders can be expected around Sun, Jan 25, 2026
$2.50 AUD
$6.65 AUD $2.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
