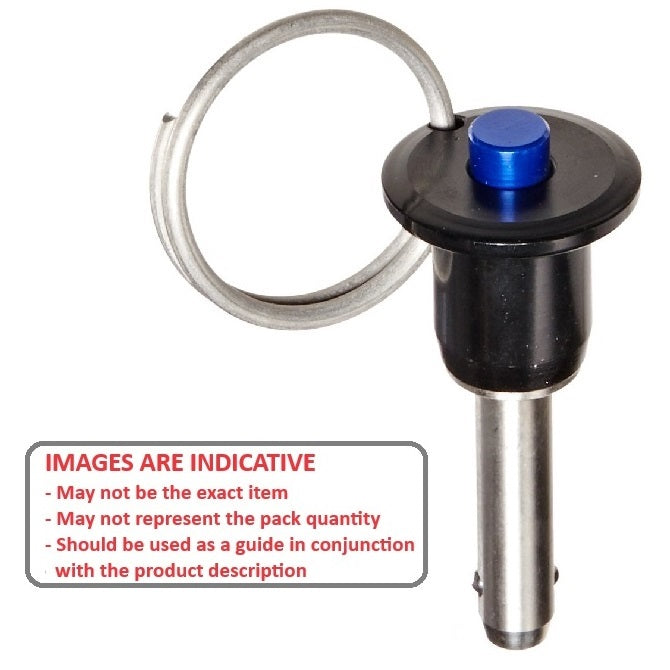

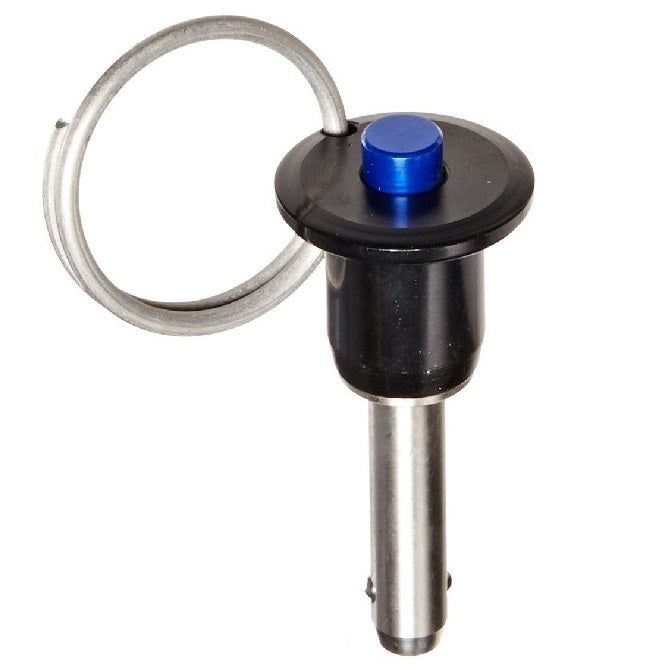

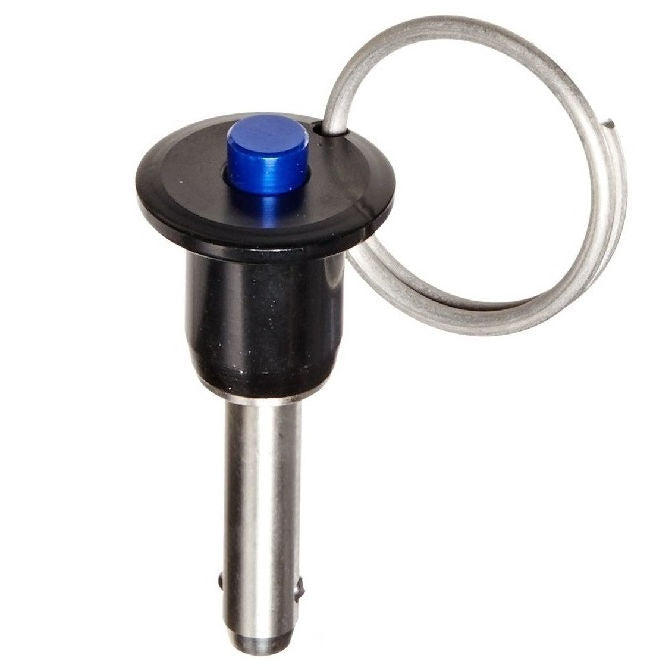

Ball Lock Pins - 9.53x101.6 mm - 304 Stainless Steel Shank / Aluminium Handle Button Handle
BLP-095-1016-BT-S4
MBA
Store Name: Small Parts & Bearings
Additional resources:Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Qty: 2 available now
Order 50 or more for $35.71 AUD Each
Couldn't load pickup availability
Base Category: Pins - Ball Lock
Top Level Category: Pins - Ball Lock - Button Handle - Commercial 304 Stainless
Product Details:

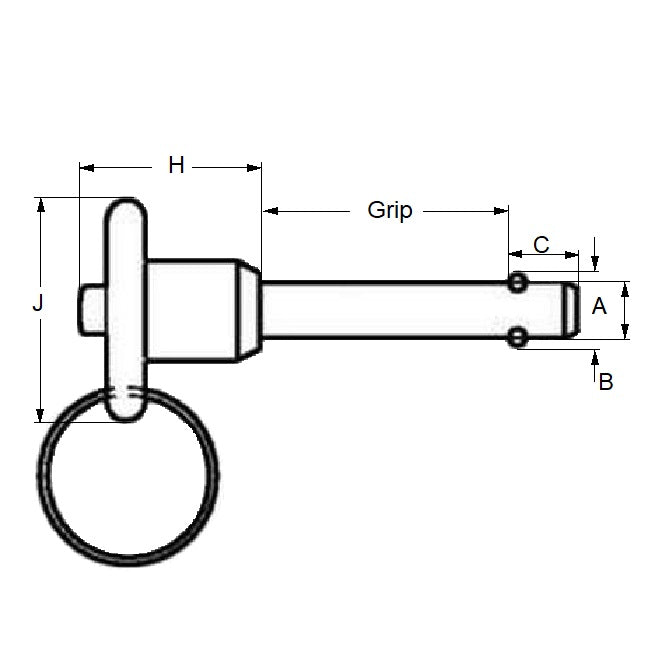

Nominal Diameter: 9.53mm(9.53mm is 0.375 in.)
Stainless Steel 304 with Aluminium Handle
- Grip Length (B): 101.60mm
(101.60mm is 4 in.)
- Pin Material Grade: 304 Stainless Steel Shank / Aluminium Handle
- Locking Ball to End (C): 9.27mm
- Open Ball Distance (B): 11.18mm
- Max. Handle Height (H): 26.42mm
- Max. Handle Diameter (J): 28.83mm
- Min. Handle Diameter (J): 22.23mm
- Pull Out Strength: 200.00Kg
- Calc. Double Shear Strength: 2000Kg
Brand: MBA
Country of Origin: US
Product Compliance and Data
Alternative Parts Include:
- ALTPART 90985A317
- CPB-100
- CPB100
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
