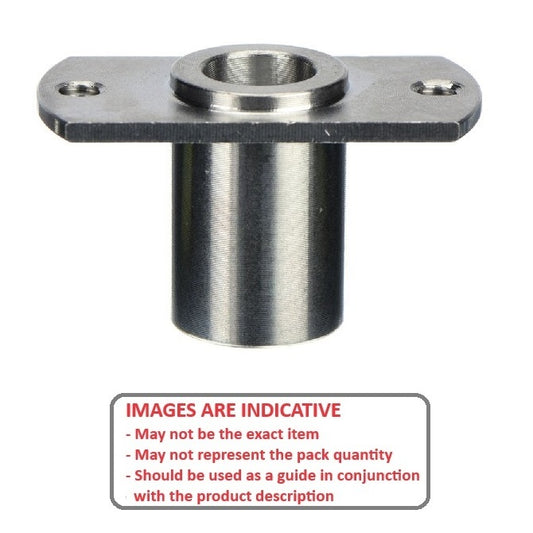

Pins - Ball Lock Flanged Receptacles

2 Products in this selection
  • Provide a permanent and proper mating hole for commercial and industrial type quick release ball lock pins.
  • Designed to be used on materials or in applications where the positive lock detent pin does not have anything to lock against.
  • Pin does not protrude past the bottom of the receptacle so they are ideal for blind hole applications.
  • 303 Stainless Steel
  • Mounted with screws, rivets or bolts.
  • The quick release ball lock pins are inserted from the flanged end, and the ball extends into the wider opening at the top of the receptacle.
Additional resources:
Master Pins Catalogue PDF
Ball Lock Pins

A more comprehensive listing may be found on the MBA Minibearings main store at Pins - Ball Lock Flanged Receptacles.
Fits Pin Diameter Style Height (A) Tube Diameter (B) Flange Thickness (C) Bolt Hole Spacing (D) Indicative
6.35
mm 		B
16.51
mm 		9.53
mm 		1.52
mm 		25.40

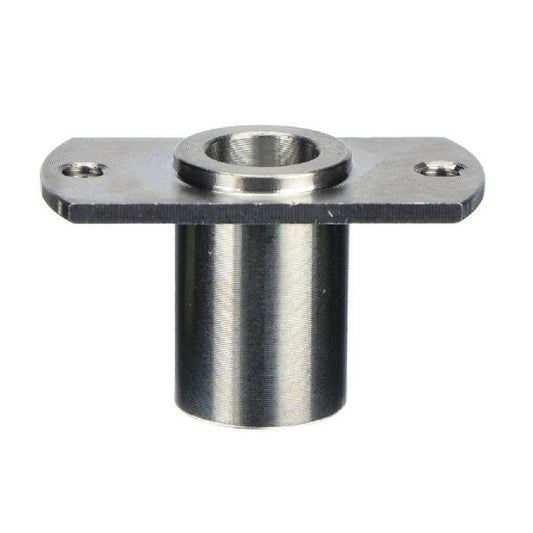

mm 		1071616 | BLP-064-B-REC-S3 --- Ball Lock Flanged Receptacles Pins - 6.35 mm B 16.51 mm - Steel
Material: Steel    Flange Width (E): 15.88 mm    Thread Size (F): 11841    Grip Reduction Length (H): 9.53 mm
Part Number: BLP-064-B-REC-S3 Ball Lock Flanged Receptacles Pins - 6.35 mm B 16.51 mm - Steel
1 Available Now | Further orders can be expected around Mon, May 12, 2025
$72.59 AUD
$72.59 AUD
Each
Fits Pin Diameter Style Height (A) Tube Diameter (B) Indicative
6.35
mm 		B
16.51
mm 		9.53
mm 		1071616 | BLP-064-B-REC-S3 --- Ball Lock Flanged Receptacles Pins - 6.35 mm B 16.51 mm - Steel
Material: Steel    Flange Thickness (C): 1.52 mm    Bolt Hole Spacing (D): 25.40 mm    Flange Width (E): 15.88 mm    Thread Size (F): 11841    Grip Reduction Length (H): 9.53 mm
Part Number: BLP-064-B-REC-S3 Ball Lock Flanged Receptacles Pins - 6.35 mm B 16.51 mm - Steel
1 Available Now | Further orders can be expected around Mon, May 12, 2025
$72.59 AUD
$72.59 AUD
Each
View the product page first if you are unsure.
9.53
mm 		B
23.19
mm 		14.28
mm 		1.52
mm 		25.40
mm 		1089560 | BLP-095-B-REC-S3 --- Ball Lock Flanged Receptacles Pins - 9.53 mm B 23.19 mm - Steel
Material: Steel    Flange Width (E): 15.88 mm    Thread Size (F): 11841    Grip Reduction Length (H): 14.28 mm
Part Number: BLP-095-B-REC-S3 Ball Lock Flanged Receptacles Pins - 9.53 mm B 23.19 mm - Steel
1 Available Now | Further orders can be expected around Mon, May 12, 2025
$75.95 AUD
$75.95 AUD
Each
9.53
mm 		B
23.19
mm 		14.28
mm 		1089560 | BLP-095-B-REC-S3 --- Ball Lock Flanged Receptacles Pins - 9.53 mm B 23.19 mm - Steel
Material: Steel    Flange Thickness (C): 1.52 mm    Bolt Hole Spacing (D): 25.40 mm    Flange Width (E): 15.88 mm    Thread Size (F): 11841    Grip Reduction Length (H): 14.28 mm
Part Number: BLP-095-B-REC-S3 Ball Lock Flanged Receptacles Pins - 9.53 mm B 23.19 mm - Steel
1 Available Now | Further orders can be expected around Mon, May 12, 2025
$75.95 AUD
$75.95 AUD
Each
View the product page first if you are unsure.
