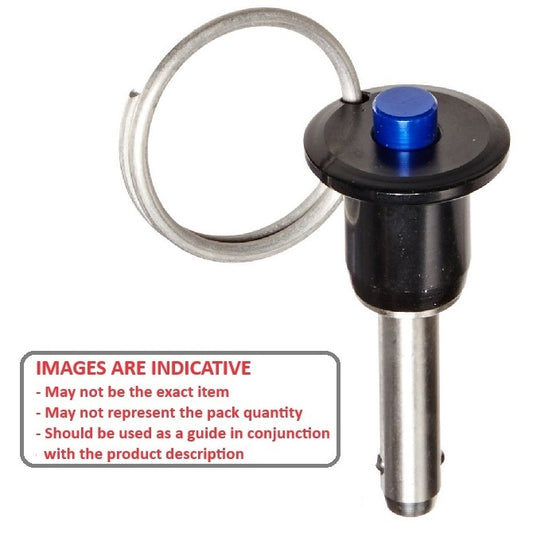

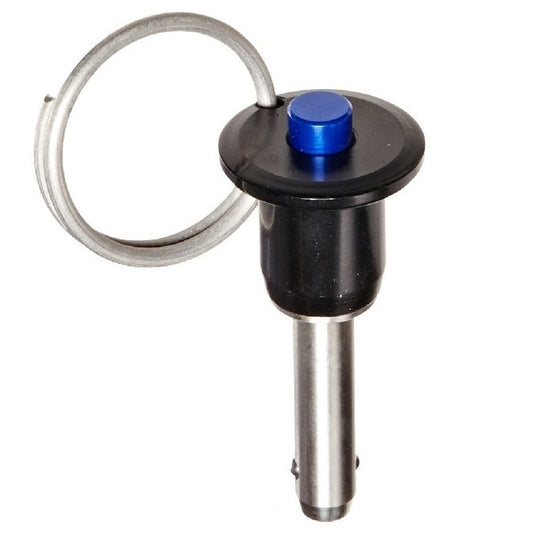

Pins - Ball Lock - Button Handle - Commercial 304 Stainless

11 Products in this selection
  • Quick release. Commercial pins provide strong locking and are perfect for less demanding applications where fastening and locating are needed.
  • Economical. Positive lock detent pins.
  • Aluminium handles.
  • 360 Brass Buttons
  • 304 Stainless Steel Shank and balls
  • Use industrial grade T handled pins when higher double shear strength is required
Small Parts & Bearings

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins

A more comprehensive listing may be found on the MBA Minibearings main store at Pins - Ball Lock - Button Handle - Commercial 304 Stainless.
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C) Open Ball Distance (B) Max. Handle Height (H) Indicative
Nominal Diameter
6.35
mm

(0.25 in.)
Grip Length (B)
12.70
mm

(0.5 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
7.37
mm
Open Ball Distance (B)
7.34
mm
Max. Handle Height (H)
22.61
mm
Ball Lock Pins - 6.35x12.7 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Max. Handle Diameter (J): 20.32 mm    Min. Handle Diameter (J): 18.29 mm    Pull Out Strength: 80.00 Kg    Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0127-BT-S4 Ball Lock Pins - 6.35x12.7 mm - 304 Stainless Steel Shank / Aluminium Handle
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$30.59 AUD
$36.71 AUD $30.59 AUD
Each
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C) Indicative
Nominal Diameter
6.35
mm

(0.25 in.)
Grip Length (B)
12.70
mm

(0.5 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
7.37
mm
Ball Lock Pins - 6.35x12.7 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Open Ball Distance (B): 7.34 mm    Max. Handle Height (H): 22.61 mm    Max. Handle Diameter (J): 20.32 mm    Min. Handle Diameter (J): 18.29 mm    Pull Out Strength: 80.00 Kg    Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0127-BT-S4 Ball Lock Pins - 6.35x12.7 mm - 304 Stainless Steel Shank / Aluminium Handle
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$30.59 AUD
$36.71 AUD $30.59 AUD
Each
View the product page first if you are unsure.
Nominal Diameter
6.35
mm

(0.25 in.)
Grip Length (B)
38.10
mm

(1.5 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
7.37
mm
Open Ball Distance (B)
7.34
mm
Max. Handle Height (H)
22.61
mm
Ball Lock Pins - 6.35x38.1 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Max. Handle Diameter (J): 20.32 mm    Min. Handle Diameter (J): 18.29 mm    Pull Out Strength: 80.00 Kg    Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0381-BT-S4 Ball Lock Pins - 6.35x38.1 mm - 304 Stainless Steel Shank / Aluminium Handle
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$32.05 AUD
$38.45 AUD $32.05 AUD
Each
Nominal Diameter
6.35
mm

(0.25 in.)
Grip Length (B)
38.10
mm

(1.5 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
7.37
mm
Ball Lock Pins - 6.35x38.1 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Open Ball Distance (B): 7.34 mm    Max. Handle Height (H): 22.61 mm    Max. Handle Diameter (J): 20.32 mm    Min. Handle Diameter (J): 18.29 mm    Pull Out Strength: 80.00 Kg    Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0381-BT-S4 Ball Lock Pins - 6.35x38.1 mm - 304 Stainless Steel Shank / Aluminium Handle
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$32.05 AUD
$38.45 AUD $32.05 AUD
Each
View the product page first if you are unsure.
Nominal Diameter
6.35
mm

(0.25 in.)
Grip Length (B)
63.50
mm

(2.5 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
7.37
mm
Open Ball Distance (B)
7.34
mm
Max. Handle Height (H)
22.61
mm
Ball Lock Pins - 6.35x63.5 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Max. Handle Diameter (J): 20.32 mm    Min. Handle Diameter (J): 18.29 mm    Pull Out Strength: 80.00 Kg    Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0635-BT-S4 Ball Lock Pins - 6.35x63.5 mm - 304 Stainless Steel Shank / Aluminium Handle
1 Available Now | Further orders can be expected around Sun, Jul 13, 2025
$48.32 AUD
$48.32 AUD
Each
Nominal Diameter
6.35
mm

(0.25 in.)
Grip Length (B)
63.50
mm

(2.5 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
7.37
mm
Ball Lock Pins - 6.35x63.5 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Open Ball Distance (B): 7.34 mm    Max. Handle Height (H): 22.61 mm    Max. Handle Diameter (J): 20.32 mm    Min. Handle Diameter (J): 18.29 mm    Pull Out Strength: 80.00 Kg    Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0635-BT-S4 Ball Lock Pins - 6.35x63.5 mm - 304 Stainless Steel Shank / Aluminium Handle
1 Available Now | Further orders can be expected around Sun, Jul 13, 2025
$48.32 AUD
$48.32 AUD
Each
View the product page first if you are unsure.
Nominal Diameter
7.94
mm

(0.313 in.)
Grip Length (B)
50.80
mm

(2 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
8.38
mm
Open Ball Distance (B)
9.53
mm
Max. Handle Height (H)
23.62
mm
Ball Lock Pins - 7.94x50.8 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Max. Handle Diameter (J): 28.83 mm    Min. Handle Diameter (J): 20.57 mm    Pull Out Strength: 178.00 Kg    Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-0508-BT-S4 Ball Lock Pins - 7.94x50.8 mm - 304 Stainless Steel Shank / Aluminium Handle
Out of Stock | Backorder Now | Orders can be expected around Sun, Jul 13, 2025
$37.59 AUD
$45.11 AUD $37.59 AUD
Each
Nominal Diameter
7.94
mm

(0.313 in.)
Grip Length (B)
50.80
mm

(2 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
8.38
mm
Ball Lock Pins - 7.94x50.8 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Open Ball Distance (B): 9.53 mm    Max. Handle Height (H): 23.62 mm    Max. Handle Diameter (J): 28.83 mm    Min. Handle Diameter (J): 20.57 mm    Pull Out Strength: 178.00 Kg    Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-0508-BT-S4 Ball Lock Pins - 7.94x50.8 mm - 304 Stainless Steel Shank / Aluminium Handle
Out of Stock | Backorder Now | Orders can be expected around Sun, Jul 13, 2025
$37.59 AUD
$45.11 AUD $37.59 AUD
Each
View the product page first if you are unsure.
Nominal Diameter
7.94
mm

(0.313 in.)
Grip Length (B)
101.60
mm

(4 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
8.38
mm
Open Ball Distance (B)
9.53
mm
Max. Handle Height (H)
23.62
mm
Ball Lock Pins - 7.94x101.6 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Max. Handle Diameter (J): 28.83 mm    Min. Handle Diameter (J): 20.57 mm    Pull Out Strength: 178.00 Kg    Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-1016-BT-S4 Ball Lock Pins - 7.94x101.6 mm - 304 Stainless Steel Shank / Aluminium Handle
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$36.32 AUD
$43.58 AUD $36.32 AUD
Each
Nominal Diameter
7.94
mm

(0.313 in.)
Grip Length (B)
101.60
mm

(4 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
8.38
mm
Ball Lock Pins - 7.94x101.6 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Open Ball Distance (B): 9.53 mm    Max. Handle Height (H): 23.62 mm    Max. Handle Diameter (J): 28.83 mm    Min. Handle Diameter (J): 20.57 mm    Pull Out Strength: 178.00 Kg    Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-1016-BT-S4 Ball Lock Pins - 7.94x101.6 mm - 304 Stainless Steel Shank / Aluminium Handle
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$36.32 AUD
$43.58 AUD $36.32 AUD
Each
View the product page first if you are unsure.
Nominal Diameter
9.53
mm

(0.375 in.)
Grip Length (B)
12.70
mm

(0.5 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
9.27
mm
Open Ball Distance (B)
11.18
mm
Max. Handle Height (H)
26.42
mm
Ball Lock Pins - 9.53x12.7 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Max. Handle Diameter (J): 28.83 mm    Min. Handle Diameter (J): 22.23 mm    Pull Out Strength: 200.00 Kg    Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0127-BT-S4 Ball Lock Pins - 9.53x12.7 mm - 304 Stainless Steel Shank / Aluminium Handle
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$21.77 AUD
$49.22 AUD $21.77 AUD
Each
Nominal Diameter
9.53
mm

(0.375 in.)
Grip Length (B)
12.70
mm

(0.5 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
9.27
mm
Ball Lock Pins - 9.53x12.7 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Open Ball Distance (B): 11.18 mm    Max. Handle Height (H): 26.42 mm    Max. Handle Diameter (J): 28.83 mm    Min. Handle Diameter (J): 22.23 mm    Pull Out Strength: 200.00 Kg    Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0127-BT-S4 Ball Lock Pins - 9.53x12.7 mm - 304 Stainless Steel Shank / Aluminium Handle
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$21.77 AUD
$49.22 AUD $21.77 AUD
Each
Nominal Diameter
9.53
mm

(0.375 in.)
Grip Length (B)
88.90
mm

(3.5 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
9.27
mm
Open Ball Distance (B)
11.18
mm
Max. Handle Height (H)
26.42
mm
Ball Lock Pins - 9.53x88.9 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Max. Handle Diameter (J): 28.83 mm    Min. Handle Diameter (J): 22.23 mm    Pull Out Strength: 200.00 Kg    Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0889-BT-S4 Ball Lock Pins - 9.53x88.9 mm - 304 Stainless Steel Shank / Aluminium Handle
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$56.86 AUD
$68.24 AUD $56.86 AUD
Each
Nominal Diameter
9.53
mm

(0.375 in.)
Grip Length (B)
88.90
mm

(3.5 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
9.27
mm
Ball Lock Pins - 9.53x88.9 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Open Ball Distance (B): 11.18 mm    Max. Handle Height (H): 26.42 mm    Max. Handle Diameter (J): 28.83 mm    Min. Handle Diameter (J): 22.23 mm    Pull Out Strength: 200.00 Kg    Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0889-BT-S4 Ball Lock Pins - 9.53x88.9 mm - 304 Stainless Steel Shank / Aluminium Handle
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$56.86 AUD
$68.24 AUD $56.86 AUD
Each
View the product page first if you are unsure.
Nominal Diameter
9.53
mm

(0.375 in.)
Grip Length (B)
101.60
mm

(4 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
9.27
mm
Open Ball Distance (B)
11.18
mm
Max. Handle Height (H)
26.42
mm
Ball Lock Pins - 9.53x101.6 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Max. Handle Diameter (J): 28.83 mm    Min. Handle Diameter (J): 22.23 mm    Pull Out Strength: 200.00 Kg    Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-1016-BT-S4 Ball Lock Pins - 9.53x101.6 mm - 304 Stainless Steel Shank / Aluminium Handle
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$31.23 AUD
$70.73 AUD $31.23 AUD
Each
Nominal Diameter
9.53
mm

(0.375 in.)
Grip Length (B)
101.60
mm

(4 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
9.27
mm
Ball Lock Pins - 9.53x101.6 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Open Ball Distance (B): 11.18 mm    Max. Handle Height (H): 26.42 mm    Max. Handle Diameter (J): 28.83 mm    Min. Handle Diameter (J): 22.23 mm    Pull Out Strength: 200.00 Kg    Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-1016-BT-S4 Ball Lock Pins - 9.53x101.6 mm - 304 Stainless Steel Shank / Aluminium Handle
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$31.23 AUD
$70.73 AUD $31.23 AUD
Each
Nominal Diameter
12.70
mm

(0.5 in.)
Grip Length (B)
12.70
mm

(0.5 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
11.68
mm
Open Ball Distance (B)
15.09
mm
Max. Handle Height (H)
30.23
mm
Ball Lock Pins - 12.7x12.7 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Max. Handle Diameter (J): 35.56 mm    Min. Handle Diameter (J): 33.02 mm    Pull Out Strength: 400.00 Kg    Calc. Double Shear Strength: 5100 Kg
Part Number: BLP-127-0127-BT-S4 Ball Lock Pins - 12.7x12.7 mm - 304 Stainless Steel Shank / Aluminium Handle
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$28.50 AUD
$64.54 AUD $28.50 AUD
Each
Nominal Diameter
12.70
mm

(0.5 in.)
Grip Length (B)
12.70
mm

(0.5 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
11.68
mm
Ball Lock Pins - 12.7x12.7 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Open Ball Distance (B): 15.09 mm    Max. Handle Height (H): 30.23 mm    Max. Handle Diameter (J): 35.56 mm    Min. Handle Diameter (J): 33.02 mm    Pull Out Strength: 400.00 Kg    Calc. Double Shear Strength: 5100 Kg
Part Number: BLP-127-0127-BT-S4 Ball Lock Pins - 12.7x12.7 mm - 304 Stainless Steel Shank / Aluminium Handle
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$28.50 AUD
$64.54 AUD $28.50 AUD
Each
Nominal Diameter
12.70
mm

(0.5 in.)
Grip Length (B)
25.40
mm

(1 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
11.68
mm
Open Ball Distance (B)
15.09
mm
Max. Handle Height (H)
30.23
mm
Ball Lock Pins - 12.7x25.4 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Max. Handle Diameter (J): 35.56 mm    Min. Handle Diameter (J): 33.02 mm    Pull Out Strength: 400.00 Kg    Calc. Double Shear Strength: 5100 Kg
Part Number: BLP-127-0254-BT-S4 Ball Lock Pins - 12.7x25.4 mm - 304 Stainless Steel Shank / Aluminium Handle
3 Available Now | Further orders can be expected around Sun, Jul 13, 2025
$63.59 AUD
$63.59 AUD
Each
Nominal Diameter
12.70
mm

(0.5 in.)
Grip Length (B)
25.40
mm

(1 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
11.68
mm
Ball Lock Pins - 12.7x25.4 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Open Ball Distance (B): 15.09 mm    Max. Handle Height (H): 30.23 mm    Max. Handle Diameter (J): 35.56 mm    Min. Handle Diameter (J): 33.02 mm    Pull Out Strength: 400.00 Kg    Calc. Double Shear Strength: 5100 Kg
Part Number: BLP-127-0254-BT-S4 Ball Lock Pins - 12.7x25.4 mm - 304 Stainless Steel Shank / Aluminium Handle
3 Available Now | Further orders can be expected around Sun, Jul 13, 2025
$63.59 AUD
$63.59 AUD
Each
View the product page first if you are unsure.
Nominal Diameter
12.70
mm

(0.5 in.)
Grip Length (B)
38.10
mm

(1.5 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
11.68
mm
Open Ball Distance (B)
15.09
mm
Max. Handle Height (H)
30.23
mm
Ball Lock Pins - 12.7x38.1 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Max. Handle Diameter (J): 35.56 mm    Min. Handle Diameter (J): 33.02 mm    Pull Out Strength: 400.00 Kg    Calc. Double Shear Strength: 5100 Kg
Part Number: BLP-127-0381-BT-S4 Ball Lock Pins - 12.7x38.1 mm - 304 Stainless Steel Shank / Aluminium Handle
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$33.50 AUD
$75.96 AUD $33.50 AUD
Each
Nominal Diameter
12.70
mm

(0.5 in.)
Grip Length (B)
38.10
mm

(1.5 in.)
Pin Material Grade
304 Stainless Steel Shank / Aluminium Handle
Locking Ball to End (C)
11.68
mm
Ball Lock Pins - 12.7x38.1 mm - 304 Stainless Steel Shank / Aluminium Handle
Material: Stainless Steel 304 with Aluminium Handle    Open Ball Distance (B): 15.09 mm    Max. Handle Height (H): 30.23 mm    Max. Handle Diameter (J): 35.56 mm    Min. Handle Diameter (J): 33.02 mm    Pull Out Strength: 400.00 Kg    Calc. Double Shear Strength: 5100 Kg
Part Number: BLP-127-0381-BT-S4 Ball Lock Pins - 12.7x38.1 mm - 304 Stainless Steel Shank / Aluminium Handle
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$33.50 AUD
$75.96 AUD $33.50 AUD
Each
