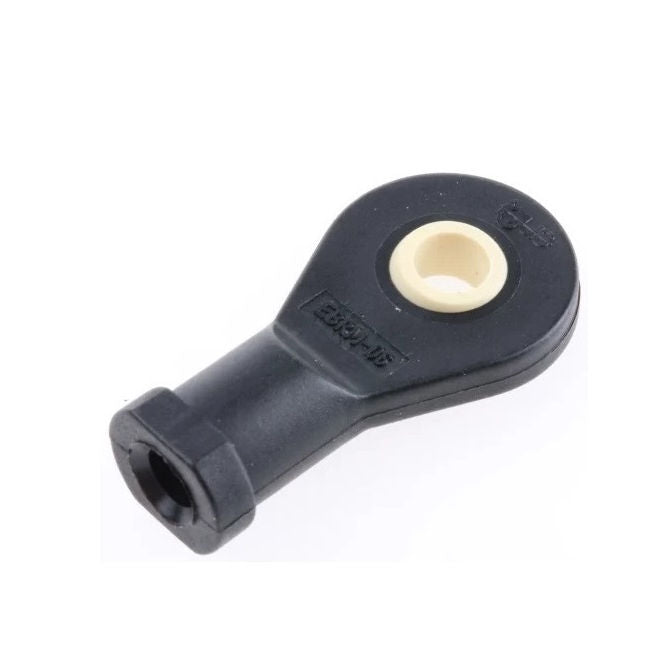

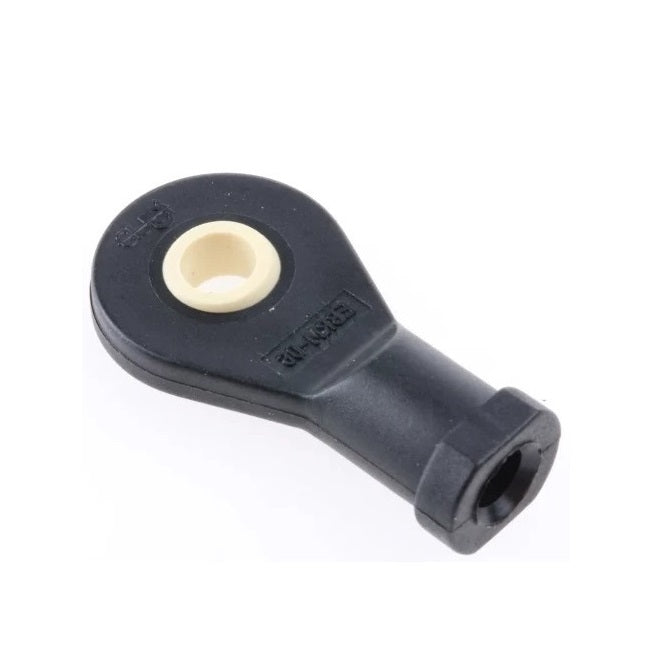

Female Rod Ends - 8x48 mm - M8x1.25 Right - Plastic

REF-080-R-PP

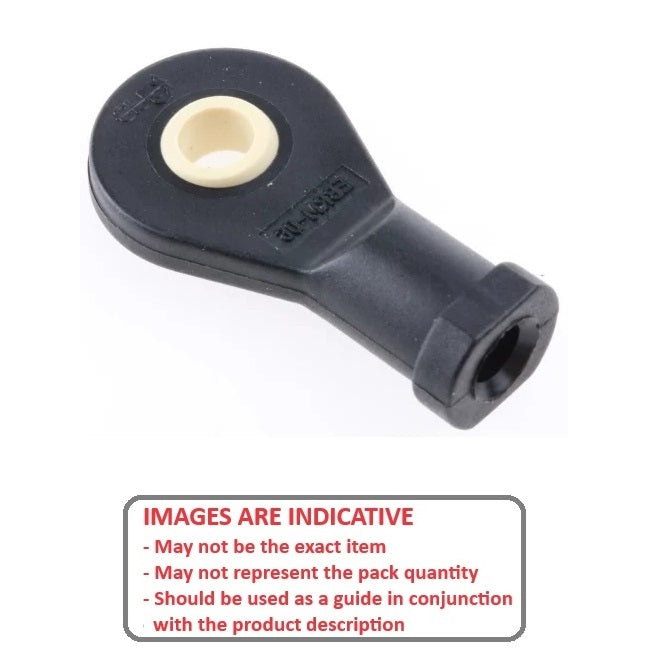

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Female Rod Ends - 8x48 mm - M8x1.25 Right - Plastic
1 4

MBA

Price:
$18.05 AUD
$18.05 AUD
Each
Qty: 2 available now
Order 50 or more for $16.25 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 16, 2025

Base Category: Rod Ends - Female

Top Level Category: Rod Ends - Female - Plastic

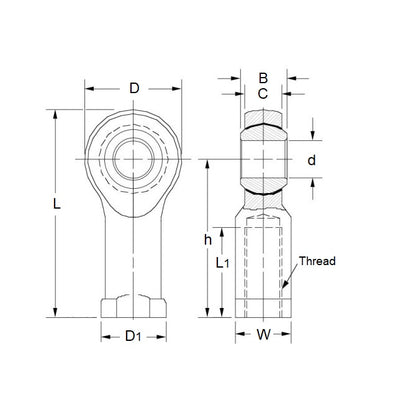

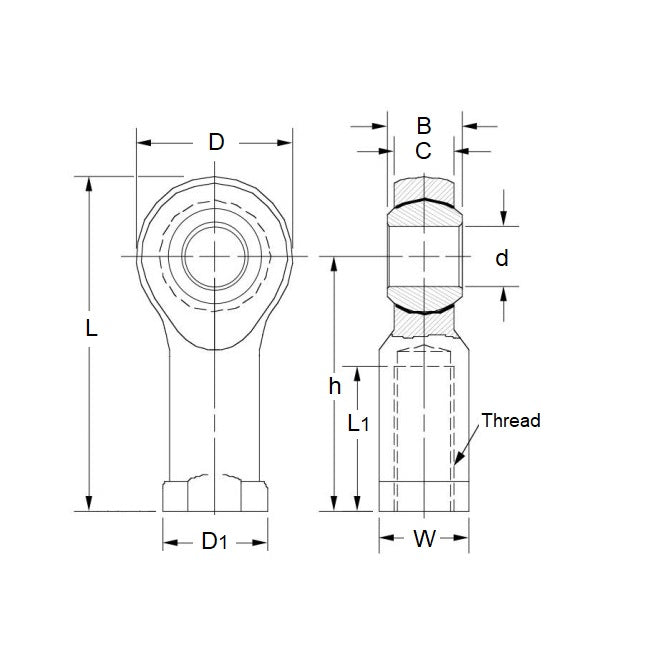

Product Details:

Eye Size (d1): 8.000mm
(8.000mm is 0.315 in.)

Plastic
  • Overall Length (L): 48.00mm
    (48.00mm is 1.89 in.)
  • Thread Size: M8x1.25 Right
  • Thread Length (l2): 16.00mm
  • Head Width (W): 9.00mm
  • Eye Width (W1): 12.00mm
  • Head Diameter (D1): 24.00mm
  • Centre Height (l1): 36.00mm
  • Grease Nipple: No
  • Max Angle of Pivot: 25°
  • Max Torque Strength: 12.10n.m
  • Body Width/Flange Width(W2/D3): 13.00 / 16.00mm

Brand: MBA
Country of Origin: DE

Alternative Parts Include: S62GFRM0812R, I534, I-534, KBRM-08, KBRM08

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
