Rod Ends - Female - Plastic

2 Products in this selection
  • Thermoplastic Body / L280(R) Polymer Ball. Also known as Heim Joints
  • Dimensions not shown are available on request.
Additional resources:

A more comprehensive listing may be found on the MBA Minibearings main store at Rod Ends - Female - Plastic.
Eye Size (d1) Overall Length (L) Thread Size Thread Length (l2) Head Width (W) Eye Width (W1) Indicative
Eye Size (d1)
5.000
mm

(0.197 in.)
Overall Length (L)
36.00
mm

(1.417 in.)
Thread Size
M5x0.8 Right
Thread Length (l2)
10.00
mm
Head Width (W)
6.00
mm
Eye Width (W1)
8.00
mm

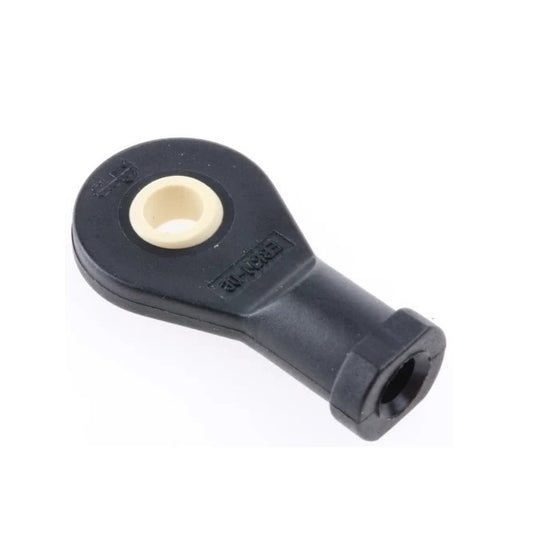

Female Rod Ends - 5x36 mm - M5x0.8 Right - Plastic
Material: Plastic    Head Diameter (D1): 18.00 mm    Centre Height (l1): 27.00 mm    Grease Nipple: No    Max Angle of Pivot: 30 °    Max Torque Strength: 5.00 n.m    Body Width/Flange Width(W2/D3): 9.00 / 12.00 mm
Part Number: REF-050-R-PP Female Rod Ends - 5x36 mm - M5x0.8 Right - Plastic
Out of Stock | Backorder Now | Orders can be expected around Tue, Jul 08, 2025
$15.95 AUD
$19.15 AUD $15.95 AUD
Each
Eye Size (d1) Overall Length (L) Thread Size Thread Length (l2) Indicative
Eye Size (d1)
5.000
mm

(0.197 in.)
Overall Length (L)
36.00
mm

(1.417 in.)
Thread Size
M5x0.8 Right
Thread Length (l2)
10.00
mm

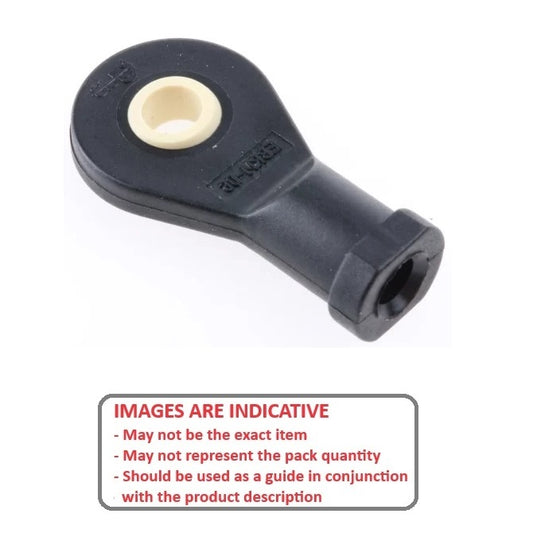

Female Rod Ends - 5x36 mm - M5x0.8 Right - Plastic
Material: Plastic    Head Width (W): 6.00 mm    Eye Width (W1): 8.00 mm    Head Diameter (D1): 18.00 mm    Centre Height (l1): 27.00 mm    Grease Nipple: No    Max Angle of Pivot: 30 °    Max Torque Strength: 5.00 n.m    Body Width/Flange Width(W2/D3): 9.00 / 12.00 mm
Part Number: REF-050-R-PP Female Rod Ends - 5x36 mm - M5x0.8 Right - Plastic
Out of Stock | Backorder Now | Orders can be expected around Tue, Jul 08, 2025
$15.95 AUD
$19.15 AUD $15.95 AUD
Each
View the product page first if you are unsure.
Eye Size (d1)
8.000
mm

(0.315 in.)
Overall Length (L)
48.00
mm

(1.89 in.)
Thread Size
M8x1.25 Right
Thread Length (l2)
16.00
mm
Head Width (W)
9.00
mm
Eye Width (W1)
12.00
mm
Female Rod Ends - 8x48 mm - M8x1.25 Right - Plastic
Material: Plastic    Head Diameter (D1): 24.00 mm    Centre Height (l1): 36.00 mm    Grease Nipple: No    Max Angle of Pivot: 25 °    Max Torque Strength: 12.10 n.m    Body Width/Flange Width(W2/D3): 13.00 / 16.00 mm
Part Number: REF-080-R-PP Female Rod Ends - 8x48 mm - M8x1.25 Right - Plastic
2 Available Now | Further orders can be expected around Tue, Jul 08, 2025
$16.41 AUD
$16.41 AUD
Each
Eye Size (d1)
8.000
mm

(0.315 in.)
Overall Length (L)
48.00
mm

(1.89 in.)
Thread Size
M8x1.25 Right
Thread Length (l2)
16.00
mm
Female Rod Ends - 8x48 mm - M8x1.25 Right - Plastic
Material: Plastic    Head Width (W): 9.00 mm    Eye Width (W1): 12.00 mm    Head Diameter (D1): 24.00 mm    Centre Height (l1): 36.00 mm    Grease Nipple: No    Max Angle of Pivot: 25 °    Max Torque Strength: 12.10 n.m    Body Width/Flange Width(W2/D3): 13.00 / 16.00 mm
Part Number: REF-080-R-PP Female Rod Ends - 8x48 mm - M8x1.25 Right - Plastic
2 Available Now | Further orders can be expected around Tue, Jul 08, 2025
$16.41 AUD
$16.41 AUD
Each
View the product page first if you are unsure.
