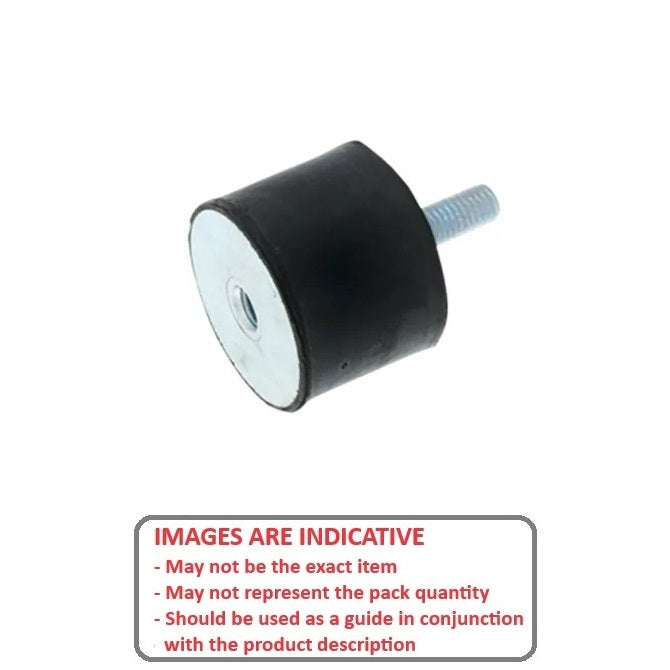

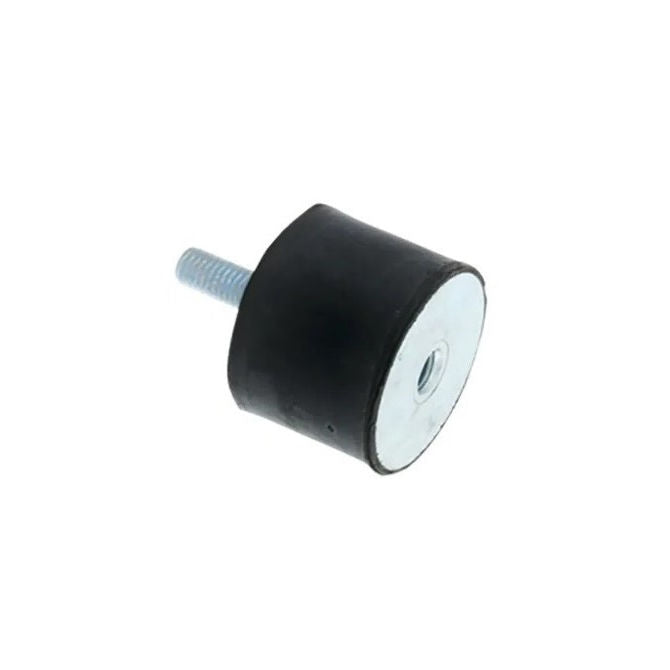

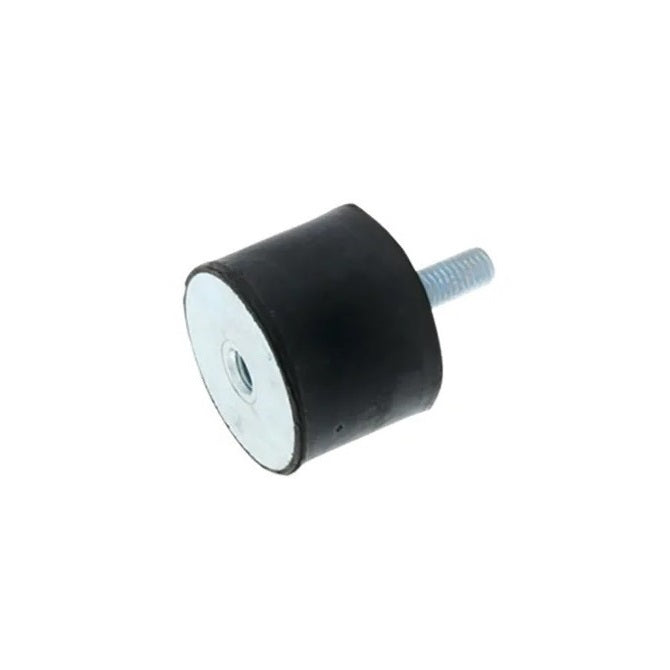

Bobbin Mounts - 75x40 mm - M12x1.75 Male to Female - Natural Rubber

CMF075-40-120M23-R60

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Bobbin Mounts - 75x40 mm - M12x1.75 - Natural Rubber
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Cylindrical Bobbin Mounts PDF Quick Guide
Price:
$18.32 AUD
$21.98 AUD $18.32 AUD
Each
Qty: 12 available now
Order 50 or more for $16.49 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Oct 09, 2025

Base Category: Mounts - Bobbin

Top Level Category: Mounts - Bobbin - Male to Female

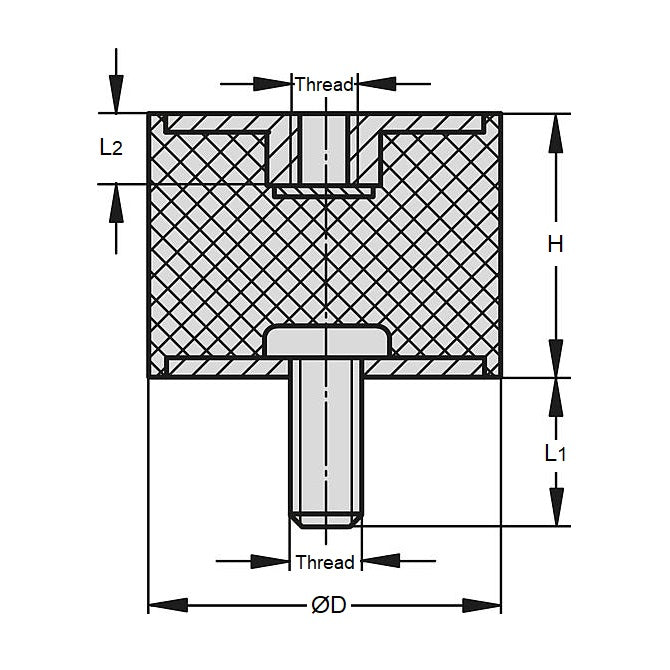

Product Details:

Nom. Body Diameter (D): 75.0mm
(75.0mm is 2.953 in.)

Natural Rubber
  • Body Height (H): 40.0mm
    (40.0mm is 1.575 in.)
  • Thread Size: M12x1.75
  • Shore Hardness: 60
  • Thread Length/Depth (L1/L2): 23.0 / 12.0mm
  • Compression Load: 37 (79)Kg (lbs)
  • Max Shear Load: 79.5 (175.3Kg (lbs)
  • Configuration: Male to Female

Brand: MBA
Country of Origin: GB

Product Compliance and Data

Alternative Parts Include:

  • AVI 7540MF23-60-M12
  • 7540MF2360M12

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
