Collection: Mounts - Bobbin
62 Products in this selection

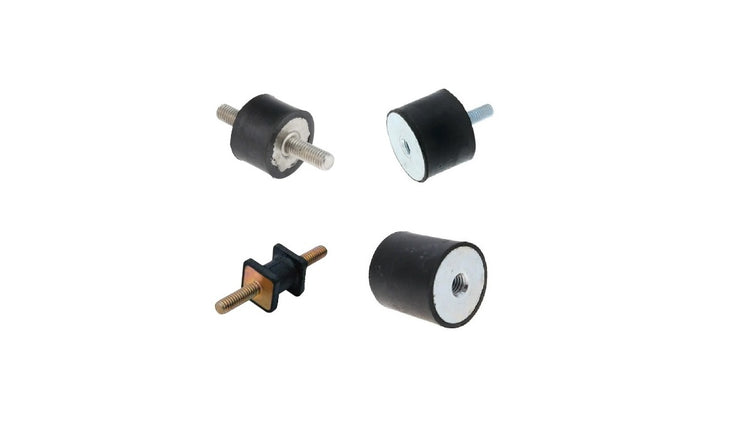

This category includes various types of bobbin mounts.
- An expanded range may be available on special order. Please enquire.
Small Parts & Bearings
Additional resources:
Cylindrical Bobbin Mounts PDF Quick Guide
A more comprehensive listing may be found on the MBA Minibearings main store at Mounts - Bobbin.
Additional resources:
Cylindrical Bobbin Mounts PDF Quick Guide
A more comprehensive listing may be found on the MBA Minibearings main store at Mounts - Bobbin.
| Nom. Body Diameter (D) | Body Height (H) | Thread Size | Shore Hardness | Thread Depth (L2) | Compression Load |
Indicative Image |
|---|---|---|---|---|---|---|
|
Nom. Body Diameter (D)
10.0
mm |
Body Height (H)
8.0
mm |
Thread Size
M4x0.7
|
Shore Hardness
60
|
Thread Depth (L2)
6.0 / 4.0
mm |
Compression Load
10 (21)
Kg (lbs) |
|
|
Material: Natural Rubber
Deflection: 0.6 mm
Category: Mounts - Bobbin - Male to Female |
||||||
|

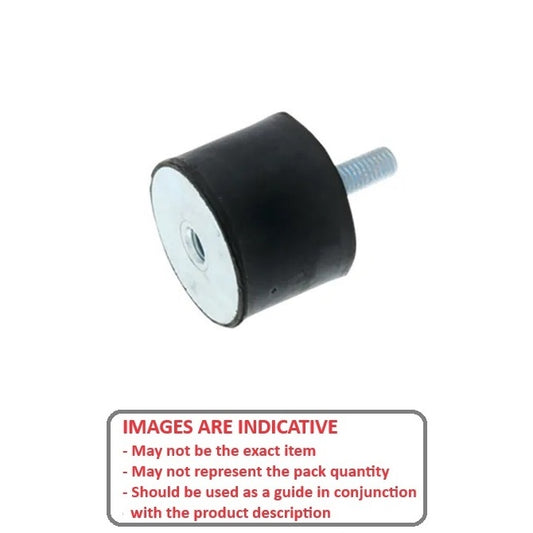

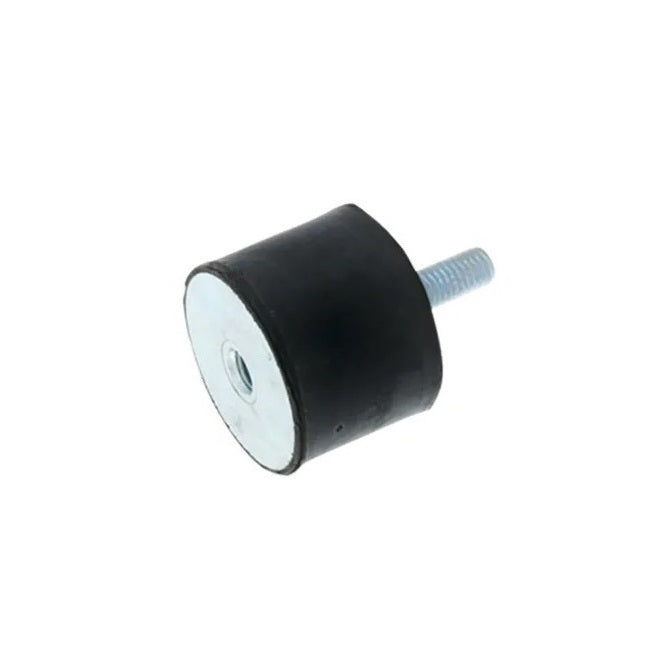

Part Number: CMF010-08-040M06-R60 (PK-2) Bobbin Mounts - 10x8 mm - M4x0.7 Male to Female - Natural Rubber Mount
31 units (62 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$5.50 AUD
Regular price
Unit price
per
Per 2
|
||||||
| Nom. Body Diameter (D) | Body Height (H) | Thread Size | Shore Hardness |
Indicative Image |
||
|
Nom. Body Diameter (D)
10.0
mm |
Body Height (H)
8.0
mm |
Thread Size
M4x0.7
|
Shore Hardness
60
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 6.0 / 4.0 mm
Compression Load: 10 (21) Kg (lbs)
Deflection: 0.6 mm
Category: Mounts - Bobbin - Male to Female |
||||||
|
Part Number: CMF010-08-040M06-R60 (PK-2) Bobbin Mounts - 10x8 mm - M4x0.7 Male to Female - Natural Rubber Mount
31 units (62 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$5.50 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Nom. Body Diameter (D)
15.0
mm |
Body Height (H)
13.0
mm |
Thread Size
M4x0.7
|
Shore Hardness
60
|
Thread Depth (L2)
10.0 / 4.0
mm |
Compression Load
7.8 (17)
Kg (lbs) |
|
|
Material: Natural Rubber
Deflection: 1.1 mm
Category: Mounts - Bobbin - Male to Female |
||||||
|
Part Number: CMF015-13-040M-R60 (PK-2) Bobbin Mounts - 15x13 mm - M4x0.7 Male to Female - Natural Rubber Mount
7 units (14 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$8.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Nom. Body Diameter (D)
15.0
mm |
Body Height (H)
13.0
mm |
Thread Size
M4x0.7
|
Shore Hardness
60
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 10.0 / 4.0 mm
Compression Load: 7.8 (17) Kg (lbs)
Deflection: 1.1 mm
Category: Mounts - Bobbin - Male to Female |
||||||
|
Part Number: CMF015-13-040M-R60 (PK-2) Bobbin Mounts - 15x13 mm - M4x0.7 Male to Female - Natural Rubber Mount
7 units (14 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$8.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Nom. Body Diameter (D)
15.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M4x0.7
|
Shore Hardness
60
|
Thread Depth (L2)
10.0 / 4.0
mm |
Compression Load
11 (24)
Kg (lbs) |
|
|
Material: Natural Rubber
Deflection: 1.3 mm
Category: Mounts - Bobbin - Male to Female |
||||||
|
Part Number: CMF015-15-040M-R60 (PK-2) Bobbin Mounts - 15x15 mm - M4x0.7 Male to Female - Natural Rubber Mount
8 units (16 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$8.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Nom. Body Diameter (D)
15.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M4x0.7
|
Shore Hardness
60
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 10.0 / 4.0 mm
Compression Load: 11 (24) Kg (lbs)
Deflection: 1.3 mm
Category: Mounts - Bobbin - Male to Female |
||||||
|
Part Number: CMF015-15-040M-R60 (PK-2) Bobbin Mounts - 15x15 mm - M4x0.7 Male to Female - Natural Rubber Mount
8 units (16 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$8.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Nom. Body Diameter (D)
15.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M5x0.8
|
Shore Hardness
45
|
Thread Depth (L2)
6.0
mm |
Compression Load
5.8 (12)
Kg (lbs) |
|
|
Material: Natural Rubber
Deflection: 1.3 mm
Category: Mounts - Bobbin - Male |
||||||
|

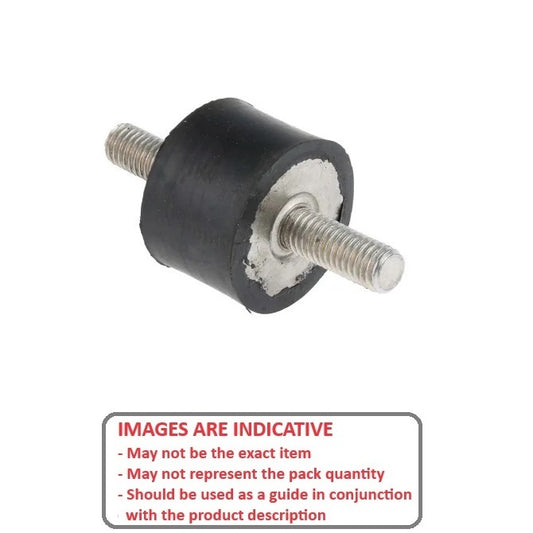

Part Number: CMM015-15-050M06-R45 (PK-5) Bobbin Mounts - 15x15 mm - M5x0.8 Male - Natural Rubber Mount
14 units (70 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$8.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Nom. Body Diameter (D)
15.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M5x0.8
|
Shore Hardness
45
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 6.0 mm
Compression Load: 5.8 (12) Kg (lbs)
Deflection: 1.3 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM015-15-050M06-R45 (PK-5) Bobbin Mounts - 15x15 mm - M5x0.8 Male - Natural Rubber Mount
14 units (70 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$8.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Nom. Body Diameter (D)
15.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M5x0.8
|
Shore Hardness
60
|
Thread Depth (L2)
10.0 / 4.0
mm |
Compression Load
15.3 (33.7)
Kg (lbs) |
|
|
Material: Natural Rubber
Category: Mounts - Bobbin - Male to Female |
||||||
|
Part Number: CMF015-15-050M-R60 (PK-2) Bobbin Mounts - 15x15 mm - M5x0.8 Male to Female - Natural Rubber Mount
26 units (52 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$8.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Nom. Body Diameter (D)
15.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M5x0.8
|
Shore Hardness
60
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 10.0 / 4.0 mm
Compression Load: 15.3 (33.7) Kg (lbs)
Category: Mounts - Bobbin - Male to Female |
||||||
|
Part Number: CMF015-15-050M-R60 (PK-2) Bobbin Mounts - 15x15 mm - M5x0.8 Male to Female - Natural Rubber Mount
26 units (52 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$8.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Nom. Body Diameter (D)
15.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M6x1
|
Shore Hardness
45
|
Thread Depth (L2)
12.0
mm |
Compression Load
5.8 (12)
Kg (lbs) |
|
|
Material: Natural Rubber
Deflection: 1.3 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM015-15-060M-R45 (Each) Bobbin Mounts - 15x15 mm - M6x1 Male - Natural Rubber Mount
93 Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$4.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Nom. Body Diameter (D)
15.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M6x1
|
Shore Hardness
45
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 12.0 mm
Compression Load: 5.8 (12) Kg (lbs)
Deflection: 1.3 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM015-15-060M-R45 (Each) Bobbin Mounts - 15x15 mm - M6x1 Male - Natural Rubber Mount
93 Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$4.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Nom. Body Diameter (D)
15.0
mm |
Body Height (H)
20.0
mm |
Thread Size
M4x0.7
|
Shore Hardness
60
|
Thread Depth (L2)
4.0
mm |
Compression Load
11 (24)
Kg (lbs) |
|
|
Material: Natural Rubber
Category: Mounts - Bobbin - Female |
||||||
|

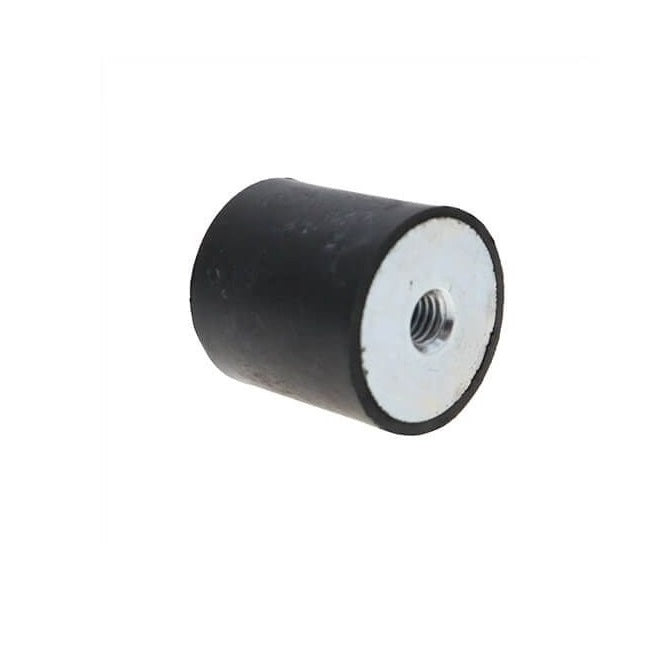

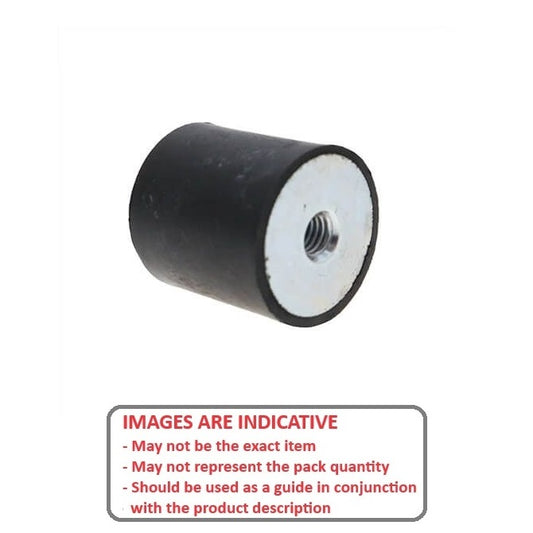

Part Number: CFF015-20-040M-R60 (PK-3) Bobbin Mounts - 15x20 mm - M4x0.7 Female - Natural Rubber Mount
1 pack (3 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$12.00 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Nom. Body Diameter (D)
15.0
mm |
Body Height (H)
20.0
mm |
Thread Size
M4x0.7
|
Shore Hardness
60
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 4.0 mm
Compression Load: 11 (24) Kg (lbs)
Category: Mounts - Bobbin - Female |
||||||
|
Part Number: CFF015-20-040M-R60 (PK-3) Bobbin Mounts - 15x20 mm - M4x0.7 Female - Natural Rubber Mount
1 pack (3 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$12.00 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Nom. Body Diameter (D)
16.0
mm + 0.10 / - 0.00
(Equiv. 0.63 in.) |
Body Height (H)
15.00
mm + 0.00 / - 0.10 (Equiv. 0.591 in.) |
Thread Size
M4x0.7
+ 0.00 / - 0.12 |
Shore Hardness
60
|
Thread Depth (L2)
10.0
mm |
|
|
|
Material: Natural Rubber
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM016-15-040M-R60 (Each) Bobbin Mounts - 16x15 mm - M4x0.7 Male - Natural Rubber Mount
12 Available Now | Further orders can be expected around Fri, Aug 07, 2026 Regular price
$2.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Nom. Body Diameter (D)
16.0
mm + 0.10 / - 0.00 (Equiv. 0.63 in.) |
Body Height (H)
15.00
mm + 0.00 / - 0.10 (Equiv. 0.591 in.) |
Thread Size
M4x0.7
+ 0.00 / - 0.12 |
Shore Hardness
60
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 10.0 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM016-15-040M-R60 (Each) Bobbin Mounts - 16x15 mm - M4x0.7 Male - Natural Rubber Mount
12 Available Now | Further orders can be expected around Fri, Aug 07, 2026 Regular price
$2.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
8.0
mm |
Thread Size
M6x1
|
Shore Hardness
45
|
Thread Depth (L2)
18.0
mm |
Compression Load
16.6 (36)
Kg (lbs) |
|
|
Material: Natural Rubber
Deflection: 0.8 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM020-08-060M-R45 (PK-2) Bobbin Mounts - 20x8 mm - M6x1 Male - Natural Rubber Mount
36 units (72 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$6.32 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
8.0
mm |
Thread Size
M6x1
|
Shore Hardness
45
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 18.0 mm
Compression Load: 16.6 (36) Kg (lbs)
Deflection: 0.8 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM020-08-060M-R45 (PK-2) Bobbin Mounts - 20x8 mm - M6x1 Male - Natural Rubber Mount
36 units (72 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$6.32 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
8.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
Thread Depth (L2)
18.0
mm |
Compression Load
31 (66)
Kg (lbs) |
|
|
Material: Natural Rubber
Deflection: 0.8 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM020-08-060M-R60 (PK-2) Bobbin Mounts - 20x8 mm - M6x1 Male - Natural Rubber Mount
20 units (40 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$3.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
8.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 18.0 mm
Compression Load: 31 (66) Kg (lbs)
Deflection: 0.8 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM020-08-060M-R60 (PK-2) Bobbin Mounts - 20x8 mm - M6x1 Male - Natural Rubber Mount
20 units (40 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$3.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M6x1
|
Shore Hardness
45
|
Thread Depth (L2)
18.0
mm |
Compression Load
9 (19)
Kg (lbs) |
|
|
Material: Natural Rubber
Deflection: 1.2 mm
Category: Mounts - Bobbin - Male |
||||||
|

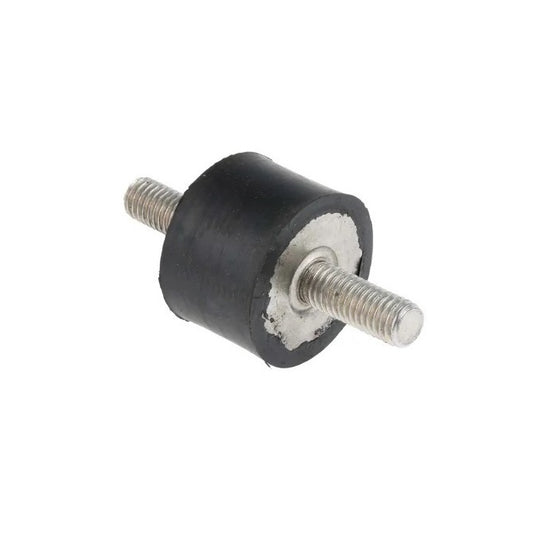

Part Number: CMM020-15-060M-R45 (PK-2) Bobbin Mounts - 20x15 mm - M6x1 Male - Natural Rubber Mount
48 units (96 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$5.32 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M6x1
|
Shore Hardness
45
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 18.0 mm
Compression Load: 9 (19) Kg (lbs)
Deflection: 1.2 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM020-15-060M-R45 (PK-2) Bobbin Mounts - 20x15 mm - M6x1 Male - Natural Rubber Mount
48 units (96 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$5.32 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
Thread Depth (L2)
18.0
mm |
Compression Load
17 (36)
Kg (lbs) |
|
|
Material: Natural Rubber
Deflection: 1.2 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM020-15-060M-R60 (PK-2) Bobbin Mounts - 20x15 mm - M6x1 Male - Natural Rubber Mount
47 units (94 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$5.32 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 18.0 mm
Compression Load: 17 (36) Kg (lbs)
Deflection: 1.2 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM020-15-060M-R60 (PK-2) Bobbin Mounts - 20x15 mm - M6x1 Male - Natural Rubber Mount
47 units (94 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$5.32 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M6x1
|
Shore Hardness
70
|
Compression Load
20.5 (44)
Kg (lbs) |
|
|
|
Material: Natural Rubber
Deflection: 1.0 mm
Category: Mounts - Bobbin - Female |
||||||
|
Part Number: CFF020-15-060M-R70 (PK-2) Bobbin Mounts - 20x15 mm - M6x1 Female - Natural Rubber Mount
50 units (100 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$3.59 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M6x1
|
Shore Hardness
70
|
|
||
|
Material: Natural Rubber
Compression Load: 20.5 (44) Kg (lbs)
Deflection: 1.0 mm
Category: Mounts - Bobbin - Female |
||||||
|
Part Number: CFF020-15-060M-R70 (PK-2) Bobbin Mounts - 20x15 mm - M6x1 Female - Natural Rubber Mount
50 units (100 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$3.59 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
Compression Load
14.8 (32)
Kg (lbs) |
|
|
|
Material: Natural Rubber
Deflection: 1.0 mm
Category: Mounts - Bobbin - Female |
||||||
|
Part Number: CFF020-15-060M-R60 (Each) Bobbin Mounts - 20x15 mm - M6x1 Female - Natural Rubber Mount
95 Available Now | Item Discontinued - Up to 95 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$1.54 AUD
Regular price
Unit price
per
Each
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
|
||
|
Material: Natural Rubber
Compression Load: 14.8 (32) Kg (lbs)
Deflection: 1.0 mm
Category: Mounts - Bobbin - Female |
||||||
|
Part Number: CFF020-15-060M-R60 (Each) Bobbin Mounts - 20x15 mm - M6x1 Female - Natural Rubber Mount
95 Available Now | Item Discontinued - Up to 95 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$1.54 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
20.0
mm |
Thread Size
M6x1
|
Shore Hardness
45
|
Thread Depth (L2)
18.0
mm |
Compression Load
7 (15)
Kg (lbs) |
|
|
Material: Natural Rubber
Deflection: 1.6 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM020-20-060M-R45 (PK-2) Bobbin Mounts - 20x20 mm - M6x1 Male - Natural Rubber Mount
41 units (82 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$5.59 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
20.0
mm |
Thread Size
M6x1
|
Shore Hardness
45
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 18.0 mm
Compression Load: 7 (15) Kg (lbs)
Deflection: 1.6 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM020-20-060M-R45 (PK-2) Bobbin Mounts - 20x20 mm - M6x1 Male - Natural Rubber Mount
41 units (82 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$5.59 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
20.0
mm |
Thread Size
M6x1
|
Shore Hardness
45
|
Thread Depth (L2)
18.0 / 6.0
mm |
Compression Load
7.2 (15)
Kg (lbs) |
|
|
Material: Natural Rubber
Deflection: 1.6 mm
Category: Mounts - Bobbin - Male to Female |
||||||
|
Part Number: CMF020-20-060M-R45 (PK-2) Bobbin Mounts - 20x20 mm - M6x1 Male to Female - Natural Rubber Mount
22 units (44 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$5.68 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
20.0
mm |
Thread Size
M6x1
|
Shore Hardness
45
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 18.0 / 6.0 mm
Compression Load: 7.2 (15) Kg (lbs)
Deflection: 1.6 mm
Category: Mounts - Bobbin - Male to Female |
||||||
|
Part Number: CMF020-20-060M-R45 (PK-2) Bobbin Mounts - 20x20 mm - M6x1 Male to Female - Natural Rubber Mount
22 units (44 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$5.68 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
20.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
Compression Load
13.7 (29)
Kg (lbs) |
|
|
|
Material: Natural Rubber
Deflection: 1.6 mm
Category: Mounts - Bobbin - Female |
||||||
|
Part Number: CFF020-20-060M-R60 (PK-2) Bobbin Mounts - 20x20 mm - M6x1 Female - Natural Rubber Mount
2 units (4 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$3.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
20.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
|
||
|
Material: Natural Rubber
Compression Load: 13.7 (29) Kg (lbs)
Deflection: 1.6 mm
Category: Mounts - Bobbin - Female |
||||||
|
Part Number: CFF020-20-060M-R60 (PK-2) Bobbin Mounts - 20x20 mm - M6x1 Female - Natural Rubber Mount
2 units (4 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$3.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
20.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
Thread Depth (L2)
18.0
mm |
Compression Load
13 (28)
Kg (lbs) |
|
|
Material: Natural Rubber
Deflection: 1.6 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM020-20-060M-R60 (PK-2) Bobbin Mounts - 20x20 mm - M6x1 Male - Natural Rubber Mount
46 units (92 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$5.59 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
20.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 18.0 mm
Compression Load: 13 (28) Kg (lbs)
Deflection: 1.6 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM020-20-060M-R60 (PK-2) Bobbin Mounts - 20x20 mm - M6x1 Male - Natural Rubber Mount
46 units (92 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$5.59 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
25.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
Compression Load
12.6 (27)
Kg (lbs) |
|
|
|
Material: Natural Rubber
Deflection: 2.2 mm
Category: Mounts - Bobbin - Female |
||||||
|
Part Number: CFF020-25-060M-R60 (PK-2) Bobbin Mounts - 20x25 mm - M6x1 Female - Natural Rubber Mount
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$3.56 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Nom. Body Diameter (D)
20.0
mm |
Body Height (H)
25.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
|
||
|
Material: Natural Rubber
Compression Load: 12.6 (27) Kg (lbs)
Deflection: 2.2 mm
Category: Mounts - Bobbin - Female |
||||||
|
Part Number: CFF020-25-060M-R60 (PK-2) Bobbin Mounts - 20x25 mm - M6x1 Female - Natural Rubber Mount
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$3.56 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Nom. Body Diameter (D)
25.0
mm |
Body Height (H)
10.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
Thread Depth (L2)
18.0
mm |
Compression Load
48 (103)
Kg (lbs) |
|
|
Material: Natural Rubber
Deflection: 0.7 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM025-10-060M-R60 (PK-2) Bobbin Mounts - 25x10 mm - M6x1 Male - Natural Rubber Mount
42 units (84 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$5.95 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Nom. Body Diameter (D)
25.0
mm |
Body Height (H)
10.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 18.0 mm
Compression Load: 48 (103) Kg (lbs)
Deflection: 0.7 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM025-10-060M-R60 (PK-2) Bobbin Mounts - 25x10 mm - M6x1 Male - Natural Rubber Mount
42 units (84 pcs) Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$5.95 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Nom. Body Diameter (D)
25.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
Thread Depth (L2)
15.0 / 6.0
mm |
Compression Load
18 (39)
Kg (lbs) |
|
|
Material: Natural Rubber
Deflection: 1.2 mm
Category: Mounts - Bobbin - Male to Female |
||||||
|
Part Number: CMF025-15-060M15-R60 (Each) Bobbin Mounts - 25x15 mm - M6x1 Male to Female - Natural Rubber Mount
49 Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$3.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Nom. Body Diameter (D)
25.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 15.0 / 6.0 mm
Compression Load: 18 (39) Kg (lbs)
Deflection: 1.2 mm
Category: Mounts - Bobbin - Male to Female |
||||||
|
Part Number: CMF025-15-060M15-R60 (Each) Bobbin Mounts - 25x15 mm - M6x1 Male to Female - Natural Rubber Mount
49 Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$3.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Nom. Body Diameter (D)
25.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
Thread Depth (L2)
18.0
mm |
Compression Load
34 (73)
Kg (lbs) |
|
|
Material: Natural Rubber
Deflection: 1.2 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM025-15-060M-R60 (Each) Bobbin Mounts - 25x15 mm - M6x1 Male - Natural Rubber Mount
18 Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$4.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Nom. Body Diameter (D)
25.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 18.0 mm
Compression Load: 34 (73) Kg (lbs)
Deflection: 1.2 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM025-15-060M-R60 (Each) Bobbin Mounts - 25x15 mm - M6x1 Male - Natural Rubber Mount
18 Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$4.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Nom. Body Diameter (D)
25.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
Thread Depth (L2)
18.0 / 6.0
mm |
Compression Load
35 (75)
Kg (lbs) |
|
|
Material: Natural Rubber
Deflection: 1.2 mm
Category: Mounts - Bobbin - Male to Female |
||||||
|
Part Number: CMF025-15-060M18-R60 (PK-50) Bobbin Mounts - 25x15 mm - M6x1 Male to Female - Natural Rubber Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 24, 2026 Regular price
$126.77 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Nom. Body Diameter (D)
25.0
mm |
Body Height (H)
15.0
mm |
Thread Size
M6x1
|
Shore Hardness
60
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 18.0 / 6.0 mm
Compression Load: 35 (75) Kg (lbs)
Deflection: 1.2 mm
Category: Mounts - Bobbin - Male to Female |
||||||
|
Part Number: CMF025-15-060M18-R60 (PK-50) Bobbin Mounts - 25x15 mm - M6x1 Male to Female - Natural Rubber Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 24, 2026 Regular price
$126.77 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Nom. Body Diameter (D)
25.0
mm |
Body Height (H)
20.0
mm |
Thread Size
M6x1
|
Shore Hardness
70
|
Thread Depth (L2)
18.0
mm |
Compression Load
39 (83)
Kg (lbs) |
|
|
Material: Natural Rubber
Deflection: 1.6 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM025-20-060M-R70 (Each) Bobbin Mounts - 25x20 mm - M6x1 Male - Natural Rubber Mount
46 Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$2.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Nom. Body Diameter (D)
25.0
mm |
Body Height (H)
20.0
mm |
Thread Size
M6x1
|
Shore Hardness
70
|
|
||
|
Material: Natural Rubber
Thread Depth (L2): 18.0 mm
Compression Load: 39 (83) Kg (lbs)
Deflection: 1.6 mm
Category: Mounts - Bobbin - Male |
||||||
|
Part Number: CMM025-20-060M-R70 (Each) Bobbin Mounts - 25x20 mm - M6x1 Male - Natural Rubber Mount
46 Available Now | Further orders can be expected around Thu, Sep 24, 2026 Regular price
$2.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
