CMF075-40-120M23-R60 - Datasheet
MBA
Category Information

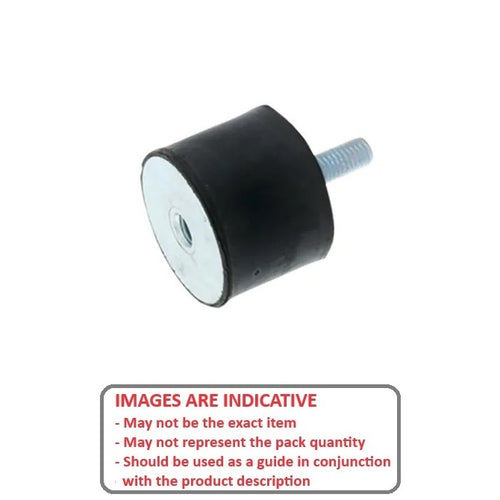

Mounts - Bobbin - Male to FemaleMale to Female Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

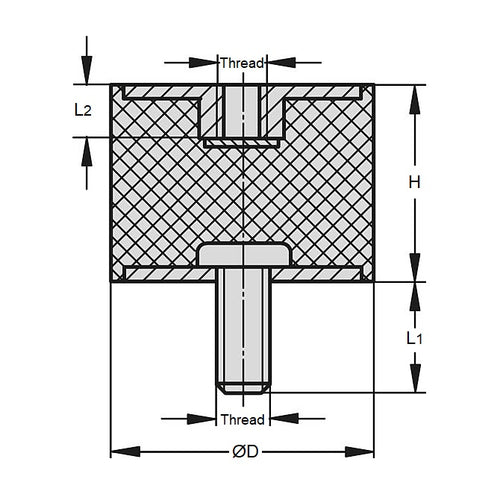

- Nom. Body Diameter (D) : 75.0 mm
- Body Height (H) 40.0 mm
- Thread Size M12x1.75
- Shore Hardness 60
- Thread Length/Depth (L1/L2) 23.0 / 12.0 mm
- Compression Load 37 (79) Kg (lbs)
- Max Shear Load 79.5 (175.3 Kg (lbs)
- Configuration Male to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- AVI 7540MF23-60-M12
- 7540MF2360M12
