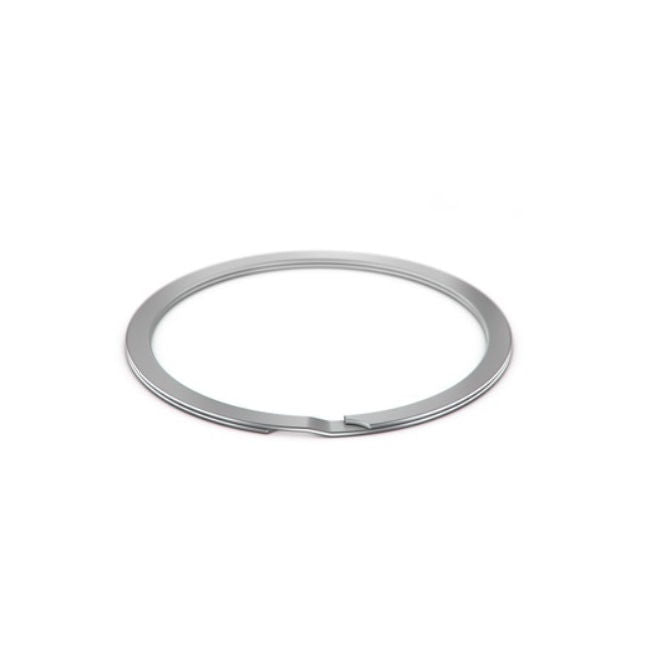

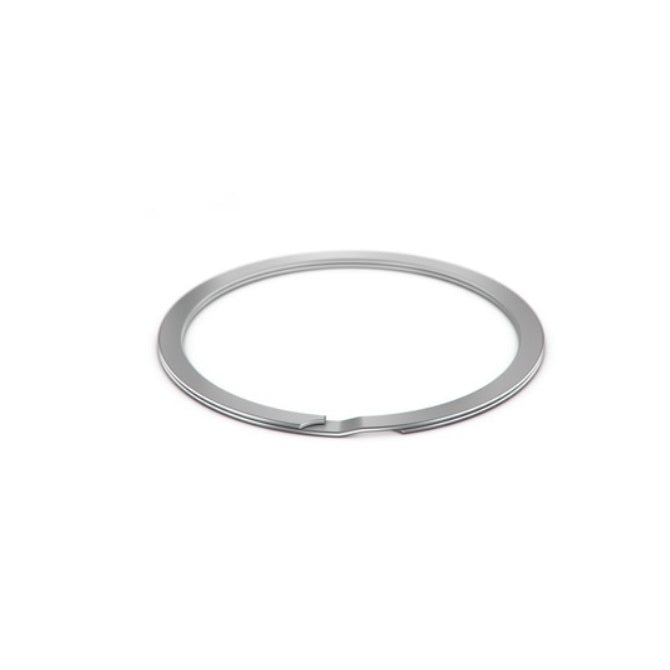

Internal Retaining Rings - 60.33x1.25x62.3 mm - Spring Steel

Name: 1168222 | RR-237 --- Internal Retaining Rings - 60.33x1.25x62.3 mm - Spring Steel
Brand: MBA
SKU: RR237
Price: 7.14 AUD
Availability: InStock

RR-237

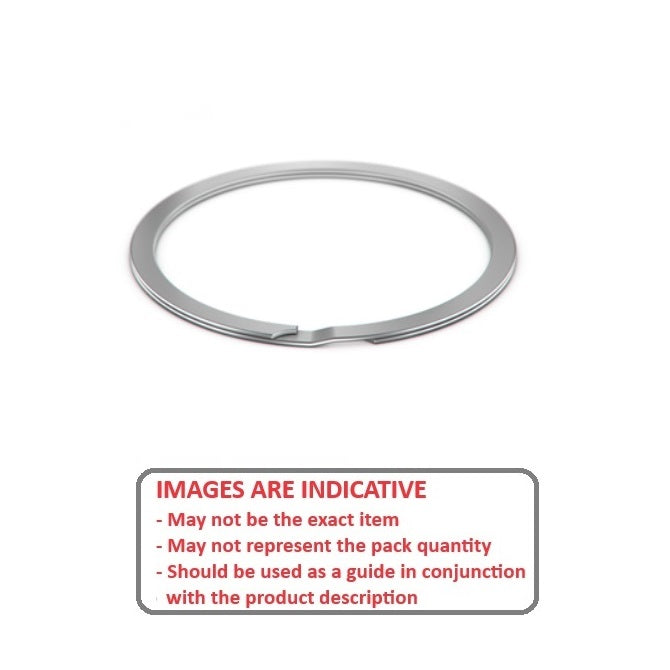

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel

Additional resources:
Spiral Rings and Snap Rings PDF

Price:

$7.14 AUD

Each
Qty: 60 available now
Order 50 or more for $6.43 AUD Each

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 27, 2025

Quantity

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel

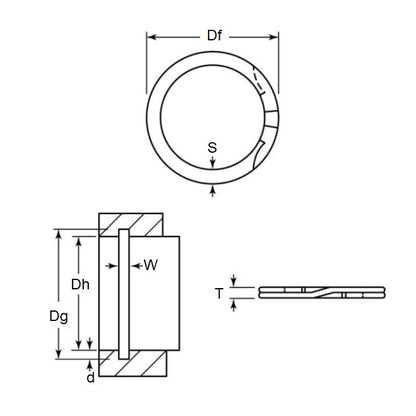

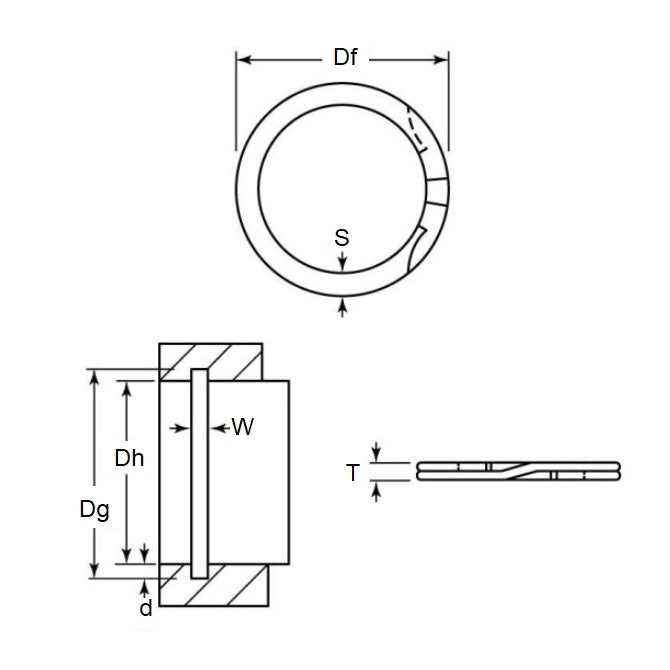

Product Details:

Housing Bore (B): 60.33mm
_{(60.33mm is 2.375 in.)}

Spring Steel

Clip Thickness (T): 1.25mm
_{+/- 0.08}
_{(1.25mm is 0.049 in.)}
Groove Dia. (Dg): 62.30mm
_{(62.30mm is 2.453 in.)}
Approx. Loose Circlip OD (Dr): 62.98mm
_{+ 0.64 / - 0.00}
Radial Wall (S): 3.51mm
_{+/- 0.11}
Groove Width (W): 1.47mm
_{+/- 0.15}
Approx. Loose Clip ID: 55.96
_{+/- 0.05}
Groove Depth (d): 0.99

Brand: MBA
Country of Origin: US

Alternative Parts Include: AI237, AI-237, RR-237, RR237, WH237, WH-237, Associated Spring, Smalley, Spirolox

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
