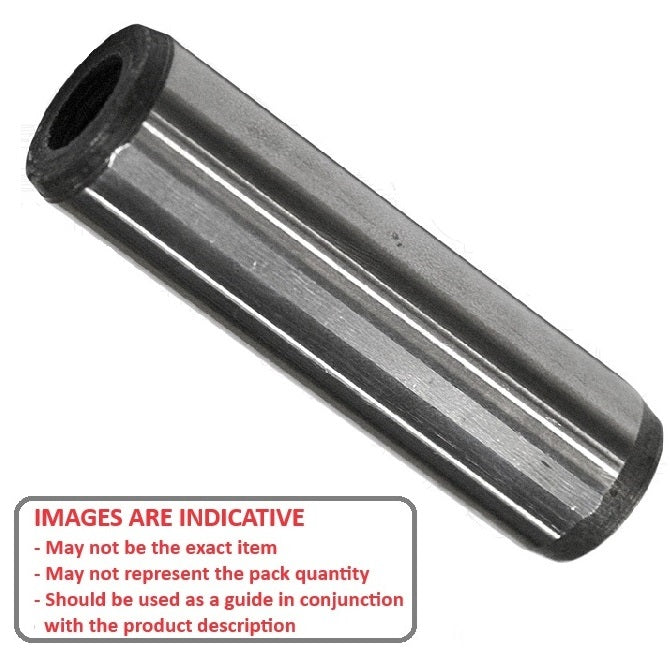

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

DP050-012-CH-1EF

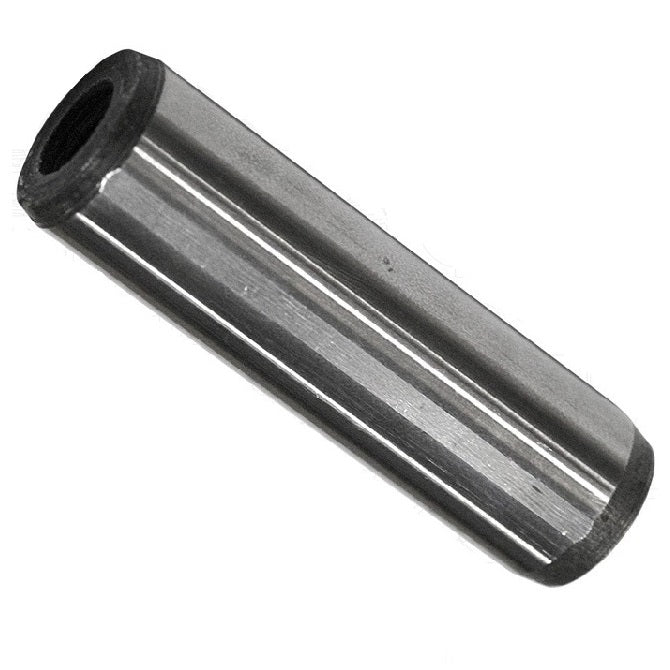

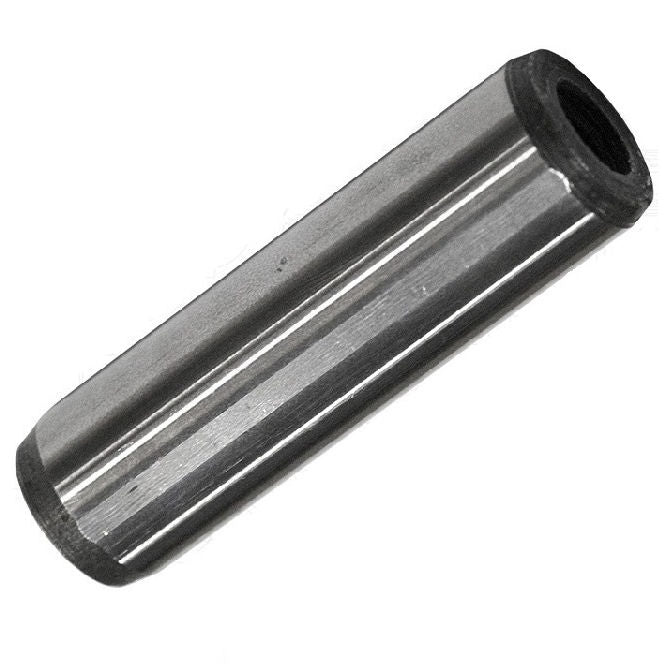

Dowel Pins - 5 mm x 12 mm x 12 mm

Name: 1063239 | DP050-012-CH-1EF --- Dowel Pins - 5 mm x 12 mm x 12 mm
Brand: NoCor
SKU: DP050012CH1EF
Price: 8.95 AUD
Availability: InStock

NoCor

Category: Pins - Dowel - Extractable - With Vent

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

Price:

$8.95 AUD

Each
Qty: 18 available now
Order 50 or more for $8.06 AUD Each

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Mar 02, 2025

Quantity

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Extractable - With Vent

Product Details:

Additional stock available from USA subject to Prior Sale = 2195

Diameter (D): 5.000mm
_{+ 0.004 / + 0.012}

Carbon Steel

Length (L): 12.00mm
_{+/- 0.350}
Overall Length: 12.00mm
_{+/ - 0.350}

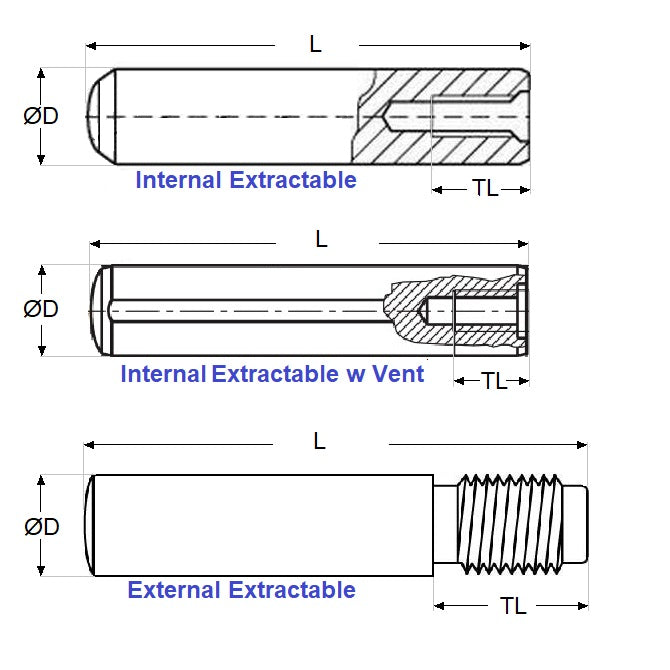

Type: 1 (See diagram)
Hardness: Carbon Steel Rc 58-62
Thread Size: M3 (3x0.5mm)

Brand: NoCor
Country of Origin: US

Alternatives: DHX5-12, DOWPFM-050-012, DOWPM-050-0

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
