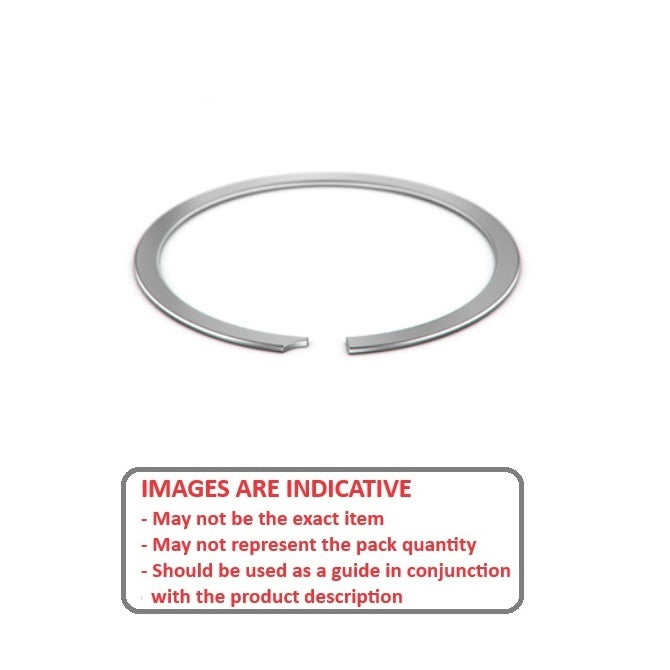

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
Skip to product information
1 of 3

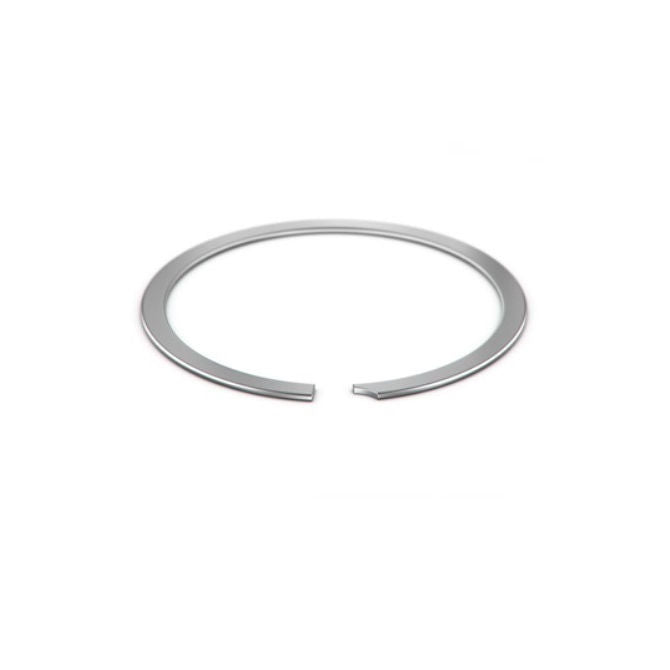

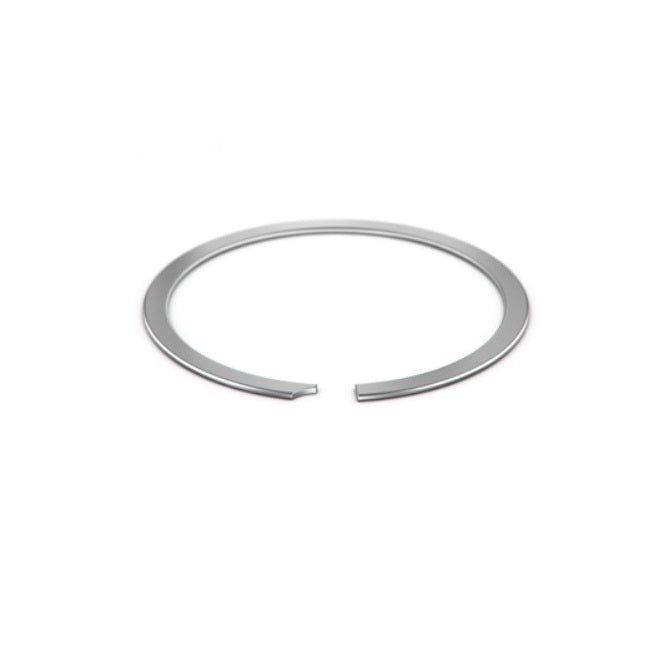

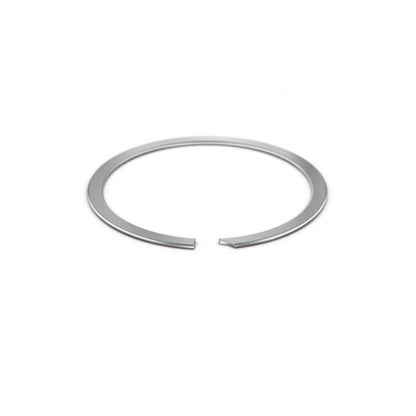

UR-218 (5 Pcs)
Spiral - 55.55 mm x 0.79 mm x 50.2 mm

MBA

Additional resources:
Snap Rings
Spiral Rings and Snap Rings PDF
Price:
Regular price $10.00 AUD
Regular price $0.00 AUD Sale price $10.00 AUD
per 5
Qty: 9 available now (45 pcs)
Only 9 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Spiral Rings - Internal

Top Level Category: Spiral Rings - Internal - Light Duty - Carbon Steel

Product Details:

Bore (Db): 55.55mm
Spring Steel
  • Thickness (T): 0.79mm
    +/-0.05
  • Approx. Free ID: 50.2mm
  • Free OD Max. (Dr): 58.22mm
    +0.64/-0.00
  • Radial Wall (S): 4.01mm
    +0.08/-0.13
  • Groove Dia. (Dg): 57.48mm
    +/-0.15
  • Groove Width (W): 1.00mm
  • Spring Steel
    +0.07/-0.00
  • Groove Depth (d): 0.97

Brand: MBA
Country of Origin: US

Alternatives: CI-218, UR-218, VH-218

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
