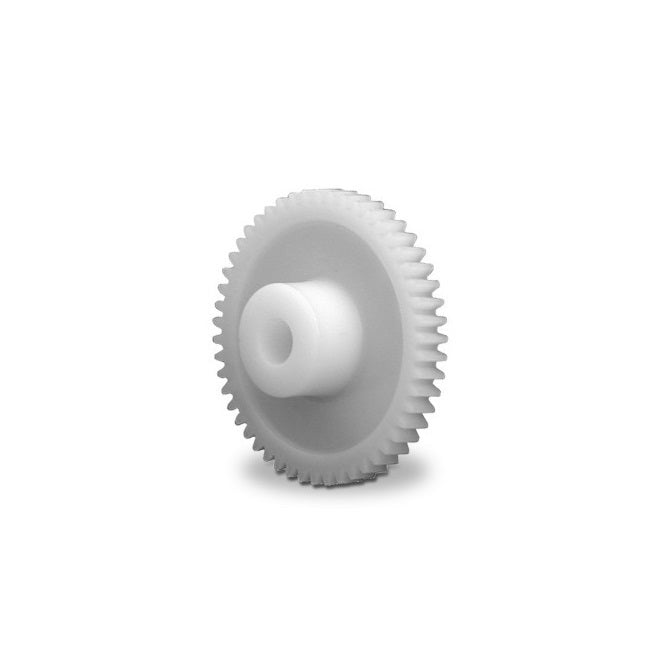

Worm Gears - Pitch 32DP - 40 tooth - 4 Deg 5 Min with 14.5 Deg Pressure Angle 32DP - Acetal

WG1R32-040-05HBS0794-ACE (Each)

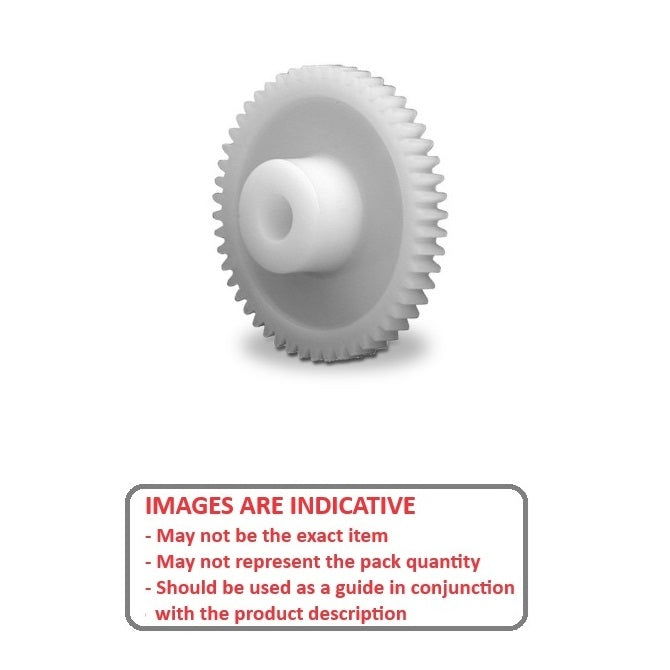

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Worm Gears - Pitch 32DP 40 - 4 Deg 5 Min with 14.5 Deg Pressure Angle - Acetal
1 4

ENQUIRE

Store Name: Small Parts & Bearings

Price:
$7.00 AUD
$13.30 AUD $7.00 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 2 available now
Only 2 may be ordered online. If you need a large quantity, please contact us.

Pitch 32DP - 40 tooth - 4 Deg 5 Min with 14.5 Deg Pressure Angle Worm Gears - Acetal - Sold per Each:

Base Category: Gears - Worm

Top Level Category: Gears - Worm - 32DP

Product Details


Deleted Item. Available while stocks last.

Pitch: 32DP

Acetal
  • Pitch: 32DP
  • Teeth: 40
  • Lead Angle: 4 Deg 5 Min with 14.5 Deg Pressure Angle
  • Direction: Right Hand
  • Bore (B): 7.938
  • Overall Length (l): 12.700
  • Pitch Diameter (C): 31.75mm
  • Face Width (fw): 4.762mm
  • Bore Type: Finished
  • Hub Diameter (Dh): 15.87 Brass Insertmm
  • Locking Type: Set Screw

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • WG1R32104005HBS0794ACE

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WG1R3204005HBS0794ACE, WG1R3204005HBS0794
