Gears - Worm - 32DP

1 Item Available

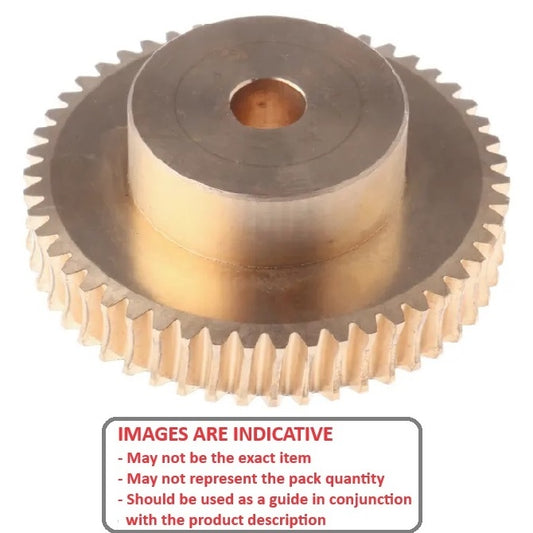

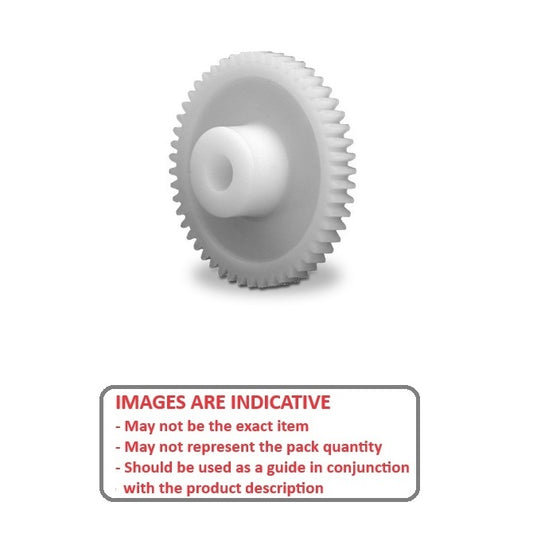

A selection of 32DP Worm Gears. This is the main category in this series

  • Worms and Gears must be chosen from the same pitch, direction and lead angle match. DP is Diametrical Pitch, which is an imperial standard.
  • A single start worm and gear will provide a ratio equivalent to the number of teeth on the gear. A double start worm and gear will provide a ratio of half the number of teeth on the gear.
  • If there is no matching worm for a stocked gear, please contact us for a special procurement. An expanded range may be available on special order. Please enquire.
Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found on the MBA Minibearings main store at Gears - Worm - 32DP.
Pitch Teeth Lead Angle Direction Bore (B) Overall Length (l) Indicative
Pitch
32DP
Teeth
40
Lead Angle
4 Deg 5 Min with 14.5 Deg Pressure Angle
Direction
Right Hand
Bore (B)
7.938
Overall Length (l)
12.700
Worm Gears - Pitch 32DP 40 - 4 Deg 5 Min with 14.5 Deg Pressure Angle - Acetal
Material: Acetal    Pitch Diameter (C): 31.75 mm    Face Width (fw): 4.762 mm    Bore Type: Finished    Hub Diameter (Dh): 15.87 Brass Insert mm    Locking Type: Set Screw
Part Number: WG1R32-040-05HBS0794-ACE (Each) Worm Gears - Pitch 32DP - 40 tooth - 4 Deg 5 Min with 14.5 Deg Pressure Angle 32DP - Acetal
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$7.00 AUD
$13.30 AUD $7.00 AUD
Each
Pitch Teeth Lead Angle Direction Indicative
Pitch
32DP
Teeth
40
Lead Angle
4 Deg 5 Min with 14.5 Deg Pressure Angle
Direction
Right Hand
Worm Gears - Pitch 32DP 40 - 4 Deg 5 Min with 14.5 Deg Pressure Angle - Acetal
Material: Acetal    Bore (B): 7.938    Overall Length (l): 12.700    Pitch Diameter (C): 31.75 mm    Face Width (fw): 4.762 mm    Bore Type: Finished    Hub Diameter (Dh): 15.87 Brass Insert mm    Locking Type: Set Screw
Part Number: WG1R32-040-05HBS0794-ACE (Each) Worm Gears - Pitch 32DP - 40 tooth - 4 Deg 5 Min with 14.5 Deg Pressure Angle 32DP - Acetal
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$7.00 AUD
$13.30 AUD $7.00 AUD
Each
