Internal Retaining Rings - 25.98x1.07x27.72 mm - Stainless Steel 302/304 Similar to A2, 18-8

RRN-102-S02 (2 Pcs)

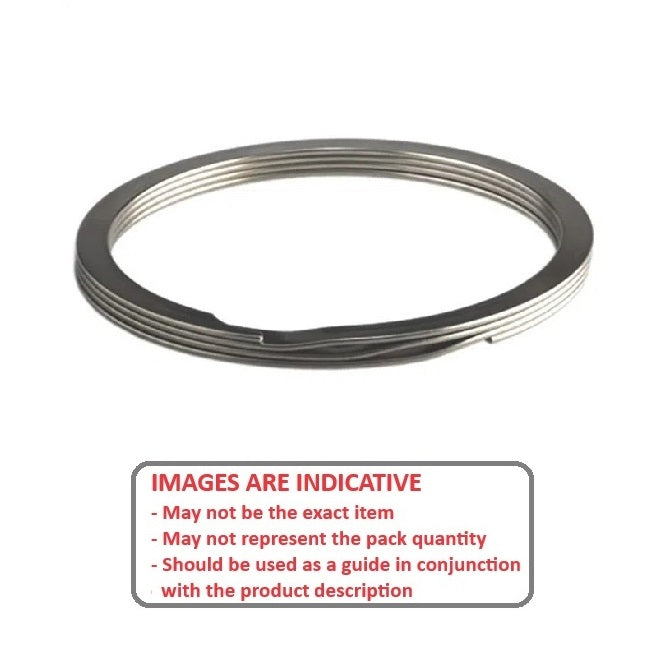

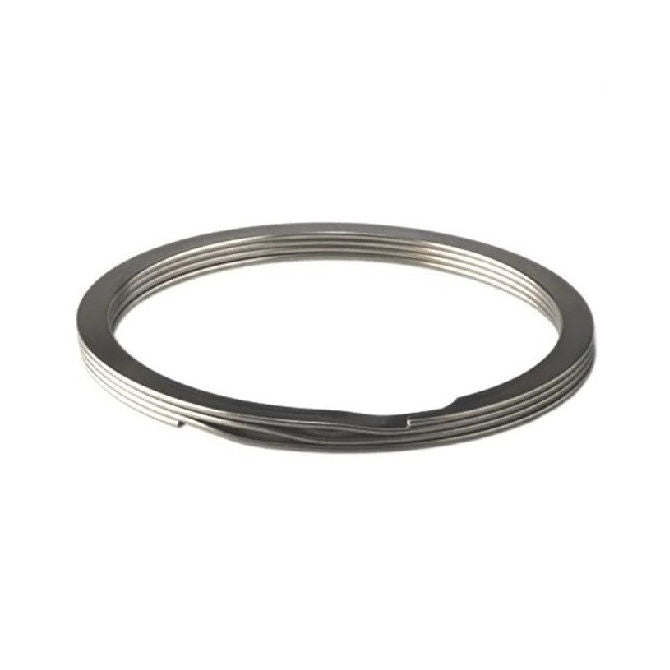

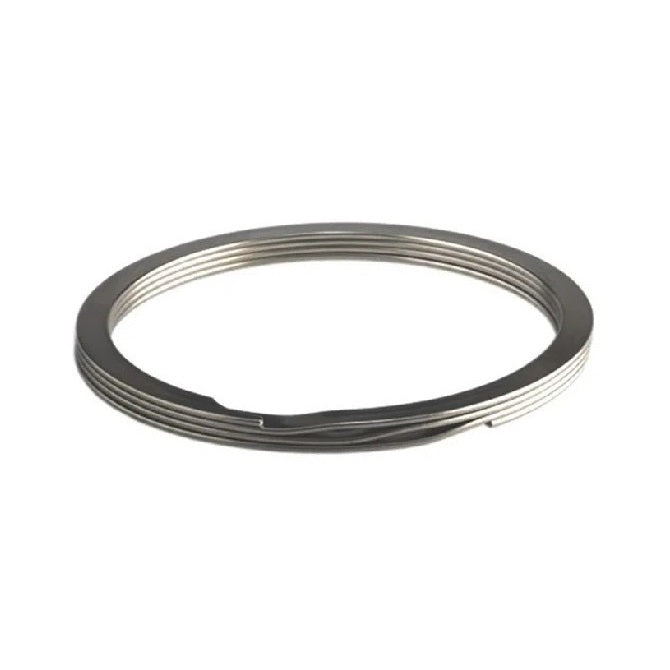

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Internal Retaining Rings - 25.98x1.07x27.72 mm - Stainless Steel 302/304 Similar to A2, 18-8
1 4

MBA

Additional resources:
Spiral Rings and Snap Rings PDF
Price:
$15.68 AUD
$15.68 AUD
per 2
Qty: 5 available now (10 pcs)
Order 50 or more (100 pcs) for $14.11 AUD per 2
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 17, 2025

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 52

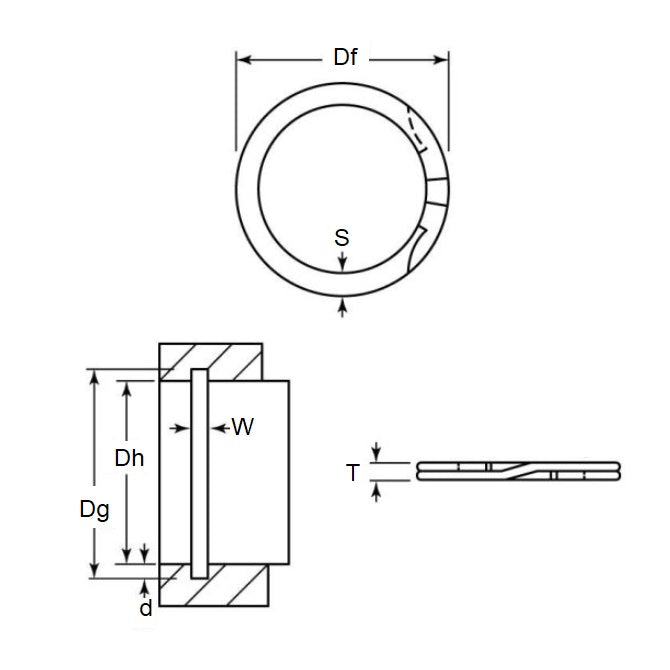

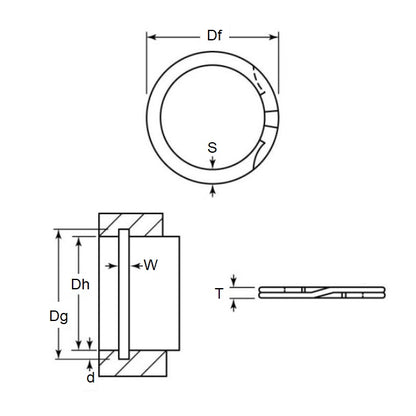

Housing Bore (B): 25.98mm
(25.98mm is 1.023 in.)

Stainless Steel 302/304 (Similar to A2, 18-8)
  • Clip Thickness (T): 1.07mm
    +/- 0.05
    (1.07mm is 0.042 in.)
  • Groove Dia. (Dg): 27.72mm
    (27.72mm is 1.091 in.)
  • Approx. Loose Circlip OD (Dr): 27.72mm
    + 0.33 / - 0.00
  • Radial Wall (S): 2.16mm
    +/- 0.10
  • Groove Width (W): 1.21mm
    +/- 0.07
  • Approx. Loose Clip ID: 23.4
    +/- 0.04
  • Groove Depth (d): 0.86

Brand: MBA
Country of Origin: US

Alternative Parts Include: AHI-102-S02, AHI102S02, WHM-102-S02, WHM102S02, Associated Spring, Smalley

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
