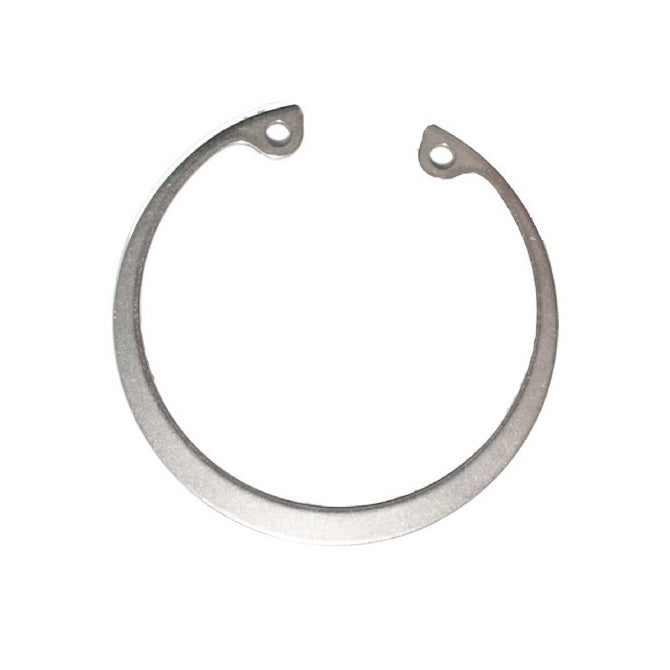

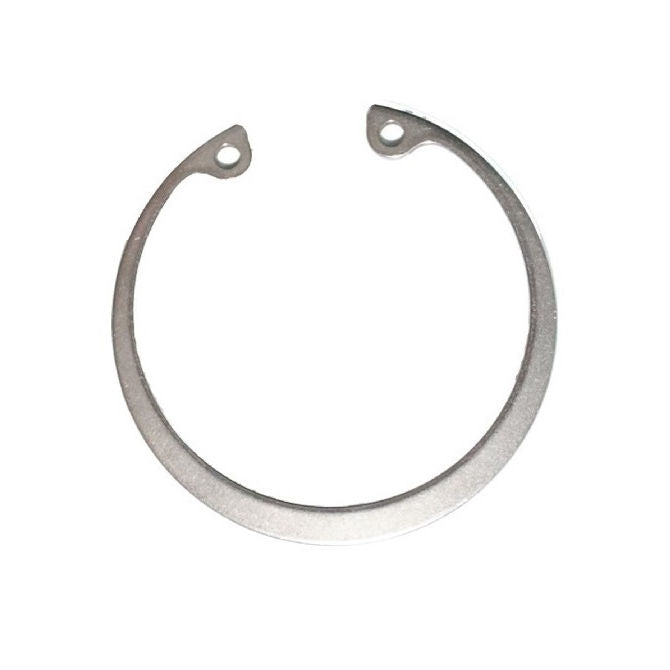

Internal Retaining Rings - 15.88x0.89x16.89 mm - Stainless Steel Grade PH15-7 Mo

CCI-01588-S15

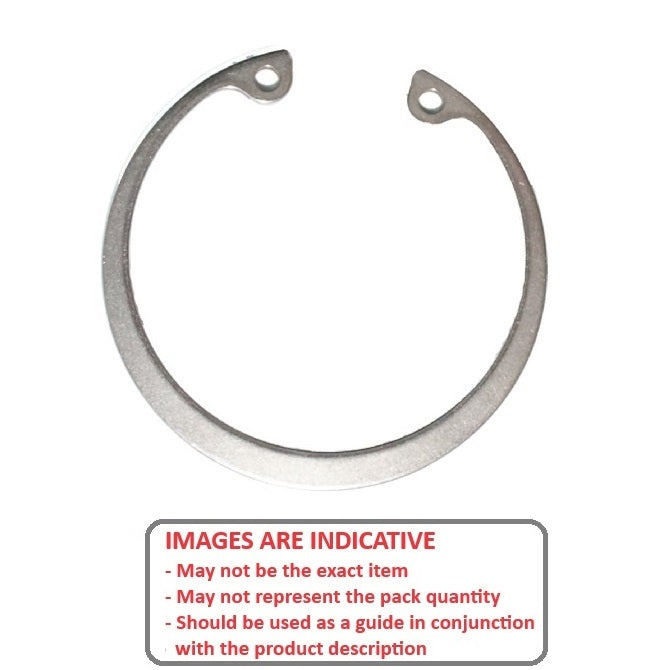

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Internal Retaining Rings - 15.88x0.89x16.89 mm - Stainless Steel Grade PH15-7 Mo
1 4

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Price:
$4.50 AUD
$4.50 AUD
Each
Qty: 44 available now
Order 50 or more for $4.05 AUD Each

Special Offer: If you purchase the remaining quantity of this item, you will receive the bulk price.
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 22, 2025

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel

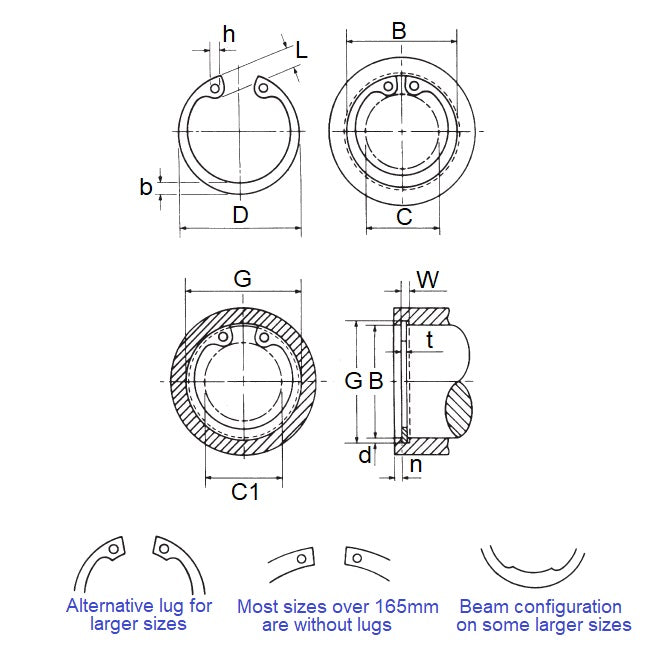

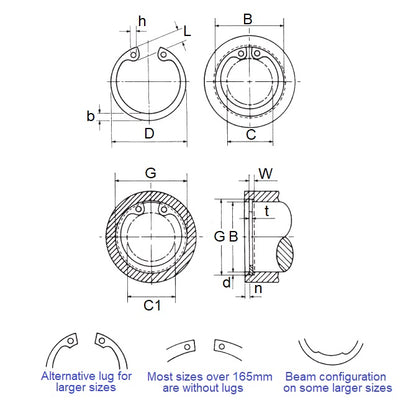

Product Details:

Additional stock available from USA subject to Prior Sale = 9374


Housing Bore (B): 15.88mm
(15.88mm is 0.625 in.)

Stainless Steel Grade PH15-7 Mo
  • Clip Thickness (T): 0.89mm
    +/- 0.050
    (0.89mm is 0.035 in.)
  • Groove Dia. (Dg): 16.89mm
    + 0.00 / - 0.06
    (16.89mm is 0.665 in.)
  • Approx. Loose Circlip OD (Dr): 17.63mm
    + 0.25 / - 0.13
  • Groove Width (W): 0.99mm
    + 0.08 / - 0.00
  • Clearance in Bore (C): 8.89mm
  • Clearance in Groove (C1): 9.91mm
  • Min. Lug Diameter (h): 1.14mm
  • Min. Extension (n): 1.52
  • Standard: MIL-16625

Brand: MBA
Country of Origin: US

Alternative Parts Include: N13000062BDS, N1300-0062BDS, 91580A171, RIX10, RIX-10, HO062SS, HO-062-SS, ALTPART, NoCor, Small Parts

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
