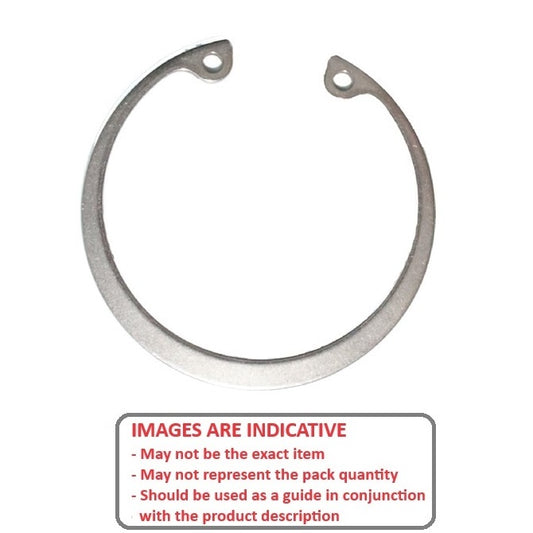

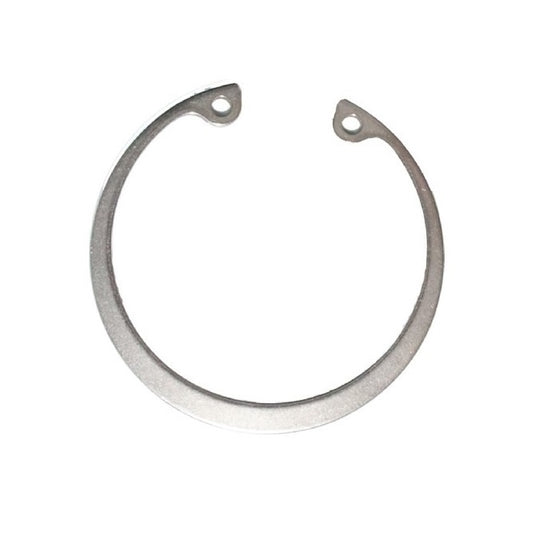

Collection: Retaining Rings - Internal - Circlips - Standard - Stainless Steel

Retaining Rings (With Images)

Internal

Circlips

Standard

Carbon Steel
Stainless Steel
Zinc Plated

33 Products in this selection

Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
PH15-7 Mo Stainless Steel.
Tolerances on request.

Small Parts & Bearings

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

A more comprehensive listing may be found on the MBA Minibearings main store at Retaining Rings - Internal - Circlips - Standard - Stainless Steel.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)	Indicative Image
Housing Bore (B) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.31 mm +/- 0.025 _{(0.012 in.)}	Groove Dia. (Dg) 6.81 mm + 0.00 / - 0.05 _{(0.268 in.)}	Approx. Loose Circlip OD (Dr) 7.11 mm + 0.25 / - 0.13		Groove Width (W) 0.51 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Standard: MIL-16625
Part Number: CCI-00635-S15 (2 Pcs) Internal Retaining Rings - 6.35x0.31x6.81 mm - Stainless Steel Grade PH15-7 Mo 150 units (300 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 2
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.31 mm +/- 0.025 _{(0.012 in.)}	Groove Dia. (Dg) 6.81 mm + 0.00 / - 0.05 _{(0.268 in.)}	Approx. Loose Circlip OD (Dr) 7.11 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.51 mm + 0.05 / - 0.00 Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Standard: MIL-16625
Part Number: CCI-00635-S15 (2 Pcs) Internal Retaining Rings - 6.35x0.31x6.81 mm - Stainless Steel Grade PH15-7 Mo 150 units (300 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-00635-S15 (2 Pcs) --- Internal Retaining Rings - 6.35x0.31x6.81 mm - Stainless Steel Grade PH15-7 Mo CCI-00635-S15 (2 Pcs) --- Internal Retaining Rings - 6.35x0.31x6.81 mm - Stainless Steel Grade PH15-7 Mo Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 150 Available Now
Housing Bore (B) 7.94 mm _{(0.313 in.)}	Clip Thickness (T) 0.31 mm +/- 0.025 _{(0.012 in.)}	Groove Dia. (Dg) 8.38 mm + 0.00 / - 0.05 _{(0.33 in.)}	Approx. Loose Circlip OD (Dr) 8.79 mm + 0.25 / - 0.13		Groove Width (W) 0.51 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Standard: MIL-16625
Part Number: CCI-00794-S15 (5 Pcs) Internal Retaining Rings - 7.94x0.31x8.38 mm - Stainless Steel Grade PH15-7 Mo 4 units (20 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $11.32 AUD Regular price Sale price $11.32 AUD Unit price per Per 5
Housing Bore (B) 7.94 mm _{(0.313 in.)}	Clip Thickness (T) 0.31 mm +/- 0.025 _{(0.012 in.)}	Groove Dia. (Dg) 8.38 mm + 0.00 / - 0.05 _{(0.33 in.)}	Approx. Loose Circlip OD (Dr) 8.79 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.51 mm + 0.05 / - 0.00 Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Standard: MIL-16625
Part Number: CCI-00794-S15 (5 Pcs) Internal Retaining Rings - 7.94x0.31x8.38 mm - Stainless Steel Grade PH15-7 Mo 4 units (20 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $11.32 AUD Regular price Sale price $11.32 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-00794-S15 (5 Pcs) --- Internal Retaining Rings - 7.94x0.31x8.38 mm - Stainless Steel Grade PH15-7 Mo CCI-00794-S15 (5 Pcs) --- Internal Retaining Rings - 7.94x0.31x8.38 mm - Stainless Steel Grade PH15-7 Mo Regular price $11.32 AUD Regular price Sale price $11.32 AUD Unit price per 4 Available Now
Housing Bore (B) 8.00 mm _{(0.315 in.)}	Clip Thickness (T) 0.80 mm + 0.09 / - 0.00 _{(0.031 in.)}	Groove Dia. (Dg) 8.40 mm + 0.00 / - 0.05 _{(0.331 in.)}	Approx. Loose Circlip OD (Dr) 8.70 mm + 0.36 / - 0.10		Groove Width (W) 0.90 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Standard: DIN472
Part Number: CCI-00800-S15 (5 Pcs) Internal Retaining Rings - 8x0.8x8.4 mm - Stainless Steel Grade PH15-7 Mo 3 units (15 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Per 5
Housing Bore (B) 8.00 mm _{(0.315 in.)}	Clip Thickness (T) 0.80 mm + 0.09 / - 0.00 _{(0.031 in.)}	Groove Dia. (Dg) 8.40 mm + 0.00 / - 0.05 _{(0.331 in.)}	Approx. Loose Circlip OD (Dr) 8.70 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.90 mm + 0.05 / - 0.00 Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Standard: DIN472
Part Number: CCI-00800-S15 (5 Pcs) Internal Retaining Rings - 8x0.8x8.4 mm - Stainless Steel Grade PH15-7 Mo 3 units (15 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-00800-S15 (5 Pcs) --- Internal Retaining Rings - 8x0.8x8.4 mm - Stainless Steel Grade PH15-7 Mo CCI-00800-S15 (5 Pcs) --- Internal Retaining Rings - 8x0.8x8.4 mm - Stainless Steel Grade PH15-7 Mo Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per 3 Available Now
Housing Bore (B) 9.00 mm _{(0.354 in.)}	Clip Thickness (T) 0.80 mm + 0.09 / - 0.00 _{(0.031 in.)}	Groove Dia. (Dg) 9.40 mm + 0.00 / - 0.05 _{(0.37 in.)}	Approx. Loose Circlip OD (Dr) 9.80 mm + 0.36 / - 0.10		Groove Width (W) 0.90 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Standard: DIN472
Part Number: CCI-00900-S15 (2 Pcs) Internal Retaining Rings - 9x0.8x9.4 mm - Stainless Steel Grade PH15-7 Mo 38 units (76 pcs) Available Now \| Item Discontinued - Up to 38 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $1.32 AUD Regular price ~~$4.66 AUD~~ Sale price $1.32 AUD Unit price per Per 2
Housing Bore (B) 9.00 mm _{(0.354 in.)}	Clip Thickness (T) 0.80 mm + 0.09 / - 0.00 _{(0.031 in.)}	Groove Dia. (Dg) 9.40 mm + 0.00 / - 0.05 _{(0.37 in.)}	Approx. Loose Circlip OD (Dr) 9.80 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.90 mm + 0.05 / - 0.00 Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Standard: DIN472
Part Number: CCI-00900-S15 (2 Pcs) Internal Retaining Rings - 9x0.8x9.4 mm - Stainless Steel Grade PH15-7 Mo 38 units (76 pcs) Available Now \| Item Discontinued - Up to 38 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $1.32 AUD Regular price ~~$4.66 AUD~~ Sale price $1.32 AUD Unit price per Per 2
CCI-00900-S15 (2 Pcs) --- Internal Retaining Rings - 9x0.8x9.4 mm - Stainless Steel Grade PH15-7 Mo Sale CCI-00900-S15 (2 Pcs) --- Internal Retaining Rings - 9x0.8x9.4 mm - Stainless Steel Grade PH15-7 Mo Regular price $1.32 AUD Regular price ~~$4.66 AUD~~ Sale price $1.32 AUD Unit price per 38 Available Now Sale
Housing Bore (B) 9.53 mm _{(0.375 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 10.08 mm + 0.00 / - 0.05 _{(0.397 in.)}	Approx. Loose Circlip OD (Dr) 10.54 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Standard: MIL-16625
Part Number: CCI-00953-S15 (2 Pcs) Internal Retaining Rings - 9.53x0.64x10.08 mm - Stainless Steel Grade PH15-7 Mo 75 units (150 pcs) Available Now \| Further orders can be expected around Mon, Oct 20, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 2
Housing Bore (B) 9.53 mm _{(0.375 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 10.08 mm + 0.00 / - 0.05 _{(0.397 in.)}	Approx. Loose Circlip OD (Dr) 10.54 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Standard: MIL-16625
Part Number: CCI-00953-S15 (2 Pcs) Internal Retaining Rings - 9.53x0.64x10.08 mm - Stainless Steel Grade PH15-7 Mo 75 units (150 pcs) Available Now \| Further orders can be expected around Mon, Oct 20, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-00953-S15 (2 Pcs) --- Internal Retaining Rings - 9.53x0.64x10.08 mm - Stainless Steel Grade PH15-7 Mo CCI-00953-S15 (2 Pcs) --- Internal Retaining Rings - 9.53x0.64x10.08 mm - Stainless Steel Grade PH15-7 Mo Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per 75 Available Now
Housing Bore (B) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 10.40 mm + 0.00 / - 0.06 _{(0.409 in.)}	Approx. Loose Circlip OD (Dr) 10.80 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN472
Part Number: CCI-01000-S15 (5 Pcs) Internal Retaining Rings - 10x1x10.4 mm - Stainless Steel Grade PH15-7 Mo 13 units (65 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per Per 5
Housing Bore (B) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 10.40 mm + 0.00 / - 0.06 _{(0.409 in.)}	Approx. Loose Circlip OD (Dr) 10.80 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.05 / - 0.00 Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN472
Part Number: CCI-01000-S15 (5 Pcs) Internal Retaining Rings - 10x1x10.4 mm - Stainless Steel Grade PH15-7 Mo 13 units (65 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01000-S15 (5 Pcs) --- Internal Retaining Rings - 10x1x10.4 mm - Stainless Steel Grade PH15-7 Mo CCI-01000-S15 (5 Pcs) --- Internal Retaining Rings - 10x1x10.4 mm - Stainless Steel Grade PH15-7 Mo Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per 13 Available Now
Housing Bore (B) 11.00 mm _{(0.433 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 11.40 mm + 0.00 / - 0.06 _{(0.449 in.)}	Approx. Loose Circlip OD (Dr) 11.80 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN472
Part Number: CCI-01100-S15 (2 Pcs) Internal Retaining Rings - 11x1x11.4 mm - Stainless Steel Grade PH15-7 Mo 12 units (24 pcs) Available Now \| Item Discontinued - Up to 12 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $1.86 AUD Regular price ~~$6.38 AUD~~ Sale price $1.86 AUD Unit price per Per 2
Housing Bore (B) 11.00 mm _{(0.433 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 11.40 mm + 0.00 / - 0.06 _{(0.449 in.)}	Approx. Loose Circlip OD (Dr) 11.80 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.05 / - 0.00 Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN472
Part Number: CCI-01100-S15 (2 Pcs) Internal Retaining Rings - 11x1x11.4 mm - Stainless Steel Grade PH15-7 Mo 12 units (24 pcs) Available Now \| Item Discontinued - Up to 12 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $1.86 AUD Regular price ~~$6.38 AUD~~ Sale price $1.86 AUD Unit price per Per 2
CCI-01100-S15 (2 Pcs) --- Internal Retaining Rings - 11x1x11.4 mm - Stainless Steel Grade PH15-7 Mo Sale CCI-01100-S15 (2 Pcs) --- Internal Retaining Rings - 11x1x11.4 mm - Stainless Steel Grade PH15-7 Mo Regular price $1.86 AUD Regular price ~~$6.38 AUD~~ Sale price $1.86 AUD Unit price per 12 Available Now Sale
Housing Bore (B) 11.11 mm _{(0.437 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 11.71 mm + 0.00 / - 0.06 _{(0.461 in.)}	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Standard: MIL-16625
Part Number: CCI-01111-S15 (2 Pcs) Internal Retaining Rings - 11.11x0.64x11.71 mm - Stainless Steel Grade PH15-7 Mo 195 units (390 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 2
Housing Bore (B) 11.11 mm _{(0.437 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 11.71 mm + 0.00 / - 0.06 _{(0.461 in.)}	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Standard: MIL-16625
Part Number: CCI-01111-S15 (2 Pcs) Internal Retaining Rings - 11.11x0.64x11.71 mm - Stainless Steel Grade PH15-7 Mo 195 units (390 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-01111-S15 (2 Pcs) --- Internal Retaining Rings - 11.11x0.64x11.71 mm - Stainless Steel Grade PH15-7 Mo CCI-01111-S15 (2 Pcs) --- Internal Retaining Rings - 11.11x0.64x11.71 mm - Stainless Steel Grade PH15-7 Mo Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 195 Available Now
Housing Bore (B) 11.51 mm _{(0.453 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 12.12 mm + 0.00 / - 0.06 _{(0.477 in.)}	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Standard: MIL-16625
Part Number: CCI-01151-S15 Internal Retaining Rings - 11.51x0.64x12.12 mm - Stainless Steel Grade PH15-7 Mo 17 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per Each
Housing Bore (B) 11.51 mm _{(0.453 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 12.12 mm + 0.00 / - 0.06 _{(0.477 in.)}	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Standard: MIL-16625
Part Number: CCI-01151-S15 Internal Retaining Rings - 11.51x0.64x12.12 mm - Stainless Steel Grade PH15-7 Mo 17 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per Each View the product page first if you are unsure.
CCI-01151-S15 --- Internal Retaining Rings - 11.51x0.64x12.12 mm - Stainless Steel Grade PH15-7 Mo CCI-01151-S15 --- Internal Retaining Rings - 11.51x0.64x12.12 mm - Stainless Steel Grade PH15-7 Mo Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per 17 Available Now
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 12.50 mm + 0.00 / - 0.06 _{(0.492 in.)}	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Standard: DIN472
Part Number: CCI-01200-S15 (2 Pcs) Internal Retaining Rings - 12x1x12.5 mm - Stainless Steel Grade PH15-7 Mo 6 units (12 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Per 2
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 12.50 mm + 0.00 / - 0.06 _{(0.492 in.)}	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Standard: DIN472
Part Number: CCI-01200-S15 (2 Pcs) Internal Retaining Rings - 12x1x12.5 mm - Stainless Steel Grade PH15-7 Mo 6 units (12 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-01200-S15 (2 Pcs) --- Internal Retaining Rings - 12x1x12.5 mm - Stainless Steel Grade PH15-7 Mo CCI-01200-S15 (2 Pcs) --- Internal Retaining Rings - 12x1x12.5 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per 6 Available Now
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm + 0.00 / - 0.06 _{(0.53 in.)}	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.14 Standard: MIL-16625
Part Number: CCI-01270-S15 (2 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel Grade PH15-7 Mo 12 units (24 pcs) Available Now \| Item Discontinued - Up to 12 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $1.95 AUD Regular price ~~$6.84 AUD~~ Sale price $1.95 AUD Unit price per Per 2
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm + 0.00 / - 0.06 _{(0.53 in.)}	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.14 Standard: MIL-16625
Part Number: CCI-01270-S15 (2 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel Grade PH15-7 Mo 12 units (24 pcs) Available Now \| Item Discontinued - Up to 12 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $1.95 AUD Regular price ~~$6.84 AUD~~ Sale price $1.95 AUD Unit price per Per 2
CCI-01270-S15 (2 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel Grade PH15-7 Mo Sale CCI-01270-S15 (2 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel Grade PH15-7 Mo Regular price $1.95 AUD Regular price ~~$6.84 AUD~~ Sale price $1.95 AUD Unit price per 12 Available Now Sale
Housing Bore (B) 13.00 mm _{(0.512 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 13.60 mm + 0.00 / - 0.06 _{(0.535 in.)}	Approx. Loose Circlip OD (Dr) 14.10 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 5.40 mm Clearance in Groove (C1): 6.40 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.90 Standard: DIN472
Part Number: CCI-01300-S15 (5 Pcs) Internal Retaining Rings - 13x1x13.6 mm - Stainless Steel Grade PH15-7 Mo 58 units (290 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Per 5
Housing Bore (B) 13.00 mm _{(0.512 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 13.60 mm + 0.00 / - 0.06 _{(0.535 in.)}	Approx. Loose Circlip OD (Dr) 14.10 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.40 mm Clearance in Groove (C1): 6.40 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.90 Standard: DIN472
Part Number: CCI-01300-S15 (5 Pcs) Internal Retaining Rings - 13x1x13.6 mm - Stainless Steel Grade PH15-7 Mo 58 units (290 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01300-S15 (5 Pcs) --- Internal Retaining Rings - 13x1x13.6 mm - Stainless Steel Grade PH15-7 Mo CCI-01300-S15 (5 Pcs) --- Internal Retaining Rings - 13x1x13.6 mm - Stainless Steel Grade PH15-7 Mo Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per 58 Available Now
Housing Bore (B) 14.00 mm _{(0.551 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 14.60 mm + 0.00 / - 0.06 _{(0.575 in.)}	Approx. Loose Circlip OD (Dr) 15.10 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 6.20 mm Clearance in Groove (C1): 7.20 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 0.90 Standard: DIN472
Part Number: CCI-01400-S15 (5 Pcs) Internal Retaining Rings - 14x1x14.6 mm - Stainless Steel Grade PH15-7 Mo 156 units (780 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 5
Housing Bore (B) 14.00 mm _{(0.551 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 14.60 mm + 0.00 / - 0.06 _{(0.575 in.)}	Approx. Loose Circlip OD (Dr) 15.10 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.20 mm Clearance in Groove (C1): 7.20 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 0.90 Standard: DIN472
Part Number: CCI-01400-S15 (5 Pcs) Internal Retaining Rings - 14x1x14.6 mm - Stainless Steel Grade PH15-7 Mo 156 units (780 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01400-S15 (5 Pcs) --- Internal Retaining Rings - 14x1x14.6 mm - Stainless Steel Grade PH15-7 Mo CCI-01400-S15 (5 Pcs) --- Internal Retaining Rings - 14x1x14.6 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per 156 Available Now
Housing Bore (B) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 16.89 mm + 0.00 / - 0.06 _{(0.665 in.)}	Approx. Loose Circlip OD (Dr) 17.63 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 8.89 mm Clearance in Groove (C1): 9.91 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.52 Standard: MIL-16625
Part Number: CCI-01588-S15 Internal Retaining Rings - 15.88x0.89x16.89 mm - Stainless Steel Grade PH15-7 Mo 44 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per Each
Housing Bore (B) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 16.89 mm + 0.00 / - 0.06 _{(0.665 in.)}	Approx. Loose Circlip OD (Dr) 17.63 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.89 mm Clearance in Groove (C1): 9.91 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.52 Standard: MIL-16625
Part Number: CCI-01588-S15 Internal Retaining Rings - 15.88x0.89x16.89 mm - Stainless Steel Grade PH15-7 Mo 44 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per Each View the product page first if you are unsure.
CCI-01588-S15 --- Internal Retaining Rings - 15.88x0.89x16.89 mm - Stainless Steel Grade PH15-7 Mo CCI-01588-S15 --- Internal Retaining Rings - 15.88x0.89x16.89 mm - Stainless Steel Grade PH15-7 Mo Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per 44 Available Now
Housing Bore (B) 16.00 mm _{(0.63 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 16.80 mm + 0.00 / - 0.06 _{(0.661 in.)}	Approx. Loose Circlip OD (Dr) 17.30 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 8.00 mm Clearance in Groove (C1): 9.20 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.20 Standard: DIN472
Part Number: CCI-01600-S15 (5 Pcs) Internal Retaining Rings - 16x1x16.8 mm - Stainless Steel Grade PH15-7 Mo 67 units (335 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 5
Housing Bore (B) 16.00 mm _{(0.63 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 16.80 mm + 0.00 / - 0.06 _{(0.661 in.)}	Approx. Loose Circlip OD (Dr) 17.30 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.00 mm Clearance in Groove (C1): 9.20 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.20 Standard: DIN472
Part Number: CCI-01600-S15 (5 Pcs) Internal Retaining Rings - 16x1x16.8 mm - Stainless Steel Grade PH15-7 Mo 67 units (335 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01600-S15 (5 Pcs) --- Internal Retaining Rings - 16x1x16.8 mm - Stainless Steel Grade PH15-7 Mo CCI-01600-S15 (5 Pcs) --- Internal Retaining Rings - 16x1x16.8 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per 67 Available Now
Housing Bore (B) 17.00 mm _{(0.669 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 17.80 mm + 0.00 / - 0.06 _{(0.701 in.)}	Approx. Loose Circlip OD (Dr) 18.30 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 8.80 mm Clearance in Groove (C1): 10.00 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.20 Standard: DIN472
Part Number: CCI-01700-S15 (5 Pcs) Internal Retaining Rings - 17x1x17.8 mm - Stainless Steel Grade PH15-7 Mo 5 units (25 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Per 5
Housing Bore (B) 17.00 mm _{(0.669 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 17.80 mm + 0.00 / - 0.06 _{(0.701 in.)}	Approx. Loose Circlip OD (Dr) 18.30 mm + 0.42 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.80 mm Clearance in Groove (C1): 10.00 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.20 Standard: DIN472
Part Number: CCI-01700-S15 (5 Pcs) Internal Retaining Rings - 17x1x17.8 mm - Stainless Steel Grade PH15-7 Mo 5 units (25 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01700-S15 (5 Pcs) --- Internal Retaining Rings - 17x1x17.8 mm - Stainless Steel Grade PH15-7 Mo CCI-01700-S15 (5 Pcs) --- Internal Retaining Rings - 17x1x17.8 mm - Stainless Steel Grade PH15-7 Mo Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per 5 Available Now
Housing Bore (B) 17.46 mm _{(0.687 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 18.59 mm + 0.00 / - 0.06 _{(0.732 in.)}	Approx. Loose Circlip OD (Dr) 19.38 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 10.41 mm Clearance in Groove (C1): 11.43 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.68 Standard: MIL-16625
Part Number: CCI-01746-S15 (5 Pcs) Internal Retaining Rings - 17.46x0.89x18.59 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 18, 2025 Regular price $8.68 AUD Regular price ~~$20.02 AUD~~ Sale price $8.68 AUD Unit price per Per 5
Housing Bore (B) 17.46 mm _{(0.687 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 18.59 mm + 0.00 / - 0.06 _{(0.732 in.)}	Approx. Loose Circlip OD (Dr) 19.38 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 10.41 mm Clearance in Groove (C1): 11.43 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.68 Standard: MIL-16625
Part Number: CCI-01746-S15 (5 Pcs) Internal Retaining Rings - 17.46x0.89x18.59 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 18, 2025 Regular price $8.68 AUD Regular price ~~$20.02 AUD~~ Sale price $8.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01746-S15 (5 Pcs) --- Internal Retaining Rings - 17.46x0.89x18.59 mm - Stainless Steel Grade PH15-7 Mo Sale CCI-01746-S15 (5 Pcs) --- Internal Retaining Rings - 17.46x0.89x18.59 mm - Stainless Steel Grade PH15-7 Mo Regular price $8.68 AUD Regular price ~~$20.02 AUD~~ Sale price $8.68 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 22.23 mm _{(0.875 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 23.65 mm + 0.00 / - 0.06 _{(0.931 in.)}	Approx. Loose Circlip OD (Dr) 24.66 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 13.97 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.13 Standard: MIL-16625
Part Number: CCI-02223-S15 Internal Retaining Rings - 22.23x1.07x23.65 mm - Stainless Steel Grade PH15-7 Mo 18 Available Now \| Item Discontinued - Up to 18 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.05 AUD Regular price ~~$6.82 AUD~~ Sale price $2.05 AUD Unit price per Each
Housing Bore (B) 22.23 mm _{(0.875 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 23.65 mm + 0.00 / - 0.06 _{(0.931 in.)}	Approx. Loose Circlip OD (Dr) 24.66 mm + 0.38 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.97 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.13 Standard: MIL-16625
Part Number: CCI-02223-S15 Internal Retaining Rings - 22.23x1.07x23.65 mm - Stainless Steel Grade PH15-7 Mo 18 Available Now \| Item Discontinued - Up to 18 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.05 AUD Regular price ~~$6.82 AUD~~ Sale price $2.05 AUD Unit price per Each
CCI-02223-S15 --- Internal Retaining Rings - 22.23x1.07x23.65 mm - Stainless Steel Grade PH15-7 Mo Sale CCI-02223-S15 --- Internal Retaining Rings - 22.23x1.07x23.65 mm - Stainless Steel Grade PH15-7 Mo Regular price $2.05 AUD Regular price ~~$6.82 AUD~~ Sale price $2.05 AUD Unit price per 18 Available Now Sale
Housing Bore (B) 23.00 mm _{(0.906 in.)}	Clip Thickness (T) 1.20 mm + 0.21 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 24.10 mm + 0.00 / - 0.06 _{(0.949 in.)}	Approx. Loose Circlip OD (Dr) 24.60 mm + 0.42 / - 0.21		Groove Width (W) 1.30 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 14.20 mm Clearance in Groove (C1): 15.70 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.70 Standard: DIN472
Part Number: CCI-02300-S15 Internal Retaining Rings - 23x1.2x24.1 mm - Stainless Steel Grade PH15-7 Mo 44 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each
Housing Bore (B) 23.00 mm _{(0.906 in.)}	Clip Thickness (T) 1.20 mm + 0.21 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 24.10 mm + 0.00 / - 0.06 _{(0.949 in.)}	Approx. Loose Circlip OD (Dr) 24.60 mm + 0.42 / - 0.21
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.08 / - 0.00 Clearance in Bore (C): 14.20 mm Clearance in Groove (C1): 15.70 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.70 Standard: DIN472
Part Number: CCI-02300-S15 Internal Retaining Rings - 23x1.2x24.1 mm - Stainless Steel Grade PH15-7 Mo 44 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each View the product page first if you are unsure.
CCI-02300-S15 --- Internal Retaining Rings - 23x1.2x24.1 mm - Stainless Steel Grade PH15-7 Mo CCI-02300-S15 --- Internal Retaining Rings - 23x1.2x24.1 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per 44 Available Now
Housing Bore (B) 23.81 mm _{(0.937 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 25.40 mm + 0.00 / - 0.06 _{(1 in.)}	Approx. Loose Circlip OD (Dr) 26.44 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 15.49 mm Clearance in Groove (C1): 17.02 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.36 Standard: MIL-16625
Part Number: CCI-02381-S15 Internal Retaining Rings - 23.81x1.07x25.4 mm - Stainless Steel Grade PH15-7 Mo 2 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each
Housing Bore (B) 23.81 mm _{(0.937 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 25.40 mm + 0.00 / - 0.06 _{(1 in.)}	Approx. Loose Circlip OD (Dr) 26.44 mm + 0.38 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 15.49 mm Clearance in Groove (C1): 17.02 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.36 Standard: MIL-16625
Part Number: CCI-02381-S15 Internal Retaining Rings - 23.81x1.07x25.4 mm - Stainless Steel Grade PH15-7 Mo 2 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each View the product page first if you are unsure.
CCI-02381-S15 --- Internal Retaining Rings - 23.81x1.07x25.4 mm - Stainless Steel Grade PH15-7 Mo CCI-02381-S15 --- Internal Retaining Rings - 23.81x1.07x25.4 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per 2 Available Now
Housing Bore (B) 25.00 mm _{(0.984 in.)}	Clip Thickness (T) 1.20 mm + 0.21 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 26.20 mm + 0.00 / - 0.06 _{(1.031 in.)}	Approx. Loose Circlip OD (Dr) 26.90 mm + 0.42 / - 0.21		Groove Width (W) 1.30 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 15.50 mm Clearance in Groove (C1): 17.20 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472
Part Number: CCI-02500-S15 Internal Retaining Rings - 25x1.2x26.2 mm - Stainless Steel Grade PH15-7 Mo 4 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Each
Housing Bore (B) 25.00 mm _{(0.984 in.)}	Clip Thickness (T) 1.20 mm + 0.21 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 26.20 mm + 0.00 / - 0.06 _{(1.031 in.)}	Approx. Loose Circlip OD (Dr) 26.90 mm + 0.42 / - 0.21
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.08 / - 0.00 Clearance in Bore (C): 15.50 mm Clearance in Groove (C1): 17.20 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472
Part Number: CCI-02500-S15 Internal Retaining Rings - 25x1.2x26.2 mm - Stainless Steel Grade PH15-7 Mo 4 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Each View the product page first if you are unsure.
CCI-02500-S15 --- Internal Retaining Rings - 25x1.2x26.2 mm - Stainless Steel Grade PH15-7 Mo CCI-02500-S15 --- Internal Retaining Rings - 25x1.2x26.2 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per 4 Available Now
Housing Bore (B) 25.40 mm _{(1 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 27.08 mm + 0.00 / - 0.06 _{(1.066 in.)}	Approx. Loose Circlip OD (Dr) 28.22 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 17.27 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.51 Standard: MIL-16625
Part Number: CCI-02540-S15 Internal Retaining Rings - 25.4x1.07x27.08 mm - Stainless Steel Grade PH15-7 Mo 2 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Housing Bore (B) 25.40 mm _{(1 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 27.08 mm + 0.00 / - 0.06 _{(1.066 in.)}	Approx. Loose Circlip OD (Dr) 28.22 mm + 0.38 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 17.27 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.51 Standard: MIL-16625
Part Number: CCI-02540-S15 Internal Retaining Rings - 25.4x1.07x27.08 mm - Stainless Steel Grade PH15-7 Mo 2 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
CCI-02540-S15 --- Internal Retaining Rings - 25.4x1.07x27.08 mm - Stainless Steel Grade PH15-7 Mo CCI-02540-S15 --- Internal Retaining Rings - 25.4x1.07x27.08 mm - Stainless Steel Grade PH15-7 Mo Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 2 Available Now
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 33.72 mm + 0.00 / - 0.06 _{(1.328 in.)}	Approx. Loose Circlip OD (Dr) 35.26 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 22.35 mm Clearance in Groove (C1): 24.13 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.05 Standard: MIL-16625
Part Number: CCI-03175-S15 Internal Retaining Rings - 31.75x1.27x33.72 mm - Stainless Steel Grade PH15-7 Mo 13 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Each
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 33.72 mm + 0.00 / - 0.06 _{(1.328 in.)}	Approx. Loose Circlip OD (Dr) 35.26 mm + 0.64 / - 0.38
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 22.35 mm Clearance in Groove (C1): 24.13 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.05 Standard: MIL-16625
Part Number: CCI-03175-S15 Internal Retaining Rings - 31.75x1.27x33.72 mm - Stainless Steel Grade PH15-7 Mo 13 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Each View the product page first if you are unsure.
CCI-03175-S15 --- Internal Retaining Rings - 31.75x1.27x33.72 mm - Stainless Steel Grade PH15-7 Mo CCI-03175-S15 --- Internal Retaining Rings - 31.75x1.27x33.72 mm - Stainless Steel Grade PH15-7 Mo Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per 13 Available Now
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 37.00 mm + 0.00 / - 0.06 _{(1.457 in.)}	Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 23.60 mm Clearance in Groove (C1): 26.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Standard: DIN472
Part Number: CCI-03500-S15 Internal Retaining Rings - 35x1.5x37 mm - Stainless Steel Grade PH15-7 Mo 2 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Each
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 37.00 mm + 0.00 / - 0.06 _{(1.457 in.)}	Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 23.60 mm Clearance in Groove (C1): 26.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Standard: DIN472
Part Number: CCI-03500-S15 Internal Retaining Rings - 35x1.5x37 mm - Stainless Steel Grade PH15-7 Mo 2 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Each View the product page first if you are unsure.
CCI-03500-S15 --- Internal Retaining Rings - 35x1.5x37 mm - Stainless Steel Grade PH15-7 Mo CCI-03500-S15 --- Internal Retaining Rings - 35x1.5x37 mm - Stainless Steel Grade PH15-7 Mo Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per 2 Available Now

Small Parts & Bearings Pty Ltd - 3A / 8 Boyland Avenue, Coopers Plains, Queensland, Australia. (abn: 79 121 865 414)
