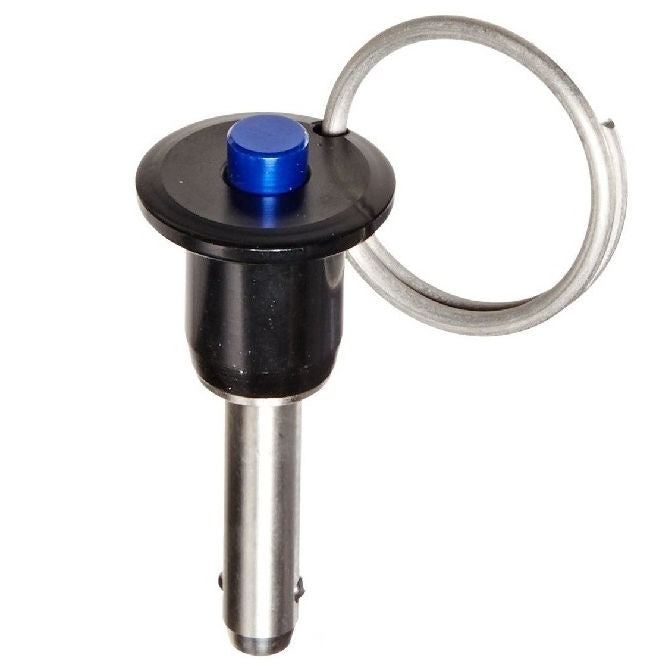

Ball Lock Pins - 12.7x38.1 mm - 304 Stainless Steel Shank / Aluminium Handle

BLP-127-0381-BT-S4

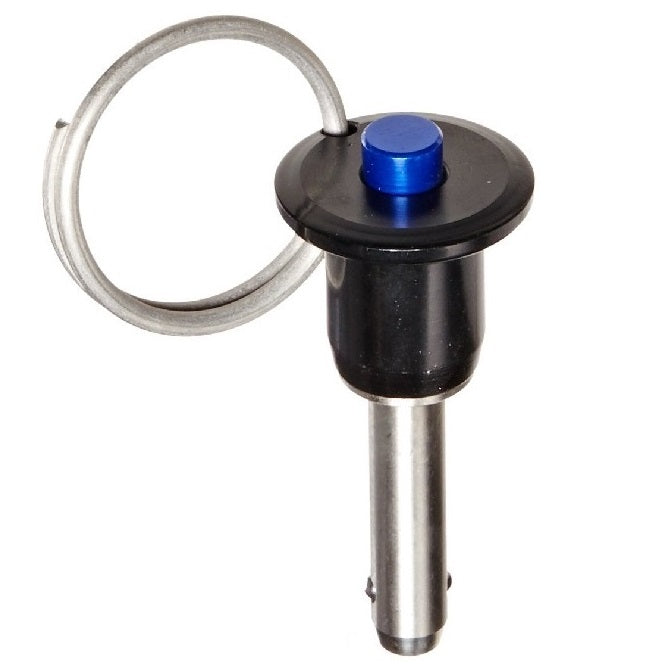

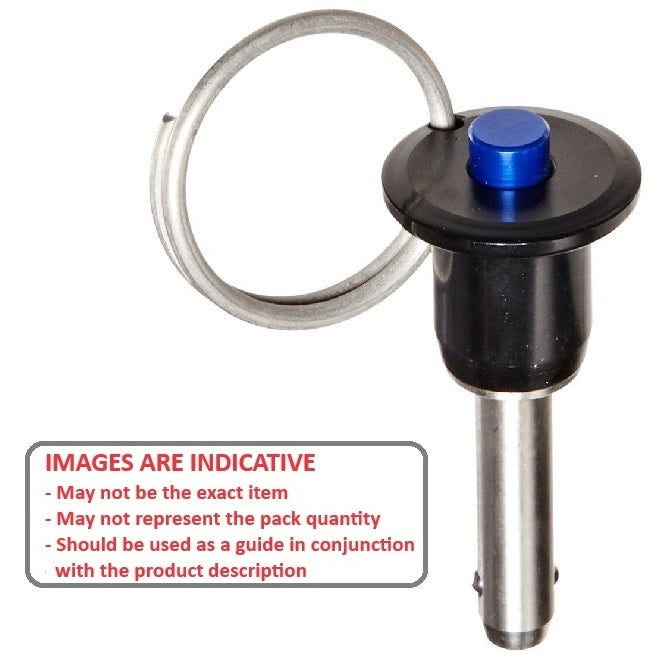

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Ball Lock Pins - 12.7x38.1 mm - 304 Stainless Steel Shank / Aluminium Handle
1 4

MBA

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Price:
$30.86 AUD
$64.11 AUD $30.86 AUD
Each
Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Base Category: Pins - Ball Lock

Top Level Category: Pins - Ball Lock - Button Handle - Commercial 304 Stainless

Product Details:

Nominal Diameter: 12.70mm
(12.70mm is 0.5 in.)

Stainless Steel 304 with Aluminium Handle

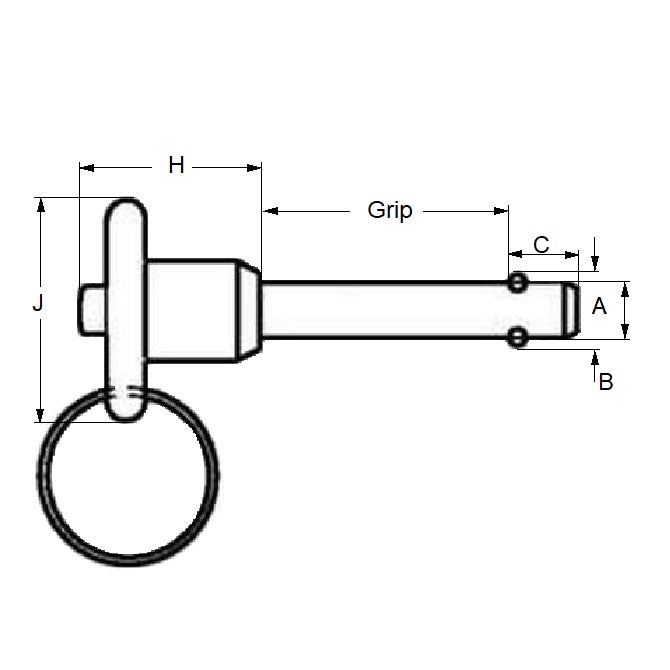

  • Grip Length (B): 38.10mm
    (38.10mm is 1.5 in.)
  • Pin Material Grade: 304 Stainless Steel Shank / Aluminium Handle
  • Locking Ball to End (C): 11.68mm
  • Open Ball Distance (B): 15.09mm
  • Max. Handle Height (H): 30.23mm
  • Max. Handle Diameter (J): 35.56mm
  • Min. Handle Diameter (J): 33.02mm
  • Pull Out Strength: 400.00Kg
  • Calc. Double Shear Strength: 5100Kg

Brand: MBA
Country of Origin: US

Alternative Parts Include: 90985A411, CPB120, CPB-120, ALTPART

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
