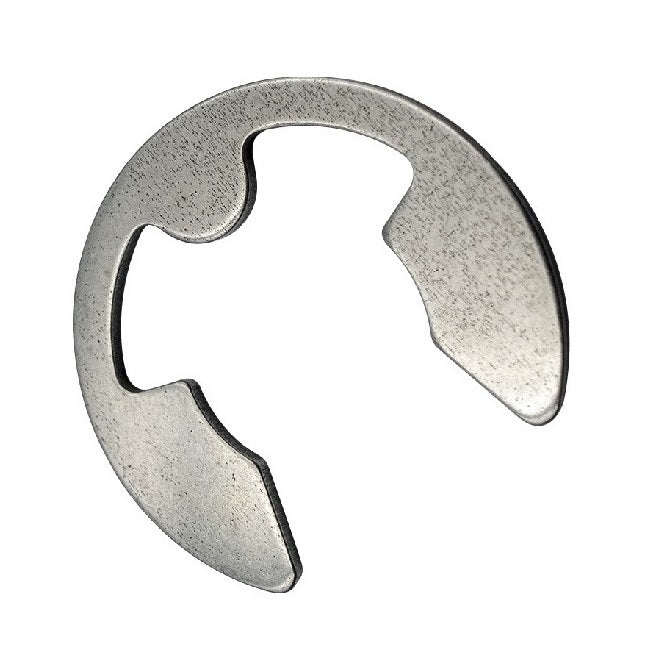

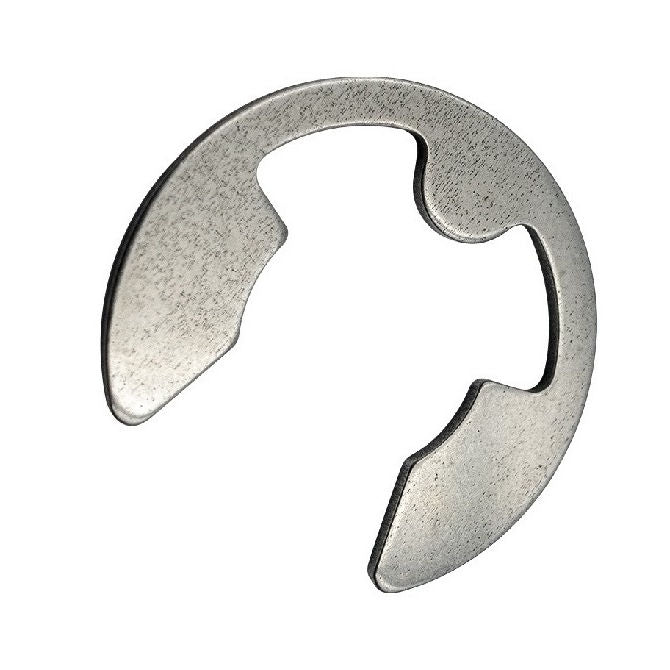

E-Clips Retaining Rings - 11x10x1.2 mm - Stainless Steel Grade PH15-7 Mo

ECL-0100-0110-S15 (2 Pcs)

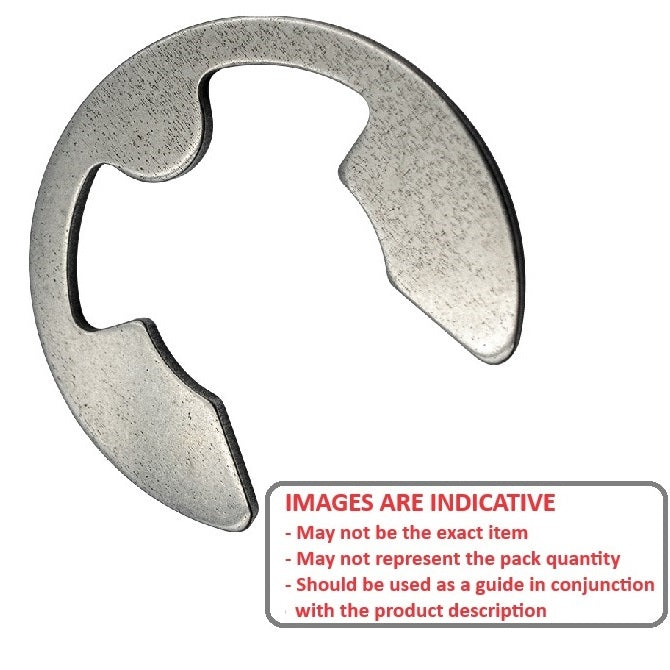

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • E-Clips Retaining Rings - 11x10x1.2 mm - Stainless Steel Grade PH15-7 Mo
1 4

MBA

Additional resources:
Assortment Kits
E-Clip Applicators
Price:
$8.86 AUD
$8.86 AUD
per 2
Qty: 4 available now (8 pcs)
Order 50 or more (100 pcs) for $7.97 AUD per 2
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 20, 2025

Base Category: Retaining Rings - E-Clips

Top Level Category: Retaining Rings - E-Clips - Basic - Stainless Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 1449

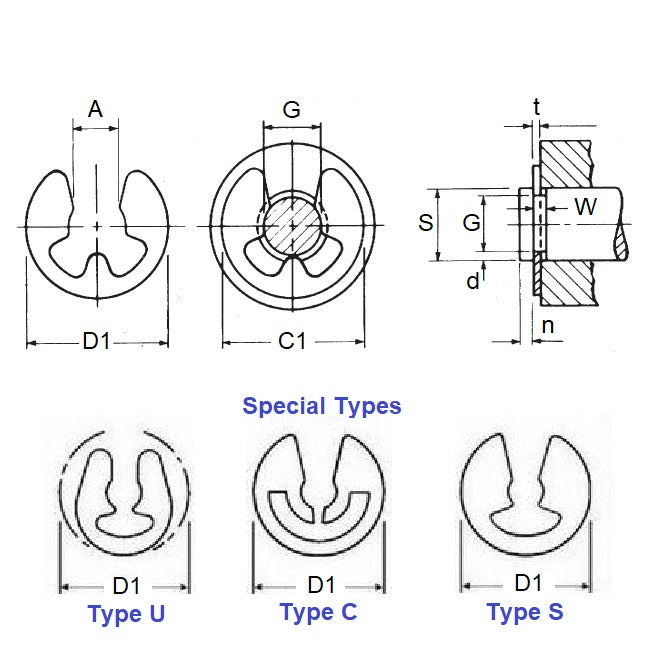

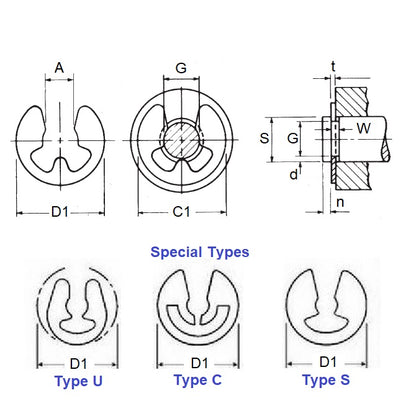

Minimum Rec. Shaft Dia (S): 11.00mm
+ 4.00 / - 0.00
(11.00mm is 0.433 in.)

Stainless Steel Grade PH15-7 Mo
  • Groove Dia. (Dg): 10.00mm
    + 0.00 / - 0.09
    (10.00mm is 0.394 in.)
  • Clip Thickness (T): 1.20mm
    +/ - 0.03
    (1.20mm is 0.047 in.)
  • Clip OD Loose (D1): 19.65mm
  • Groove Width (W): 1.25mm
  • Maximum Rec. Shaft Dia (S): 15.00
  • Clip OD in groove (C1): 20.40mm
  • Loose Clip ID (A): 8.32mm
  • Min. Extension (n): 2.00
  • Standard: DIN6799

Brand: MBA
Country of Origin: US

Alternative Parts Include: 98317A233, MERE-10, MERE10, DE100SS, DE-100-SS, ALTPART, NoCor, Small Parts
