E-Clips Retaining Rings - 11.11x8.74x0.89 mm - Carbon Steel

ECB-0087-0111-S15

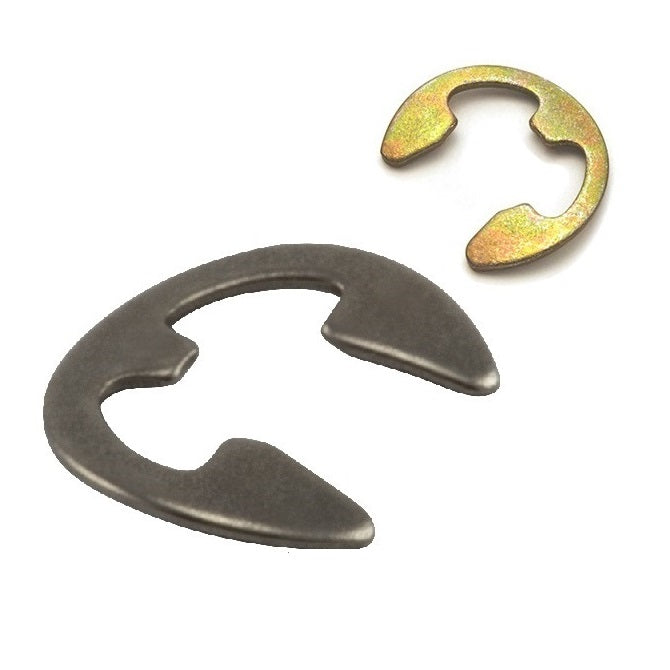

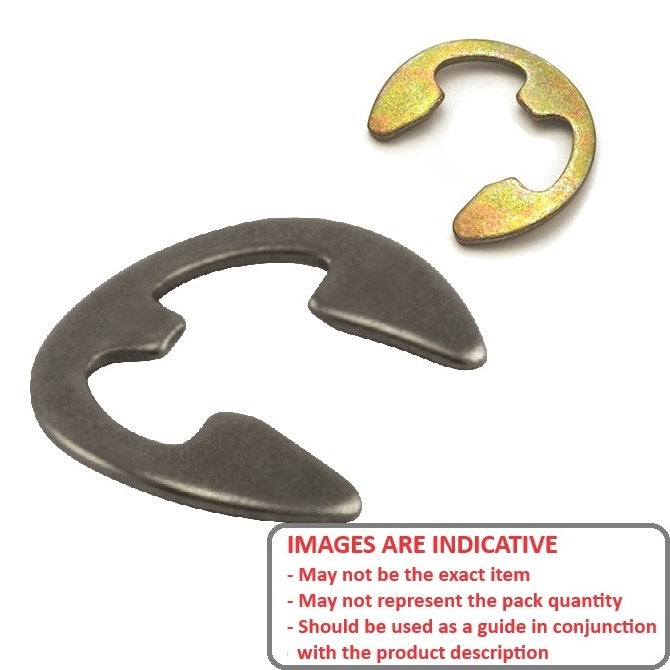

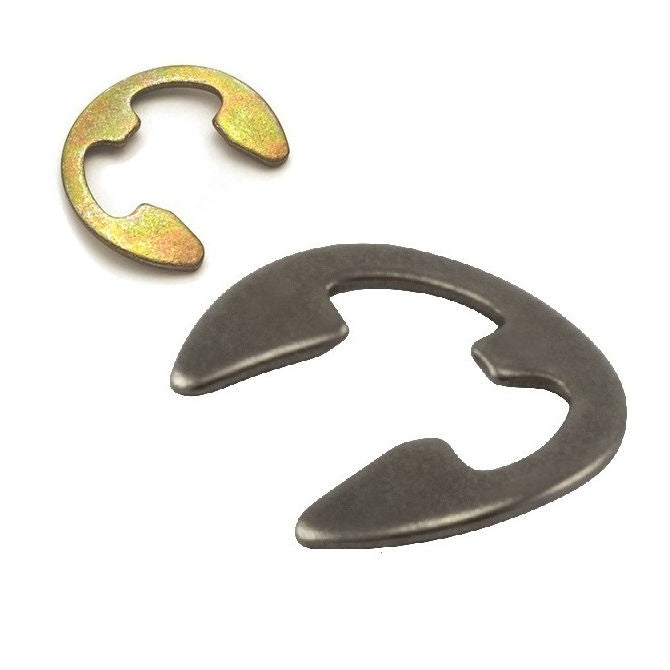

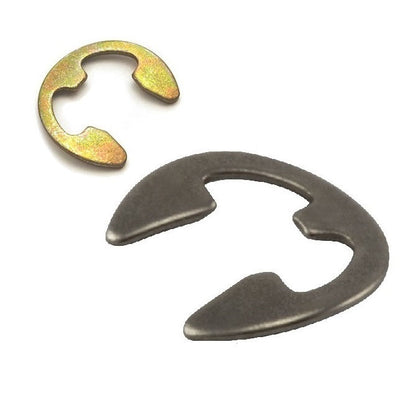

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • E-Clips Retaining Rings - 11.11x8.74x0.89 mm - Carbon Steel
1 4

MBA

Additional resources:
Assortment Kits
Price:
$2.59 AUD
$6.90 AUD $2.59 AUD
Each
Qty: 2 available now
Only 2 may be ordered online. If you need a large quantity, please contact us.

Base Category: Retaining Rings - E-Clips

Top Level Category: Retaining Rings - E-Clips - Bowed

Product Details:

Additional stock available from USA subject to Prior Sale = 12176

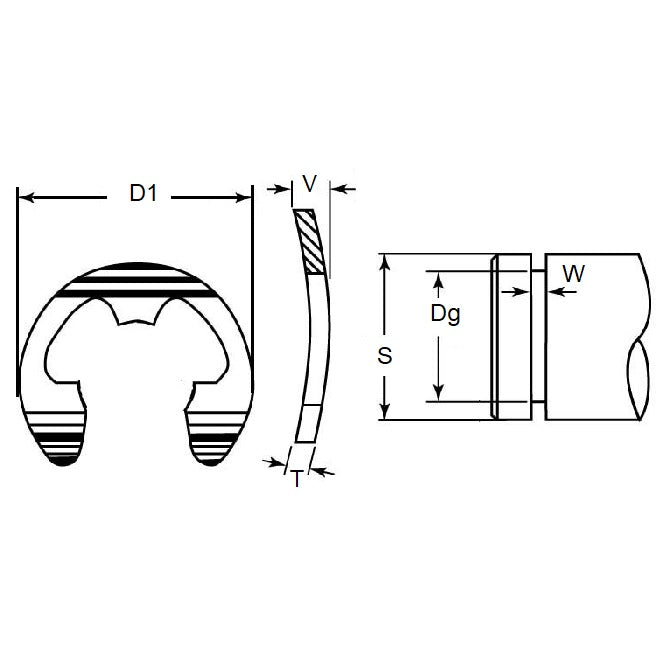

Minimum Rec. Shaft Dia (S): 11.11mm
(11.11mm is 0.437 in.)

Carbon Steel
  • Groove Dia. (Dg): 8.74mm
    + 0.076 / - 0.000
    (8.74mm is 0.344 in.)
  • Clip Thickness (T): 0.89mm
    +/ - 0.051
    (0.89mm is 0.035 in.)
  • Clip OD Loose (D1): 17.45mm
  • Groove Width (W): 1.52mm
  • Ring Width (X): 1.52mm
  • Force Required to Flatten: 22.3kg

Brand: MBA
Country of Origin: US

Alternative Parts Include: N1501-0043KSF, N15010043KSF, S73KW213143, S73KW2-131-43

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
