E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Stainless Steel Grade PH15-7 Mo

ECL-0013-0016A-S15 (20 Pcs)

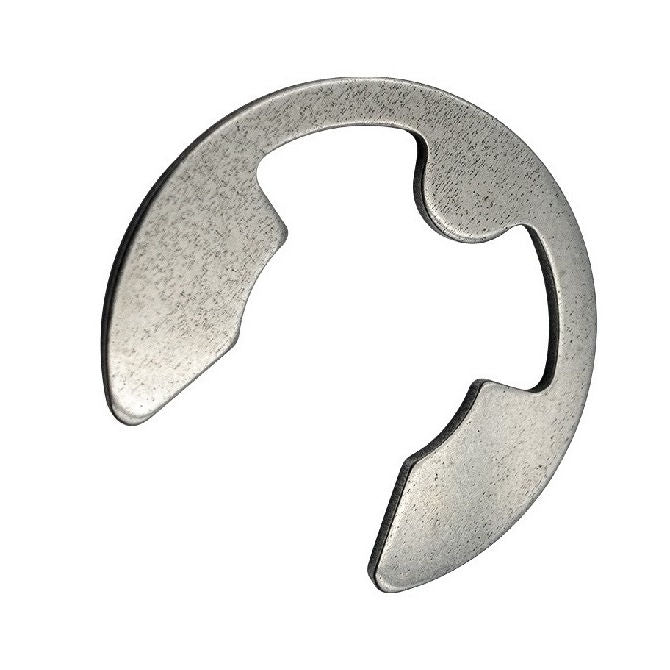

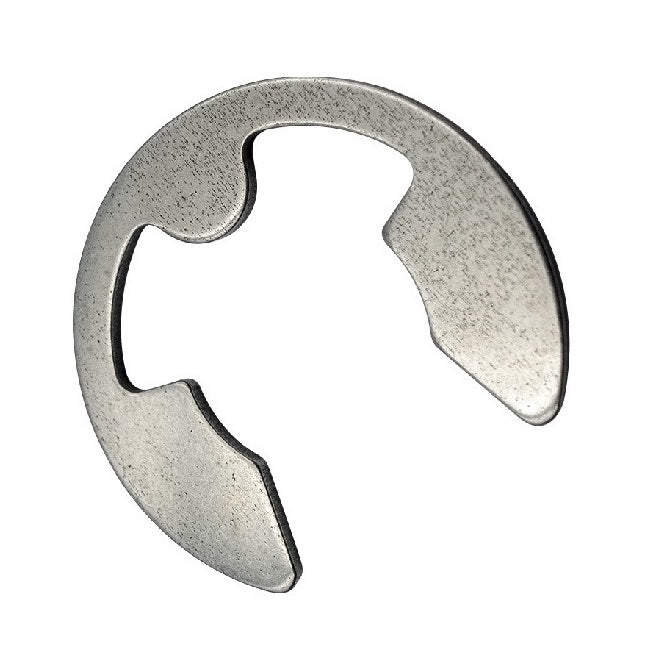

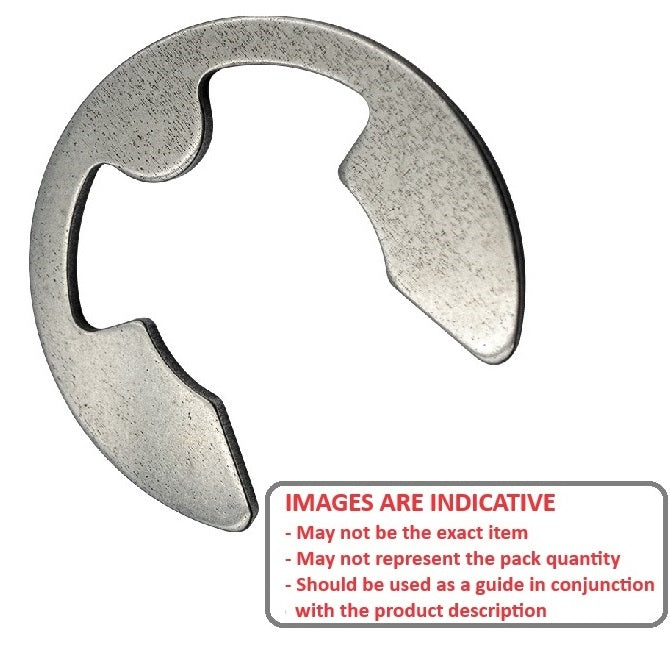

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Stainless Steel Grade PH15-7 Mo
1 4

MBA

Additional resources:
Assortment Kits
E-Clip Applicators
Price:
$9.32 AUD
$32.08 AUD $9.32 AUD
per 20
Qty: 25 available now (500 pcs)
Only 25 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Retaining Rings - E-Clips

Top Level Category: Retaining Rings - E-Clips - Basic - Stainless Steel

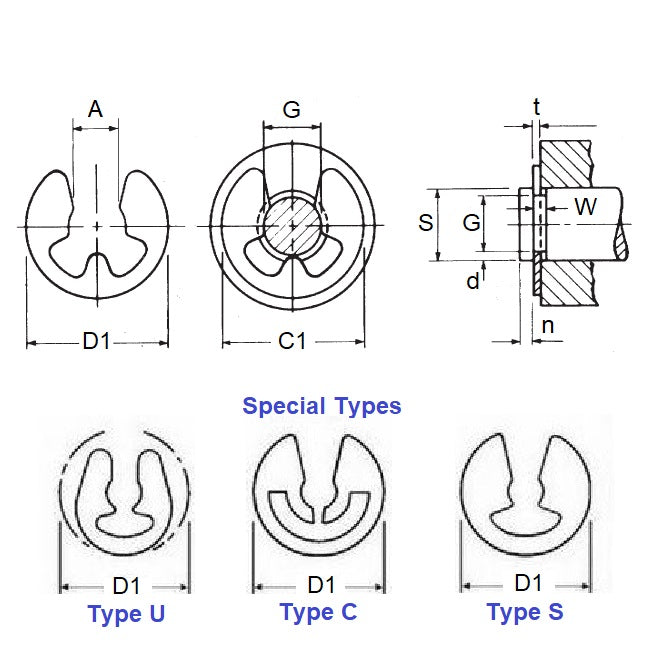

Product Details:

Minimum Rec. Shaft Dia (S): 1.59mm
+ 0.76 / - 0.00
(1.59mm is 0.063 in.)

Stainless Steel Grade PH15-7 Mo
  • Groove Dia. (Dg): 1.32mm
    + 0.051 / - 0.000
    (1.32mm is 0.052 in.)
  • Clip Thickness (T): 0.25mm
    +/ - 0.025
    (0.25mm is 0.01 in.)
  • Clip OD Loose (D1): 3.96mm
  • Groove Width (W): 0.30mm
  • Maximum Rec. Shaft Dia (S): 2.35
  • Clip OD in groove (C1): 4.19mm
  • Standard: MIL-16633

Brand: MBA
Country of Origin: US

Alternative Parts Include: N15000006KSF, N1500-0006KSF, N1500-006-SS, N1500006SS, S73LW2-ER133-06, S73LW2ER13306, 98408A112, 5133-006-SS, 5133006SS, E-006-SS, E006SS, Waldes, ALTPART, Ellison, NoCor, Rotorclip

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
