Hammer Drive Pins - 1.52x6.3x1.6 mm - Stainless Steel

HDP015-06R-S4 (5 Pcs)

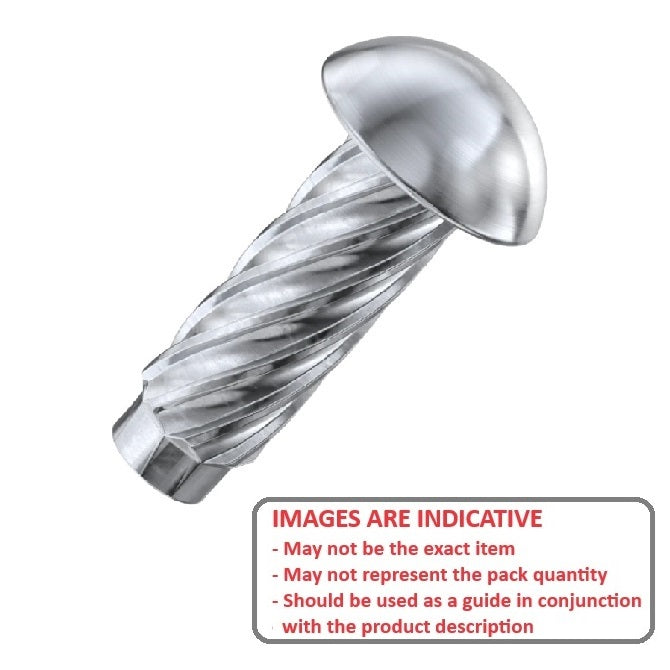

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Hammer Drive Pins - 1.52x6.3x1.6 mm - Stainless Steel
1 4

NoCor

Additional resources:
Master Pins Catalogue PDF
Price:
$5.95 AUD
$5.95 AUD
per 5
Qty: 120 available now (600 pcs)
Order 50 or more (250 pcs) for $5.36 AUD per 5
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 05, 2025

Base Category: Pins - Hammer Drive

Top Level Category: Pins - Hammer Drive - Round Head Stainless Steel

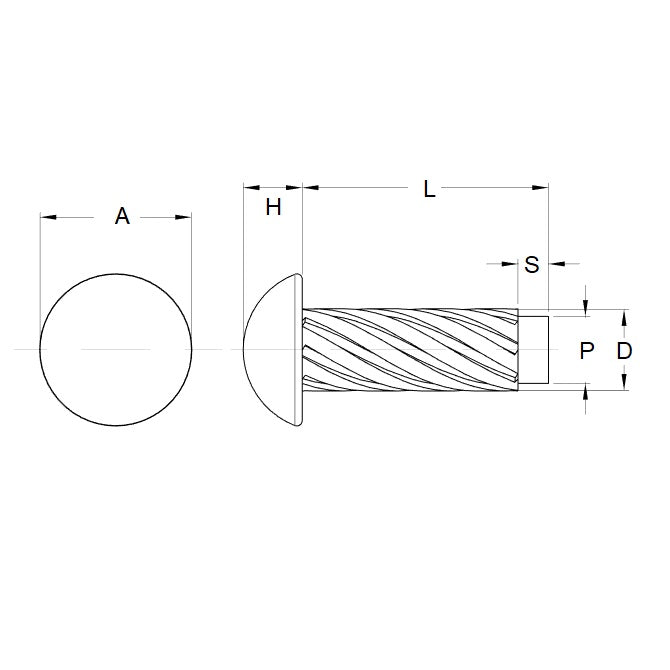

Product Details:

Min Hole Dia.: 1.52mm
(1.52mm is 0.06 in.)

Stainless Steel
  • Approx. Length (l): 6.3mm
    (6.3mm is 0.248 in.)
  • Max Hole Dia.: 1.60mm
    (1.60mm is 0.063 in.)
  • Approx Pin Diameter (d1): 1.70mm
  • Max Head Diameter (d2): 2.51mm
  • Max Head Thickness (h): 0.86mm
  • Nom. Pilot Length: 1.2mm

Brand: NoCor
Country of Origin: TW

Alternative Parts Include: 91654A035, ALTPART

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
