HDP015-06R-S4 - Datasheet
NoCor
Category Information

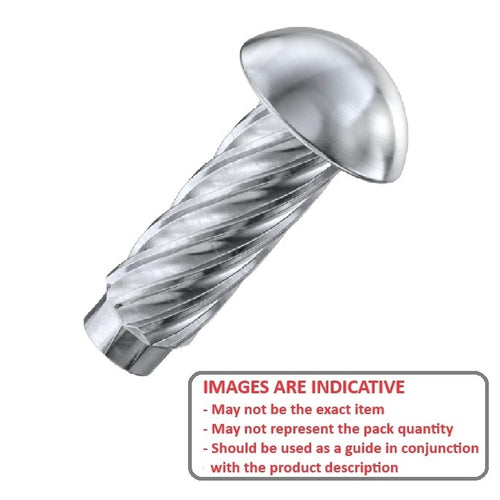

Pins - Hammer Drive - Round Head Stainless SteelRound Head Stainless Steel Hammer Drive Pins. Used to replace screws where the need to remove the pin is unlikely.
- Stainless Steel 304 Grade
- Simple, low cost assembly.
- Secure - unlike a machine screw, a drive stud does not depend on tightening torque to be retained in the assembly.
- Drive studs do not require lock washers to prevent back-out.
- Designed for standard metric hole sizes and installation by hammer or press. Cold formed pins with helical knurls.

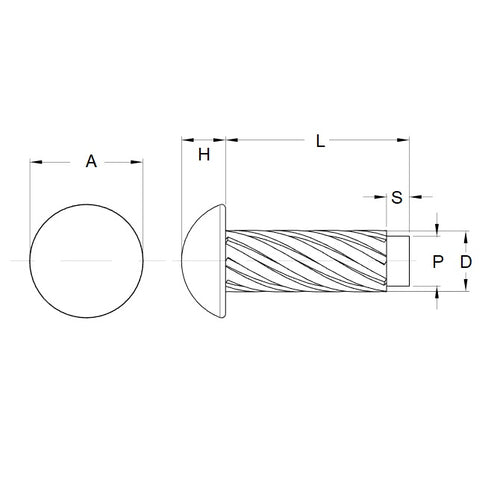

Product Data
- Min Hole Diameter : 1.52 mm
- Approx. Length (l) 6.3 mm
- Max Hole Dia. 1.60 mm
- Approx Pin Diameter (d1) 1.70 mm
- Max Head Diameter (d2) 2.51 mm
- Max Head Thickness (h) 0.86 mm
- Nom. Pilot Length 1.2 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 91654A035
