Collection: Washers - Disc Spring - Standard

Washers (With Images)

Disc Spring

41 Products in this selection

This category includes various types of disc spring washers.

Disc spring washer, also known as a Belleville washer, is a conical-shaped washer designed to act as a spring.
Provides a high spring force within a small space and can be stacked in various configurations to adjust load and deflection characteristics.
Washers are used to add vibration resistance, preload to bolted assemblies, and to compensate for material expansion or contraction.

Small Parts & Bearings

Additional resources:
Disc Spring Washers PDF
Screws

A more comprehensive listing may be found on the MBA Minibearings main store at Washers - Disc Spring - Standard.

Nominal Outside Diameter (A)	Nominal Inside Diameter (B)	Stock Thickness (C)	Load to flatten	Loaded Height (L1)	Load at L1	Indicative Image
Nominal Outside Diameter (A) 4.76 mm _{+ 0.01 / + 0.07} (Equiv. 0.187 in.)	Nominal Inside Diameter (B) 2.38 mm _{+ 0.10 / - 0.00} (Equiv. 0.094 in.)	Stock Thickness (C) 0.25 mm	Load to flatten 12.41 kg	Loaded Height (L1) 0.30 mm	Load at L1 6.8 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0024-D-005-003-S2 (Each) Disc Spring Washers - 4.76x2.38x0.25 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer 272 Available Now \| Item Discontinued - Up to 272 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $1.14 AUD Regular price ~~$2.22 AUD~~ Sale price $1.14 AUD Unit price per Each
Nominal Outside Diameter (A)	Nominal Inside Diameter (B)	Stock Thickness (C)	Load to flatten	Indicative Image
Nominal Outside Diameter (A) 4.76 mm _{+ 0.01 / + 0.07} (Equiv. 0.187 in.)	Nominal Inside Diameter (B) 2.38 mm _{+ 0.10 / - 0.00} (Equiv. 0.094 in.)	Stock Thickness (C) 0.25 mm	Load to flatten 12.41 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Loaded Height (L1): 0.30 mm Load at L1: 6.8 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0024-D-005-003-S2 (Each) Disc Spring Washers - 4.76x2.38x0.25 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer 272 Available Now \| Item Discontinued - Up to 272 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $1.14 AUD Regular price ~~$2.22 AUD~~ Sale price $1.14 AUD Unit price per Each
W0024-D-005-003-S2 (Each) --- Disc Spring Washers - 4.76x2.38x0.25 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer Sale W0024-D-005-003-S2 (Each) --- Disc Spring Washers - 4.76x2.38x0.25 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer Regular price $1.14 AUD Regular price ~~$2.22 AUD~~ Sale price $1.14 AUD Unit price per 272 Available Now Sale
Nominal Outside Diameter (A) 8.00 mm	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.30 mm		Loaded Height (L1) 0.36 mm	Load at L1 12.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel

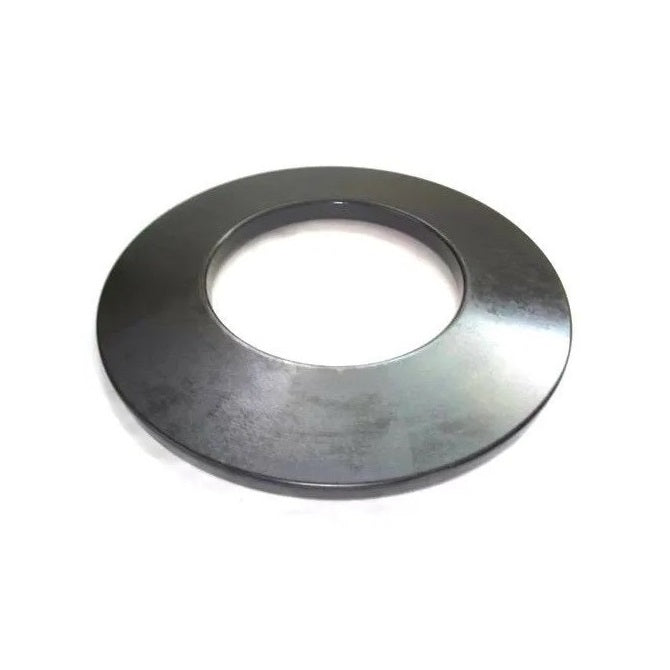

Part Number: W0040-D-008-003-C (PK-10) Disc Spring Washers - 8x4x0.3 mm Standard - Carbon Steel Washer 3 units (30 pcs) Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.19 AUD Regular price ~~$9.49 AUD~~ Sale price $3.19 AUD Unit price per Per 10
Nominal Outside Diameter (A) 8.00 mm	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.30 mm
Material: Carbon Steel Loaded Height (L1): 0.36 mm Load at L1: 12.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-008-003-C (PK-10) Disc Spring Washers - 8x4x0.3 mm Standard - Carbon Steel Washer 3 units (30 pcs) Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.19 AUD Regular price ~~$9.49 AUD~~ Sale price $3.19 AUD Unit price per Per 10
W0040-D-008-003-C (PK-10) --- Disc Spring Washers - 8x4x0.3 mm Standard - Carbon Steel Washer Sale W0040-D-008-003-C (PK-10) --- Disc Spring Washers - 8x4x0.3 mm Standard - Carbon Steel Washer Regular price $3.19 AUD Regular price ~~$9.49 AUD~~ Sale price $3.19 AUD Unit price per 3 Available Now Sale
Nominal Outside Diameter (A) 9.53 mm _{+ 0.01 / + 0.07} (Equiv. 0.375 in.)	Nominal Inside Diameter (B) 4.76 mm _{+ 0.20 / - 0.00} (Equiv. 0.187 in.)	Stock Thickness (C) 0.51 mm _{- 0.00 / - 0.08} (Equiv. 0.02 in.)	Load to flatten 49.11 kg	Loaded Height (L1) 0.64 mm	Load at L1 26.8 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0048-D-010-005-S2 (Each) Disc Spring Washers - 9.53x4.76x0.51 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer 2235 Available Now \| Further orders can be expected around Tue, Aug 25, 2026 Regular price $0.90 AUD Regular price ~~$1.08 AUD~~ Sale price $0.90 AUD Unit price per Each
Nominal Outside Diameter (A) 9.53 mm _{+ 0.01 / + 0.07} (Equiv. 0.375 in.)	Nominal Inside Diameter (B) 4.76 mm _{+ 0.20 / - 0.00} (Equiv. 0.187 in.)	Stock Thickness (C) 0.51 mm _{- 0.00 / - 0.08} (Equiv. 0.02 in.)	Load to flatten 49.11 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Loaded Height (L1): 0.64 mm Load at L1: 26.8 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0048-D-010-005-S2 (Each) Disc Spring Washers - 9.53x4.76x0.51 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer 2235 Available Now \| Further orders can be expected around Tue, Aug 25, 2026 Regular price $0.90 AUD Regular price ~~$1.08 AUD~~ Sale price $0.90 AUD Unit price per Each View the product page first if you are unsure.
W0048-D-010-005-S2 (Each) --- Disc Spring Washers - 9.53x4.76x0.51 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer Sale W0048-D-010-005-S2 (Each) --- Disc Spring Washers - 9.53x4.76x0.51 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer Regular price $0.90 AUD Regular price ~~$1.08 AUD~~ Sale price $0.90 AUD Unit price per 2235 Available Now Sale
Nominal Outside Diameter (A) 10.00 mm	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.30 mm		Loaded Height (L1) 0.39 mm	Load at L1 10.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-010-003-C (PK-10) Disc Spring Washers - 10x3x0.3 mm Standard - Carbon Steel Washer 10 units (100 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Per 10
Nominal Outside Diameter (A) 10.00 mm	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.30 mm
Material: Carbon Steel Loaded Height (L1): 0.39 mm Load at L1: 10.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-010-003-C (PK-10) Disc Spring Washers - 10x3x0.3 mm Standard - Carbon Steel Washer 10 units (100 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Per 10
W0030-D-010-003-C (PK-10) --- Disc Spring Washers - 10x3x0.3 mm Standard - Carbon Steel Washer Sale W0030-D-010-003-C (PK-10) --- Disc Spring Washers - 10x3x0.3 mm Standard - Carbon Steel Washer Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per 10 Available Now Sale
Nominal Outside Diameter (A) 10.00 mm	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.40 mm		Loaded Height (L1) 0.48 mm	Load at L1 19.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-010-004-C (PK-10) Disc Spring Washers - 10x4x0.4 mm Standard - Carbon Steel Washer 2 units (20 pcs) Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Per 10
Nominal Outside Diameter (A) 10.00 mm	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.40 mm
Material: Carbon Steel Loaded Height (L1): 0.48 mm Load at L1: 19.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-010-004-C (PK-10) Disc Spring Washers - 10x4x0.4 mm Standard - Carbon Steel Washer 2 units (20 pcs) Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Per 10
W0040-D-010-004-C (PK-10) --- Disc Spring Washers - 10x4x0.4 mm Standard - Carbon Steel Washer Sale W0040-D-010-004-C (PK-10) --- Disc Spring Washers - 10x4x0.4 mm Standard - Carbon Steel Washer Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per 2 Available Now Sale
Nominal Outside Diameter (A) 10.00 mm	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.50 mm		Loaded Height (L1) 0.56 mm	Load at L1 29.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-010-005-C (PK-10) Disc Spring Washers - 10x4x0.5 mm Standard - Carbon Steel Washer 29 units (290 pcs) Available Now \| Item Discontinued - Up to 29 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.59 AUD~~ Sale price $3.26 AUD Unit price per Per 10
Nominal Outside Diameter (A) 10.00 mm	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.50 mm
Material: Carbon Steel Loaded Height (L1): 0.56 mm Load at L1: 29.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-010-005-C (PK-10) Disc Spring Washers - 10x4x0.5 mm Standard - Carbon Steel Washer 29 units (290 pcs) Available Now \| Item Discontinued - Up to 29 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.59 AUD~~ Sale price $3.26 AUD Unit price per Per 10
W0040-D-010-005-C (PK-10) --- Disc Spring Washers - 10x4x0.5 mm Standard - Carbon Steel Washer Sale W0040-D-010-005-C (PK-10) --- Disc Spring Washers - 10x4x0.5 mm Standard - Carbon Steel Washer Regular price $3.26 AUD Regular price ~~$9.59 AUD~~ Sale price $3.26 AUD Unit price per 29 Available Now Sale
Nominal Outside Diameter (A) 10.00 mm	Nominal Inside Diameter (B) 5.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.197 in.)	Stock Thickness (C) 0.50 mm		Loaded Height (L1) 0.56 mm	Load at L1 33.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0050-D-010-005-C (PK-5) Disc Spring Washers - 10x5x0.5 mm Standard - Carbon Steel Washer 5 units (25 pcs) Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Per 5
Nominal Outside Diameter (A) 10.00 mm	Nominal Inside Diameter (B) 5.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.197 in.)	Stock Thickness (C) 0.50 mm
Material: Carbon Steel Loaded Height (L1): 0.56 mm Load at L1: 33.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0050-D-010-005-C (PK-5) Disc Spring Washers - 10x5x0.5 mm Standard - Carbon Steel Washer 5 units (25 pcs) Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Per 5
W0050-D-010-005-C (PK-5) --- Disc Spring Washers - 10x5x0.5 mm Standard - Carbon Steel Washer Sale W0050-D-010-005-C (PK-5) --- Disc Spring Washers - 10x5x0.5 mm Standard - Carbon Steel Washer Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per 5 Available Now Sale
Nominal Outside Diameter (A) 12.00 mm	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.60 mm		Loaded Height (L1) 0.70 mm	Load at L1 56.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-012-006-C (PK-10) Disc Spring Washers - 12x4x0.6 mm Standard - Carbon Steel Washer 9 units (90 pcs) Available Now \| Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.66 AUD~~ Sale price $3.26 AUD Unit price per Per 10
Nominal Outside Diameter (A) 12.00 mm	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.60 mm
Material: Carbon Steel Loaded Height (L1): 0.70 mm Load at L1: 56.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-012-006-C (PK-10) Disc Spring Washers - 12x4x0.6 mm Standard - Carbon Steel Washer 9 units (90 pcs) Available Now \| Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.66 AUD~~ Sale price $3.26 AUD Unit price per Per 10
W0040-D-012-006-C (PK-10) --- Disc Spring Washers - 12x4x0.6 mm Standard - Carbon Steel Washer Sale W0040-D-012-006-C (PK-10) --- Disc Spring Washers - 12x4x0.6 mm Standard - Carbon Steel Washer Regular price $3.26 AUD Regular price ~~$9.66 AUD~~ Sale price $3.26 AUD Unit price per 9 Available Now Sale
Nominal Outside Diameter (A) 12.00 mm	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.50 mm		Loaded Height (L1) 0.59 mm	Load at L1 33.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0060-D-012-005-C (PK-10) Disc Spring Washers - 12x6x0.5 mm Standard - Carbon Steel Washer 4 units (40 pcs) Available Now \| Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.59 AUD~~ Sale price $3.26 AUD Unit price per Per 10
Nominal Outside Diameter (A) 12.00 mm	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.50 mm
Material: Carbon Steel Loaded Height (L1): 0.59 mm Load at L1: 33.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0060-D-012-005-C (PK-10) Disc Spring Washers - 12x6x0.5 mm Standard - Carbon Steel Washer 4 units (40 pcs) Available Now \| Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.59 AUD~~ Sale price $3.26 AUD Unit price per Per 10
W0060-D-012-005-C (PK-10) --- Disc Spring Washers - 12x6x0.5 mm Standard - Carbon Steel Washer Sale W0060-D-012-005-C (PK-10) --- Disc Spring Washers - 12x6x0.5 mm Standard - Carbon Steel Washer Regular price $3.26 AUD Regular price ~~$9.59 AUD~~ Sale price $3.26 AUD Unit price per 4 Available Now Sale
Nominal Outside Diameter (A) 12.50 mm	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.35 mm		Loaded Height (L1) 0.46 mm	Load at L1 15.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0060-D-013-004-C (PK-10) Disc Spring Washers - 12.5x6x0.35 mm Standard - Carbon Steel Washer 10 units (100 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Per 10
Nominal Outside Diameter (A) 12.50 mm	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.35 mm
Material: Carbon Steel Loaded Height (L1): 0.46 mm Load at L1: 15.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0060-D-013-004-C (PK-10) Disc Spring Washers - 12.5x6x0.35 mm Standard - Carbon Steel Washer 10 units (100 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Per 10
W0060-D-013-004-C (PK-10) --- Disc Spring Washers - 12.5x6x0.35 mm Standard - Carbon Steel Washer Sale W0060-D-013-004-C (PK-10) --- Disc Spring Washers - 12.5x6x0.35 mm Standard - Carbon Steel Washer Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per 10 Available Now Sale
Nominal Outside Diameter (A) 12.50 mm	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.70 mm		Loaded Height (L1) 0.78 mm	Load at L1 66.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0060-D-013-007-C (Each) Disc Spring Washers - 12.5x6x0.7 mm Standard - Carbon Steel Washer 90 Available Now \| Item Discontinued - Up to 90 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each
Nominal Outside Diameter (A) 12.50 mm	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.70 mm
Material: Carbon Steel Loaded Height (L1): 0.78 mm Load at L1: 66.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0060-D-013-007-C (Each) Disc Spring Washers - 12.5x6x0.7 mm Standard - Carbon Steel Washer 90 Available Now \| Item Discontinued - Up to 90 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each
W0060-D-013-007-C (Each) --- Disc Spring Washers - 12.5x6x0.7 mm Standard - Carbon Steel Washer Sale W0060-D-013-007-C (Each) --- Disc Spring Washers - 12.5x6x0.7 mm Standard - Carbon Steel Washer Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per 90 Available Now Sale
Nominal Outside Diameter (A) 12.50 mm	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.70 mm	Load to flatten 0.30 kg	Loaded Height (L1) 3.0 mm	Load at L1 5.1 kg
Material: Plastic Category: Washers - Disc Spring - Standard - Plastic

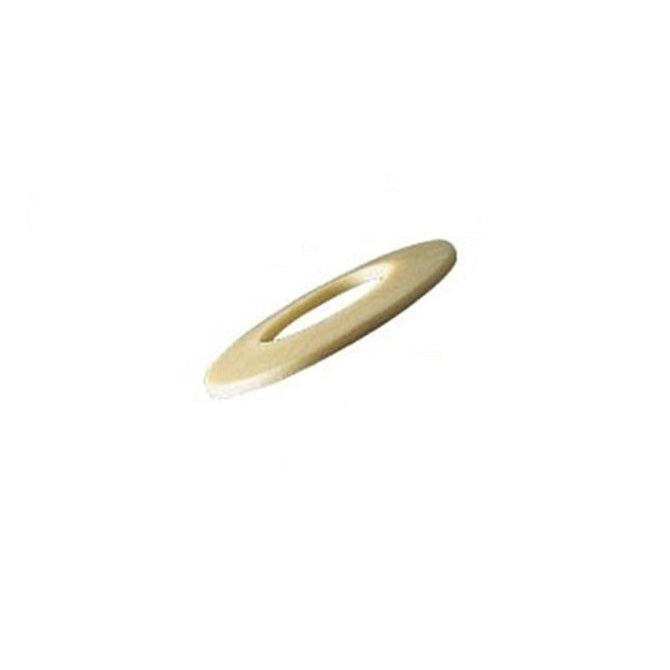

Part Number: W0060-D-013-007-P (PK-10) Disc Spring Washers - 12.5x6x0.7 mm Standard - Plastic Washer 1 pack (10 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.50 AUD Regular price ~~$5.40 AUD~~ Sale price $4.50 AUD Unit price per Per 10
Nominal Outside Diameter (A) 12.50 mm	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.70 mm	Load to flatten 0.30 kg
Material: Plastic Loaded Height (L1): 3.0 mm Load at L1: 5.1 kg Category: Washers - Disc Spring - Standard - Plastic
Part Number: W0060-D-013-007-P (PK-10) Disc Spring Washers - 12.5x6x0.7 mm Standard - Plastic Washer 1 pack (10 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.50 AUD Regular price ~~$5.40 AUD~~ Sale price $4.50 AUD Unit price per Per 10
W0060-D-013-007-P (PK-10) --- Disc Spring Washers - 12.5x6x0.7 mm Standard - Plastic Washer Sale W0060-D-013-007-P (PK-10) --- Disc Spring Washers - 12.5x6x0.7 mm Standard - Plastic Washer Regular price $4.50 AUD Regular price ~~$5.40 AUD~~ Sale price $4.50 AUD Unit price per 1 Available Now Sale
Nominal Outside Diameter (A) 15.00 mm	Nominal Inside Diameter (B) 5.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.197 in.)	Stock Thickness (C) 0.40 mm		Loaded Height (L1) 0.54 mm	Load at L1 18.0 kg
Material: Stainless Steel 17-7 PH Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0050-D-015-004-S17 (PK-2) Disc Spring Washers - 15x5x0.4 mm Standard - Stainless Steel 17-7 PH Washer 48 units (96 pcs) Available Now \| Further orders can be expected around Thu, Sep 10, 2026 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 2
Nominal Outside Diameter (A) 15.00 mm	Nominal Inside Diameter (B) 5.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.197 in.)	Stock Thickness (C) 0.40 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.54 mm Load at L1: 18.0 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0050-D-015-004-S17 (PK-2) Disc Spring Washers - 15x5x0.4 mm Standard - Stainless Steel 17-7 PH Washer 48 units (96 pcs) Available Now \| Further orders can be expected around Thu, Sep 10, 2026 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 2 View the product page first if you are unsure.
W0050-D-015-004-S17 (PK-2) --- Disc Spring Washers - 15x5x0.4 mm Standard - Stainless Steel 17-7 PH Washer W0050-D-015-004-S17 (PK-2) --- Disc Spring Washers - 15x5x0.4 mm Standard - Stainless Steel 17-7 PH Washer Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per 48 Available Now
Nominal Outside Diameter (A) 16.00 mm	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.80 mm		Loaded Height (L1) 0.90 mm	Load at L1 83.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0080-D-016-008-C (Each) Disc Spring Washers - 16x8x0.8 mm Standard - Carbon Steel Washer 49 Available Now \| Further orders can be expected around Tue, Jul 21, 2026 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Each
Nominal Outside Diameter (A) 16.00 mm	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.80 mm
Material: Carbon Steel Loaded Height (L1): 0.90 mm Load at L1: 83.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0080-D-016-008-C (Each) Disc Spring Washers - 16x8x0.8 mm Standard - Carbon Steel Washer 49 Available Now \| Further orders can be expected around Tue, Jul 21, 2026 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Each View the product page first if you are unsure.
W0080-D-016-008-C (Each) --- Disc Spring Washers - 16x8x0.8 mm Standard - Carbon Steel Washer W0080-D-016-008-C (Each) --- Disc Spring Washers - 16x8x0.8 mm Standard - Carbon Steel Washer Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per 49 Available Now
Nominal Outside Diameter (A) 16.00 mm	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.40 mm		Loaded Height (L1) 0.53 mm	Load at L1 15.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0080-D-016-004-C (PK-5) Disc Spring Washers - 16x8x0.4 mm Standard - Carbon Steel Washer 3 units (15 pcs) Available Now \| Further orders can be expected around Thu, Sep 10, 2026 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 5
Nominal Outside Diameter (A) 16.00 mm	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.40 mm
Material: Carbon Steel Loaded Height (L1): 0.53 mm Load at L1: 15.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0080-D-016-004-C (PK-5) Disc Spring Washers - 16x8x0.4 mm Standard - Carbon Steel Washer 3 units (15 pcs) Available Now \| Further orders can be expected around Thu, Sep 10, 2026 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 5 View the product page first if you are unsure.
W0080-D-016-004-C (PK-5) --- Disc Spring Washers - 16x8x0.4 mm Standard - Carbon Steel Washer W0080-D-016-004-C (PK-5) --- Disc Spring Washers - 16x8x0.4 mm Standard - Carbon Steel Washer Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 3 Available Now
Nominal Outside Diameter (A) 16.00 mm	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.60 mm		Loaded Height (L1) 0.71 mm	Load at L1 41.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0080-D-016-006-C (PK-2) Disc Spring Washers - 16x8x0.6 mm Standard - Carbon Steel Washer 17 units (34 pcs) Available Now \| Further orders can be expected around Tue, Jul 21, 2026 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Per 2
Nominal Outside Diameter (A) 16.00 mm	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.60 mm
Material: Carbon Steel Loaded Height (L1): 0.71 mm Load at L1: 41.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0080-D-016-006-C (PK-2) Disc Spring Washers - 16x8x0.6 mm Standard - Carbon Steel Washer 17 units (34 pcs) Available Now \| Further orders can be expected around Tue, Jul 21, 2026 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Per 2 View the product page first if you are unsure.
W0080-D-016-006-C (PK-2) --- Disc Spring Washers - 16x8x0.6 mm Standard - Carbon Steel Washer W0080-D-016-006-C (PK-2) --- Disc Spring Washers - 16x8x0.6 mm Standard - Carbon Steel Washer Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per 17 Available Now
Nominal Outside Diameter (A) 18.00 mm	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.60 mm		Loaded Height (L1) 0.75 mm	Load at L1 40.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0060-D-018-006-C (PK-10) Disc Spring Washers - 18x6x0.6 mm Standard - Carbon Steel Washer 1 pack (10 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.86 AUD Regular price ~~$11.37 AUD~~ Sale price $3.86 AUD Unit price per Per 10
Nominal Outside Diameter (A) 18.00 mm	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.60 mm
Material: Carbon Steel Loaded Height (L1): 0.75 mm Load at L1: 40.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0060-D-018-006-C (PK-10) Disc Spring Washers - 18x6x0.6 mm Standard - Carbon Steel Washer 1 pack (10 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.86 AUD Regular price ~~$11.37 AUD~~ Sale price $3.86 AUD Unit price per Per 10
W0060-D-018-006-C (PK-10) --- Disc Spring Washers - 18x6x0.6 mm Standard - Carbon Steel Washer Sale W0060-D-018-006-C (PK-10) --- Disc Spring Washers - 18x6x0.6 mm Standard - Carbon Steel Washer Regular price $3.86 AUD Regular price ~~$11.37 AUD~~ Sale price $3.86 AUD Unit price per 1 Available Now Sale
Nominal Outside Diameter (A) 20.00 mm	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.60 mm		Loaded Height (L1) 0.77 mm	Load at L1 41.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0080-D-020-006-C (PK-5) Disc Spring Washers - 20x8x0.6 mm Standard - Carbon Steel Washer 1 pack (5 pcs) Available Now \| Further orders can be expected around Thu, Sep 10, 2026 Regular price $4.59 AUD Regular price ~~$8.04 AUD~~ Sale price $4.59 AUD Unit price per Per 5
Nominal Outside Diameter (A) 20.00 mm	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.60 mm
Material: Carbon Steel Loaded Height (L1): 0.77 mm Load at L1: 41.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0080-D-020-006-C (PK-5) Disc Spring Washers - 20x8x0.6 mm Standard - Carbon Steel Washer 1 pack (5 pcs) Available Now \| Further orders can be expected around Thu, Sep 10, 2026 Regular price $4.59 AUD Regular price ~~$8.04 AUD~~ Sale price $4.59 AUD Unit price per Per 5 View the product page first if you are unsure.
W0080-D-020-006-C (PK-5) --- Disc Spring Washers - 20x8x0.6 mm Standard - Carbon Steel Washer Sale W0080-D-020-006-C (PK-5) --- Disc Spring Washers - 20x8x0.6 mm Standard - Carbon Steel Washer Regular price $4.59 AUD Regular price ~~$8.04 AUD~~ Sale price $4.59 AUD Unit price per 1 Available Now Sale
Nominal Outside Diameter (A) 20.00 mm	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.90 mm		Loaded Height (L1) 1.04 mm	Load at L1 95.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0080-D-020-009-C (PK-5) Disc Spring Washers - 20x8x0.9 mm Standard - Carbon Steel Washer 18 units (90 pcs) Available Now \| Item Discontinued - Up to 18 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.51 AUD Regular price ~~$7.35 AUD~~ Sale price $2.51 AUD Unit price per Per 5
Nominal Outside Diameter (A) 20.00 mm	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.90 mm
Material: Carbon Steel Loaded Height (L1): 1.04 mm Load at L1: 95.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0080-D-020-009-C (PK-5) Disc Spring Washers - 20x8x0.9 mm Standard - Carbon Steel Washer 18 units (90 pcs) Available Now \| Item Discontinued - Up to 18 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.51 AUD Regular price ~~$7.35 AUD~~ Sale price $2.51 AUD Unit price per Per 5
W0080-D-020-009-C (PK-5) --- Disc Spring Washers - 20x8x0.9 mm Standard - Carbon Steel Washer Sale W0080-D-020-009-C (PK-5) --- Disc Spring Washers - 20x8x0.9 mm Standard - Carbon Steel Washer Regular price $2.51 AUD Regular price ~~$7.35 AUD~~ Sale price $2.51 AUD Unit price per 18 Available Now Sale
Nominal Outside Diameter (A) 20.00 mm	Nominal Inside Diameter (B) 10.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.394 in.)	Stock Thickness (C) 1.00 mm		Loaded Height (L1) 1.14 mm	Load at L1 142.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0100-D-020-010-C (PK-2) Disc Spring Washers - 20x10x1 mm Standard - Carbon Steel Washer 45 units (90 pcs) Available Now \| Further orders can be expected around Tue, Jul 21, 2026 Regular price $3.41 AUD Regular price ~~$5.80 AUD~~ Sale price $3.41 AUD Unit price per Per 2
Nominal Outside Diameter (A) 20.00 mm	Nominal Inside Diameter (B) 10.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.394 in.)	Stock Thickness (C) 1.00 mm
Material: Carbon Steel Loaded Height (L1): 1.14 mm Load at L1: 142.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0100-D-020-010-C (PK-2) Disc Spring Washers - 20x10x1 mm Standard - Carbon Steel Washer 45 units (90 pcs) Available Now \| Further orders can be expected around Tue, Jul 21, 2026 Regular price $3.41 AUD Regular price ~~$5.80 AUD~~ Sale price $3.41 AUD Unit price per Per 2 View the product page first if you are unsure.
W0100-D-020-010-C (PK-2) --- Disc Spring Washers - 20x10x1 mm Standard - Carbon Steel Washer Sale W0100-D-020-010-C (PK-2) --- Disc Spring Washers - 20x10x1 mm Standard - Carbon Steel Washer Regular price $3.41 AUD Regular price ~~$5.80 AUD~~ Sale price $3.41 AUD Unit price per 45 Available Now Sale
Nominal Outside Diameter (A) 20.00 mm	Nominal Inside Diameter (B) 10.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.394 in.)	Stock Thickness (C) 0.80 mm		Loaded Height (L1) 0.94 mm	Load at L1 75.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0100-D-020-008-C (PK-5) Disc Spring Washers - 20x10x0.8 mm Standard - Carbon Steel Washer 14 units (70 pcs) Available Now \| Further orders can be expected around Thu, Sep 10, 2026 Regular price $4.59 AUD Regular price ~~$8.06 AUD~~ Sale price $4.59 AUD Unit price per Per 5
Nominal Outside Diameter (A) 20.00 mm	Nominal Inside Diameter (B) 10.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.394 in.)	Stock Thickness (C) 0.80 mm
Material: Carbon Steel Loaded Height (L1): 0.94 mm Load at L1: 75.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0100-D-020-008-C (PK-5) Disc Spring Washers - 20x10x0.8 mm Standard - Carbon Steel Washer 14 units (70 pcs) Available Now \| Further orders can be expected around Thu, Sep 10, 2026 Regular price $4.59 AUD Regular price ~~$8.06 AUD~~ Sale price $4.59 AUD Unit price per Per 5 View the product page first if you are unsure.
W0100-D-020-008-C (PK-5) --- Disc Spring Washers - 20x10x0.8 mm Standard - Carbon Steel Washer Sale W0100-D-020-008-C (PK-5) --- Disc Spring Washers - 20x10x0.8 mm Standard - Carbon Steel Washer Regular price $4.59 AUD Regular price ~~$8.06 AUD~~ Sale price $4.59 AUD Unit price per 14 Available Now Sale
Nominal Outside Diameter (A) 23.00 mm	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.80 mm		Loaded Height (L1) 0.99 mm	Load at L1 72.0 kg
Material: Stainless Steel 17-7 PH Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0080-D-023-008-S17 (PK-2) Disc Spring Washers - 23x8x0.8 mm Standard - Stainless Steel 17-7 PH Washer 6 units (12 pcs) Available Now \| Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.04 AUD Regular price ~~$7.96 AUD~~ Sale price $3.04 AUD Unit price per Per 2
Nominal Outside Diameter (A) 23.00 mm	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.80 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.99 mm Load at L1: 72.0 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0080-D-023-008-S17 (PK-2) Disc Spring Washers - 23x8x0.8 mm Standard - Stainless Steel 17-7 PH Washer 6 units (12 pcs) Available Now \| Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.04 AUD Regular price ~~$7.96 AUD~~ Sale price $3.04 AUD Unit price per Per 2
W0080-D-023-008-S17 (PK-2) --- Disc Spring Washers - 23x8x0.8 mm Standard - Stainless Steel 17-7 PH Washer Sale W0080-D-023-008-S17 (PK-2) --- Disc Spring Washers - 23x8x0.8 mm Standard - Stainless Steel 17-7 PH Washer Regular price $3.04 AUD Regular price ~~$7.96 AUD~~ Sale price $3.04 AUD Unit price per 6 Available Now Sale
Nominal Outside Diameter (A) 23.00 mm	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 1.00 mm		Loaded Height (L1) 1.17 mm	Load at L1 124.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel

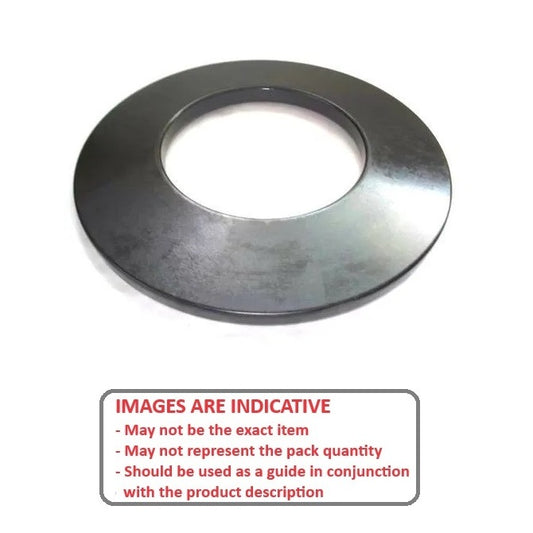

Part Number: W0080-D-023-010-C (PK-5) Disc Spring Washers - 23x8x1 mm Standard - Carbon Steel Washer 16 units (80 pcs) Available Now \| Item Discontinued - Up to 16 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.59 AUD Regular price ~~$7.47 AUD~~ Sale price $2.59 AUD Unit price per Per 5
Nominal Outside Diameter (A) 23.00 mm	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 1.00 mm
Material: Carbon Steel Loaded Height (L1): 1.17 mm Load at L1: 124.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0080-D-023-010-C (PK-5) Disc Spring Washers - 23x8x1 mm Standard - Carbon Steel Washer 16 units (80 pcs) Available Now \| Item Discontinued - Up to 16 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.59 AUD Regular price ~~$7.47 AUD~~ Sale price $2.59 AUD Unit price per Per 5
W0080-D-023-010-C (PK-5) --- Disc Spring Washers - 23x8x1 mm Standard - Carbon Steel Washer Sale W0080-D-023-010-C (PK-5) --- Disc Spring Washers - 23x8x1 mm Standard - Carbon Steel Washer Regular price $2.59 AUD Regular price ~~$7.47 AUD~~ Sale price $2.59 AUD Unit price per 16 Available Now Sale
Nominal Outside Diameter (A) 23.00 mm	Nominal Inside Diameter (B) 10.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.394 in.)	Stock Thickness (C) 1.00 mm		Loaded Height (L1) 1.17 mm	Load at L1 132.0 kg
Material: Stainless Steel 17-7 PH Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0100-D-023-010-S17 (Each) Disc Spring Washers - 23x10x1 mm Standard - Stainless Steel 17-7 PH Washer 3 Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.00 AUD Regular price ~~$5.70 AUD~~ Sale price $3.00 AUD Unit price per Each
Nominal Outside Diameter (A) 23.00 mm	Nominal Inside Diameter (B) 10.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.394 in.)	Stock Thickness (C) 1.00 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 1.17 mm Load at L1: 132.0 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0100-D-023-010-S17 (Each) Disc Spring Washers - 23x10x1 mm Standard - Stainless Steel 17-7 PH Washer 3 Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.00 AUD Regular price ~~$5.70 AUD~~ Sale price $3.00 AUD Unit price per Each
W0100-D-023-010-S17 (Each) --- Disc Spring Washers - 23x10x1 mm Standard - Stainless Steel 17-7 PH Washer Sale W0100-D-023-010-S17 (Each) --- Disc Spring Washers - 23x10x1 mm Standard - Stainless Steel 17-7 PH Washer Regular price $3.00 AUD Regular price ~~$5.70 AUD~~ Sale price $3.00 AUD Unit price per 3 Available Now Sale

Small Parts & Bearings Pty Ltd - 3A / 8 Boyland Avenue, Coopers Plains, Queensland, Australia. (ABN: 79 121 865 414)
