Collection: Washers - Disc Spring - Standard - Carbon Steel

Washers -> Disc Spring -> Standard -> Carbon Steel

There are 34 products in the sub-categories of Washers - Disc Spring - Standard - Carbon Steel. Scroll down or follow the link to Washers - Disc Spring - Standard - Carbon Steel in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Carbon Steel Standard Disc Spring Washers. Includes disc springs to DIN 2093.

Disc spring washer, also known as a Belleville washer, is a conical-shaped washer designed to act as a spring.
Provides a high spring force within a small space and can be stacked in various configurations to adjust load and deflection characteristics.
Washers are used to add vibration resistance, preload to bolted assemblies, and to compensate for material expansion or contraction.
Manufactured under strict quality control to conform to DIN 2093.

Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found in the Washers - Disc Spring - Standard - Carbon Steel category on the MBA Minibearings main store.

Nominal Outside Diameter (A)	Nominal Inside Diameter (B)	Stock Thickness (C)	Load to flatten	Loaded Height (L1)	Load at L1

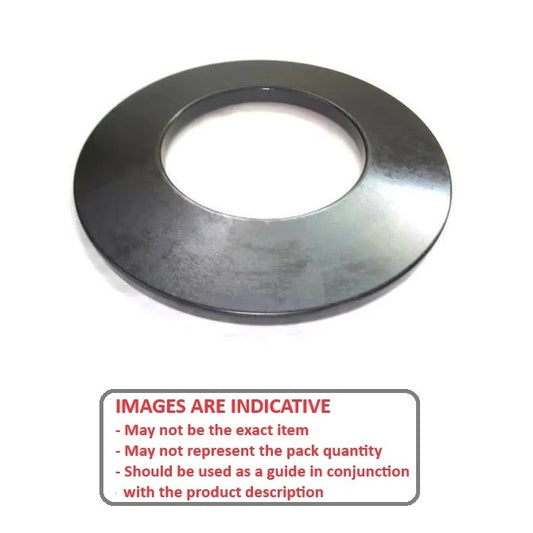

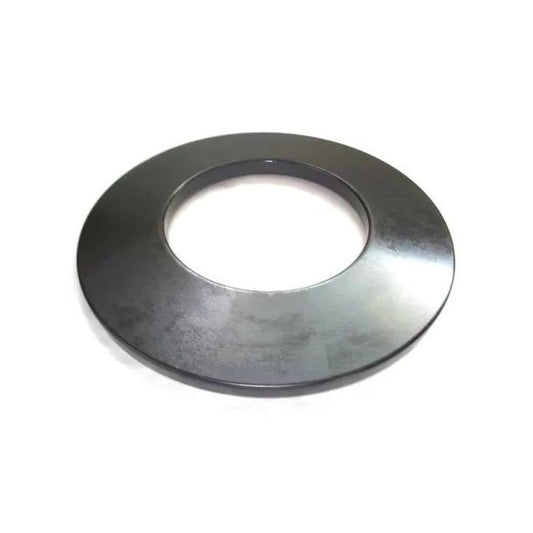

Disc Spring Washers - 8x4x0.3 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)		Loaded Height (L1) 0.36 mm	Load at L1 12.0 kg
Material: Carbon Steel Free Height (E): 0.55 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm Deleted Item. Available while stocks last.
Part Number: W0040-D-008-003-C (PK-10) 3 units (30 pcs) Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.19 AUD Regular price ~~$9.49 AUD~~ Sale price $3.19 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 3 units (30 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Outside Diameter (A)	Nominal Inside Diameter (B)	Stock Thickness (C)	Load to flatten	Indicative Image
Disc Spring Washers - 8x4x0.3 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)
Material: Carbon Steel Loaded Height (L1): 0.36 mm Load at L1: 12.0 kg Free Height (E): 0.55 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm Deleted Item. Available while stocks last.
Part Number: W0040-D-008-003-C (PK-10) 3 units (30 pcs) Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.19 AUD Regular price ~~$9.49 AUD~~ Sale price $3.19 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 3 units (30 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0040-D-008-003-C (PK-10) --- Disc Spring Washers - 8x4x0.3 mm Standard - Carbon Steel Washer Sale W0040-D-008-003-C (PK-10) --- Disc Spring Washers - 8x4x0.3 mm Standard - Carbon Steel Washer Regular price $3.19 AUD Regular price ~~$9.49 AUD~~ Sale price $3.19 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 3 Available Now Sale
Disc Spring Washers - 10x3x0.3 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)		Loaded Height (L1) 0.39 mm	Load at L1 10.0 kg
Material: Carbon Steel Free Height (E): 0.65 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.35 mm Deleted Item. Available while stocks last.
Part Number: W0030-D-010-003-C (PK-10) 10 units (100 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 10 units (100 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 10x3x0.3 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)
Material: Carbon Steel Loaded Height (L1): 0.39 mm Load at L1: 10.0 kg Free Height (E): 0.65 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.35 mm Deleted Item. Available while stocks last.
Part Number: W0030-D-010-003-C (PK-10) 10 units (100 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 10 units (100 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0030-D-010-003-C (PK-10) --- Disc Spring Washers - 10x3x0.3 mm Standard - Carbon Steel Washer Sale W0030-D-010-003-C (PK-10) --- Disc Spring Washers - 10x3x0.3 mm Standard - Carbon Steel Washer Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 10 Available Now Sale
Disc Spring Washers - 10x4x0.4 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)		Loaded Height (L1) 0.48 mm	Load at L1 19.0 kg
Material: Carbon Steel Free Height (E): 0.70 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.30 mm Deleted Item. Available while stocks last.
Part Number: W0040-D-010-004-C (PK-10) 2 units (20 pcs) Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 2 units (20 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 10x4x0.4 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)
Material: Carbon Steel Loaded Height (L1): 0.48 mm Load at L1: 19.0 kg Free Height (E): 0.70 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.30 mm Deleted Item. Available while stocks last.
Part Number: W0040-D-010-004-C (PK-10) 2 units (20 pcs) Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 2 units (20 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0040-D-010-004-C (PK-10) --- Disc Spring Washers - 10x4x0.4 mm Standard - Carbon Steel Washer Sale W0040-D-010-004-C (PK-10) --- Disc Spring Washers - 10x4x0.4 mm Standard - Carbon Steel Washer Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 2 Available Now Sale
Disc Spring Washers - 10x4x0.5 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)		Loaded Height (L1) 0.56 mm	Load at L1 29.0 kg
Material: Carbon Steel Free Height (E): 0.75 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm Deleted Item. Available while stocks last.
Part Number: W0040-D-010-005-C (PK-10) 29 units (290 pcs) Available Now \| Item Discontinued - Up to 29 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.59 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 29 units (290 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 10x4x0.5 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)
Material: Carbon Steel Loaded Height (L1): 0.56 mm Load at L1: 29.0 kg Free Height (E): 0.75 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm Deleted Item. Available while stocks last.
Part Number: W0040-D-010-005-C (PK-10) 29 units (290 pcs) Available Now \| Item Discontinued - Up to 29 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.59 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 29 units (290 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0040-D-010-005-C (PK-10) --- Disc Spring Washers - 10x4x0.5 mm Standard - Carbon Steel Washer Sale W0040-D-010-005-C (PK-10) --- Disc Spring Washers - 10x4x0.5 mm Standard - Carbon Steel Washer Regular price $3.26 AUD Regular price ~~$9.59 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 29 Available Now Sale
Disc Spring Washers - 10x4x0.6 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.60 mm (Equiv. 0.024 in.)		Loaded Height (L1) 0.66 mm	Load at L1 50.0 kg
Material: Carbon Steel Free Height (E): 0.85 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm
Part Number: W0040-D-010-006-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $48.23 AUD Regular price Sale price $48.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 10x4x0.6 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.60 mm (Equiv. 0.024 in.)
Material: Carbon Steel Loaded Height (L1): 0.66 mm Load at L1: 50.0 kg Free Height (E): 0.85 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm
Part Number: W0040-D-010-006-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $48.23 AUD Regular price Sale price $48.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0040-D-010-006-C (PK-50) --- Disc Spring Washers - 10x4x0.6 mm Standard - Carbon Steel Washer W0040-D-010-006-C (PK-50) --- Disc Spring Washers - 10x4x0.6 mm Standard - Carbon Steel Washer Regular price $48.23 AUD Regular price Sale price $48.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Disc Spring Washers - 10x5x0.5 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 5.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.197 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)		Loaded Height (L1) 0.56 mm	Load at L1 33.0 kg
Material: Carbon Steel Load at 0.75 Height: 36.4 Kg Free Height (E): 0.75 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.25 mm Deleted Item. Available while stocks last.
Part Number: W0050-D-010-005-C (PK-5) 5 units (25 pcs) Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 5 units (25 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 10x5x0.5 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 5.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.197 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)
Material: Carbon Steel Loaded Height (L1): 0.56 mm Load at L1: 33.0 kg Load at 0.75 Height: 36.4 Kg Free Height (E): 0.75 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.25 mm Deleted Item. Available while stocks last.
Part Number: W0050-D-010-005-C (PK-5) 5 units (25 pcs) Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 5 units (25 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0050-D-010-005-C (PK-5) --- Disc Spring Washers - 10x5x0.5 mm Standard - Carbon Steel Washer Sale W0050-D-010-005-C (PK-5) --- Disc Spring Washers - 10x5x0.5 mm Standard - Carbon Steel Washer Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 5 Available Now Sale
Disc Spring Washers - 12x4x0.6 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 12.00 mm (Equiv. 0.472 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.60 mm (Equiv. 0.024 in.)		Loaded Height (L1) 0.70 mm	Load at L1 56.0 kg
Material: Carbon Steel Free Height (E): 1.00 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.40 mm Deleted Item. Available while stocks last.
Part Number: W0040-D-012-006-C (PK-10) 9 units (90 pcs) Available Now \| Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.66 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 9 units (90 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 12x4x0.6 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 12.00 mm (Equiv. 0.472 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.60 mm (Equiv. 0.024 in.)
Material: Carbon Steel Loaded Height (L1): 0.70 mm Load at L1: 56.0 kg Free Height (E): 1.00 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.40 mm Deleted Item. Available while stocks last.
Part Number: W0040-D-012-006-C (PK-10) 9 units (90 pcs) Available Now \| Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.66 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 9 units (90 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0040-D-012-006-C (PK-10) --- Disc Spring Washers - 12x4x0.6 mm Standard - Carbon Steel Washer Sale W0040-D-012-006-C (PK-10) --- Disc Spring Washers - 12x4x0.6 mm Standard - Carbon Steel Washer Regular price $3.26 AUD Regular price ~~$9.66 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 9 Available Now Sale
Disc Spring Washers - 12x6x0.5 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 12.00 mm (Equiv. 0.472 in.)	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)		Loaded Height (L1) 0.59 mm	Load at L1 33.0 kg
Material: Carbon Steel Free Height (E): 0.85 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.35 mm Deleted Item. Available while stocks last.
Part Number: W0060-D-012-005-C (PK-10) 4 units (40 pcs) Available Now \| Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.59 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 4 units (40 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 12x6x0.5 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 12.00 mm (Equiv. 0.472 in.)	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)
Material: Carbon Steel Loaded Height (L1): 0.59 mm Load at L1: 33.0 kg Free Height (E): 0.85 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.35 mm Deleted Item. Available while stocks last.
Part Number: W0060-D-012-005-C (PK-10) 4 units (40 pcs) Available Now \| Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.59 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 4 units (40 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0060-D-012-005-C (PK-10) --- Disc Spring Washers - 12x6x0.5 mm Standard - Carbon Steel Washer Sale W0060-D-012-005-C (PK-10) --- Disc Spring Washers - 12x6x0.5 mm Standard - Carbon Steel Washer Regular price $3.26 AUD Regular price ~~$9.59 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 4 Available Now Sale
Disc Spring Washers - 12.5x6x0.35 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 12.50 mm (Equiv. 0.492 in.)	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.35 mm (Equiv. 0.014 in.)		Loaded Height (L1) 0.46 mm	Load at L1 15.0 kg
Material: Carbon Steel Free Height (E): 0.80 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.45 mm Deleted Item. Available while stocks last.
Part Number: W0060-D-013-004-C (PK-10) 10 units (100 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 10 units (100 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 12.5x6x0.35 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 12.50 mm (Equiv. 0.492 in.)	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.35 mm (Equiv. 0.014 in.)
Material: Carbon Steel Loaded Height (L1): 0.46 mm Load at L1: 15.0 kg Free Height (E): 0.80 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.45 mm Deleted Item. Available while stocks last.
Part Number: W0060-D-013-004-C (PK-10) 10 units (100 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 10 units (100 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0060-D-013-004-C (PK-10) --- Disc Spring Washers - 12.5x6x0.35 mm Standard - Carbon Steel Washer Sale W0060-D-013-004-C (PK-10) --- Disc Spring Washers - 12.5x6x0.35 mm Standard - Carbon Steel Washer Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 10 Available Now Sale
Disc Spring Washers - 12.5x6x0.7 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 12.50 mm (Equiv. 0.492 in.)	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.70 mm (Equiv. 0.028 in.)		Loaded Height (L1) 0.78 mm	Load at L1 66.0 kg
Material: Carbon Steel Load at 0.75 Height: 74.3 Kg Free Height (E): 1.00 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.30 mm Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: W0060-D-013-007-C (Each) 90 Available Now \| Item Discontinued - Up to 90 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 90 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 12.5x6x0.7 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 12.50 mm (Equiv. 0.492 in.)	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.70 mm (Equiv. 0.028 in.)
Material: Carbon Steel Loaded Height (L1): 0.78 mm Load at L1: 66.0 kg Load at 0.75 Height: 74.3 Kg Free Height (E): 1.00 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.30 mm Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: W0060-D-013-007-C (Each) 90 Available Now \| Item Discontinued - Up to 90 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 90 Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0060-D-013-007-C (Each) --- Disc Spring Washers - 12.5x6x0.7 mm Standard - Carbon Steel Washer Sale W0060-D-013-007-C (Each) --- Disc Spring Washers - 12.5x6x0.7 mm Standard - Carbon Steel Washer Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 90 Available Now Sale
Disc Spring Washers - 16x8x0.4 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 16.00 mm (Equiv. 0.63 in.)	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)		Loaded Height (L1) 0.53 mm	Load at L1 15.0 kg
Material: Carbon Steel Free Height (E): 0.90 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.50 mm
Part Number: W0080-D-016-004-C (PK-5) 3 units (15 pcs) Available Now \| Further orders can be expected around Thu, Mar 12, 2026 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 3 available can be backordered.
Disc Spring Washers - 16x8x0.4 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 16.00 mm (Equiv. 0.63 in.)	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)
Material: Carbon Steel Loaded Height (L1): 0.53 mm Load at L1: 15.0 kg Free Height (E): 0.90 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.50 mm
Part Number: W0080-D-016-004-C (PK-5) 3 units (15 pcs) Available Now \| Further orders can be expected around Thu, Mar 12, 2026 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 3 units (15 pcs) Available Now. Backorder if more than 3.
W0080-D-016-004-C (PK-5) --- Disc Spring Washers - 16x8x0.4 mm Standard - Carbon Steel Washer W0080-D-016-004-C (PK-5) --- Disc Spring Washers - 16x8x0.4 mm Standard - Carbon Steel Washer Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 3 Available Now
Disc Spring Washers - 16x8x0.6 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 16.00 mm (Equiv. 0.63 in.)	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.60 mm (Equiv. 0.024 in.)		Loaded Height (L1) 0.71 mm	Load at L1 41.0 kg
Material: Carbon Steel Load at 0.75 Height: 45.3 Kg Free Height (E): 1.05 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.45 mm
Part Number: W0080-D-016-006-C (PK-2) 17 units (34 pcs) Available Now \| Further orders can be expected around Tue, Jan 20, 2026 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 17 available can be backordered.
Disc Spring Washers - 16x8x0.6 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 16.00 mm (Equiv. 0.63 in.)	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.60 mm (Equiv. 0.024 in.)
Material: Carbon Steel Loaded Height (L1): 0.71 mm Load at L1: 41.0 kg Load at 0.75 Height: 45.3 Kg Free Height (E): 1.05 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.45 mm
Part Number: W0080-D-016-006-C (PK-2) 17 units (34 pcs) Available Now \| Further orders can be expected around Tue, Jan 20, 2026 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 17 units (34 pcs) Available Now. Backorder if more than 17.
W0080-D-016-006-C (PK-2) --- Disc Spring Washers - 16x8x0.6 mm Standard - Carbon Steel Washer W0080-D-016-006-C (PK-2) --- Disc Spring Washers - 16x8x0.6 mm Standard - Carbon Steel Washer Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 17 Available Now
Disc Spring Washers - 16x8x0.8 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 16.00 mm (Equiv. 0.63 in.)	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.80 mm (Equiv. 0.031 in.)		Loaded Height (L1) 0.90 mm	Load at L1 83.0 kg
Material: Carbon Steel Load at 0.75 Height: 92.1 Kg Free Height (E): 1.20 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.40 mm
Part Number: W0080-D-016-008-C (Each) 49 Available Now \| Further orders can be expected around Tue, Jan 20, 2026 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 49 available can be backordered.
Disc Spring Washers - 16x8x0.8 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 16.00 mm (Equiv. 0.63 in.)	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.80 mm (Equiv. 0.031 in.)
Material: Carbon Steel Loaded Height (L1): 0.90 mm Load at L1: 83.0 kg Load at 0.75 Height: 92.1 Kg Free Height (E): 1.20 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.40 mm
Part Number: W0080-D-016-008-C (Each) 49 Available Now \| Further orders can be expected around Tue, Jan 20, 2026 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 49 Available Now. Backorder if more than 49.
W0080-D-016-008-C (Each) --- Disc Spring Washers - 16x8x0.8 mm Standard - Carbon Steel Washer W0080-D-016-008-C (Each) --- Disc Spring Washers - 16x8x0.8 mm Standard - Carbon Steel Washer Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 49 Available Now
Disc Spring Washers - 18x6x0.6 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 18.00 mm (Equiv. 0.709 in.)	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.60 mm (Equiv. 0.024 in.)		Loaded Height (L1) 0.75 mm	Load at L1 40.0 kg
Material: Carbon Steel Free Height (E): 1.20 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.60 mm Deleted Item. Available while stocks last.
Part Number: W0060-D-018-006-C (PK-10) 1 pack (10 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.86 AUD Regular price ~~$11.37 AUD~~ Sale price $3.86 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 1 pack (10 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 18x6x0.6 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 18.00 mm (Equiv. 0.709 in.)	Nominal Inside Diameter (B) 6.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.236 in.)	Stock Thickness (C) 0.60 mm (Equiv. 0.024 in.)
Material: Carbon Steel Loaded Height (L1): 0.75 mm Load at L1: 40.0 kg Free Height (E): 1.20 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.60 mm Deleted Item. Available while stocks last.
Part Number: W0060-D-018-006-C (PK-10) 1 pack (10 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.86 AUD Regular price ~~$11.37 AUD~~ Sale price $3.86 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 1 pack (10 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0060-D-018-006-C (PK-10) --- Disc Spring Washers - 18x6x0.6 mm Standard - Carbon Steel Washer Sale W0060-D-018-006-C (PK-10) --- Disc Spring Washers - 18x6x0.6 mm Standard - Carbon Steel Washer Regular price $3.86 AUD Regular price ~~$11.37 AUD~~ Sale price $3.86 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 1 Available Now Sale
Disc Spring Washers - 20x8x0.6 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.60 mm (Equiv. 0.024 in.)		Loaded Height (L1) 0.77 mm	Load at L1 41.0 kg
Material: Carbon Steel Free Height (E): 1.30 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.70 mm
Part Number: W0080-D-020-006-C (PK-5) 1 pack (5 pcs) Available Now \| Further orders can be expected around Thu, Mar 12, 2026 Regular price $4.14 AUD Regular price ~~$7.25 AUD~~ Sale price $4.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 1 available can be backordered.
Disc Spring Washers - 20x8x0.6 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.60 mm (Equiv. 0.024 in.)
Material: Carbon Steel Loaded Height (L1): 0.77 mm Load at L1: 41.0 kg Free Height (E): 1.30 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.70 mm
Part Number: W0080-D-020-006-C (PK-5) 1 pack (5 pcs) Available Now \| Further orders can be expected around Thu, Mar 12, 2026 Regular price $4.14 AUD Regular price ~~$7.25 AUD~~ Sale price $4.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 1 pack (5 pcs) Available Now. Backorder if more than 1.
W0080-D-020-006-C (PK-5) --- Disc Spring Washers - 20x8x0.6 mm Standard - Carbon Steel Washer Sale W0080-D-020-006-C (PK-5) --- Disc Spring Washers - 20x8x0.6 mm Standard - Carbon Steel Washer Regular price $4.14 AUD Regular price ~~$7.25 AUD~~ Sale price $4.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 1 Available Now Sale
Disc Spring Washers - 20x8x0.9 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.90 mm (Equiv. 0.035 in.)		Loaded Height (L1) 1.04 mm	Load at L1 95.0 kg
Material: Carbon Steel Free Height (E): 1.45 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.55 mm Deleted Item. Available while stocks last.
Part Number: W0080-D-020-009-C (PK-5) 18 units (90 pcs) Available Now \| Item Discontinued - Up to 18 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.51 AUD Regular price ~~$7.35 AUD~~ Sale price $2.51 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 18 units (90 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 20x8x0.9 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 0.90 mm (Equiv. 0.035 in.)
Material: Carbon Steel Loaded Height (L1): 1.04 mm Load at L1: 95.0 kg Free Height (E): 1.45 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.55 mm Deleted Item. Available while stocks last.
Part Number: W0080-D-020-009-C (PK-5) 18 units (90 pcs) Available Now \| Item Discontinued - Up to 18 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.51 AUD Regular price ~~$7.35 AUD~~ Sale price $2.51 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 18 units (90 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0080-D-020-009-C (PK-5) --- Disc Spring Washers - 20x8x0.9 mm Standard - Carbon Steel Washer Sale W0080-D-020-009-C (PK-5) --- Disc Spring Washers - 20x8x0.9 mm Standard - Carbon Steel Washer Regular price $2.51 AUD Regular price ~~$7.35 AUD~~ Sale price $2.51 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 18 Available Now Sale
Disc Spring Washers - 20x10x0.8 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Nominal Inside Diameter (B) 10.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.394 in.)	Stock Thickness (C) 0.80 mm (Equiv. 0.031 in.)		Loaded Height (L1) 0.94 mm	Load at L1 75.0 kg
Material: Carbon Steel Free Height (E): 1.35 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.55 mm
Part Number: W0100-D-020-008-C (PK-5) 14 units (70 pcs) Available Now \| Further orders can be expected around Thu, Mar 12, 2026 Regular price $4.14 AUD Regular price ~~$7.28 AUD~~ Sale price $4.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 14 available can be backordered.
Disc Spring Washers - 20x10x0.8 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Nominal Inside Diameter (B) 10.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.394 in.)	Stock Thickness (C) 0.80 mm (Equiv. 0.031 in.)
Material: Carbon Steel Loaded Height (L1): 0.94 mm Load at L1: 75.0 kg Free Height (E): 1.35 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.55 mm
Part Number: W0100-D-020-008-C (PK-5) 14 units (70 pcs) Available Now \| Further orders can be expected around Thu, Mar 12, 2026 Regular price $4.14 AUD Regular price ~~$7.28 AUD~~ Sale price $4.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 14 units (70 pcs) Available Now. Backorder if more than 14.
W0100-D-020-008-C (PK-5) --- Disc Spring Washers - 20x10x0.8 mm Standard - Carbon Steel Washer Sale W0100-D-020-008-C (PK-5) --- Disc Spring Washers - 20x10x0.8 mm Standard - Carbon Steel Washer Regular price $4.14 AUD Regular price ~~$7.28 AUD~~ Sale price $4.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 14 Available Now Sale
Disc Spring Washers - 20x10x1 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Nominal Inside Diameter (B) 10.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.394 in.)	Stock Thickness (C) 1.00 mm (Equiv. 0.039 in.)		Loaded Height (L1) 1.14 mm	Load at L1 142.0 kg
Material: Carbon Steel Load at 0.75 Height: 160.3 Kg Free Height (E): 1.55 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.55 mm
Part Number: W0100-D-020-010-C (PK-2) 45 units (90 pcs) Available Now \| Further orders can be expected around Tue, Jan 20, 2026 Regular price $2.77 AUD Regular price ~~$4.74 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 45 available can be backordered.
Disc Spring Washers - 20x10x1 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Nominal Inside Diameter (B) 10.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.394 in.)	Stock Thickness (C) 1.00 mm (Equiv. 0.039 in.)
Material: Carbon Steel Loaded Height (L1): 1.14 mm Load at L1: 142.0 kg Load at 0.75 Height: 160.3 Kg Free Height (E): 1.55 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.55 mm
Part Number: W0100-D-020-010-C (PK-2) 45 units (90 pcs) Available Now \| Further orders can be expected around Tue, Jan 20, 2026 Regular price $2.77 AUD Regular price ~~$4.74 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 45 units (90 pcs) Available Now. Backorder if more than 45.
W0100-D-020-010-C (PK-2) --- Disc Spring Washers - 20x10x1 mm Standard - Carbon Steel Washer Sale W0100-D-020-010-C (PK-2) --- Disc Spring Washers - 20x10x1 mm Standard - Carbon Steel Washer Regular price $2.77 AUD Regular price ~~$4.74 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 45 Available Now Sale
Disc Spring Washers - 23x8x1 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 23.00 mm (Equiv. 0.906 in.)	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 1.00 mm (Equiv. 0.039 in.)		Loaded Height (L1) 1.17 mm	Load at L1 124.0 kg
Material: Carbon Steel Free Height (E): 1.70 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.70 mm Deleted Item. Available while stocks last.
Part Number: W0080-D-023-010-C (PK-5) 16 units (80 pcs) Available Now \| Item Discontinued - Up to 16 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.59 AUD Regular price ~~$7.47 AUD~~ Sale price $2.59 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 16 units (80 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 23x8x1 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 23.00 mm (Equiv. 0.906 in.)	Nominal Inside Diameter (B) 8.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.315 in.)	Stock Thickness (C) 1.00 mm (Equiv. 0.039 in.)
Material: Carbon Steel Loaded Height (L1): 1.17 mm Load at L1: 124.0 kg Free Height (E): 1.70 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.70 mm Deleted Item. Available while stocks last.
Part Number: W0080-D-023-010-C (PK-5) 16 units (80 pcs) Available Now \| Item Discontinued - Up to 16 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.59 AUD Regular price ~~$7.47 AUD~~ Sale price $2.59 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 16 units (80 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0080-D-023-010-C (PK-5) --- Disc Spring Washers - 23x8x1 mm Standard - Carbon Steel Washer Sale W0080-D-023-010-C (PK-5) --- Disc Spring Washers - 23x8x1 mm Standard - Carbon Steel Washer Regular price $2.59 AUD Regular price ~~$7.47 AUD~~ Sale price $2.59 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 16 Available Now Sale
Disc Spring Washers - 28x10x1 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 28.00 mm (Equiv. 1.102 in.)	Nominal Inside Diameter (B) 10.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.394 in.)	Stock Thickness (C) 1.00 mm (Equiv. 0.039 in.)		Loaded Height (L1) 1.23 mm	Load at L1 113.0 kg
Material: Carbon Steel Free Height (E): 1.90 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.90 mm Deleted Item. Available while stocks last.
Part Number: W0100-D-028-010-C (PK-2) 2 units (4 pcs) Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.00 AUD Regular price ~~$6.00 AUD~~ Sale price $5.00 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 2 units (4 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 28x10x1 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 28.00 mm (Equiv. 1.102 in.)	Nominal Inside Diameter (B) 10.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.394 in.)	Stock Thickness (C) 1.00 mm (Equiv. 0.039 in.)
Material: Carbon Steel Loaded Height (L1): 1.23 mm Load at L1: 113.0 kg Free Height (E): 1.90 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.90 mm Deleted Item. Available while stocks last.
Part Number: W0100-D-028-010-C (PK-2) 2 units (4 pcs) Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.00 AUD Regular price ~~$6.00 AUD~~ Sale price $5.00 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 2 units (4 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0100-D-028-010-C (PK-2) --- Disc Spring Washers - 28x10x1 mm Standard - Carbon Steel Washer Sale W0100-D-028-010-C (PK-2) --- Disc Spring Washers - 28x10x1 mm Standard - Carbon Steel Washer Regular price $5.00 AUD Regular price ~~$6.00 AUD~~ Sale price $5.00 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 2 Available Now Sale
Disc Spring Washers - 28x12x1 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 28.00 mm (Equiv. 1.102 in.)	Nominal Inside Diameter (B) 12.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.472 in.)	Stock Thickness (C) 1.00 mm (Equiv. 0.039 in.)		Loaded Height (L1) 1.24 mm	Load at L1 127.0 kg
Material: Carbon Steel Free Height (E): 1.95 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.95 mm
Part Number: W0120-D-028-010-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $91.14 AUD Regular price Sale price $91.14 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 28x12x1 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 28.00 mm (Equiv. 1.102 in.)	Nominal Inside Diameter (B) 12.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.472 in.)	Stock Thickness (C) 1.00 mm (Equiv. 0.039 in.)
Material: Carbon Steel Loaded Height (L1): 1.24 mm Load at L1: 127.0 kg Free Height (E): 1.95 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.95 mm
Part Number: W0120-D-028-010-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $91.14 AUD Regular price Sale price $91.14 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0120-D-028-010-C (PK-50) --- Disc Spring Washers - 28x12x1 mm Standard - Carbon Steel Washer W0120-D-028-010-C (PK-50) --- Disc Spring Washers - 28x12x1 mm Standard - Carbon Steel Washer Regular price $91.14 AUD Regular price Sale price $91.14 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Disc Spring Washers - 28x12x1.25 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 28.00 mm (Equiv. 1.102 in.)	Nominal Inside Diameter (B) 12.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.472 in.)	Stock Thickness (C) 1.25 mm (Equiv. 0.049 in.)		Loaded Height (L1) 1.46 mm	Load at L1 208.0 kg
Material: Carbon Steel Free Height (E): 2.10 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.85 mm
Part Number: W0120-D-028-013-C (PK-2) 14 units (28 pcs) Available Now \| Further orders can be expected around Thu, Mar 12, 2026 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 14 available can be backordered.
Disc Spring Washers - 28x12x1.25 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 28.00 mm (Equiv. 1.102 in.)	Nominal Inside Diameter (B) 12.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.472 in.)	Stock Thickness (C) 1.25 mm (Equiv. 0.049 in.)
Material: Carbon Steel Loaded Height (L1): 1.46 mm Load at L1: 208.0 kg Free Height (E): 2.10 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.85 mm
Part Number: W0120-D-028-013-C (PK-2) 14 units (28 pcs) Available Now \| Further orders can be expected around Thu, Mar 12, 2026 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 14 units (28 pcs) Available Now. Backorder if more than 14.
W0120-D-028-013-C (PK-2) --- Disc Spring Washers - 28x12x1.25 mm Standard - Carbon Steel Washer W0120-D-028-013-C (PK-2) --- Disc Spring Washers - 28x12x1.25 mm Standard - Carbon Steel Washer Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 14 Available Now
Disc Spring Washers - 31.5x16x0.8 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 31.50 mm (Equiv. 1.24 in.)	Nominal Inside Diameter (B) 16.00 mm _{+ 0.30 / - 0.00} (Equiv. 0.63 in.)	Stock Thickness (C) 0.80 mm (Equiv. 0.031 in.)		Loaded Height (L1) 1.06 mm	Load at L1 69.0 kg
Material: Carbon Steel Free Height (E): 1.85 mm Actual ID (Ref): 16.3 mm Inside Height (D): 1.05 mm Deleted Item. Available while stocks last.
Part Number: W0160-D-032-008-C (PK-5) 10 units (50 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.64 AUD Regular price ~~$10.45 AUD~~ Sale price $3.64 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 10 units (50 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 31.5x16x0.8 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 31.50 mm (Equiv. 1.24 in.)	Nominal Inside Diameter (B) 16.00 mm _{+ 0.30 / - 0.00} (Equiv. 0.63 in.)	Stock Thickness (C) 0.80 mm (Equiv. 0.031 in.)
Material: Carbon Steel Loaded Height (L1): 1.06 mm Load at L1: 69.0 kg Free Height (E): 1.85 mm Actual ID (Ref): 16.3 mm Inside Height (D): 1.05 mm Deleted Item. Available while stocks last.
Part Number: W0160-D-032-008-C (PK-5) 10 units (50 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.64 AUD Regular price ~~$10.45 AUD~~ Sale price $3.64 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 10 units (50 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0160-D-032-008-C (PK-5) --- Disc Spring Washers - 31.5x16x0.8 mm Standard - Carbon Steel Washer Sale W0160-D-032-008-C (PK-5) --- Disc Spring Washers - 31.5x16x0.8 mm Standard - Carbon Steel Washer Regular price $3.64 AUD Regular price ~~$10.45 AUD~~ Sale price $3.64 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 10 Available Now Sale
Disc Spring Washers - 31.5x16x1.25 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 31.50 mm (Equiv. 1.24 in.)	Nominal Inside Diameter (B) 16.00 mm _{+ 0.30 / - 0.00} (Equiv. 0.63 in.)	Stock Thickness (C) 1.25 mm (Equiv. 0.049 in.)		Loaded Height (L1) 1.48 mm	Load at L1 191.0 kg
Material: Carbon Steel Load at 0.75 Height: 212.1 Kg Free Height (E): 2.15 mm Actual ID (Ref): 16.3 mm Inside Height (D): 0.90 mm
Part Number: W0160-D-032-013-C (Each) 40 Available Now \| Further orders can be expected around Tue, Jan 20, 2026 Regular price $5.14 AUD Regular price ~~$8.82 AUD~~ Sale price $5.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 40 available can be backordered.
Disc Spring Washers - 31.5x16x1.25 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 31.50 mm (Equiv. 1.24 in.)	Nominal Inside Diameter (B) 16.00 mm _{+ 0.30 / - 0.00} (Equiv. 0.63 in.)	Stock Thickness (C) 1.25 mm (Equiv. 0.049 in.)
Material: Carbon Steel Loaded Height (L1): 1.48 mm Load at L1: 191.0 kg Load at 0.75 Height: 212.1 Kg Free Height (E): 2.15 mm Actual ID (Ref): 16.3 mm Inside Height (D): 0.90 mm
Part Number: W0160-D-032-013-C (Each) 40 Available Now \| Further orders can be expected around Tue, Jan 20, 2026 Regular price $5.14 AUD Regular price ~~$8.82 AUD~~ Sale price $5.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 40 Available Now. Backorder if more than 40.
W0160-D-032-013-C (Each) --- Disc Spring Washers - 31.5x16x1.25 mm Standard - Carbon Steel Washer Sale W0160-D-032-013-C (Each) --- Disc Spring Washers - 31.5x16x1.25 mm Standard - Carbon Steel Washer Regular price $5.14 AUD Regular price ~~$8.82 AUD~~ Sale price $5.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 40 Available Now Sale

Country/region

Small Parts & Bearings

Collection: Washers - Disc Spring - Standard - Carbon Steel

Category Details

Filter

Filter

Subscribe to our emails
