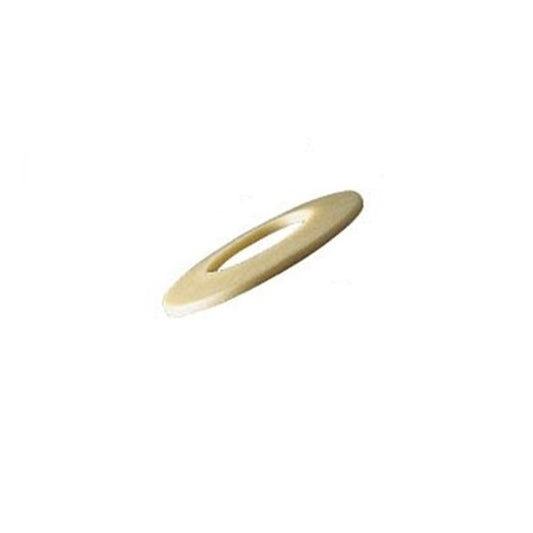

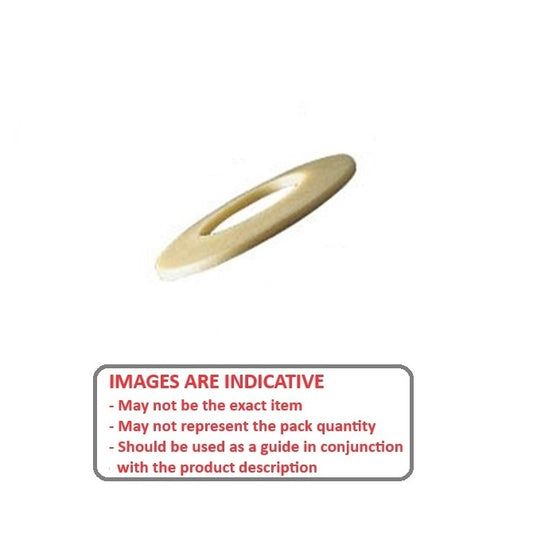

Washers - Disc Spring - Standard - Plastic

5 Products in this selection
  • Not for constant spring forces or when high forces are needed.
  • Provides flat spring characteristics and compensates for axial clearances and tolerances.
  • Vibration dampening and noise reduction.
  • Electrical and thermal insulation.
  • Non magnetic - Polysorb(R) material.
Additional resources:
Disc Spring Washers PDF
Screws
Nominal OD (A) Nominal ID (B) Thickness (t) Free Height (ho) Spring Force at 25 Percent Spring Force at 50 Percent Indicative
10.00
mm 		5.00
mm
+ 0.20 / - 0.00 		0.50
mm 		0.25
mm 		2.4
N 		2.4
N 		1090884 | W0050-D-010-005-P (50 Pcs) --- Disc Spring Washers - 10 mm x 5 mm x 0.5 mm
Material: Plastic    Spring Force at 75 Percent: 3.6 N    Spring Force at 100 Percent: 5.0 N    Actual ID (Ref): 5.2 mm
Part Number: W0050-D-010-005-P (50 Pcs) Disc Spring Washers - 10 mm x 5 mm x 0.5 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Wed, Feb 19, 2025
$23.68 AUD
$23.68 AUD
Per 50
View the product page first if you are unsure ->
Nominal OD (A) Nominal ID (B) Thickness (t) Free Height (ho) Indicative
10.00
mm 		5.00
mm
+ 0.20 / - 0.00 		0.50
mm 		0.25
mm 		1090884 | W0050-D-010-005-P (50 Pcs) --- Disc Spring Washers - 10 mm x 5 mm x 0.5 mm
Material: Plastic    Spring Force at 25 Percent: 2.4 N    Spring Force at 50 Percent: 2.4 N    Spring Force at 75 Percent: 3.6 N    Spring Force at 100 Percent: 5.0 N    Actual ID (Ref): 5.2 mm
Part Number: W0050-D-010-005-P (50 Pcs) Disc Spring Washers - 10 mm x 5 mm x 0.5 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Wed, Feb 19, 2025
$23.68 AUD
$23.68 AUD
Per 50
View the product page first if you are unsure.
12.50
mm 		6.00
mm
+ 0.20 / - 0.00 		0.70
mm 		0.30
mm 		3.0
N 		5.1
N 		1101616 | W0060-D-013-007-P (50 Pcs) --- Disc Spring Washers - 12.5 mm x 6 mm x 0.7 mm
Material: Plastic    Spring Force at 75 Percent: 8.0 N    Spring Force at 100 Percent: 12.0 N    Actual ID (Ref): 6.2 mm
Part Number: W0060-D-013-007-P (50 Pcs) Disc Spring Washers - 12.5 mm x 6 mm x 0.7 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Wed, Feb 19, 2025
$24.14 AUD
$24.14 AUD
Per 50
View the product page first if you are unsure ->
12.50
mm 		6.00
mm
+ 0.20 / - 0.00 		0.70
mm 		0.30
mm 		1101616 | W0060-D-013-007-P (50 Pcs) --- Disc Spring Washers - 12.5 mm x 6 mm x 0.7 mm
Material: Plastic    Spring Force at 25 Percent: 3.0 N    Spring Force at 50 Percent: 5.1 N    Spring Force at 75 Percent: 8.0 N    Spring Force at 100 Percent: 12.0 N    Actual ID (Ref): 6.2 mm
Part Number: W0060-D-013-007-P (50 Pcs) Disc Spring Washers - 12.5 mm x 6 mm x 0.7 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Wed, Feb 19, 2025
$24.14 AUD
$24.14 AUD
Per 50
View the product page first if you are unsure.
16.00
mm 		8.00
mm
+ 0.20 / - 0.00 		0.90
mm 		0.35
mm 		4.0
N 		8.0
N 		1114048 | W0080-D-016-009-P (100 Pcs) --- Disc Spring Washers - 16 mm x 8 mm x 0.9 mm
Material: Plastic    Spring Force at 75 Percent: 11.0 N    Spring Force at 100 Percent: 12.0 N    Actual ID (Ref): 8.2 mm
Part Number: W0080-D-016-009-P (100 Pcs) Disc Spring Washers - 16 mm x 8 mm x 0.9 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Wed, Feb 19, 2025
$52.50 AUD
$52.50 AUD
Per 100
View the product page first if you are unsure ->
16.00
mm 		8.00
mm
+ 0.20 / - 0.00 		0.90
mm 		0.35
mm 		1114048 | W0080-D-016-009-P (100 Pcs) --- Disc Spring Washers - 16 mm x 8 mm x 0.9 mm
Material: Plastic    Spring Force at 25 Percent: 4.0 N    Spring Force at 50 Percent: 8.0 N    Spring Force at 75 Percent: 11.0 N    Spring Force at 100 Percent: 12.0 N    Actual ID (Ref): 8.2 mm
Part Number: W0080-D-016-009-P (100 Pcs) Disc Spring Washers - 16 mm x 8 mm x 0.9 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Wed, Feb 19, 2025
$52.50 AUD
$52.50 AUD
Per 100
View the product page first if you are unsure.
20.00
mm 		10.00
mm
+ 0.20 / - 0.00 		1.10
mm 		0.45
mm 		5.0
N 		10.0
N 		1123638 | W0100-D-020-011-P (5 Pcs) --- Disc Spring Washers - 20 mm x 10 mm x 1.1 mm
Material: Plastic    Spring Force at 75 Percent: 15.0 N    Spring Force at 100 Percent: 18.0 N    Actual ID (Ref): 10.2 mm
Part Number: W0100-D-020-011-P (5 Pcs) Disc Spring Washers - 20 mm x 10 mm x 1.1 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Wed, Feb 19, 2025
$14.50 AUD
$14.50 AUD
Per 5
View the product page first if you are unsure ->
20.00
mm 		10.00
mm
+ 0.20 / - 0.00 		1.10
mm 		0.45
mm 		1123638 | W0100-D-020-011-P (5 Pcs) --- Disc Spring Washers - 20 mm x 10 mm x 1.1 mm
Material: Plastic    Spring Force at 25 Percent: 5.0 N    Spring Force at 50 Percent: 10.0 N    Spring Force at 75 Percent: 15.0 N    Spring Force at 100 Percent: 18.0 N    Actual ID (Ref): 10.2 mm
Part Number: W0100-D-020-011-P (5 Pcs) Disc Spring Washers - 20 mm x 10 mm x 1.1 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Wed, Feb 19, 2025
$14.50 AUD
$14.50 AUD
Per 5
View the product page first if you are unsure.
31.50
mm 		16.00
mm
+ 0.30 / - 0.00 		1.75
mm 		0.70
mm 		15.0
N 		32.0
N 		1143796 | W0160-D-032-018-P --- Disc Spring Washers - 31.5 mm x 16 mm x 1.75 mm
Material: Plastic    Spring Force at 75 Percent: 51.0 N    Spring Force at 100 Percent: 71.0 N    Actual ID (Ref): 16.3 mm
Part Number: W0160-D-032-018-P Disc Spring Washers - 31.5 mm x 16 mm x 1.75 mm
5 Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$14.00 AUD
$23.10 AUD $14.00 AUD
Each
31.50
mm 		16.00
mm
+ 0.30 / - 0.00 		1.75
mm 		0.70
mm 		1143796 | W0160-D-032-018-P --- Disc Spring Washers - 31.5 mm x 16 mm x 1.75 mm
Material: Plastic    Spring Force at 25 Percent: 15.0 N    Spring Force at 50 Percent: 32.0 N    Spring Force at 75 Percent: 51.0 N    Spring Force at 100 Percent: 71.0 N    Actual ID (Ref): 16.3 mm
Part Number: W0160-D-032-018-P Disc Spring Washers - 31.5 mm x 16 mm x 1.75 mm
5 Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$14.00 AUD
$23.10 AUD $14.00 AUD
Each
