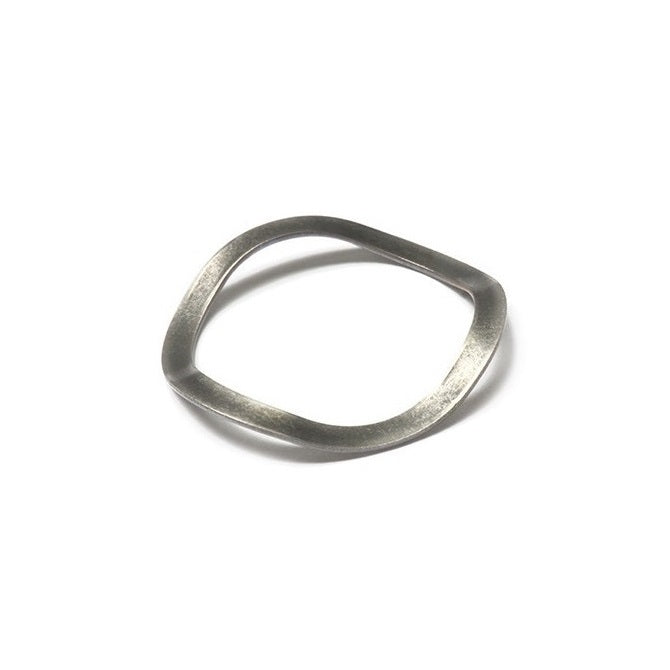

Spring Washers - 21x27x3.5 mm Wave - Carbon Spring Steel Self Finish Washer

Name: 1133660 | W0210-T-028-035-W3-C-ECO (Pack of 5) --- Spring Washers - 21x27x3.5 mm Wave - Carbon Spring Steel Self Finish Washer
Rating: 5.0 (1 reviews)

W0210-T-028-035-W3-C-ECO (Pack of 5)

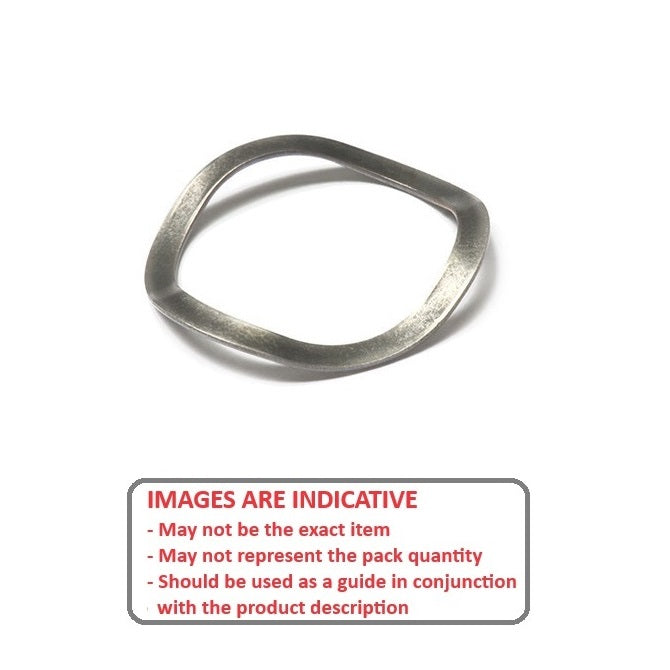

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Washers - Spring - Wave - Carbon Steel

Additional resources:
Assortment Kits
Screws

1 total reviews

Price:

$3.86 AUD

Priced, Stocked and Sold Per pack of 5

Excludes GST and overseas Taxes & Duties

Qty: 58 packs (290 pcs) available now

Order 50 or more packs of 5 (250 pcs)
for $3.47 AUD per 5 pack

Product Details

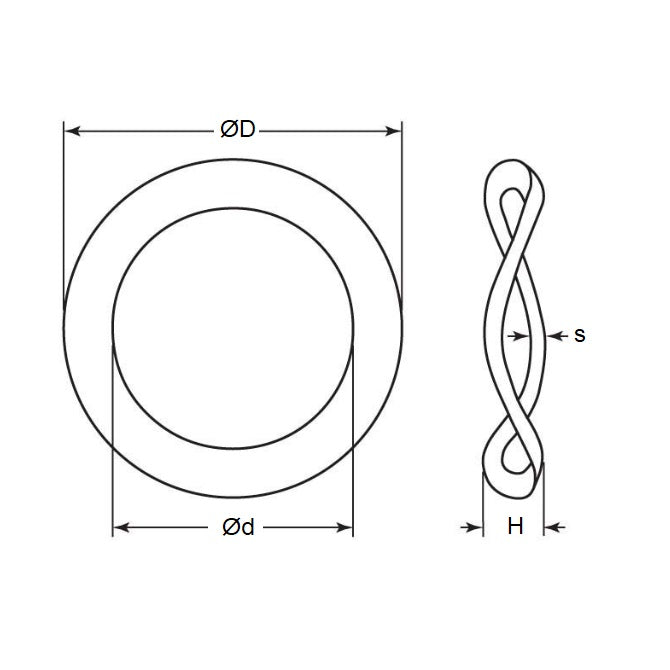

Nominal Inside Diameter (d): 21.00mm
_{+ 0.1 / + 0.7}
_{(21.00mm is 0.827 in.)}

Carbon Spring Steel Self Finish

Nominal Inside Diameter (d): 21.00mm
_{+ 0.1 / + 0.7}
_{(21.00mm is 0.827 in.)}
Nominal Outside Diameter (D): 27.00mm
_{- 0.1 / - 1.0}
_{(27.00mm is 1.063 in.)}
Nom. Height (H): 3.50mm
_{(3.50mm is 0.138 in.)}
Thickness (s): 0.30mm
Info: Suits OD of 638, 6001, 6902, and R8 Bearings
Type: 3 Wave
Nominal Screw Size: M21

Brand: MBA
Country of Origin: TW

Product Compliance and Data

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0210T028035W3CECO, W0210T028
