Collection: Washers - Spring - Wave - Carbon Steel

Washers -> Spring -> Wave -> Carbon Steel

There are 93 products in the sub-categories of Washers - Spring - Wave - Carbon Steel. Scroll down or follow the link to Washers - Spring - Wave - Carbon Steel in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Carbon Steel Wave Spring Washers. Cabon steel, 3, 4, and 5 wave selection. Also known as crinckle wave washers.

Spring washers are available in many different materials and types, including curved and waved series.
They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
An expanded range may be available on special order. Please enquire.
This category includes EPL type bearing pre-load washers.

Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found in the Washers - Spring - Wave - Carbon Steel category on the MBA Minibearings main store.

Nominal Inside Diameter (d)	Nominal Outside Diameter (D)	Nom. Height (H)	Thickness (s)	Info

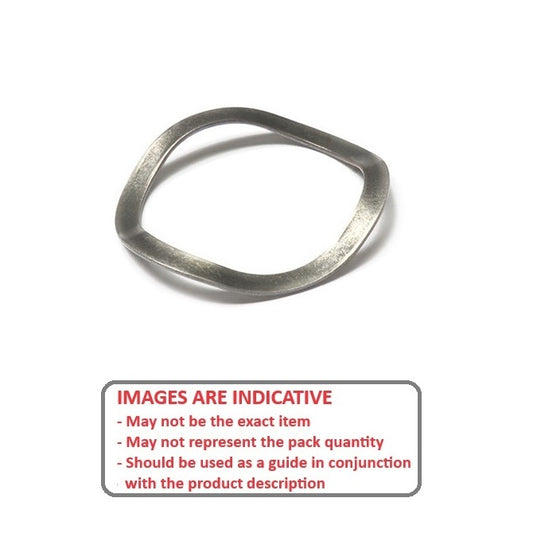

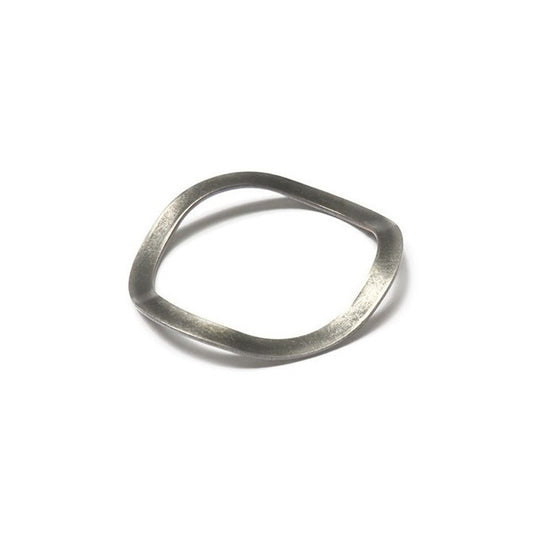

Spring Washers - 3x6x1 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 3.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 6.00 mm _{- 0.1 / - 0.7} (Equiv. 0.236 in.)	Nom. Height (H) 1.00 mm (Equiv. 0.039 in.)	Thickness (s) 0.25 mm	Info Suits OD of 601X, 601XA, 692, and 692A Bearings
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M3, 5-40, 5-44, 1/8
Part Number: W0030-T-006-010-W3-C-ECO (PK-50) 8 units (400 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 8 available can be backordered.
Nominal Inside Diameter (d)	Nominal Outside Diameter (D)	Nom. Height (H)	Thickness (s)	Indicative Image
Spring Washers - 3x6x1 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 3.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 6.00 mm _{- 0.1 / - 0.7} (Equiv. 0.236 in.)	Nom. Height (H) 1.00 mm (Equiv. 0.039 in.)	Thickness (s) 0.25 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 601X, 601XA, 692, and 692A Bearings Type: 3 Wave Nominal Screw Size: M3, 5-40, 5-44, 1/8
Part Number: W0030-T-006-010-W3-C-ECO (PK-50) 8 units (400 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required 8 units (400 pcs) Available Now. Backorder if more than 8.
W0030-T-006-010-W3-C-ECO (PK-50) --- Spring Washers - 3x6x1 mm Wave - Carbon Spring Steel Self Finish Washer W0030-T-006-010-W3-C-ECO (PK-50) --- Spring Washers - 3x6x1 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties 8 Available Now
Spring Washers - 4x8x1.5 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 4.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 8.00 mm _{- 0.1 / - 0.7} (Equiv. 0.315 in.)	Nom. Height (H) 1.50 mm (Equiv. 0.059 in.)	Thickness (s) 0.30 mm	Info Suits OD of 602X, and 602XA Bearings
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M4, 5/32
Part Number: W0040-T-008-015-W3-C-ECO (PK-50) 8 units (400 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 8 available can be backordered.
Spring Washers - 4x8x1.5 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 4.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 8.00 mm _{- 0.1 / - 0.7} (Equiv. 0.315 in.)	Nom. Height (H) 1.50 mm (Equiv. 0.059 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 602X, and 602XA Bearings Type: 3 Wave Nominal Screw Size: M4, 5/32
Part Number: W0040-T-008-015-W3-C-ECO (PK-50) 8 units (400 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required 8 units (400 pcs) Available Now. Backorder if more than 8.
W0040-T-008-015-W3-C-ECO (PK-50) --- Spring Washers - 4x8x1.5 mm Wave - Carbon Spring Steel Self Finish Washer W0040-T-008-015-W3-C-ECO (PK-50) --- Spring Washers - 4x8x1.5 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties 8 Available Now
Spring Washers - 4x10x1.1 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 4.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 10.00 mm _{- 0.3 / - 0.7} (Equiv. 0.394 in.)	Nom. Height (H) 1.10 mm (Equiv. 0.043 in.)	Thickness (s) 0.20 mm	Info Suits OD of 623 Bearings (Equiv EPL001)
Material: Carbon Spring Steel Self Finish Type: 2 Wave Nominal Screw Size: M4, 5/32 Spring Rate: 30 N/mm Load at Height: 1.4 N at 1 mm Ref.
Part Number: W0040-T-010-011-W2-C (PK-2) 92 units (184 pcs) Available Now \| Item Discontinued - Up to 92 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.77 AUD Regular price ~~$3.33 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 92 units (184 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Spring Washers - 4x10x1.1 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 4.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 10.00 mm _{- 0.3 / - 0.7} (Equiv. 0.394 in.)	Nom. Height (H) 1.10 mm (Equiv. 0.043 in.)	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 623 Bearings (Equiv EPL001) Type: 2 Wave Nominal Screw Size: M4, 5/32 Spring Rate: 30 N/mm Load at Height: 1.4 N at 1 mm Ref.
Part Number: W0040-T-010-011-W2-C (PK-2) 92 units (184 pcs) Available Now \| Item Discontinued - Up to 92 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.77 AUD Regular price ~~$3.33 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 92 units (184 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0040-T-010-011-W2-C (PK-2) --- Spring Washers - 4x10x1.1 mm Wave - Carbon Spring Steel Self Finish Washer Sale W0040-T-010-011-W2-C (PK-2) --- Spring Washers - 4x10x1.1 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $2.77 AUD Regular price ~~$3.33 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 92 Available Now Sale
Spring Washers - 6x12x1.5 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 6.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 12.00 mm _{- 0.1 / - 1.0} (Equiv. 0.472 in.)	Nom. Height (H) 1.50 mm (Equiv. 0.059 in.)	Thickness (s) 0.30 mm	Info Suits OD of 604 Bearings
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M6
Part Number: W0060-T-012-015-W3-C-ECO (PK-20) 20 units (400 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 20 available can be backordered.
Spring Washers - 6x12x1.5 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 6.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 12.00 mm _{- 0.1 / - 1.0} (Equiv. 0.472 in.)	Nom. Height (H) 1.50 mm (Equiv. 0.059 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 604 Bearings Type: 3 Wave Nominal Screw Size: M6
Part Number: W0060-T-012-015-W3-C-ECO (PK-20) 20 units (400 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 20 units (400 pcs) Available Now. Backorder if more than 20.
W0060-T-012-015-W3-C-ECO (PK-20) --- Spring Washers - 6x12x1.5 mm Wave - Carbon Spring Steel Self Finish Washer W0060-T-012-015-W3-C-ECO (PK-20) --- Spring Washers - 6x12x1.5 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties 20 Available Now
Spring Washers - 7x13x1.4 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 7.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.276 in.)	Nominal Outside Diameter (D) 13.00 mm _{- 0.3 / - 0.7} (Equiv. 0.512 in.)	Nom. Height (H) 1.40 mm (Equiv. 0.055 in.)	Thickness (s) 0.20 mm	Info Suits OD of 624 Bearings (Equiv EPL002)
Material: Carbon Spring Steel Self Finish Type: 2 Wave Nominal Screw Size: M7, 9/32 Spring Rate: 38 N/mm Load at Height: 1.7 N at 1 mm Ref.
Part Number: W0070-T-013-014-W2-C (Each) 200 Available Now \| Item Discontinued - Up to 200 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $1.41 AUD Regular price ~~$1.69 AUD~~ Sale price $1.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 200 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Spring Washers - 7x13x1.4 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 7.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.276 in.)	Nominal Outside Diameter (D) 13.00 mm _{- 0.3 / - 0.7} (Equiv. 0.512 in.)	Nom. Height (H) 1.40 mm (Equiv. 0.055 in.)	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 624 Bearings (Equiv EPL002) Type: 2 Wave Nominal Screw Size: M7, 9/32 Spring Rate: 38 N/mm Load at Height: 1.7 N at 1 mm Ref.
Part Number: W0070-T-013-014-W2-C (Each) 200 Available Now \| Item Discontinued - Up to 200 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $1.41 AUD Regular price ~~$1.69 AUD~~ Sale price $1.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 200 Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0070-T-013-014-W2-C (Each) --- Spring Washers - 7x13x1.4 mm Wave - Carbon Spring Steel Self Finish Washer Sale W0070-T-013-014-W2-C (Each) --- Spring Washers - 7x13x1.4 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $1.41 AUD Regular price ~~$1.69 AUD~~ Sale price $1.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 200 Available Now Sale
Spring Washers - 7.94x15.24x1.32 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 7.94 mm (Equiv. 0.313 in.)	Nominal Outside Diameter (D) 15.24 mm (Equiv. 0.6 in.)	Nom. Height (H) 1.32 mm (Equiv. 0.052 in.)	Thickness (s) 0.36 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M8, 5/16 Actual ID (Ref): 8.4 mm
Part Number: W0079-T-016-013-W3-C (PK-20) 42 units (840 pcs) Available Now \| Further orders can be expected around Sat, May 09, 2026 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 42 available can be backordered.
Spring Washers - 7.94x15.24x1.32 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 7.94 mm (Equiv. 0.313 in.)	Nominal Outside Diameter (D) 15.24 mm (Equiv. 0.6 in.)	Nom. Height (H) 1.32 mm (Equiv. 0.052 in.)	Thickness (s) 0.36 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M8, 5/16 Actual ID (Ref): 8.4 mm
Part Number: W0079-T-016-013-W3-C (PK-20) 42 units (840 pcs) Available Now \| Further orders can be expected around Sat, May 09, 2026 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 42 units (840 pcs) Available Now. Backorder if more than 42.
W0079-T-016-013-W3-C (PK-20) --- Spring Washers - 7.94x15.24x1.32 mm Wave - Carbon Spring Steel Self Finish Washer W0079-T-016-013-W3-C (PK-20) --- Spring Washers - 7.94x15.24x1.32 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties 42 Available Now
Spring Washers - 8x12x1.5 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 8.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 12.00 mm _{- 0.1 / - 1.0} (Equiv. 0.472 in.)	Nom. Height (H) 1.50 mm (Equiv. 0.059 in.)	Thickness (s) 0.30 mm	Info Suits OD of 604, MR126, and MR126A Bearings
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M8, 5/16
Part Number: W0080-T-012-015-W3-C-ECO (PK-20) 19 units (380 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 19 available can be backordered.
Spring Washers - 8x12x1.5 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 8.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 12.00 mm _{- 0.1 / - 1.0} (Equiv. 0.472 in.)	Nom. Height (H) 1.50 mm (Equiv. 0.059 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 604, MR126, and MR126A Bearings Type: 3 Wave Nominal Screw Size: M8, 5/16
Part Number: W0080-T-012-015-W3-C-ECO (PK-20) 19 units (380 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 19 units (380 pcs) Available Now. Backorder if more than 19.
W0080-T-012-015-W3-C-ECO (PK-20) --- Spring Washers - 8x12x1.5 mm Wave - Carbon Spring Steel Self Finish Washer W0080-T-012-015-W3-C-ECO (PK-20) --- Spring Washers - 8x12x1.5 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties 19 Available Now

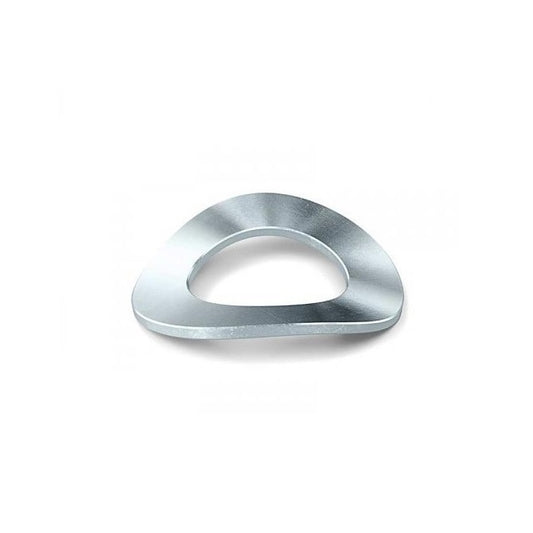

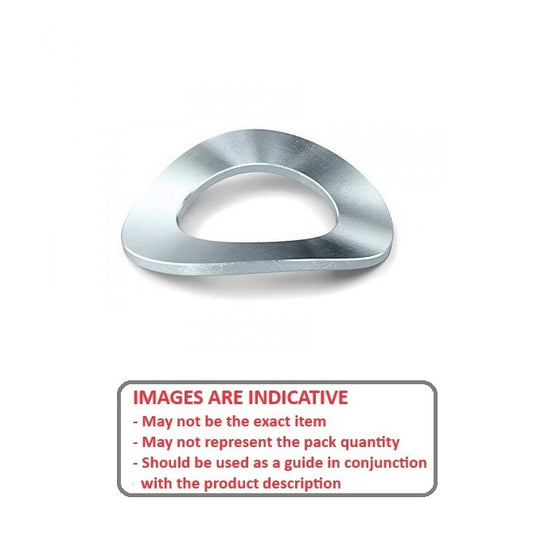

Spring Washers - 8x15x1.5 mm Wave - Carbon Spring Steel Zinc Plated Washer
Nominal Inside Diameter (d) 8.00 mm _{+ 0.36} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 15.00 mm _{+/- 0.55} (Equiv. 0.591 in.)	Nom. Height (H) 1.50 mm (Equiv. 0.059 in.)	Thickness (s) 0.80 mm +/- 0.06
Material: Carbon Spring Steel Zinc Plated Type: 2 Wave Din 137 Type B Nominal Screw Size: M8, 5/16 Actual ID (Ref): 8.4 mm Deleted Item. Available while stocks last.
Part Number: W0080-T-016-015-W2-CZ (PK-95) 1 pack (95 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $9.00 AUD Regular price ~~$17.10 AUD~~ Sale price $9.00 AUD Unit price per Priced, Stocked and Sold Per 95 Units Excludes GST and overseas Taxes & Duties Quantity Required 1 pack (95 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Spring Washers - 8x15x1.5 mm Wave - Carbon Spring Steel Zinc Plated Washer
Nominal Inside Diameter (d) 8.00 mm _{+ 0.36} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 15.00 mm _{+/- 0.55} (Equiv. 0.591 in.)	Nom. Height (H) 1.50 mm (Equiv. 0.059 in.)	Thickness (s) 0.80 mm +/- 0.06
Material: Carbon Spring Steel Zinc Plated Type: 2 Wave Din 137 Type B Nominal Screw Size: M8, 5/16 Actual ID (Ref): 8.4 mm Deleted Item. Available while stocks last.
Part Number: W0080-T-016-015-W2-CZ (PK-95) 1 pack (95 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $9.00 AUD Regular price ~~$17.10 AUD~~ Sale price $9.00 AUD Unit price per Priced, Stocked and Sold Per 95 Units Excludes GST and overseas Taxes & Duties Quantity Required 1 pack (95 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0080-T-016-015-W2-CZ (PK-95) --- Spring Washers - 8x15x1.5 mm Wave - Carbon Spring Steel Zinc Plated Washer Sale W0080-T-016-015-W2-CZ (PK-95) --- Spring Washers - 8x15x1.5 mm Wave - Carbon Spring Steel Zinc Plated Washer Regular price $9.00 AUD Regular price ~~$17.10 AUD~~ Sale price $9.00 AUD Unit price per Priced, Stocked and Sold Per 95 Units Excludes GST and overseas Taxes & Duties 1 Available Now Sale
Spring Washers - 10x15x2 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 10.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 15.00 mm _{- 0.1 / - 1.0} (Equiv. 0.591 in.)	Nom. Height (H) 2.00 mm (Equiv. 0.079 in.)	Thickness (s) 0.30 mm	Info Suits OD of 696 Bearings
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M10, 3/8
Part Number: W0100-T-015-020-W3-C-ECO (PK-20) 20 units (400 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 20 available can be backordered.
Spring Washers - 10x15x2 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 10.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 15.00 mm _{- 0.1 / - 1.0} (Equiv. 0.591 in.)	Nom. Height (H) 2.00 mm (Equiv. 0.079 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 696 Bearings Type: 3 Wave Nominal Screw Size: M10, 3/8
Part Number: W0100-T-015-020-W3-C-ECO (PK-20) 20 units (400 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 20 units (400 pcs) Available Now. Backorder if more than 20.
W0100-T-015-020-W3-C-ECO (PK-20) --- Spring Washers - 10x15x2 mm Wave - Carbon Spring Steel Self Finish Washer W0100-T-015-020-W3-C-ECO (PK-20) --- Spring Washers - 10x15x2 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties 20 Available Now
Spring Washers - 10x16x1.2 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 10.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 16.00 mm _{- 0.3 / - 0.7} (Equiv. 0.63 in.)	Nom. Height (H) 1.20 mm (Equiv. 0.047 in.)	Thickness (s) 0.15 mm	Info Suits OD of 625, and 634 Bearings (Equiv EPL004)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M10, 3/8 Spring Rate: 38 N/mm Actual ID (Ref): 10.5 mm Load at Height: 1.7 N at 1 mm Ref.
Part Number: W0100-T-016-012-W3-C (Each) 374 Available Now \| Item Discontinued - Up to 374 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $1.41 AUD Regular price ~~$1.69 AUD~~ Sale price $1.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 374 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Spring Washers - 10x16x1.2 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 10.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 16.00 mm _{- 0.3 / - 0.7} (Equiv. 0.63 in.)	Nom. Height (H) 1.20 mm (Equiv. 0.047 in.)	Thickness (s) 0.15 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 625, and 634 Bearings (Equiv EPL004) Type: 3 Wave Nominal Screw Size: M10, 3/8 Spring Rate: 38 N/mm Actual ID (Ref): 10.5 mm Load at Height: 1.7 N at 1 mm Ref.
Part Number: W0100-T-016-012-W3-C (Each) 374 Available Now \| Item Discontinued - Up to 374 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $1.41 AUD Regular price ~~$1.69 AUD~~ Sale price $1.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 374 Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0100-T-016-012-W3-C (Each) --- Spring Washers - 10x16x1.2 mm Wave - Carbon Spring Steel Self Finish Washer Sale W0100-T-016-012-W3-C (Each) --- Spring Washers - 10x16x1.2 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $1.41 AUD Regular price ~~$1.69 AUD~~ Sale price $1.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 374 Available Now Sale
Spring Washers - 10x16x1.3 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 10.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 16.00 mm _{- 0.3 / - 0.7} (Equiv. 0.63 in.)	Nom. Height (H) 1.30 mm (Equiv. 0.051 in.)	Thickness (s) 0.15 mm	Info Suits OD of 625, and 634 Bearings (Equiv EPL005)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M10, 3/8 Spring Rate: 38 N/mm Load at Height: 2.1 N at 1 mm Ref.
Part Number: W0100-T-016-013-W3-C (PK-2) 47 units (94 pcs) Available Now \| Item Discontinued - Up to 47 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.77 AUD Regular price ~~$3.33 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 47 units (94 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Spring Washers - 10x16x1.3 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 10.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 16.00 mm _{- 0.3 / - 0.7} (Equiv. 0.63 in.)	Nom. Height (H) 1.30 mm (Equiv. 0.051 in.)	Thickness (s) 0.15 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 625, and 634 Bearings (Equiv EPL005) Type: 3 Wave Nominal Screw Size: M10, 3/8 Spring Rate: 38 N/mm Load at Height: 2.1 N at 1 mm Ref.
Part Number: W0100-T-016-013-W3-C (PK-2) 47 units (94 pcs) Available Now \| Item Discontinued - Up to 47 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.77 AUD Regular price ~~$3.33 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 47 units (94 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0100-T-016-013-W3-C (PK-2) --- Spring Washers - 10x16x1.3 mm Wave - Carbon Spring Steel Self Finish Washer Sale W0100-T-016-013-W3-C (PK-2) --- Spring Washers - 10x16x1.3 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $2.77 AUD Regular price ~~$3.33 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 47 Available Now Sale
Spring Washers - 10.65x14.5x2 mm Wave - Carbon Spring Steel - Phosphate Coated Washer
Nominal Inside Diameter (d) 10.65 mm _{+0.0 / +0.5} (Equiv. 0.419 in.)	Nominal Outside Diameter (D) 14.50 mm _{+0.0 / -0.5} (Equiv. 0.571 in.)	Nom. Height (H) 2.00 mm (Equiv. 0.079 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel - Phosphate Coated Type: 3 Wave Nominal Screw Size: M10, 3/8
Part Number: W0107-T-015-020-W3-C (Each) 20 Available Now \| Further orders can be expected around Thu, Apr 02, 2026 Regular price $0.59 AUD Regular price Sale price $0.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 20 available can be backordered.
Spring Washers - 10.65x14.5x2 mm Wave - Carbon Spring Steel - Phosphate Coated Washer
Nominal Inside Diameter (d) 10.65 mm _{+0.0 / +0.5} (Equiv. 0.419 in.)	Nominal Outside Diameter (D) 14.50 mm _{+0.0 / -0.5} (Equiv. 0.571 in.)	Nom. Height (H) 2.00 mm (Equiv. 0.079 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel - Phosphate Coated Type: 3 Wave Nominal Screw Size: M10, 3/8
Part Number: W0107-T-015-020-W3-C (Each) 20 Available Now \| Further orders can be expected around Thu, Apr 02, 2026 Regular price $0.59 AUD Regular price Sale price $0.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 20 Available Now. Backorder if more than 20.
W0107-T-015-020-W3-C (Each) --- Spring Washers - 10.65x14.5x2 mm Wave - Carbon Spring Steel - Phosphate Coated Washer W0107-T-015-020-W3-C (Each) --- Spring Washers - 10.65x14.5x2 mm Wave - Carbon Spring Steel - Phosphate Coated Washer Regular price $0.59 AUD Regular price Sale price $0.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 20 Available Now
Spring Washers - 12x18x2.5 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 12.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.472 in.)	Nominal Outside Diameter (D) 18.00 mm _{- 0.1 / - 1.0} (Equiv. 0.709 in.)	Nom. Height (H) 2.50 mm (Equiv. 0.098 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M12
Part Number: W0120-T-018-025-W3-C-ECO (PK-10) 40 units (400 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $3.05 AUD Regular price Sale price $3.05 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 40 available can be backordered.
Spring Washers - 12x18x2.5 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 12.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.472 in.)	Nominal Outside Diameter (D) 18.00 mm _{- 0.1 / - 1.0} (Equiv. 0.709 in.)	Nom. Height (H) 2.50 mm (Equiv. 0.098 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M12
Part Number: W0120-T-018-025-W3-C-ECO (PK-10) 40 units (400 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $3.05 AUD Regular price Sale price $3.05 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 40 units (400 pcs) Available Now. Backorder if more than 40.
W0120-T-018-025-W3-C-ECO (PK-10) --- Spring Washers - 12x18x2.5 mm Wave - Carbon Spring Steel Self Finish Washer W0120-T-018-025-W3-C-ECO (PK-10) --- Spring Washers - 12x18x2.5 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $3.05 AUD Regular price Sale price $3.05 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 40 Available Now
Spring Washers - 12x19x1.5 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 12.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.472 in.)	Nominal Outside Diameter (D) 19.00 mm _{- 0.7 / - 1.0} (Equiv. 0.748 in.)	Nom. Height (H) 1.50 mm (Equiv. 0.059 in.)	Thickness (s) 0.20 mm	Info Suits OD of 607, 626, and 635 Bearings (Equiv EPL008)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M12 Spring Rate: 29 N/mm Load at Height: 2.6 N at 1 mm Ref.
Part Number: W0120-T-019-015-W3-C (PK-2) 110 units (220 pcs) Available Now \| Item Discontinued - Up to 110 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.77 AUD Regular price ~~$3.33 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 110 units (220 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Spring Washers - 12x19x1.5 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 12.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.472 in.)	Nominal Outside Diameter (D) 19.00 mm _{- 0.7 / - 1.0} (Equiv. 0.748 in.)	Nom. Height (H) 1.50 mm (Equiv. 0.059 in.)	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 607, 626, and 635 Bearings (Equiv EPL008) Type: 3 Wave Nominal Screw Size: M12 Spring Rate: 29 N/mm Load at Height: 2.6 N at 1 mm Ref.
Part Number: W0120-T-019-015-W3-C (PK-2) 110 units (220 pcs) Available Now \| Item Discontinued - Up to 110 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.77 AUD Regular price ~~$3.33 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 110 units (220 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0120-T-019-015-W3-C (PK-2) --- Spring Washers - 12x19x1.5 mm Wave - Carbon Spring Steel Self Finish Washer Sale W0120-T-019-015-W3-C (PK-2) --- Spring Washers - 12x19x1.5 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $2.77 AUD Regular price ~~$3.33 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 110 Available Now Sale
Spring Washers - 12.7x19.05x1.27 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 12.70 mm (Equiv. 0.5 in.)	Nominal Outside Diameter (D) 19.05 mm (Equiv. 0.75 in.)	Nom. Height (H) 1.27 mm (Equiv. 0.05 in.)	Thickness (s) 0.23 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M12 , 1/2 Actual ID (Ref): 13.5 mm Additional stock available from USA subject to Prior Sale = 10131
Part Number: W0127-T-020-013-W3-C (Each) 1210 Available Now \| Further orders can be expected around Fri, Apr 17, 2026 Regular price $1.68 AUD Regular price Sale price $1.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 1210 available can be backordered.
Spring Washers - 12.7x19.05x1.27 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 12.70 mm (Equiv. 0.5 in.)	Nominal Outside Diameter (D) 19.05 mm (Equiv. 0.75 in.)	Nom. Height (H) 1.27 mm (Equiv. 0.05 in.)	Thickness (s) 0.23 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M12 , 1/2 Actual ID (Ref): 13.5 mm Additional stock available from USA subject to Prior Sale = 10131
Part Number: W0127-T-020-013-W3-C (Each) 1210 Available Now \| Further orders can be expected around Fri, Apr 17, 2026 Regular price $1.68 AUD Regular price Sale price $1.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1210 Available Now. Backorder if more than 1210.
W0127-T-020-013-W3-C (Each) --- Spring Washers - 12.7x19.05x1.27 mm Wave - Carbon Spring Steel Self Finish Washer W0127-T-020-013-W3-C (Each) --- Spring Washers - 12.7x19.05x1.27 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $1.68 AUD Regular price Sale price $1.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 1210 Available Now
Spring Washers - 14x18x2 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 14.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.551 in.)	Nominal Outside Diameter (D) 18.00 mm _{- 0.1 / - 1.0} (Equiv. 0.709 in.)	Nom. Height (H) 2.00 mm (Equiv. 0.079 in.)	Thickness (s) 0.30 mm	Info Suits OD of 6701, and 6701A Bearings
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M14, 9/16
Part Number: W0140-T-018-020-W3-C-ECO (PK-10) 38 units (380 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 38 available can be backordered.
Spring Washers - 14x18x2 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 14.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.551 in.)	Nominal Outside Diameter (D) 18.00 mm _{- 0.1 / - 1.0} (Equiv. 0.709 in.)	Nom. Height (H) 2.00 mm (Equiv. 0.079 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 6701, and 6701A Bearings Type: 3 Wave Nominal Screw Size: M14, 9/16
Part Number: W0140-T-018-020-W3-C-ECO (PK-10) 38 units (380 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 38 units (380 pcs) Available Now. Backorder if more than 38.
W0140-T-018-020-W3-C-ECO (PK-10) --- Spring Washers - 14x18x2 mm Wave - Carbon Spring Steel Self Finish Washer W0140-T-018-020-W3-C-ECO (PK-10) --- Spring Washers - 14x18x2 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 38 Available Now
Spring Washers - 14x21x1.8 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 14.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.551 in.)	Nominal Outside Diameter (D) 21.00 mm _{- 0.7 / - 1.0} (Equiv. 0.827 in.)	Nom. Height (H) 1.80 mm (Equiv. 0.071 in.)	Thickness (s) 0.20 mm	Info Equiv EPL010
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M14, 9/16 Spring Rate: 29 N/mm Load at Height: 2.6 N at 1 mm Ref.
Part Number: W0140-T-021-018-W3-C (PK-2) 344 units (688 pcs) Available Now \| Item Discontinued - Up to 344 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.77 AUD Regular price ~~$3.33 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 344 units (688 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Spring Washers - 14x21x1.8 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 14.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.551 in.)	Nominal Outside Diameter (D) 21.00 mm _{- 0.7 / - 1.0} (Equiv. 0.827 in.)	Nom. Height (H) 1.80 mm (Equiv. 0.071 in.)	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Equiv EPL010 Type: 3 Wave Nominal Screw Size: M14, 9/16 Spring Rate: 29 N/mm Load at Height: 2.6 N at 1 mm Ref.
Part Number: W0140-T-021-018-W3-C (PK-2) 344 units (688 pcs) Available Now \| Item Discontinued - Up to 344 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.77 AUD Regular price ~~$3.33 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 344 units (688 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0140-T-021-018-W3-C (PK-2) --- Spring Washers - 14x21x1.8 mm Wave - Carbon Spring Steel Self Finish Washer Sale W0140-T-021-018-W3-C (PK-2) --- Spring Washers - 14x21x1.8 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $2.77 AUD Regular price ~~$3.33 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 344 Available Now Sale
Spring Washers - 14x21x2.5 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 14.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.551 in.)	Nominal Outside Diameter (D) 21.00 mm _{- 0.1 / - 1.0} (Equiv. 0.827 in.)	Nom. Height (H) 2.50 mm (Equiv. 0.098 in.)	Thickness (s) 0.30 mm	Info Suits OD of 6801, 6801A, and 6801B Bearings
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M14, 9/16
Part Number: W0140-T-021-025-W3-C-ECO (PK-10) 40 units (400 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $4.05 AUD Regular price Sale price $4.05 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 40 available can be backordered.
Spring Washers - 14x21x2.5 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 14.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.551 in.)	Nominal Outside Diameter (D) 21.00 mm _{- 0.1 / - 1.0} (Equiv. 0.827 in.)	Nom. Height (H) 2.50 mm (Equiv. 0.098 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 6801, 6801A, and 6801B Bearings Type: 3 Wave Nominal Screw Size: M14, 9/16
Part Number: W0140-T-021-025-W3-C-ECO (PK-10) 40 units (400 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $4.05 AUD Regular price Sale price $4.05 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 40 units (400 pcs) Available Now. Backorder if more than 40.
W0140-T-021-025-W3-C-ECO (PK-10) --- Spring Washers - 14x21x2.5 mm Wave - Carbon Spring Steel Self Finish Washer W0140-T-021-025-W3-C-ECO (PK-10) --- Spring Washers - 14x21x2.5 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $4.05 AUD Regular price Sale price $4.05 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 40 Available Now
Spring Washers - 15x22x2.1 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 15.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.591 in.)	Nominal Outside Diameter (D) 22.00 mm _{- 0.7 / - 1.0} (Equiv. 0.866 in.)	Nom. Height (H) 2.10 mm (Equiv. 0.083 in.)	Thickness (s) 0.20 mm	Info Suits OD of 608, and 627, and E7 Bearings (Equiv EPL012)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M15 Spring Rate: 34 N/mm Load at Height: 3.1 N at 1 mm Ref.
Part Number: W0150-T-022-021-W3-C (Each) 254 Available Now \| Item Discontinued - Up to 254 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $1.41 AUD Regular price ~~$1.69 AUD~~ Sale price $1.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 254 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Spring Washers - 15x22x2.1 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 15.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.591 in.)	Nominal Outside Diameter (D) 22.00 mm _{- 0.7 / - 1.0} (Equiv. 0.866 in.)	Nom. Height (H) 2.10 mm (Equiv. 0.083 in.)	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 608, and 627, and E7 Bearings (Equiv EPL012) Type: 3 Wave Nominal Screw Size: M15 Spring Rate: 34 N/mm Load at Height: 3.1 N at 1 mm Ref.
Part Number: W0150-T-022-021-W3-C (Each) 254 Available Now \| Item Discontinued - Up to 254 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $1.41 AUD Regular price ~~$1.69 AUD~~ Sale price $1.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 254 Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0150-T-022-021-W3-C (Each) --- Spring Washers - 15x22x2.1 mm Wave - Carbon Spring Steel Self Finish Washer Sale W0150-T-022-021-W3-C (Each) --- Spring Washers - 15x22x2.1 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $1.41 AUD Regular price ~~$1.69 AUD~~ Sale price $1.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 254 Available Now Sale
Spring Washers - 15.88x22.23x1.52 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 15.88 mm (Equiv. 0.625 in.)	Nominal Outside Diameter (D) 22.23 mm (Equiv. 0.875 in.)	Nom. Height (H) 1.52 mm (Equiv. 0.06 in.)	Thickness (s) 0.25 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: 5/8
Part Number: W0159-T-023-015-W3-C (PK-5) 268 units (1340 pcs) Available Now \| Further orders can be expected around Fri, May 22, 2026 Regular price $1.05 AUD Regular price ~~$1.25 AUD~~ Sale price $1.05 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 268 available can be backordered.
Spring Washers - 15.88x22.23x1.52 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 15.88 mm (Equiv. 0.625 in.)	Nominal Outside Diameter (D) 22.23 mm (Equiv. 0.875 in.)	Nom. Height (H) 1.52 mm (Equiv. 0.06 in.)	Thickness (s) 0.25 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: 5/8
Part Number: W0159-T-023-015-W3-C (PK-5) 268 units (1340 pcs) Available Now \| Further orders can be expected around Fri, May 22, 2026 Regular price $1.05 AUD Regular price ~~$1.25 AUD~~ Sale price $1.05 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 268 units (1340 pcs) Available Now. Backorder if more than 268.
W0159-T-023-015-W3-C (PK-5) --- Spring Washers - 15.88x22.23x1.52 mm Wave - Carbon Spring Steel Self Finish Washer Sale W0159-T-023-015-W3-C (PK-5) --- Spring Washers - 15.88x22.23x1.52 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $1.05 AUD Regular price ~~$1.25 AUD~~ Sale price $1.05 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 268 Available Now Sale
Spring Washers - 16x21x3.5 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 16.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.63 in.)	Nominal Outside Diameter (D) 21.00 mm _{- 0.1 / - 1.0} (Equiv. 0.827 in.)	Nom. Height (H) 3.50 mm (Equiv. 0.138 in.)	Thickness (s) 0.30 mm	Info Suits OD of 6801, 6801A, 6801B, and 6801C Bearings
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M16, 5/8
Part Number: W0160-T-021-035-W3-C-ECO (PK-10) 40 units (400 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 40 available can be backordered.
Spring Washers - 16x21x3.5 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 16.00 mm _{+ 0.1 / + 0.7} (Equiv. 0.63 in.)	Nominal Outside Diameter (D) 21.00 mm _{- 0.1 / - 1.0} (Equiv. 0.827 in.)	Nom. Height (H) 3.50 mm (Equiv. 0.138 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 6801, 6801A, 6801B, and 6801C Bearings Type: 3 Wave Nominal Screw Size: M16, 5/8
Part Number: W0160-T-021-035-W3-C-ECO (PK-10) 40 units (400 pcs) Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 40 units (400 pcs) Available Now. Backorder if more than 40.
W0160-T-021-035-W3-C-ECO (PK-10) --- Spring Washers - 16x21x3.5 mm Wave - Carbon Spring Steel Self Finish Washer W0160-T-021-035-W3-C-ECO (PK-10) --- Spring Washers - 16x21x3.5 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 40 Available Now
Spring Washers - 16x22x2.8 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 16.00 mm (Equiv. 0.63 in.)	Nominal Outside Diameter (D) 22.00 mm _{- 0.4 / - 1.0} (Equiv. 0.866 in.)	Nom. Height (H) 2.80 mm (Equiv. 0.11 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave With Split Nominal Screw Size: M16, 5/8 Additional stock available from USA subject to Prior Sale = 3000
Part Number: W0160-T-022-028-W3S-C (Each) 50 Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $11.05 AUD Regular price ~~$13.25 AUD~~ Sale price $11.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 50 available can be backordered.
Spring Washers - 16x22x2.8 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 16.00 mm (Equiv. 0.63 in.)	Nominal Outside Diameter (D) 22.00 mm _{- 0.4 / - 1.0} (Equiv. 0.866 in.)	Nom. Height (H) 2.80 mm (Equiv. 0.11 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave With Split Nominal Screw Size: M16, 5/8 Additional stock available from USA subject to Prior Sale = 3000
Part Number: W0160-T-022-028-W3S-C (Each) 50 Available Now \| Further orders can be expected around Tue, Mar 24, 2026 Regular price $11.05 AUD Regular price ~~$13.25 AUD~~ Sale price $11.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 50 Available Now. Backorder if more than 50.
W0160-T-022-028-W3S-C (Each) --- Spring Washers - 16x22x2.8 mm Wave - Carbon Spring Steel Self Finish Washer Sale W0160-T-022-028-W3S-C (Each) --- Spring Washers - 16x22x2.8 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $11.05 AUD Regular price ~~$13.25 AUD~~ Sale price $11.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 50 Available Now Sale
Spring Washers - 16x24x2.2 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 16.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.63 in.)	Nominal Outside Diameter (D) 24.00 mm _{- 0.7 / - 1.0} (Equiv. 0.945 in.)	Nom. Height (H) 2.20 mm (Equiv. 0.087 in.)	Thickness (s) 0.20 mm	Info Suits OD of 609, and E8 Bearing (Equiv EPL013)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M16, 5/8 Spring Rate: 23 N/mm Load at Height: 3.2 N at 1.5 mm Ref.
Part Number: W0160-T-024-022-W3-C (PK-2) 12 units (24 pcs) Available Now \| Item Discontinued - Up to 12 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.77 AUD Regular price ~~$3.33 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 12 units (24 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Spring Washers - 16x24x2.2 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 16.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.63 in.)	Nominal Outside Diameter (D) 24.00 mm _{- 0.7 / - 1.0} (Equiv. 0.945 in.)	Nom. Height (H) 2.20 mm (Equiv. 0.087 in.)	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 609, and E8 Bearing (Equiv EPL013) Type: 3 Wave Nominal Screw Size: M16, 5/8 Spring Rate: 23 N/mm Load at Height: 3.2 N at 1.5 mm Ref.
Part Number: W0160-T-024-022-W3-C (PK-2) 12 units (24 pcs) Available Now \| Item Discontinued - Up to 12 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.77 AUD Regular price ~~$3.33 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 12 units (24 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0160-T-024-022-W3-C (PK-2) --- Spring Washers - 16x24x2.2 mm Wave - Carbon Spring Steel Self Finish Washer Sale W0160-T-024-022-W3-C (PK-2) --- Spring Washers - 16x24x2.2 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $2.77 AUD Regular price ~~$3.33 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 12 Available Now Sale
Spring Washers - 17.46x23.81x2.3 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 17.46 mm (Equiv. 0.687 in.)	Nominal Outside Diameter (D) 23.81 mm (Equiv. 0.937 in.)	Nom. Height (H) 2.30 mm (Equiv. 0.091 in.)	Thickness (s) 0.25 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: 11/16 Additional stock available from USA subject to Prior Sale = 54108
Part Number: W0175-T-024-023-W3-C (Each) 21 Available Now \| Further orders can be expected around Fri, Apr 17, 2026 Regular price $0.50 AUD Regular price Sale price $0.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 21 available can be backordered.
Spring Washers - 17.46x23.81x2.3 mm Wave - Carbon Spring Steel Self Finish Washer
Nominal Inside Diameter (d) 17.46 mm (Equiv. 0.687 in.)	Nominal Outside Diameter (D) 23.81 mm (Equiv. 0.937 in.)	Nom. Height (H) 2.30 mm (Equiv. 0.091 in.)	Thickness (s) 0.25 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: 11/16 Additional stock available from USA subject to Prior Sale = 54108
Part Number: W0175-T-024-023-W3-C (Each) 21 Available Now \| Further orders can be expected around Fri, Apr 17, 2026 Regular price $0.50 AUD Regular price Sale price $0.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 21 Available Now. Backorder if more than 21.
W0175-T-024-023-W3-C (Each) --- Spring Washers - 17.46x23.81x2.3 mm Wave - Carbon Spring Steel Self Finish Washer W0175-T-024-023-W3-C (Each) --- Spring Washers - 17.46x23.81x2.3 mm Wave - Carbon Spring Steel Self Finish Washer Regular price $0.50 AUD Regular price Sale price $0.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 21 Available Now

Country/region

Small Parts & Bearings

Collection: Washers - Spring - Wave - Carbon Steel

Category Details

Filter

Filter

Subscribe to our emails
